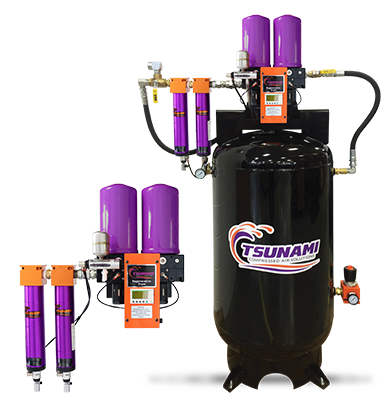

Tsunami Ultra-10 Series
40 CFM Compressed Air Dryer
Regenerative Desiccant
The Ultra-10 Series Regenerative Dryer is rated for 40 CFM airflow, and fitted for 10 Hp compressors. The Ultra-10 system uses a Programmable Logic Controller (PLC) to cycle the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.
![tsunami 50 cfm air package card flip](https://www.gosuburban.com/hubfs/tsunami%2050%20cfm%20air%20package%20card%20flip.jpg)
Tsunami Pre Filtration
Tsunami pre-filtration includes the water separator and oil coalescing filter to remove liquid water, bulk oils and particulate.
![tsunami PLC box card flip](https://www.gosuburban.com/hs-fs/hubfs/tsunami%20PLC%20box%20card%20flip.jpg?width=400&height=250&name=tsunami%20PLC%20box%20card%20flip.jpg)

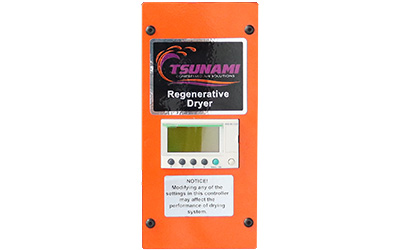

PLC Controller
The Programmable Logic Controller cycles the dryers and pneumatic drains - optimizing efficiency and allowing for dryer expansion.
![tsunami ultra series expandable card flip](https://www.gosuburban.com/hs-fs/hubfs/tsunami%20ultra%20series%20expandable%20card%20flip.jpg?width=400&height=250&name=tsunami%20ultra%20series%20expandable%20card%20flip.jpg)

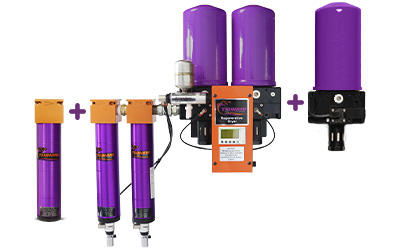

Factory Expandable
Ultra Series Dryers are factory expandable. Increase the dryer capacity as your business's air demands increase.
On mobile, select the drop down arrow to view additional tabs.
Features:
-
2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
-
Molecular Sieve Desiccant
-
Programmable Logic Controller
-
Automatic Pneumatic Drains
-
Purge Exhaust Mufflers
-
Wall Mounting Brackets
-
Optional: C1D2 Compatible for hazardous locations
-
Heater pads available for cold temp applications
-
80-Gallon Storage Tank & Outlet Regulator (for tank models)
-
3-Year Standard Warranty
Benefits:
Dryer Performance:
-
Low relative humidity - down to .01% RH
-
Dew points down to -80°F
-
Easy, low-cost maintenance - under $100/year average
Filter Performance:
1st Stage Water Separator:
- Removes liquid water
- Filters particulate down to 10 micron
2nd Stage Oil Coalescing Filter:
- Removes bulk oils and aerosols
- Filters particulate down to .01 micron
Min/Max Air Inlet Temperature: 150°F
Min/Max Operating Pressure: 80/175 PSI
Power Requirement: 120V
Rated For 10 Hp Compressors
Water Separator Replacement Element: #21999-0228
Oil Coalescing Filter Replacement Element: #21999-0202-Z-SP
Air Consumption Averages and Cycle Time
Item # | # of Towers | Orifice | CFM Consumption | Cycle Time | Tower Drying Time | # of Towers Drying | # of Towers Regen. |
21999-0710 | 2 | .030" | 2.2 | 2 min | 120 sec | 1 | 1 |
21999-0810 | 2 | .030" | 2.2 | 2 min | 120 sec | 1 | 1 |
*Dryer flow rates based on 100°F at 175 PSI an outlet pressure of 100 PSI. (Minimum inlet pressure 80 PSI Lower inlet pressure and higher temperatures affect the performance and quality of the downstream air)
Sizing & Ordering Information

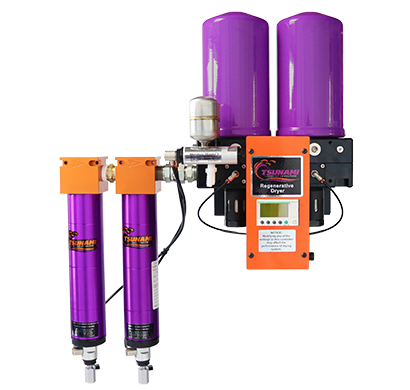

![21999-0710_410x390](https://www.gosuburban.com/hs-fs/hubfs/21999-0710_410x390.png?width=410&height=390&name=21999-0710_410x390.png)
CFM: 40
ITEM #: 21999-0710
DRAIN: Pneumatic
NPT: 1" INLET / OUTLET
WEIGHT: 73 lbs
DIMENSIONS: 30" x 26" x 12"
MOUNT: Wall

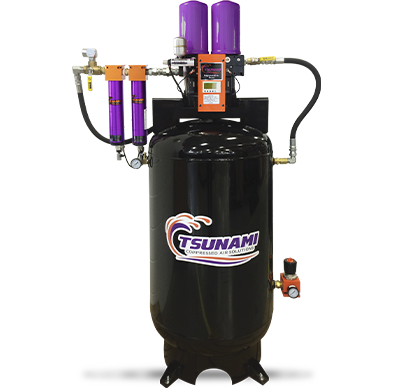

![21999-0810 ultra series tank mounted dryer 40 cfm_WEB-1](https://www.gosuburban.com/hs-fs/hubfs/21999-0810%20ultra%20series%20tank%20mounted%20dryer%2040%20cfm_WEB-1.png?width=410&height=390&name=21999-0810%20ultra%20series%20tank%20mounted%20dryer%2040%20cfm_WEB-1.png)
CFM: 40
ITEM #: 21999-0810
DRAIN: Pneumatic
NPT: 1" INLET / OUTLET
WEIGHT: 335 lbs
DIMENSIONS: 69" x 51" x 27"
MOUNT: Tank - 80 gal.
MAX CFM | ITEM # | DRAIN | NPT | WEIGHT | DIMENSIONS (HWD) | MOUNT | MSRP |
---|---|---|---|---|---|---|---|
40 |
21999-0710 |
Pneumatic |
1" INLET / OUTLET |
73 lbs |
30" x 26" x 12" |
Wall |
$4,058.00 |
40 |
21999-0810 |
Pneumatic |
1" INLET / OUTLET |
335 lbs |
69" x 51" x 27" |
Tank - 80 gal. |
$7,054.00 |
