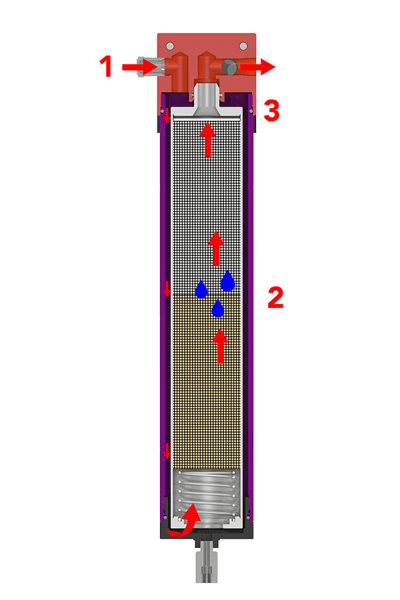

How It Works

1. Filtered air enters the dryer inlet & travels downward around the cartridge.

2. The air then enters the cartridge & travels through the dual layered desiccant media, which removes water vapor.*

3. The dry air passes through a 10 micron filter disk before exiting the dryer outlet.

*The CORE cartridge combines two media types to eliminate dusting and "tunneling" of air flow through the media; improving the performance of the desiccant media.

Tsunami pre-filtration includes the water separator and oil coalescing filter to remove liquid water, bulk oils, and particulate. The CORE manual change desiccant cartridge provides easy maintenance, extends media life, and eliminates dusting and tunneling. CORE Series Dryer Systems are efficiently designed and constructed with very few moving parts, reducing potential stress points.

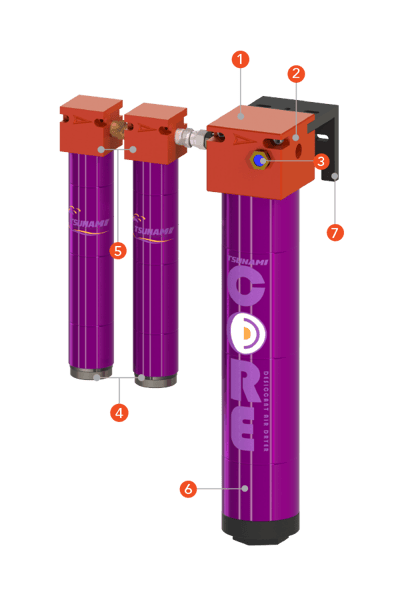

1. Desiccant Air Dryer

2. Anodized Housing

3. Moisture Indicator

4. Automatic Drains

From the pre-filtration to the mounting hardware, the Tsunami CORE Desiccant Air Dryer System comes as a complete package ready for installation.

5. Pre-Filtration

- 1st Stage Water Separator

- 2nd Stage Oil Coalescing Filter

6. Desiccant Cartridge

7. Mounting Bracket
