Tsunami Filter Package #3
2-Stage Air Filtration
Removes Moisture and Particulate from the Air
Tsunami Filtration Package #3 includes: (1) Water separator, (1) Oil coalescing filter and a mounting bracket.
Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Tsunami Water Separator removes water, up to one quart per minute, and filters particulate down to 10 micron. The Oil Coalescing Filter removes oil aerosols down to .001 ppm and particulates down to .01 micron.
Typical applications: Industrial Painting, Plasma Cutting, Nitrogen Generators, Critical Automation, and more!
![filter head-1](https://www.gosuburban.com/hubfs/filter%20head-1.jpg)
Premium Materials
Tsunami filters are machined from high-quality 6061 Aircraft Aluminum and then anodized inside and out - providing industrial strength and preventing corrosion and rust.
![oversized tube length](https://www.gosuburban.com/hs-fs/hubfs/oversized%20tube%20length.jpg?width=400&height=250&name=oversized%20tube%20length.jpg)
Oversized Tube Length
Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.
![removable bottom cap](https://www.gosuburban.com/hs-fs/hubfs/removable%20bottom%20cap.jpg?width=400&height=250&name=removable%20bottom%20cap.jpg)
Removable Bottom Cap
Removable bottom cap provides ease of service and machined drain port allows for various drain options.
On mobile, select the drop down arrow to view additional tabs.
Features:
- Machined from 6061 aircraft aluminum
- Minimal maintenance required with easy-to-service float drain
- Available for systems with a flow rating from 20 to 120 CFM
- Made in America
Benefits:
- Point-of-use protection for air tools and pneumatic equipment
- Removes large amounts of moisture
- Filters particulate down to .01 micron at 99.9% efficiency
Sizing & Ordering Information

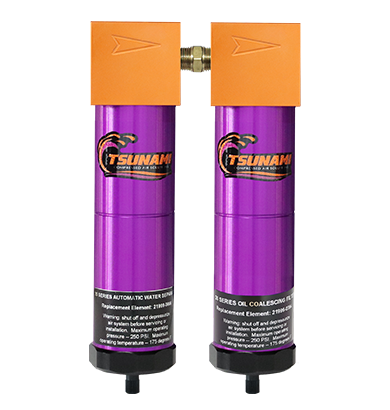

![21999-0424 20 CFM Tsunami 2 Stage Filtration_Package 3_web](https://www.gosuburban.com/hs-fs/hubfs/21999-0424%2020%20CFM%20Tsunami%202%20Stage%20Filtration_Package%203_web.png?width=390&height=410&name=21999-0424%2020%20CFM%20Tsunami%202%20Stage%20Filtration_Package%203_web.png)
MAX CFM: 20
ITEM #: 21999-0424
NPT: ¼
DRAIN: FLOAT
MAX PSI: 250
MAX TEMP: 175°F
WEIGHT: 3 lbs
DIMENSIONS: 9½ x 5 x 2½

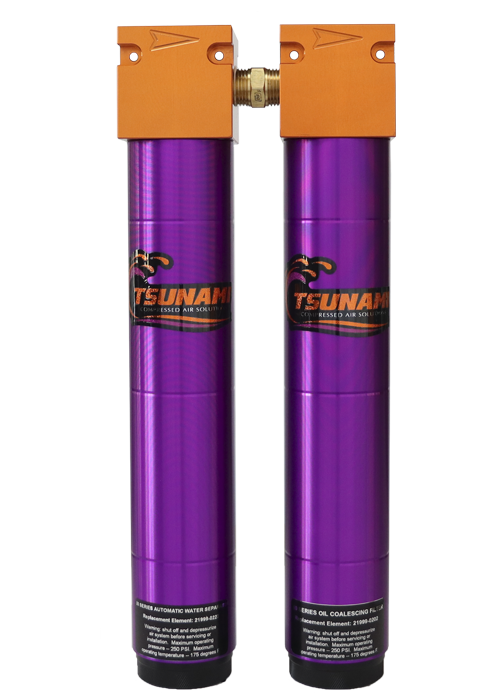

![21999-0251 50 CFM 2 Stage Filtration](https://www.gosuburban.com/hs-fs/hubfs/21999-0251%2050%20CFM%202%20Stage%20Filtration.png?width=500&height=700&name=21999-0251%2050%20CFM%202%20Stage%20Filtration.png)
MAX CFM: 50
ITEM #: 21999-0251
NPT: ½
DRAIN: FLOAT
MAX PSI: 250
MAX TEMP: 175°F
WEIGHT: 9½ lbs
DIMENSIONS: 18 x 6½ x 5
MAX CFM: 120
ITEM #: 21999-0252
NPT: 1
DRAIN: FLOAT
MAX PSI: 250
MAX TEMP: 175°F
WEIGHT: 14 lbs
DIMENSIONS: 19½ x 8 x 5½
MAX CFM | ITEM # | PORT SIZE (NPT) | DRAIN | MAX PSI | MAX °F | WEIGHT (LBS) | DIMENSIONS (IN) | MSRP |
---|---|---|---|---|---|---|---|---|
20 |
21999-0424 |
¼ |
FLOAT |
250 |
175 |
3 |
9½ x 5 x 2½ |
$411.00 |
50 |
21999-0251 |
½ |
FLOAT |
250 |
175 |
9½ |
18 x 6½ x 5 |
$674.00 |
120 |
21999-0252 |
1 |
FLOAT |
250 |
175 |
14 |
19½ x 8 x 5½ |
$805.00 |
Service Parts For Package #3
![21999-0846_410x390_web](https://www.gosuburban.com/hs-fs/hubfs/21999-0846_410x390_web.png?width=410&height=390&name=21999-0846_410x390_web.png)
20 Series Water Separator Service Kit
ITEM #: 21999-0846
![21999-0227_web](https://www.gosuburban.com/hs-fs/hubfs/21999-0227_web.png?width=410&height=390&name=21999-0227_web.png)
50 Series Water Separator Service Kit
ITEM #: 21999-0227
120/240 Series Water Separator Service Kit
ITEM #: 21999-0228
![21999-0394_web](https://www.gosuburban.com/hs-fs/hubfs/21999-0394_web.png?width=410&height=390&name=21999-0394_web.png)
20 Series Oil Coalescing Filter Service Kit
ITEM #: 21999-0394
![oil coalescing filter element replacement 21999-0202_web](https://www.gosuburban.com/hs-fs/hubfs/oil%20coalescing%20filter%20element%20replacement%2021999-0202_web.png?width=410&height=390&name=oil%20coalescing%20filter%20element%20replacement%2021999-0202_web.png)
50 Series Oil Coalescing Filter Service Kit
ITEM #: 21999-0202
![oil coalescing filter element replacement 21999-0202_web](https://www.gosuburban.com/hs-fs/hubfs/oil%20coalescing%20filter%20element%20replacement%2021999-0202_web.png?width=410&height=390&name=oil%20coalescing%20filter%20element%20replacement%2021999-0202_web.png)
120/240 Series Oil Coalescing Filter Service Kit
ITEM #: 21999-0202
DESCRIPTION | ITEM # | MSRP |
---|---|---|
20 Series Water Separator Service Kit |
21999-0846 |
$62.00 |
50 Series Water Separator Service Kit |
21999-0227 |
$75.00 |
120/240 Series Water Separator Service Kit |
21999-0228 |
$111.00 |
20 Series Oil Coalescing Filter Service Kit |
21999-0394 |
$68.00 |
50 Series Oil Coalescing Filter Service Kit |
21999-0202 |
$81.00 |
120/240 Series Oil Coalescing Filter Service Kit |
21999-0202 |
$81.00 |
