SIDEWINDER SPRAY FOAM SLEEVE



Spray hoses take a beating when pulled around job sites. Sidewinder remains the “go-to” solution in applications requiring protection from moisture and heavy abrasion. But operators struggle to maneuver the tangled, bulky, and cumbersome lines along with their fresh air hose. What if they could work together?

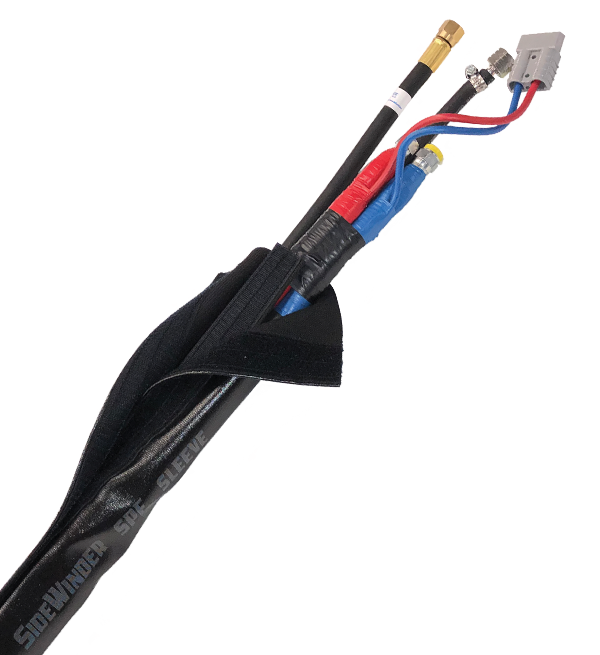

We developed the Sidewinder SPF Sleeve with an external pocket to bundle your fresh air hose.

Available in non-insulated and radiant-lined versions with and without the fresh air hose pocket, the Sidewinder installs in minutes and offers unmatched protection from heavy abrasion, moisture, and temperature energy loss. Sidewinder helps control viscosity, protects your proportioners, and maintains ideal temperatures under varying conditions. The insulated version can reduce temperature loss by up to 60 percent.

By containing thermal energy, Sidewinder helps maintain the optimal spray temperature for roofing, jacking, and insulating in polyurethane and polyurea applications. The Sidewinder SPF Sleeve protects in wet, high UV applications and remains extremely flexible in temperatures ranging from -60°F to 250°F. This revolutionary product offers the following benefits:

  • Low profile – easy to drag.
  • Military-grade hook and loop closure reduces installation and/or service time by up to 70 percent.
  • Configured to fit coupler guards and whip hose sections.
  • Reduces temperature loss for up to 60 percent energy savings.

What does that mean for your operations? No more repairing heavy hose socks and replacing tattered duct tape, costly FTS cables, FTS sensors, and defective whips. The Sidewinder SPF Sleeve incorporates the most advanced insulation and abrasion-resistant materials to enhance sprayability and provide higher yields when pushing foam—resulting in more profits. With the fresh air hose pocket, operators can concentrate on the job at hand instead of fighting another hose.

Sizing & Ordering Information

DIAMETER (IN) ITEM # DESCRIPTION COLOR(S)
2.38
SW-2173
NON INSULATED SLEEVE - 50' W/ END STRAPS
BLACK
2.38
SW-3190
NON INSULATED SLEEVE - 50' W/ END STRAPS, & FRESH AIR HOSE POCKET
BLACK
3.5
SW-2174
NON-INSULATED COUPLER GUARD - 3' W/ STRAPS
BLACK
2.25
SW-2175
INSULATED SLEEVE - 50' W/ RADIANT LINER & END STRAPS
BLACK
2.25
SW-3172
INSULATED SLEEVE - 50' W/ RADIANT LINER, END STRAPS & AIR HOSE POCKET
BLACK
3.5
SW-2176
INSULATED COUPLER GUARD - 3' W/ RADIANT LINER & STRAPS
BLACK
2.38
SW-2413
WHIP HOSE COVER - 7' W/ END STRAPS
BLACK
2.38
SW-2545
WHIP HOSE COVER - 22.6' W/ END STRAPS
BLACK
3.5
SW-2174-GY
NON-INSULATED COUPLER GUARD - 3' W/ STRAPS
LIGHT GRAY
2.25
SW-2175-GY
INSULATED SLEEVE - 50' W/ RADIANT LINER & END STRAPS
LIGHT GRAY
3.5
SW-2176-GY
INSULATED COUPLER GUARD - 3' W/ RADIANT LINER & STRAPS
LIGHT GRAY
2.38
SW-2413-GY
WHIP HOSE COVER - 7' W/ END STRAPS
LIGHT GRAY
2.38
SW-2545-GY
WHIP HOSE COVER - 22.6' W/ END STRAPS
LIGHT GRAY
