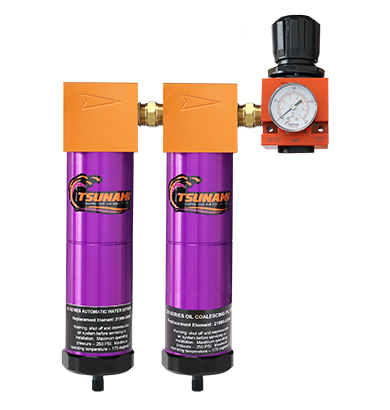

Tsunami Filter Package #4

2-Stage Filter with Regulator

Air Filtration for Air Systems

Tsunami filtration package #4 includes: (1) Water separator, (1) Oil coalescing filter, (1) Regulator and a mounting bracket.

Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Tsunami Water Separator removes water, up to one quart per minute, and filters particulate down to 10 micron. The Oil Coalescing Filter removes oil aerosols down to .001 ppm and particulates down to .01 micron. The Regulator allows pressure control to ensure downstream components do not exceed their maximum operating pressures.

Typical applications: Industrial Painting, Plasma Cutting, Nitrogen Generators, Critical Automation, and more!

Air Pressure Regulator

The pressure air regulator allows the operator to adjust the air pressure depending on the application or air tool being used.

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.

Removable Bottom Cap

Removable bottom cap provides ease of service and machined drain port allows for various drain options.

Features:

Machined from 6061 aircraft aluminum
Minimal maintenance required with easy-to-service float drain
Available for systems with a flow rating from 20 to 120 CFM
Made in America

Benefits:

Point-of-use protection for air tools and pneumatic equipment
Removes large amounts of moisture
Filters particulate down to .01 micron at 99.9% efficiency
Regulator allows control of downstream pressure to maximize system efficiency

Tsunami Product Catalog

Tsunami Filtration Installation Instructions

MAX CFM: 20

ITEM #: 21999-0677

NPT: ¼

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 3.5 lbs

DIMENSIONS: 10.5" x 6.5" x 3.5"

MAX CFM: 50

ITEM #: 21999-0253

NPT: ½

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 12 lbs

DIMENSIONS: 17" x 13" x 4.5"

MAX CFM: 50

ITEM #: 21999-0253-R

NPT: ½

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 12 lbs

DIMENSIONS: 17" x 13" x 4.5"

MAX CFM: 50

ITEM #: 21999-0254

NPT: 1

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 18 lbs

DIMENSIONS: 21" x 13" x 6.5"

MAX CFM	ITEM #	PORT SIZE (NPT)	DRAIN	MAX PSI	MAX °F	WEIGHT (LBS)	DIMENSIONS (IN)	MSRP
20	21999-0677	¼	FLOAT	250	122	3½	10½ x 6½ x 3½	$471.00
50	21999-0253	½	FLOAT	250	122	12	17 x 13 x 4½	$805.00
50	21999-0253-R	½	FLOAT	250	122	12	17 x 13 x 4½	$805.00
120	21999-0254	1	FLOAT	250	122	18	21 x 13 x 6½	$1,164.00

20 Series Water Separator Service Kit

Item #: 21999-0846

50 Series Water Separator Service Kit

Item #: 21999-0227

120/240 Series Water Separator Service Kit

Item #: 21999-0228

20 Series Oil Coalescing Filter Service Kit

Item #: 21999-0394

oil coalescing filter element replacement 21999-0202_web

20 Series Oil Coalescing Filter Service Kit

Item #: 21999-0202

20 Series Pressure Regulator with Gauge - 1/4" NPT

Item #: 21999-0870

50 Series Pressure Regulator with Gauge - 1/2" NPT

Item #: 21999-0871

120/240 Series Pressure Regulator with Gauge - 1" NPT

Item #: 21999-0872

DESCRIPTION	ITEM #	MSRP
20 Series Water Separator Service Kit	21999-0846	$62.00
50 Series Water Service Separator Kit	21999-0227	$75.00
120 Water Separator Service Kit	21999-0228	$111.00
20 Series Oil Coalescing Filter Service Kit	21999-0394	$68.00
50/120 Series Oil Coalescing Filter Service Kit	21999-0202	$81.00
20 Series Pressure Regulator with Gauge - 1/4" NPT	21999-0870	$90.00
50 Series Pressure Regulator with Gauge - 1/2" NPT	21999-0871	$120.00
120 Series Pressure Regulator with Gauge - 1" NPT	21999-0872	$299.00
