Tsunami Filter Package #6

3-Stage Filter with Regulator

Air Filtration for an Efficient System

Tsunami filtration package #6 includes: (1) Water separator, (1) Oil coalescing filter, (1) Activated carbon filter, (1) Regulator and a mounting bracket.

Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Tsunami Water Separator removes water, up to one quart per minute, and filters particulate down to 10 micron. The Oil Coalescing Filter removes oil aerosols down to .001 ppm and particulates down to .01 micron. The Activated Carbon filter removes oil vapor down to .003, and any taste or odor. The Regulator allows pressure control to ensure down stream components do not exceed their maximum operating pressures.

Air Pressure Regulator

The pressure air regulator allows the operator to adjust the air pressure depending on the application or air tool being used.

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.

Removable Bottom Cap

Removable bottom cap provides ease of service and machined drain port allows for various drain options.

Features:

Machined from 6061 aircraft aluminum
Minimal maintenance required with easy-to-service float drain
Available for systems with a flow rating from 20 to 120 CFM
Made in America

Benefits:

Point-of-use protection for air tools and pneumatic equipment
Removes large amounts of moisture
Filters particulate down to .01 micron at 99.9% efficiency
Removes oil vapors down to .003 ppm
Removes odor and taste for breathable air systems
Regulator allows pressure control for downstream applications, to maximize efficiency

Tsunami Product Catalog

Tsunami Filtration Installation Instructions

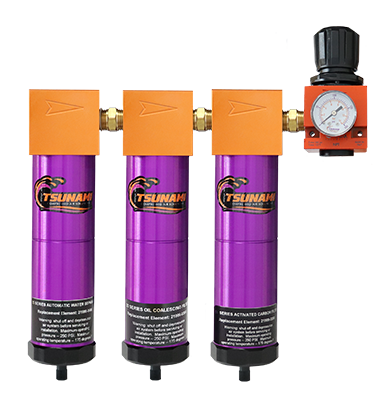

21999-0678 20 CFM Tsunami Filtration_Package 6_web

MAX CFM: 20

ITEM #: 21999-0678

NPT: ¼

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 5 lbs

DIMENSIONS: 10½" x 10½" x 3½"

MAX CFM: 20

ITEM #: 21999-0457

NPT: ¼

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 6½ lbs

DIMENSIONS: 10½" x 13" x 4½"

MAX CFM: 20

ITEM #: 21999-0457-R

NPT: ¼

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 6½ lbs

DIMENSIONS: 10½" x 13" x 4½"

MAX CFM: 50

ITEM #: 21999-0257

NPT: ½

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 15½ lbs

DIMENSIONS: 18½" x 17" x 4½"

MAX CFM: 50

ITEM #: 21999-0257-R

NPT: ½

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 15½ lbs

DIMENSIONS: 18½" x 17" x 4½"

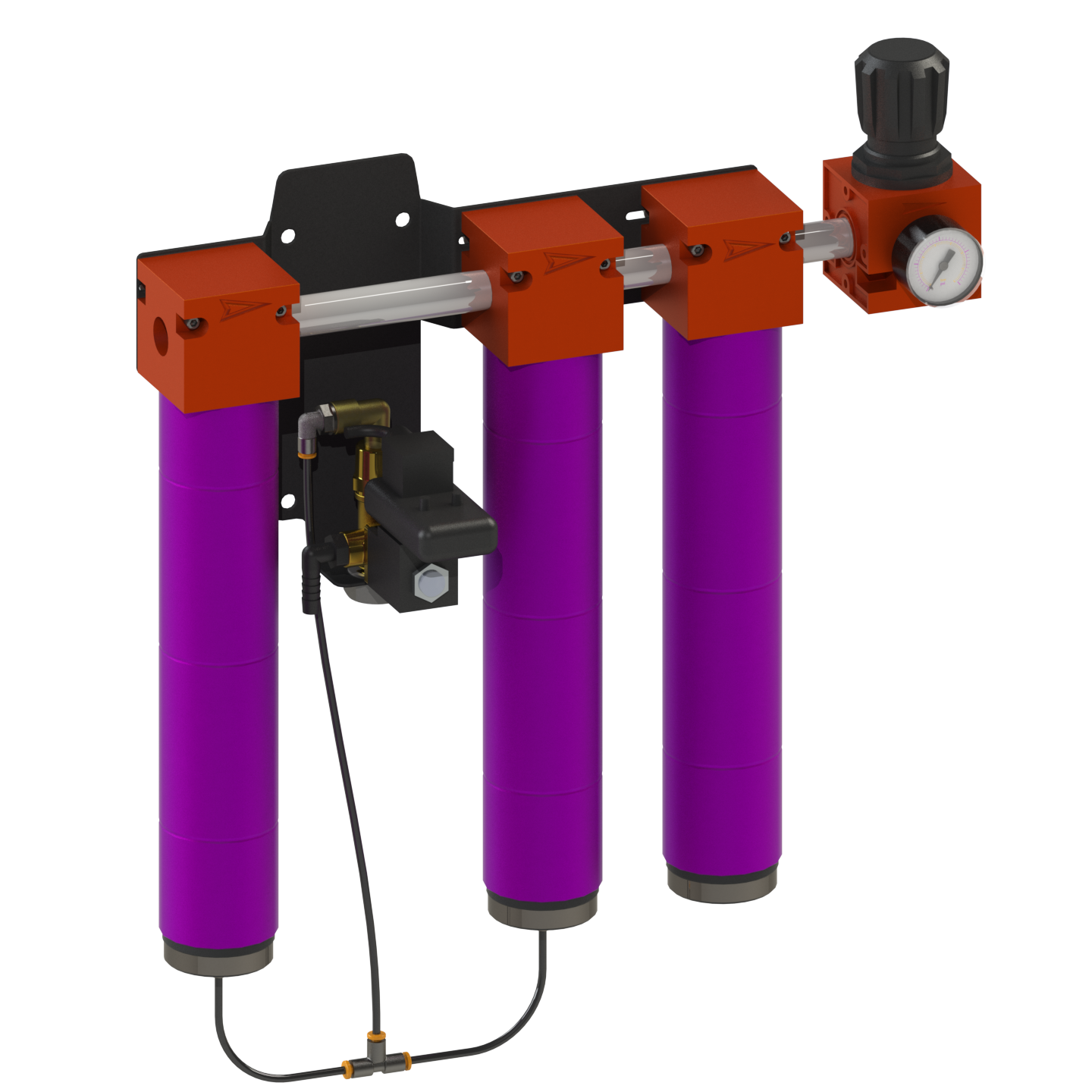

MAX CFM: 50

ITEM #: 21999-0291

NPT: ½

DRAIN: ELECTRONIC

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 17 lbs

DIMENSIONS: 18½" x 17" x 5"

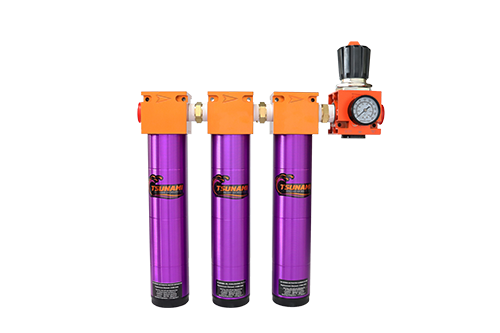

Tsunmai 120 Series Package 6 21999-0258 WEB

MAX CFM: 120

ITEM #: 21999-0258

NPT: 1

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 25 lbs

DIMENSIONS: 21" x 18" x 6½"

MAX CFM	ITEM #	PORT SIZE (NPT)	DRAIN	MAX PSI	MAX °F	WEIGHT (LBS)	DIMENSIONS (IN)	MSRP
20	21999-0678	¼	FLOAT	250	122	5	10½ x 10½ x 3½	$679.00
20	21999-0457	¼	ELECTRONIC	250	122	6½	10½ x 13 x 4½	$1,033.00
20	21999-0457-R	¼	ELECTRONIC	250	122	6½	10½ x 13 x 4½	$1,033.00
50	21999-0257	½	FLOAT	250	122	15½	18½ x 17 x 4½	$1,052.00
50	21999-0257-R	½	FLOAT	250	122	15½	18½ x 17 x 4½	$1,052.00
50	21999-0291	½	ELECTRONIC	250	122	17	18½ x 17 x 5	$1,272.00
120	21999-0258	1	FLOAT	250	122	25	21 x 18 x 6½	$1,768.00

20 Series Water Separator Service Kit

Item #: 21999-0846

50 Series Water Separator Service Kit

Item #: 21999-0227

120/240 Series Water Separator Service Kit

Item #: 21999-0228

20 Series Oil Coalescing Filter Service Kit

Item #: 21999-0394

oil coalescing filter element replacement 21999-0202_web

50 Series Oil Coalescing Filter Service Kit

Item #: 21999-0202

20 Series Activated Carbon Filter Service Kit

Item #: 21999-0395

50 Series Activated Carbon Filter Service Kit

Item #: 21999-0200

120/240 Series Activated Carbon Filter Service Kit

Item #: 21999-1072

20 Series Pressure Regulator with Gauge - 1/4" NPT

Item #: 21999-0870

50 Series Pressure Regulator with Gauge - 1/2" NPT

Item #: 21999-0871

120/240 Series Pressure Regulator with Gauge - 1" NPT

Item #: 21999-0872

DESCRIPTION	ITEM #	MSRP
20 Series Water Separator Service Kit	21999-0846	$62.00
50 Series Water Separator Service Kit	21999-0227	$75.00
120/240 Series Water Separator Service Kit	21999-0228	$111.00
20 Series Oil Coalescing Filter Service Kit	21999-0394	$68.00
50/120 Series Oil Coalescing Filter Service Kit	21999-0202	$81.00
20 Series Activated Carbon Filter Service Kit	21999-0395	$81.00
50 Series Activated Carbon Filter Service Kit	21999-0200	$188.00
120 Series Activated Carbon Filter Service Kit	21999-1072	$277.00
20 Series Pressure Regulator with Gauge - 1/4" NPT	21999-0870	$90.00
50 Series Pressure Regulator with Gauge - 1/2" NPT	21999-0871	$120.00
120/240 Series Pressure Regulator with Gauge - 1" NPT	21999-0872	$299.00
