Fire sleeve

HEAT RESISTANT SLEEVE

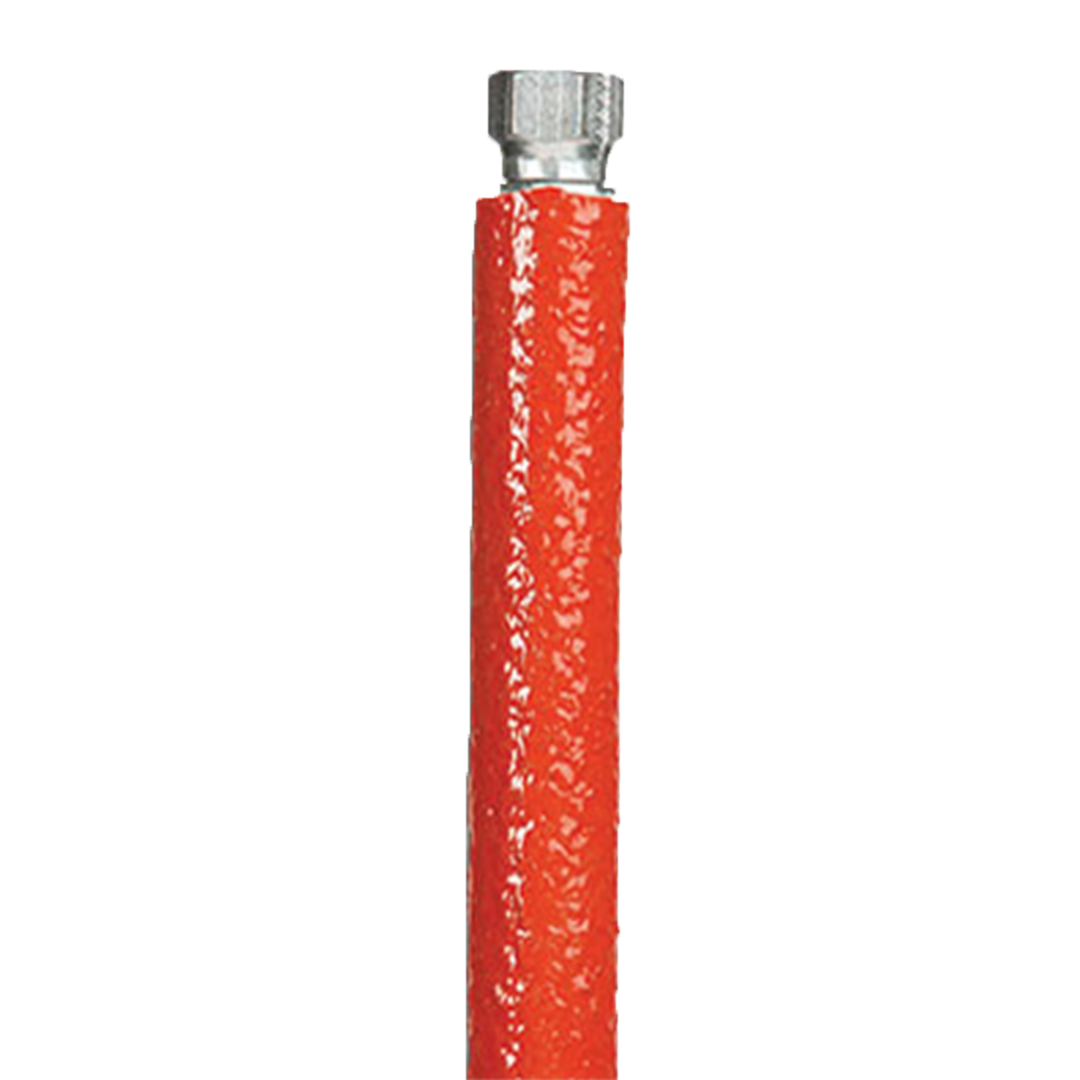

The heat resistant Fire Sleeve is constructed from a high bulk fiberglass fiber that is woven to produce a hollow sleeve and then coated with a thick covering of iron oxide red silicone rubber. It can be easily installed over hoses, cables, tubing or pipes. Both the regular knitted and woven aerospace grade offers excellent resistance to molten metal splash, radiant heat, abrasion, corrosive atmosphere, moisture, chemicals, vibration, and electricity.

Temperature Capabilities: Rated for 500°F (260°C) continuous exposure, up to 2000°F (1093°C) for 15-20 minutes, and up to 3000°F (1650°C) for 15-30 seconds.

Dimensional Data: Available in diameters from 1/4" (6mm) to 5" (125mm). Standard length is 100ft (30m). Nominal wall thickness = 0.135" (3.43mm)

MAX DIAMETER (IN)	ITEM #	HOSE SIZE (SAE)	ROLL LENGTH (FT)	COLOR
0.25	FS-004	-4	100	RED
0.375	FS-006	-6	100	RED
0.5	FS-008	-8	100	RED
0.625	FS-010	-10	100	RED
0.75	FS-012	-12	100	RED
0.875	FS-014	-14	100	RED
1	FS-016	-16	100	RED
1.13	FS-018	-18	100	RED
1.25	FS-020	-20	100	RED
1.375	FS-022	-22	100	RED
1.5	FS-024	-24	100	RED
1.625	FS-026	-26	100	RED
1.75	FS-028	-28	100	RED
2	FS-032	-32	100	RED
2.25	FS-036	-36	100	RED
2.5	FS-040	-40	100	RED
2.75	FS-044	-44	100	RED
3	FS-048	-48	50	RED
3.25	FS-052	-52	50	RED
3.5	FS-056	-56	50	RED
3.75	FS-060	-60	50	RED
4	FS-064	-64	50	RED
4.5	FS-072	-72	50	RED
5	FS-080	-80	50	RED
5.5	FS-088	-88	50	RED
6	FS-096	-96	50	RED

MAX DIAMETER (IN)	ITEM #	HOSE SIZE (SAE)	ROLL LENGTH (FT)	COLOR
0.25	FSA-004	-4	100	RED
0.375	FSA-006	-6	100	RED
0.5	FSA-008	-8	100	RED
0.625	FSA-010	-10	100	RED
0.75	FSA-012	-12	100	RED
0.875	FSA-014	-14	100	RED
1	FSA-016	-16	100	RED
1.13	FSA-018	-18	100	RED
1.25	FSA-020	-20	100	RED
1.375	FSA-022	-22	100	RED
1.5	FSA-024	-24	100	RED
1.625	FSA-026	-26	100	RED
1.75	FSA-028	-28	100	RED
2	FSA-032	-32	100	RED
2.25	FSA-036	-36	100	RED
2.5	FSA-040	-40	100	RED
2.75	FSA-044	-44	100	RED
3	FSA-048	-48	100	RED
3.25	FSA-052	-52	100	RED
3.5	FSA-056	-56	100	RED
3.75	FSA-060	-60	100	RED
4	FSA-064	-64	100	RED
4.5	FSA-072	-72	100	RED
5	FSA-080	-80	100	RED
5.5	FSA-088	-88	100	RED
6	FSA-096	-96	100	RED
