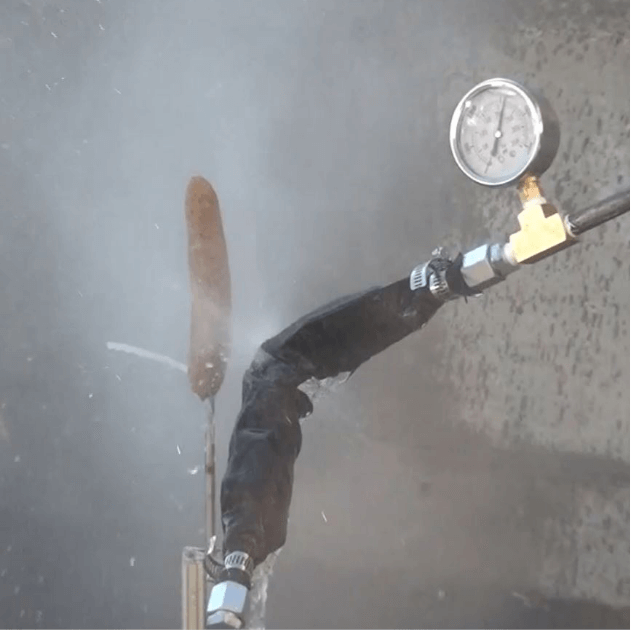

Expandable Burst Technology
Upon impact, internally tucked fabric releases, absorbing kinetic energy and ballooning the cover up to 30% of its original size.
Python
Product Catalog
Today’s Most Advanced Hose Management Products Designed to Provide Ultimate Peace of Mind in Real-World Applications.

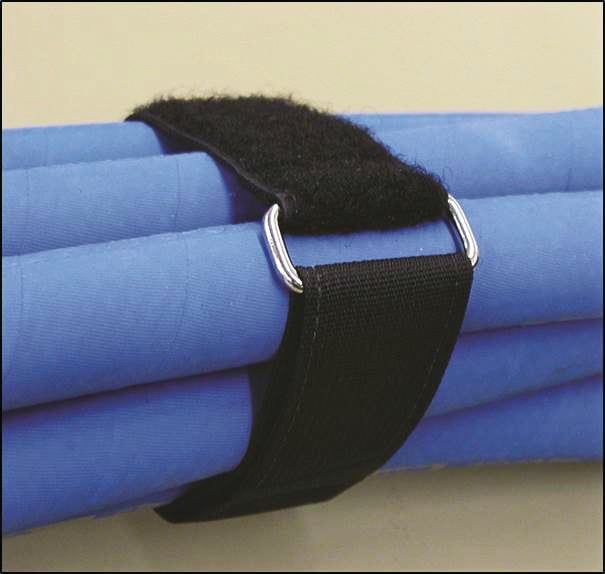

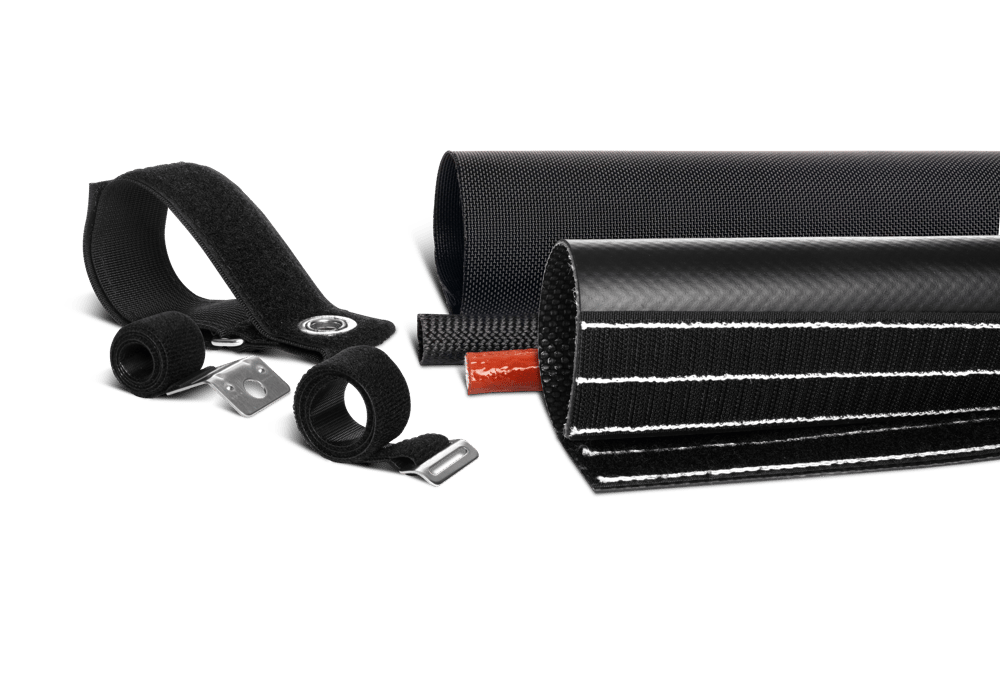

WRAP SLEEVE | TUBULAR SLEEVE | BUNDLING STRAPS | CUSTOM SOLUTIONS
PROTECTIVE COVERINGS
A division of Suburban Manufacturing Group, Python Protective Coverings provides today’s leading manufacturers with revolutionary products designed to protect both operators and equipment alike. Our fluid power expertise, proprietary technology, and laser-focused effort on supporting the customer, enable us to bring the most innovative, reliable, and user-friendly products to market.
This catalog was designed in effort to provide an additional tool for choosing appropriate products based on your individual application requirements. In addition to our friendly customer service staff available to assist you, we’ve created a magnitude of digital resources
Our website now works on a responsive template and is easily accessible on any hand-held device. Find material specifications and up-to-date information on new product releases. Visit our Youtube channel to view 40+ training and demonstration videos.
20 series
PROTECTION THAT PERFORMS
SUBURBAN MANUFACTURING
At Suburban, our mission is to build value for our customers by producing quality, innovative, applicationbased products. As an engineer-driven organization, we partner with customers to design unique and specific fluid power solutions.
WRAP SLEEVE
1050B
Bundle & protect hoses exposed to ultraviolet (UV) rays & abrasion.
1050 remains tough & flexible in tight bend radius applications.

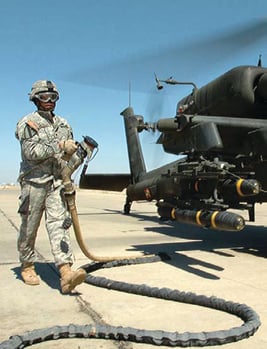

.jpg?width=267&height=350&name=Hot%20Refueling%20of%20AH-64%20(Note%20hose%20covering%20to%20reduce%20wear).jpg)
Trusted by the US military to keep critical equipment functioning around the clock
THE MOST ROBUST OPTION FOR HOSE PROTECTION
Known as the workhorse of the Sidewinder family, 1050 Ballistic Nylon is the best all around solution for abrasion & bundling needs. The Ballistic Nylon substrate features a urethane coating designed to shed moisture & industrial chemicals. With excellent UV protection, 1050B is the choice for most hoses, cables, & wires susceptible to daily wear & tear.
1050 Ballistic features Military-Spec Python Hook & Loop closure, allowing the sleeve to be applied post hose assembly. The proprietary fastener has proven to reduce costs associated to installation or maintenance by up to 70%!

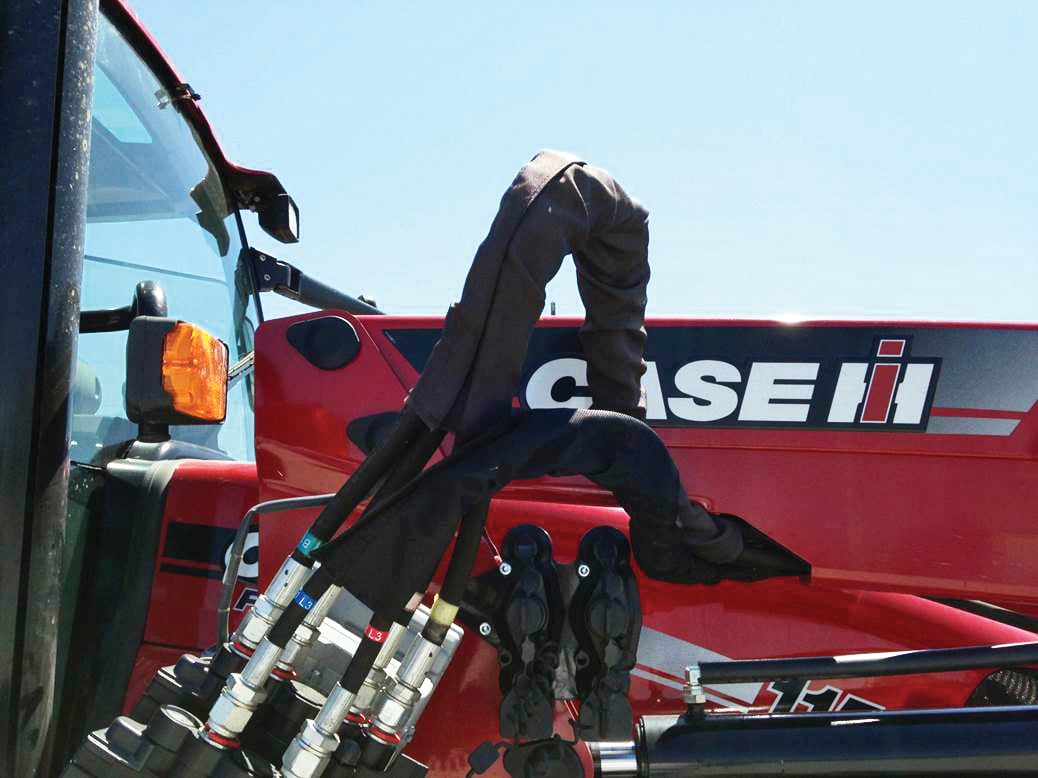

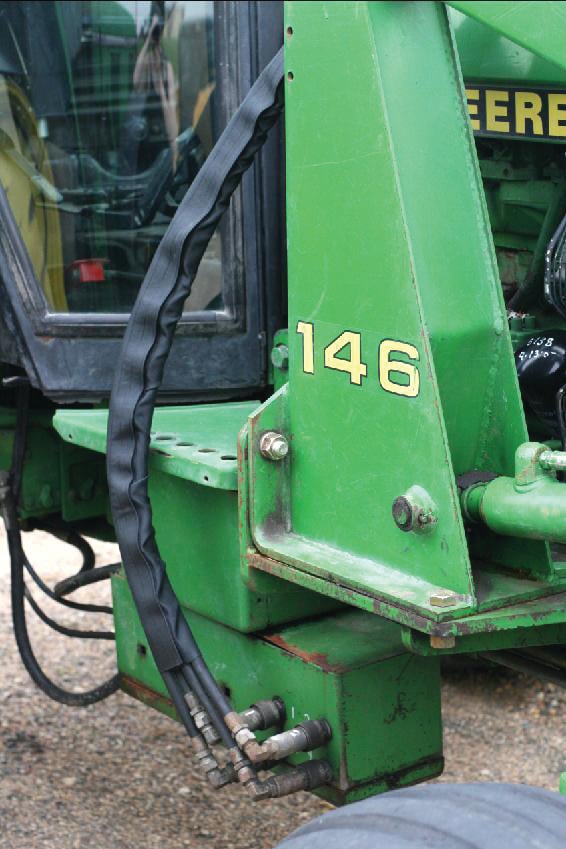

Typical Applications: Corn planters, rail track equipment, semi truck trailers, industrial conveyors, backhoes, loaders, combines & balers
Features & Benefits:

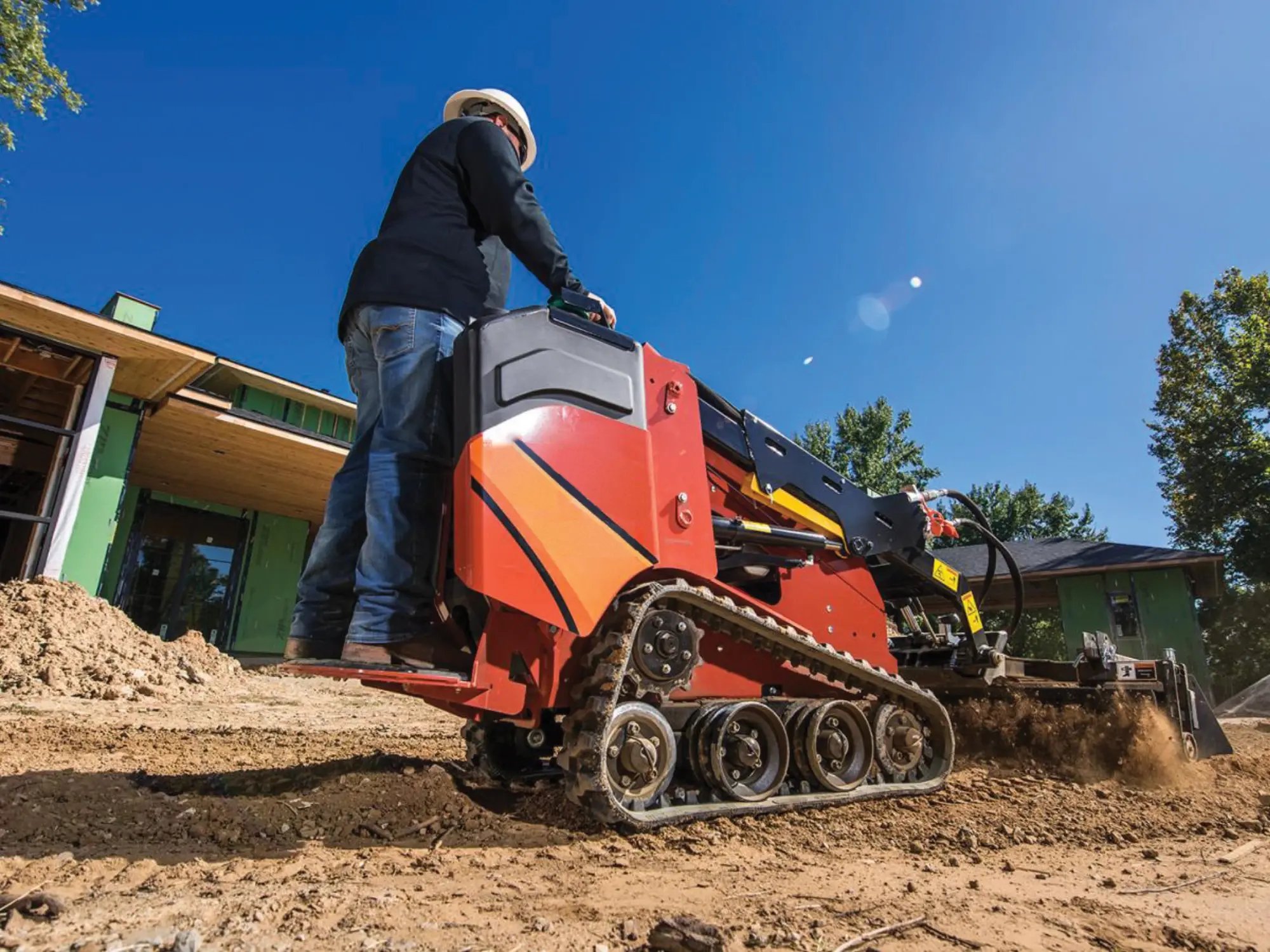

- Best all-around choice for bundling, abrasion, and operator protection
- Protects hoses in abrasive environments
- Excellent UV protection
- Resistant to punctures and tearing
SIZING & ORDERING INFORMATION
1050B WRAP SLEEVE
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-1.0 |
1.0” |
3.14 |
SL-1.25 |
1.25” |
4.08 |
SL-1.5 |
1.5” |
4.71 |
SL-1.75 |
1.75” |
5.65 |
SL-2.0 |
2.0” |
6.28 |
SL-2.25 |
2.25” |
7.06 |
SL-2.5 |
2.5” |
7.85 |
SL-2.75 |
2.75” |
8.79 |
SL-3.0 |
3.0” |
9.42 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-3.25 |
3.25” |
10.36 |
SL-3.5 |
3.5” |
10.99 |
SL-4.0 |
4.0” |
12.56 |
SL-4.5 |
4.5” |
14.13 |
SL-5.0 |
5.0” |
15.70 |
SL-6.0 |
6.0” |
18.84 |
SL-7.0 |
7.0” |
21.99 |
SL-8.0 |
8.0” |
25.13 |
SL-9.0 |
9.0" |
28.27 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-9.5 |
9.5” |
29.84 |
SL-10.0 |
10.0” |
31.41 |
SL-11.0 |
11.0” |
34.55 |
SL-12.0 |
12.0” |
37.69 |
SL-13.0 |
13.0” |
40.84 |
SL-14.0 |
14.0” |
43.98 |
SL-15.0 |
15.0” |
47.12 |
SL-16.0 |
16.0” |
50.26 |
Standard lengths sold in 150’ and 50’ increments.
WRAP SLEEVE
5601

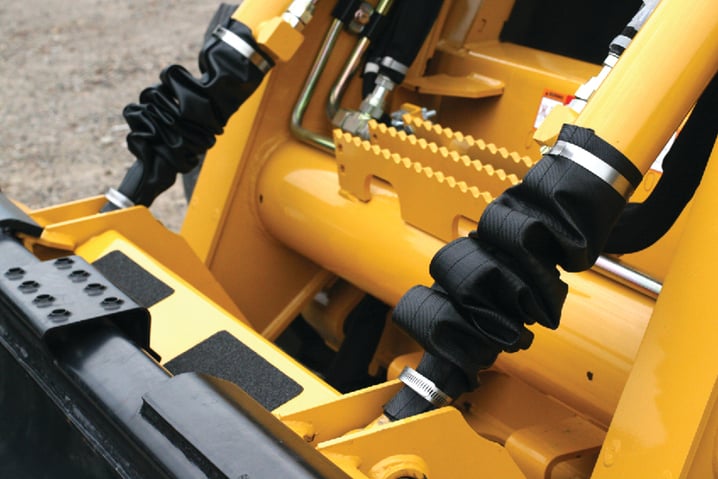

Hydraulic cylinders rely on the flexibility of 5601 to prevent contamination to piston rods.

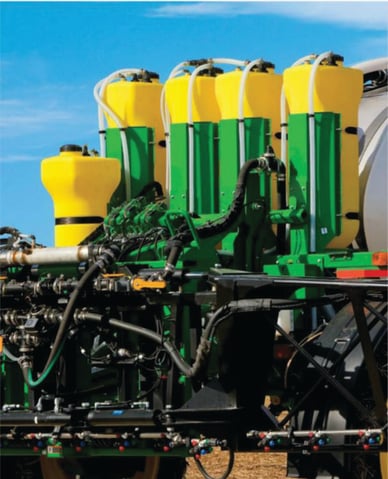

5601 is often used to protect sprayer hoses & lines in wet, abrasive applications.

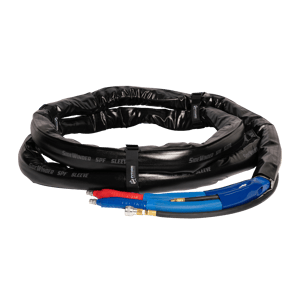

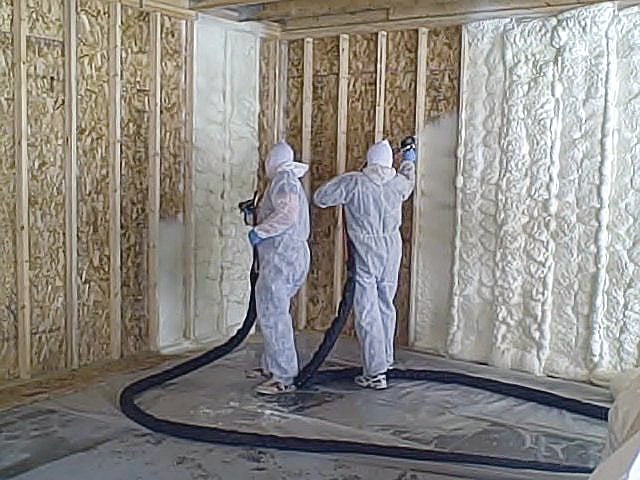

Radiant-lined 5601 helps maintain chemical viscosity in the spray foam industry.
LIGHTWEIGHT, FLEXIBLE, AND LIQUID RESISTANT
5601 has gained great popularity due to its ability to remain extremely flexible. This sleeve is constructed on a 1000 denier Nylon substrate, with a heavy urethane coating creates a super low coefficient to wear & prevents any moisture from penetrating the sleeve. 5601 is the ideal option for wet, abrasive, & articulating applications
5601 features Military-Spec Python Hook & Loop closure, allowing the sleeve to be applied post hose assembly. The proprietary fastener has proven to reduce costs associated to installation or maintenance by up to 70%!

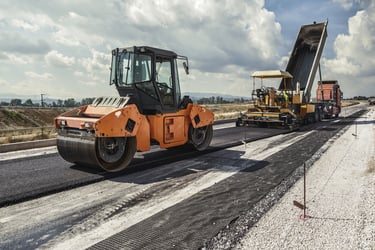

Typical Applications: Agricultural Sprayers, Robotics, Asphalt Machines, Cement Trucks, Garbage Trucks, Air Conditioning & Brewery Lines (Radiant-lined version)
Features & Benefits:
- Remains extremely flexible in high and low temperature applications
- Resists damage from petroleum, salt water, gasoline, and mild chemicals
- Non-breathable cover can increase thermal retention by up to 150% in applications requiring consistent viscosity
- Heavy urethane coating protects hoses in abrasive environments and allows the sleeve to move freely over ridged surfaces
SIZING & ORDERING INFORMATION
5601 WRAP SLEEVE
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-1.0-5601 |
1.0” |
3.14 |
SL-1.25-5601 |
1.25” |
4.08 |
SL-1.5-5601 |
1.5” |
4.71 |
SL-1.75-5601 |
1.75” |
5.65 |
SL-2.0-5601 |
2.0” |
6.28 |
SL-2.25-5601 |
2.25” |
7.53 |
SL-2.5-5601 |
2.5” |
7.85 |
SL-2.75-5601 |
2.75” |
8.79 |
SL-3.0-5601 |
3.0” |
9.42 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-3.25-5601 |
3.25” |
10.36 |
SL-3.5-5601 |
3.5” |
10.99 |
SL-4.0-5601 |
4.0” |
12.56 |
SL-4.5-5601 |
4.5” |
14.13 |
SL-5.0-5601 |
5.0” |
15.70 |
SL-6.0-5601 |
6.0” |
18.84 |
SL-7.0-5601 |
7.0” |
21.99 |
SL-8.0-5601 |
8.0” |
25.13 |
SL-9.0-5601 |
9.0" |
28.27 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-9.5-5601 |
9.5” |
29.84 |
SL-10.0-5601 |
10.0” |
31.41 |
SL-11.0-5601 |
11.0” |
34.55 |
SL-12.0-5601 |
12.0” |
37.69 |
SL-13.0-5601 |
13.0” |
40.84 |
SL-14.0-5601 |
14.0” |
43.98 |
SL-15.0-5601 |
15.0” |
47.12 |
SL-16.0-5601 |
16.0” |
50.26 |
Standard lengths sold in 150’ and 50’ increments.
WRAP SLEEVE
BLACK POLY

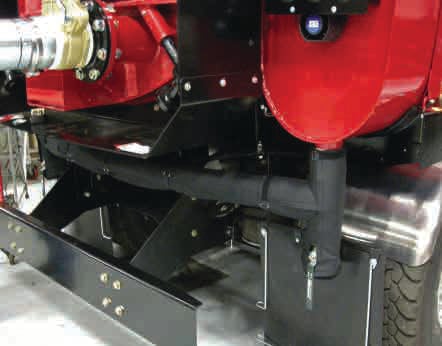

Provides a clean, professional look to any application.
In light abrasion environments utilize Black Poly to protect & quickly access power cord bundles.
An easy choice in applications with tight hose bends & high UV exposure.
ECONOMICAL CHOICE FOR FAST, EASY BUNDLING
Black Poly was designed specifically as an economical solution for hose, cable, & wire management. The 300x600 denier substrate is coated with a light layer of PVC, enhancing the sleeves ability to resist damage caused from water or sunlight. The economical design of Black Poly makes it a quick & easy solution in applications requiring bundling protection, light abrasion resistance, or simply a clean, professional look.
Black Poly features Military-Spec Python Hook & Loop closure, allowing the sleeve to be applied post hose assembly. The proprietary fastener has proven to reduce costs associated to installation or maintenance by up to 70%!
Typical Applications: Static hoses on mobile equipment, power cord bundles, computer cables, CNC hose bundles and pneumatic lines
Features & Benefits:
- Economical solution for a variety of bundling requirements
- Excellent UV protection
- Lightweight and flexible
- Provides a clean and professional look to any application
SIZING & ORDERING INFORMATION
BLACK POLY WRAP SLEEVE
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-1.0-JD |
1.0” |
3.14 |
SL-1.25-JD |
1.25” |
4.08 |
SL-1.5-JD |
1.5” |
4.71 |
SL-1.75-JD |
1.75” |
5.65 |
SL-2.0-JD |
2.0” |
6.28 |
SL-2.25-JD |
2.25” |
7.53 |
SL-2.5-JD |
2.5” |
7.85 |
SL-2.75-JD |
2.75” |
8.79 |
SL-3.0-JD |
3.0” |
9.42 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-3.25-JD |
3.25” |
10.36 |
SL-3.5-JD |
3.5” |
10.99 |
SL-4.0-JD |
4.0” |
12.56 |
SL-4.5-JD |
4.5” |
14.13 |
SL-5.0-JD |
5.0” |
15.70 |
SL-6.0-JD |
6.0” |
18.84 |
SL-7.0-JD |
7.0” |
21.99 |
SL-8.0-JD |
8.0” |
25.13 |
SL-9.0-JD |
9.0" |
28.27 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-9.5-JD |
9.5” |
29.84 |
SL-10.0-JD |
10.0” |
31.41 |
SL-11.0-JD |
11.0” |
34.55 |
SL-12.0-JD |
12.0” |
37.69 |
SL-13.0-JD |
13.0” |
40.84 |
SL-14.0-JD |
14.0” |
43.98 |
SL-15.0-JD |
15.0” |
47.12 |
SL-16.0-JD |
16.0” |
50.26 |
Standard lengths sold in 150’ increments.
WRAP SLEEVE
40 HDA

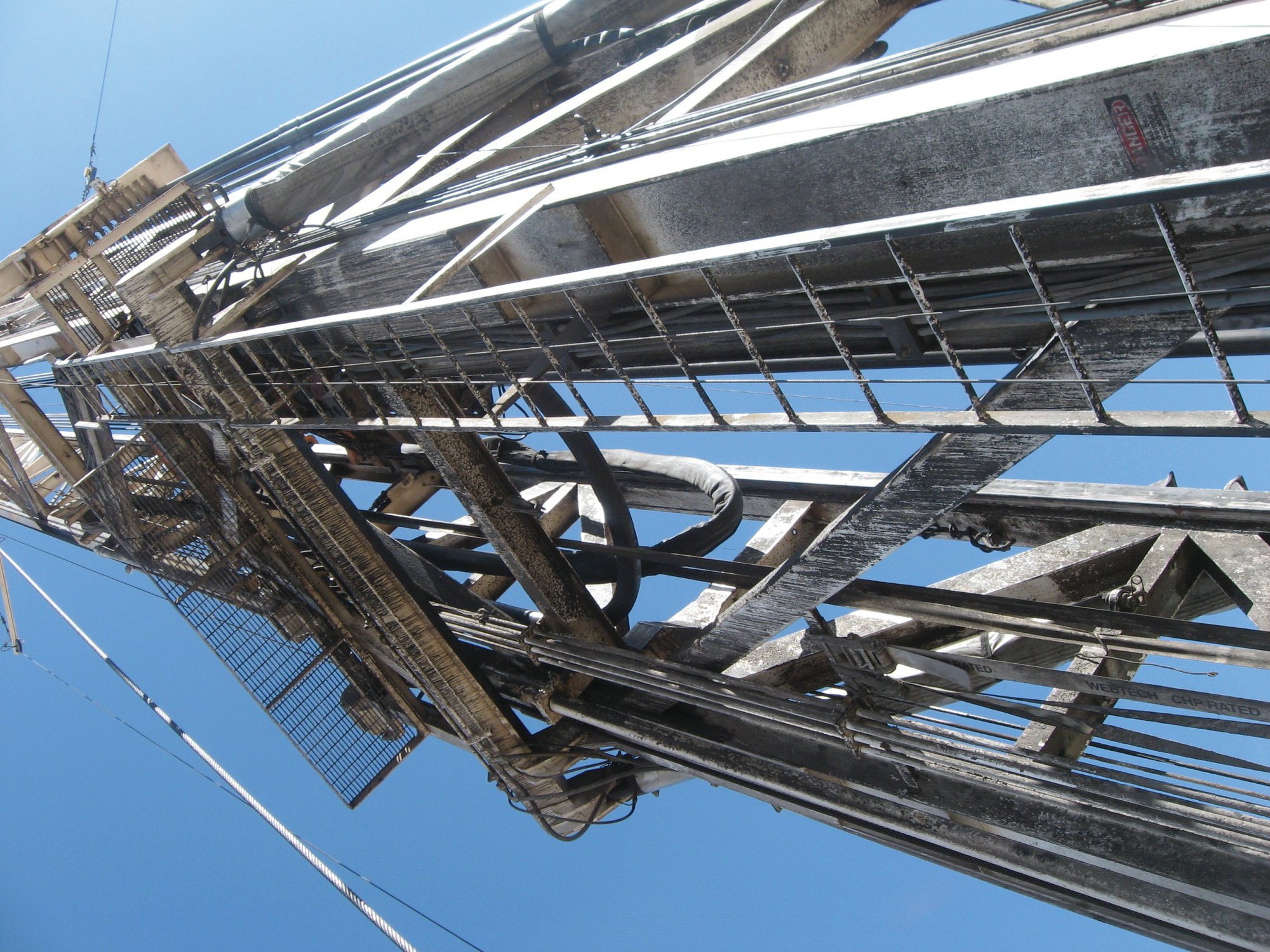

Saves Oil & Gas companies thousands of dollars by preventing downtime due to hose damage.

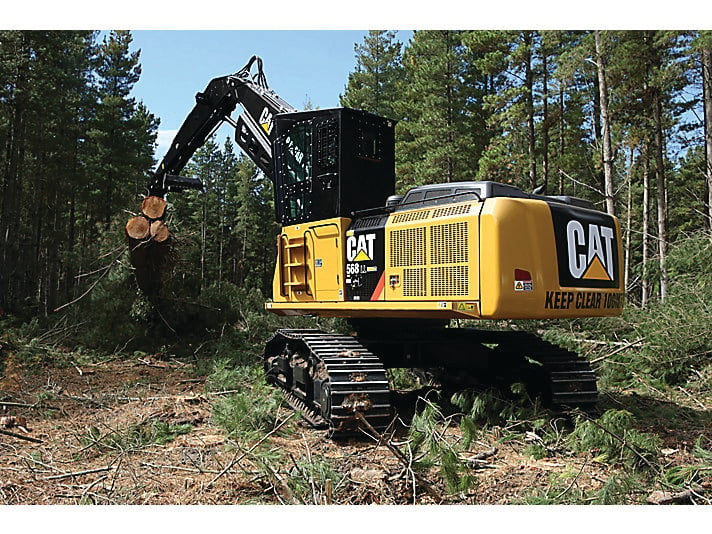

Forestry equipment utilizes 40 HDA where extreme abrasive conditions cause catastrophic hose failure.

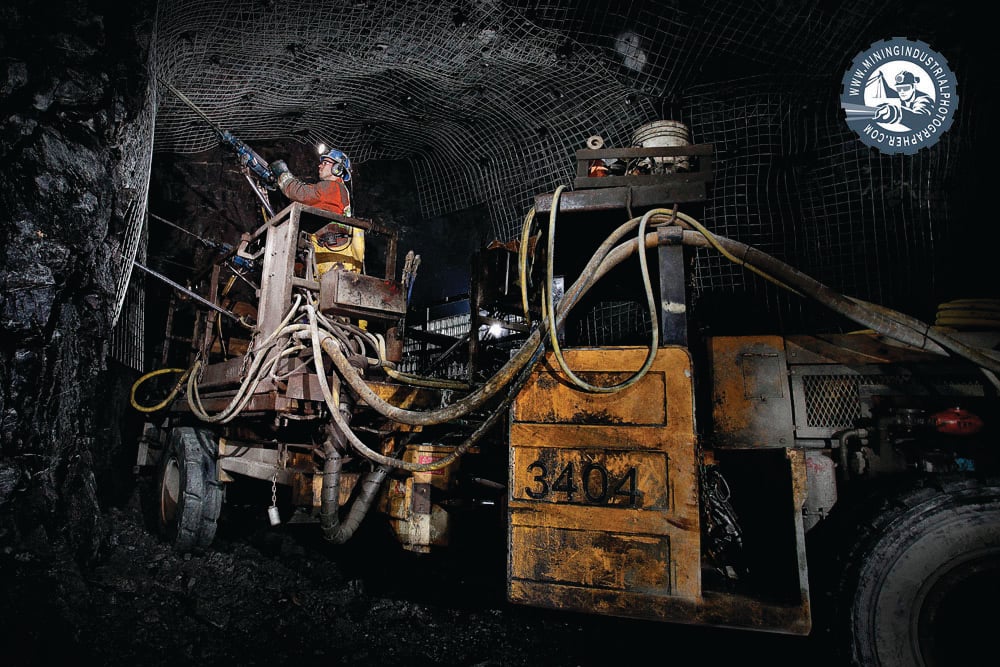

Approved for use in mining applications. MSHA IC-289.
EXTREME ABRASION AND CHEMICAL RESISTANCE
40 HDA was built for the world’s most extreme & abrasive applications. The heavy duty sleeve is constructed a 1500 denier-woven Polyester & coated with a proprietary polymer. This sleeve has nearly twice the mass & six times the abrasion resistance of any other Sidewinder product. Unlike traditional wear products, Sidewinder provides 100% hose coverage for use in the most aggressive environments.
40 HDA features Military-Spec Python Hook & Loop closure, allowing the sleeve to be applied post hose assembly. The proprietary fastener has proven to reduce costs associated to installation or maintenance by up to 70%!
Typical Applications: Mining, sub sea oil service, frac and mud pumping hose, rotary drill hose, forestry skidders, knuckle boom loaders, drill jetters
Features & Benefits:
- Ultra rugged
- Resists petroleum, salt water, gasoline and other chemicals
- MSHA approved; accepted for use in mining applications
- Excellent UV protection
- Static disapative
SIZING & ORDERING INFORMATION
40 HDA WRAP SLEEVE
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-1.75-HDA |
1.75” |
5.65 |
SL-2.0-HDA |
6.28” |
4.08 |
SL-2.25-HDA |
2.25” |
7.53 |
SL-2.5-HDA |
2.5” |
7.85 |
SL-2.75-HDA |
2.75” |
8.79 |
SL-3.0-HDA |
3.0” |
9.42 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-3.25-HDA |
3.25” |
10.36 |
SL-3.5-HDA |
3.5” |
10.99 |
SL-4.0-HDA |
4.0” |
12.56 |
SL-4.5-HDA |
4.5” |
14.13 |
SL-5.0-HDA |
5.0” |
15.70 |
SL-6.0-HDA |
6.0” |
18.84 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-7.0-HDA |
7.0” |
21.99 |
SL-8.0-HDA |
8.0” |
25.13 |
SL-9.0-HDA |
9.0” |
28.27 |
SL-9.5-HDA |
9.5” |
29.84 |
SL-10.0-HDA |
10.0” |
31.41 |
Standard lengths sold in 75’ increments.
WRAP SLEEVE
18411

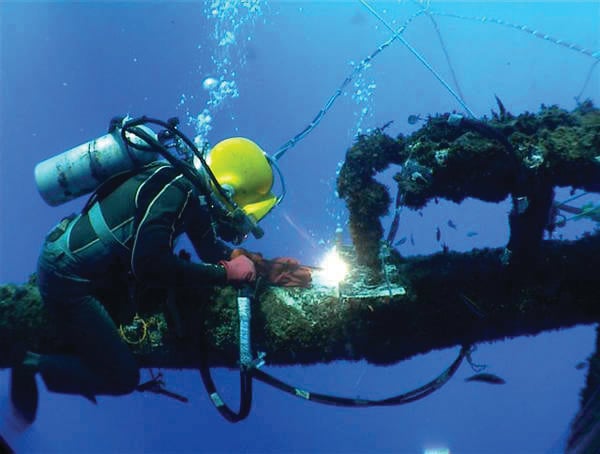

In sub sea applications, 18411 is unaffected by salts & petro chemicals.

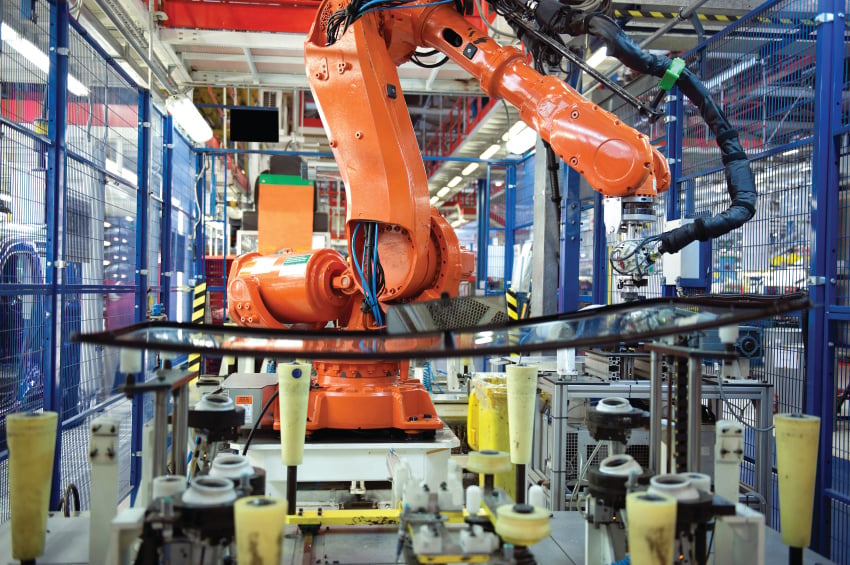

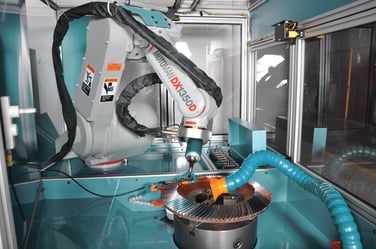

Robotics applications need 18411 to bundle & protect articulating hoses.

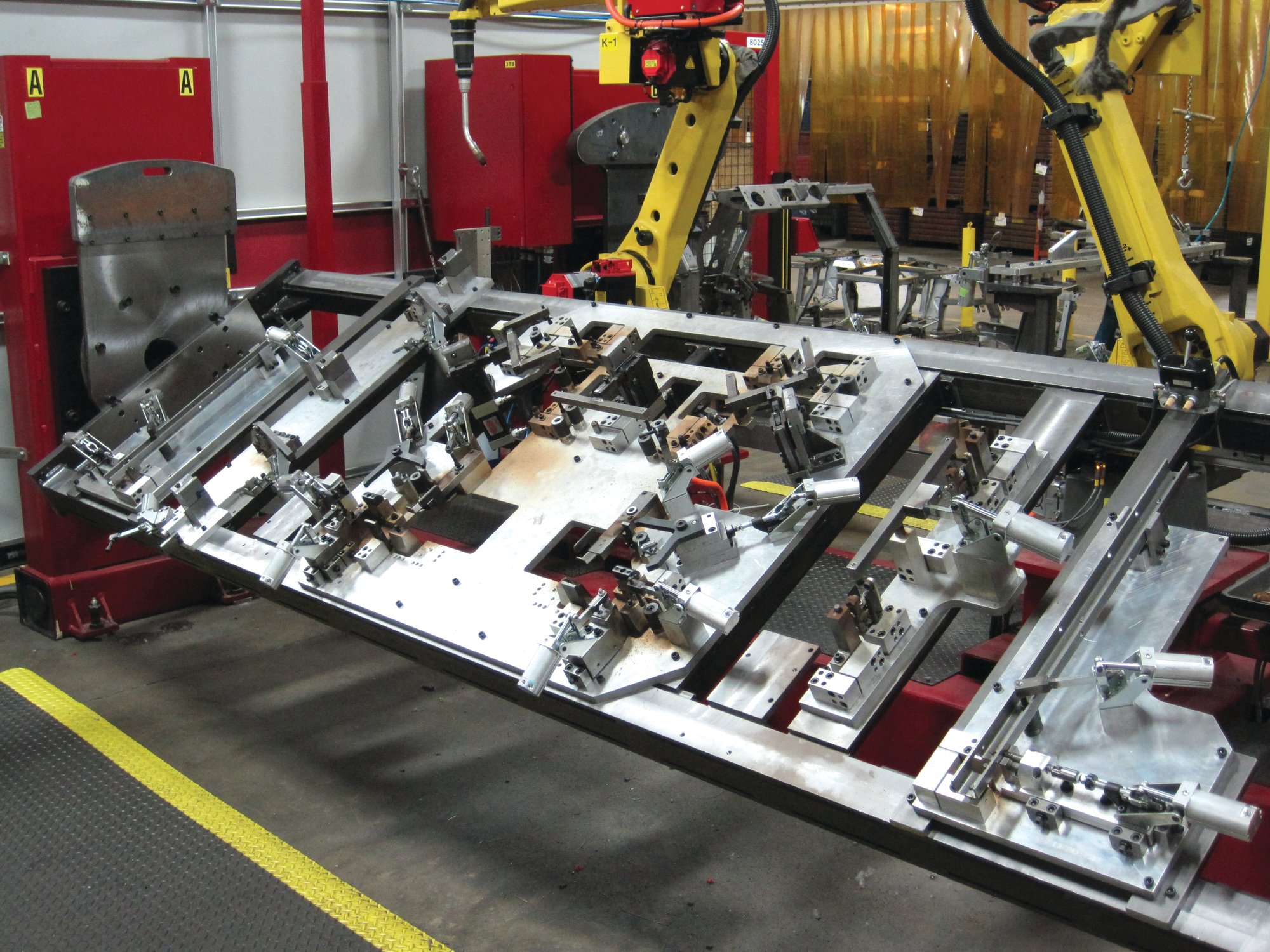

18411 is the optimal choice in jig fixture welding where sparks & spall are present.
ADVANCED PROTECTION FROM MOISTURE AND SPARKS
18411 is ideal in applications where articulating hose and cable are exposed to water, sparks, and spall. The sleeve offers similar abrasion and flexibility characteristics as 5601, along with an added internal neoprene coating to further protect against moisture. The coating, flexibility, spark resistance, and wide temperature range of -60°F (-51°C) to +250°F (121°C), with momentary spot heat up to 800°F (426°C), make 18411 the best choice for spot welding, automation, and submersible applications.
18411 features Military-Spec Python Hook & Loop closure, allowing the sleeve to be applied post hose assembly. The proprietary fastener has proven to reduce costs associated to installation or maintenance by up to 70%!
Typical Applications: Robotics, jig fixture welding, sub sea maintenance & repair, car wash stations, manure agitators, offshore oil
Features & Benefits:
- Unaffected by water, petro chemicals, sea salts, and mild solvents
- Shields against lightweight sparks and spall
- Easy to install - cuts with scissors
- Extremely flexible and abrasion resistant in most environments
SIZING & ORDERING INFORMATION
18411 WRAP SLEEVE
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-1.0-18411 |
1.0” |
3.14 |
SL-1.25-18411 |
1.25” |
4.08 |
SL-1.5-18411 |
1.5” |
4.71 |
SL-1.75-18411 |
1.75” |
5.65 |
SL-2.0-18411 |
2.0” |
6.28 |
SL-2.25-18411 |
2.25” |
7.53 |
SL-2.5-18411 |
2.5" |
7.85 |
SL-2.75-18411 |
2.75" |
8.79 |
SL-3.0-18411 |
3.0" |
8.79 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-3.25-18411 |
3.25” |
10.36 |
SL-3.5-18411 |
3.5” |
10.99 |
SL-4.0-18411 |
4.0” |
12.56 |
SL-4.5-18411 |
4.5” |
14.13 |
SL-5.0-18411 |
5.0” |
15.70 |
SL-6.0-18411 |
6.0” |
18.84 |
SL-7.0-18411 |
7.0” |
21.99 |
SL-8.0-18411 |
8.0” |
25.13 |
SL-9.0-18411 |
9.0” |
28.27 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-9.5-18411 |
9.5” |
29.84 |
SL-10.0-18411 |
10.0” |
31.41 |
SL-11.0-18411 |
11.0” |
34.55 |
SL-12.0-18411 |
12.0” |
37.69 |
SL-13.0-18411 |
13.0” |
40.84 |
SL-14.0-18411 |
14.0” |
43.98 |
SL-15.0-18411 |
15.0” |
47.12 |
SL-16.0-18411 |
16.0” |
50.26 |
Standard lengths sold in 150’ increments.
WRAP SLEEVE
WELD SHIELD

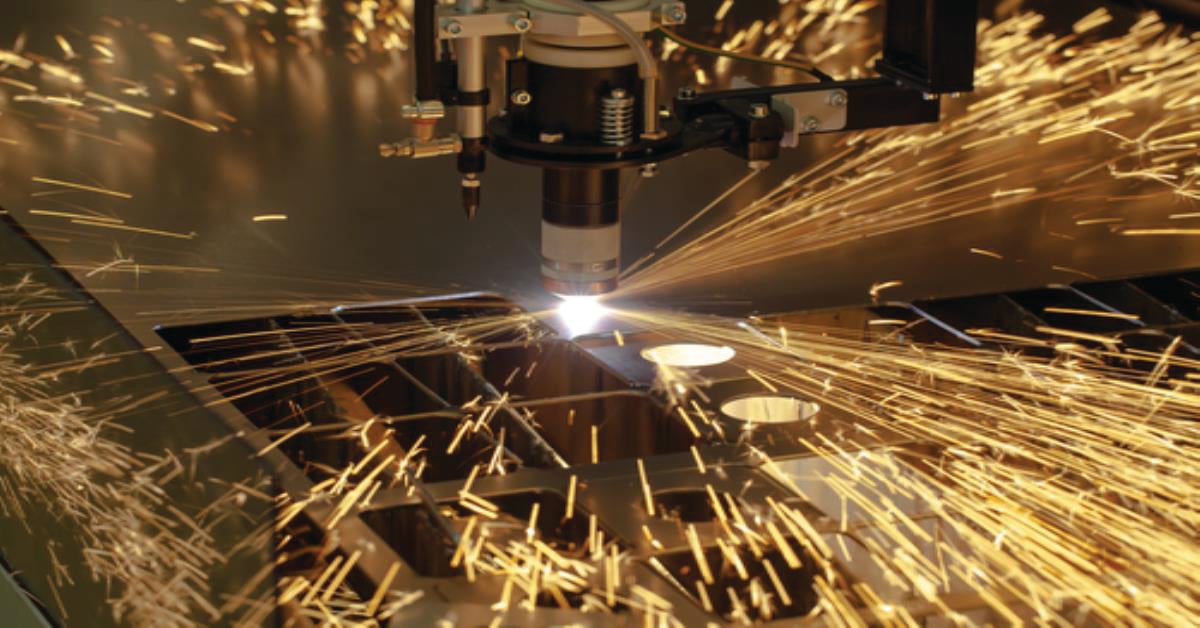

Weld Shield protects critical components from sparks on Gantry Welders.
Provides a safe layer between sparks & tool lines.

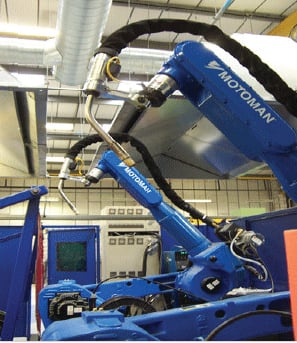

Weld Shield protects expensive hoses on large robotic welders.
HEAVY DUTY SPARK AND SPALL PROTECTION
Developed to provide ultimate protection from high spark welding applications, Weld Shield is the ideal solution in static, high temperature environments. This coarse fiberglass fabric has an Acrylic coating and can handle operating temperatures up to 700°F
Weld Shied features Military-Spec Python Hook & Loop closure, allowing the sleeve to be applied post hose assembly. The proprietary fastener has proven to reduce costs associated to installation or maintenance by up to 70%!
Typical Applications: Robotic welding, grinders, gantry welders
Features & Benefits:
- Working temperature of 700°F; shields against molten metal up to 1000°F
- Protects against grinding and extreme spark environments
- Hook & Loop closure allows for quick, easy access to hoses
- Bundles and protects hoses to promote a safe working area
- Provides a clean and professional look to any application
SIZING & ORDERING INFORMATION
WELD SHIELD WRAP SLEEVE
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-1.0-WS |
1.0” |
3.14 |
SL-1.25-WS |
1.25” |
4.08 |
SL-1.5-WS |
1.5” |
4.71 |
SL-1.75-WS |
1.75” |
5.65 |
SL-2.0-WS |
2.0” |
6.28 |
SL-2.25-WS |
2.25” |
7.53 |
SL-2.5-WS |
2.5" |
7.85 |
SL-2.75-WS |
2.75" |
8.79 |
SL-3.0-WS |
3.0" |
9.42 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-3.25-WS |
3.25” |
10.36 |
SL-3.5-WS |
3.5” |
10.99 |
SL-4.0-WS |
4.0” |
12.56 |
SL-4.5-WS |
4.5” |
14.13 |
SL-5.0-WS |
5.0” |
15.70 |
SL-6.0-WS |
6.0” |
18.84 |
SL-7.0-WS |
7.0” |
21.99 |
SL-8.0-WS |
8.0” |
25.13 |
SL-9.0-WS |
9.0” |
28.27 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-9.5-WS |
9.5” |
29.84 |
SL-10.0-WS |
10.0” |
31.41 |
SL-11.0-WS |
11.0” |
34.55 |
SL-12.0-WS |
12.0” |
37.69 |
SL-13.0-WS |
13.0” |
40.84 |
SL-14.0-WS |
14.0” |
43.98 |
SL-15.0-WS |
15.0” |
47.12 |
SL-16.0-WS |
16.0” |
50.26 |
Standard lengths sold in 150’ increments.
WRAP SLEEVE
TGS

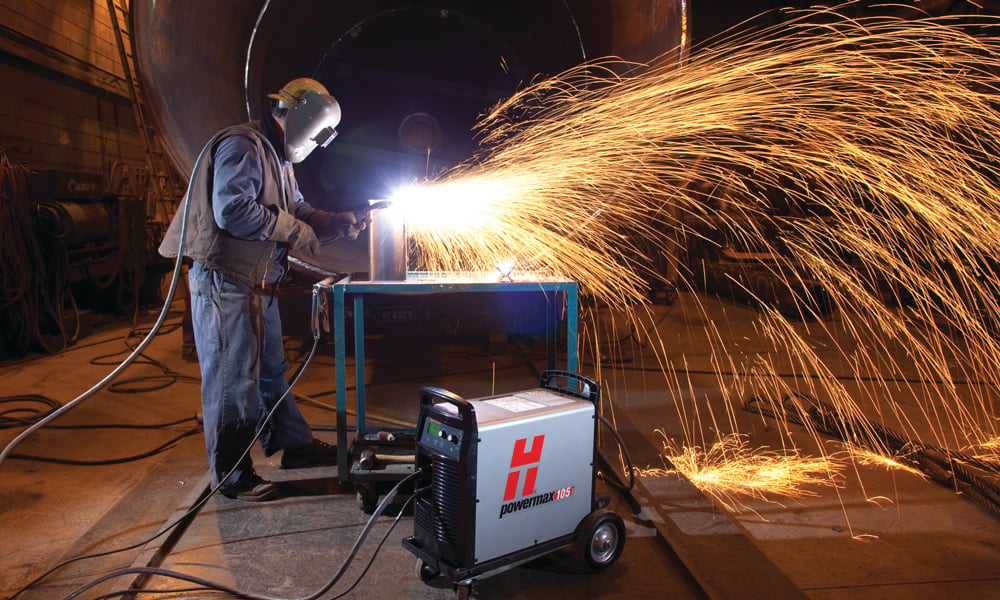

Protects hoses from welding and grinding spall in shipbuilding applications.
Bundle and protect critical cables and wires near engine turbo compartments.
Covers and protects hoses from exhaust pipes on mining trucks.
FLAME AND ADHESION RESISTANT SLEEVING
TGS (Teflon Coated Fiberglass) is a high-performance, flexible material that provides protection to componentry in high ambient temperature environments up to 600°F. A PTFE coating protects the core material from embrittlement and serves as a barrier to prevent acids, oils, sealants, and other adhesives from sticking to the sleeve.
TGS features Military-Spec Python Hook & Loop closure, allowing the sleeve to be applied post hose assembly. The proprietary fastener has proven to reduce costs associated to installation or maintenance by up to 70%!
Typical Applications: Oil and gas processing, insulation blanket shielding, exhaust systems, high temperature cable and wiring systems
Features & Benefits:
- Surface release for paints, coatings, asphalts and tar
- Handles continuous heat up to 600°F
- Resists infrared, micro-wave and radio frequencies
- Protects hoses in abrasive environments
- Excellent UV protection
SIZING & ORDERING INFORMATION
TGS WRAP SLEEVE
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-1.0-TGS |
1.0” |
3.14 |
SL-1.25-TGS |
1.25” |
3.93 |
SL-1.5-TGS |
1.5” |
4.71 |
SL-1.75-TGS |
1.75” |
5.50 |
SL-2.0-TGS |
2.0” |
6.28 |
SL-2.25-TGS |
2.25” |
7.07 |
SL-2.5-TGS |
2.5" |
7.85 |
SL-2.75-TGS |
2.75" |
8.64 |
SL-3.0-TGS |
3.0" |
9.42 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-3.25-TGS |
3.25” |
10.21 |
SL-3.5-TGS |
3.5” |
10.99 |
SL-4.0-TGS |
4.0” |
12.56 |
SL-4.5-TGS |
4.5” |
14.13 |
SL-5.0-TGS |
5.0” |
15.70 |
SL-6.0-TGS |
6.0” |
18.84 |
SL-7.0-TGS |
7.0” |
21.98 |
SL-8.0-TGS |
8.0” |
25.12 |
SL-9.0-TGS |
9.0” |
28.26 |
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
SL-10.0-TGS |
10.0” |
31.40 |
SL-11.0-TGS |
11.0” |
34.54 |
SL-12.0-TGS |
12.0” |
37.69 |
SL-13.0-TGS |
13.0” |
40.82 |
SL-14.0-TGS |
14.0” |
43.96 |
SL-15.0-TGS |
15.0” |
42.41 |
SL-16.0-TGS |
16.0” |
50.24 |
Standard lengths sold in 150’ increments.
WRAP SLEEVE
RADIANT LINED
BLACK POLY : RADIANT LINED
Radiant Lined Black Poly provides an economical way to bundle and insulate plumbing components that see little-to-no wear. A light PVC coating helps prevent further damage caused by high UV.
Typical Applications: Vac trucks, control valves
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
RL-1.5-600P |
1.5” |
4.71 |
RL-2.0-600P |
2.0” |
6.28 |
RL-2.5-600P |
2.5” |
7.85 |
RL-3.0-600P |
3.0” |
9.42 |
RL-3.5-600P |
3.5” |
10.99 |
RL-4.5-600P |
4.5” |
14.13 |
RL-5.5-600P |
5.5” |
17.27 |
RL-6.5-600P |
6.5” |
20.14 |
RL-7.5-600P |
7.5” |
23.55 |
Used to insulate critical lines on Vac trucks.
1050 : RADIANT LINED
Radiant Lined 1050 is a great all around choice in temperature-reliant environments where mild abrasion is present.
Typical Applications: Diesel exhaust systems, wash down units
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
RL-1.5-1050 |
1.5” |
4.71 |
RL-2.0-1050 |
2.0” |
6.28 |
RL-2.5-1050 |
2.5” |
7.85 |
RL-3.0-1050 |
3.0” |
9.42 |
RL-3.5-1050 |
3.5” |
10.99 |
RL-4.5-1050 |
4.5” |
14.13 |
RL-5.5-1050 |
5.5” |
17.27 |
RL-6.5-1050 |
6.5” |
20.14 |
RL-7.5-1050 |
7.5” |
23.55 |

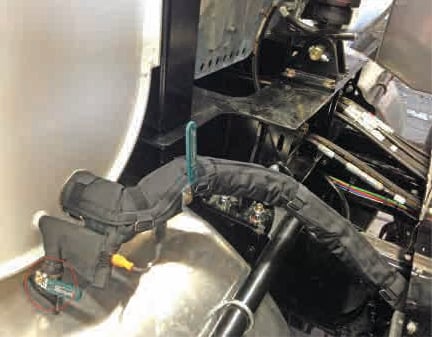

Tailored to insulate and protect refuse truck lines.
5601 : RADIANT LINED
Radiant Lined 5601 combines the best of both abrasion resistance and thermal retention technologies. A heavy urethane coating prevents moisture/air penetration and protects in abrasive applications.
Typical Applications: Diesel exhaust systems, wash down units
| PART NUMBER | MAX I.D. | CIRCUM |
|---|---|---|
RL-1.5-5601 |
1.5” |
4.71 |
RL-2.0-5601 |
2.0” |
6.28 |
RL-2.5-5601 |
2.5” |
7.85 |
RL-3.0-5601 |
3.0” |
9.42 |
RL-3.5-5601 |
3.5” |
10.99 |
RL-4.5-5601 |
4.5” |
14.13 |
RL-5.5-5601 |
5.5” |
17.27 |
RL-6.5-5601 |
6.5” |
20.14 |
RL-7.5-5601 |
7.5” |
23.55 |
Protects hoses and maintains viscosity in SPF applications.
WRAP SLEEVE

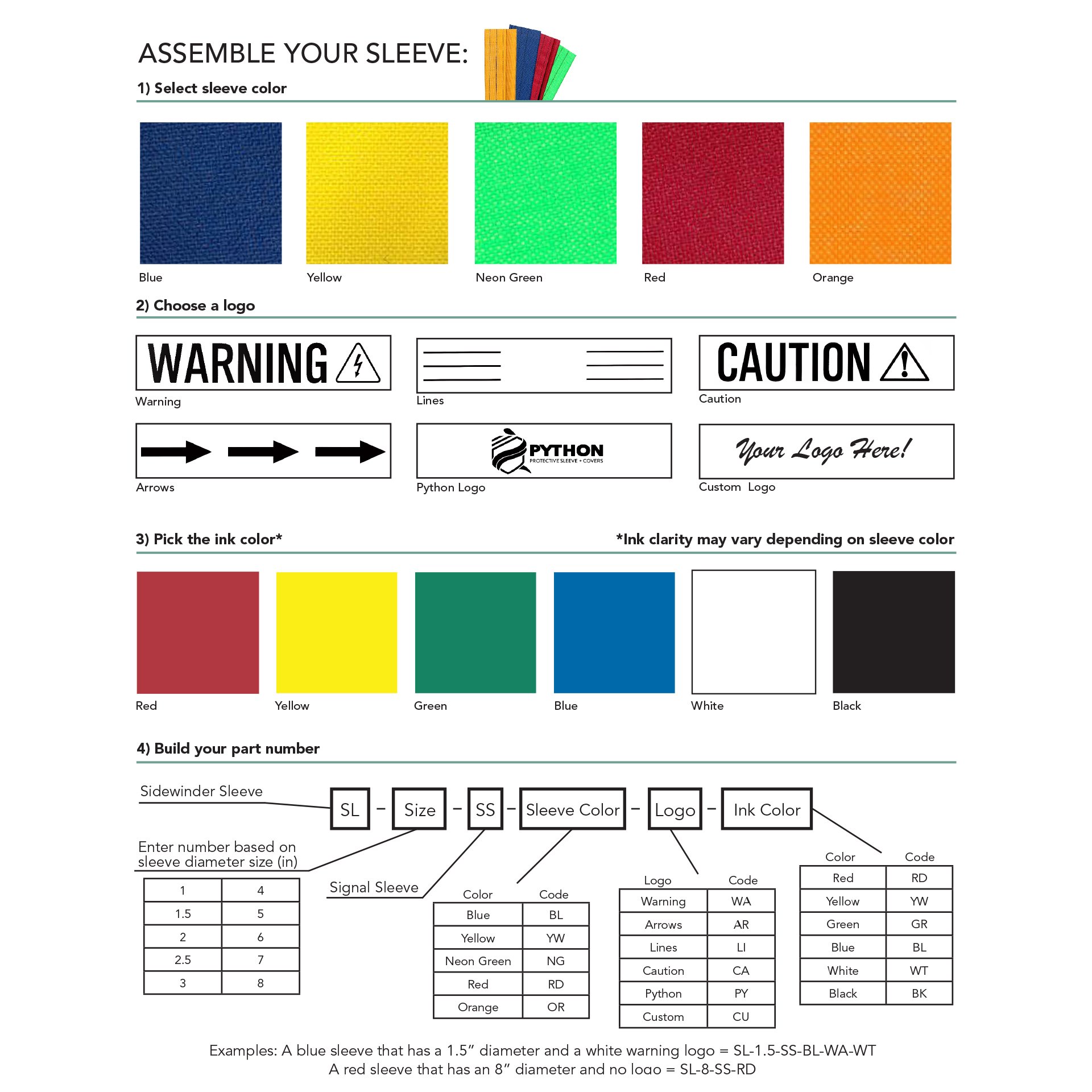

SIGNAL SLEEVE

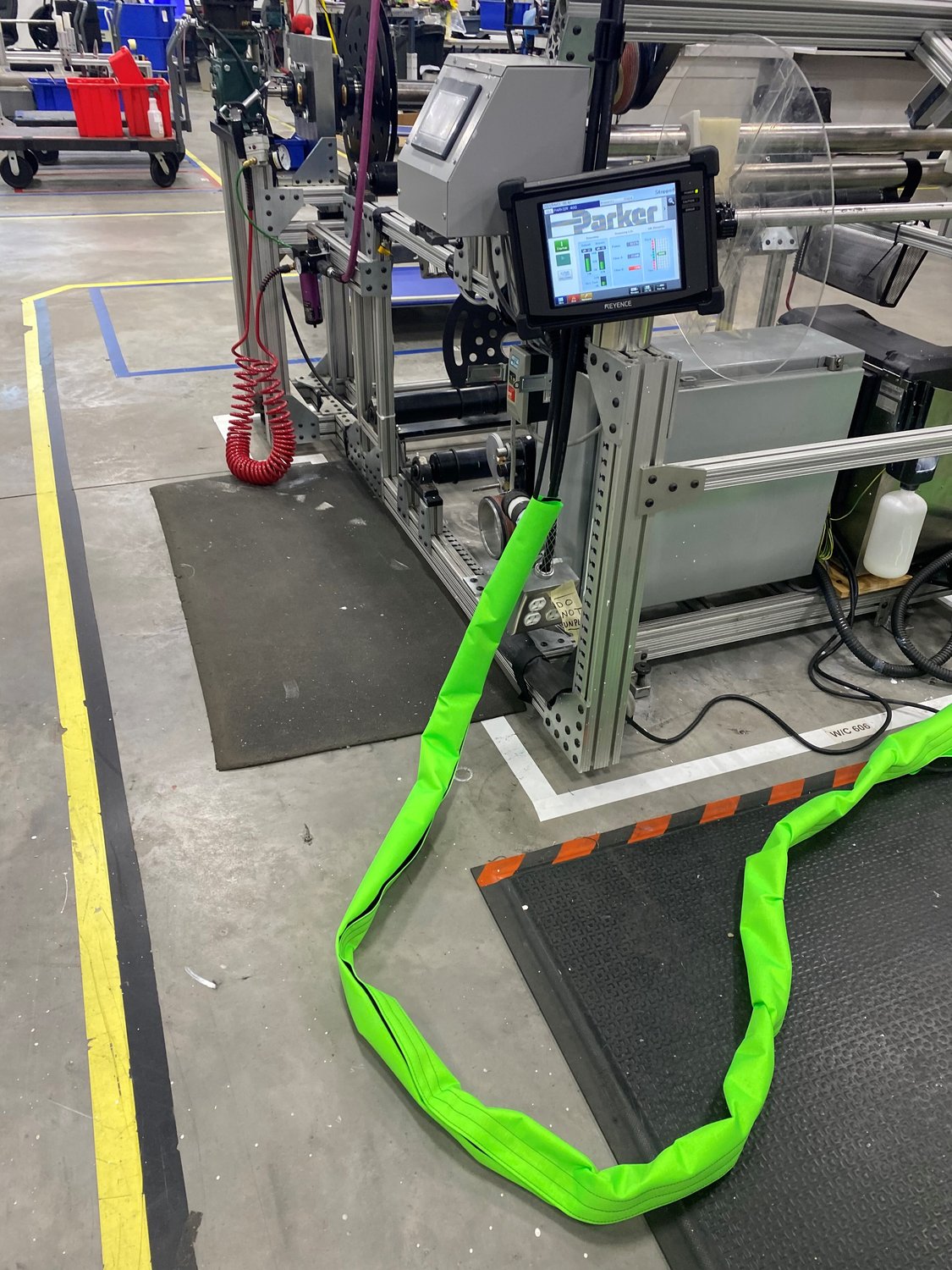

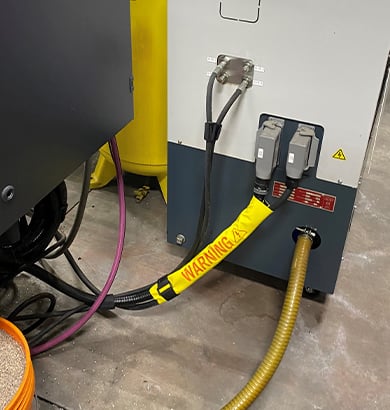

Prevent tripping hazards with a bright indicator.

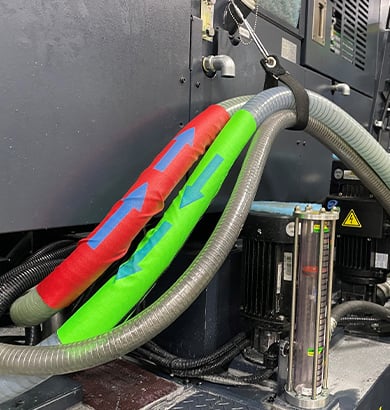

Show directional flow with colors and arrows.
Choose a logo to best suit the application containments.
DURABLE, CUSTOMIZABLE SLEEVE
Signal Sleeve was designed specifically as an economical solution for hose, cable and wire management to indicate and signal to the operator. Offering multiple material colors in conjunction with multiple logo options and printed color options, Signal Sleeve can be your guide.
Typical Applications: Static hoses on mobile equipment, power cord bundle, pneumatic lines, liquid transfer lines, A B transfer lines.
Features & Benefits:
- Lightweight and flexible
- Economical solution for a variety of bundling
- Provides a clean and professional look to any application
- Military grade hook & loop closure
TUBULAR SLEEVE
DIAMONDBACK LITE
Sleek Finish & Design
Abrasion protection
UV protection
UV & ABRASION PROTECTION
The Diamondback Lite Tubular Sleeve offers protection from abrasion and UV degradation. Diamondback Lite is made from a proprietary engineered fiber woven tightly and heat-treated, which shrinks the sleeve to the finished dimension.
Diamondback Lite uses the same solution dyed polyester yarn as the Diamondback and Diamondback PRO sleeves. This process gives Diamondback Lite excellent UV protection from fading and degradation.
Typical Applications: Agriculture, construction, utility mobile applications, and more
Features & Benefits:
- Protects hoses in abrasive environments; tested to ISO 6945 specification
- Meets Conductivity Standard ISO 8031
- MSHA approved
- Excellent UV protection; AATCC 16OPT.3
- Temperature tested to 212°F continuous and 392°F intermittent
- Ultra tight construction reduces oil spillage
- Easy to install; cut to length with a scissors
- Tested to over 40,000 cycles
SIZING & ORDERING INFORMATION
TUBULAR SLEEVE
| PART NUMBER | FLAT WIDTH | MAX I.D. |
|---|---|---|
DBK-017-LTE |
1.18” |
0.67” |
DBK-020-LTE |
1.34” |
0.79” |
DBK-023-LTE |
1.54” |
0.91” |
DBK-025-LTE |
1.65” |
0.98” |
DBK-027-LTE |
1.77” |
1.06” |
DBK-031-LTE |
2.05” |
1.22” |
DBK-036-LTE |
2.24” |
1.42” |
Standard lengths sold in 300’ increments.
| PART NUMBER | FLAT WIDTH | MAX I.D. |
|---|---|---|
DBK-040-LTE |
2.60” |
1.57” |
DBK-044-LTE |
2.83” |
1.73” |
DBK-047-LTE |
3.03” |
1.85” |
DBK-055-LTE |
3.50” |
2.17” |
DBK-060-LTE |
3.82” |
2.36” |
DBK-066-LTE |
4.18” |
2.62” |
DBK-073-LTE |
4.65” |
2.87” |
BAND CLAMPS
Fasten your sleeve to your hose assembly with band clamps.
| PART NUMBER | FLAT WIDTH | MAX I.D. |
|---|---|---|
BC-1.75 |
1/4” |
1.75” |
BC-2.25 |
1/4” |
2.25” |
BC-3.25 |
1/4” |
3.25” |
TUBULAR SLEEVE

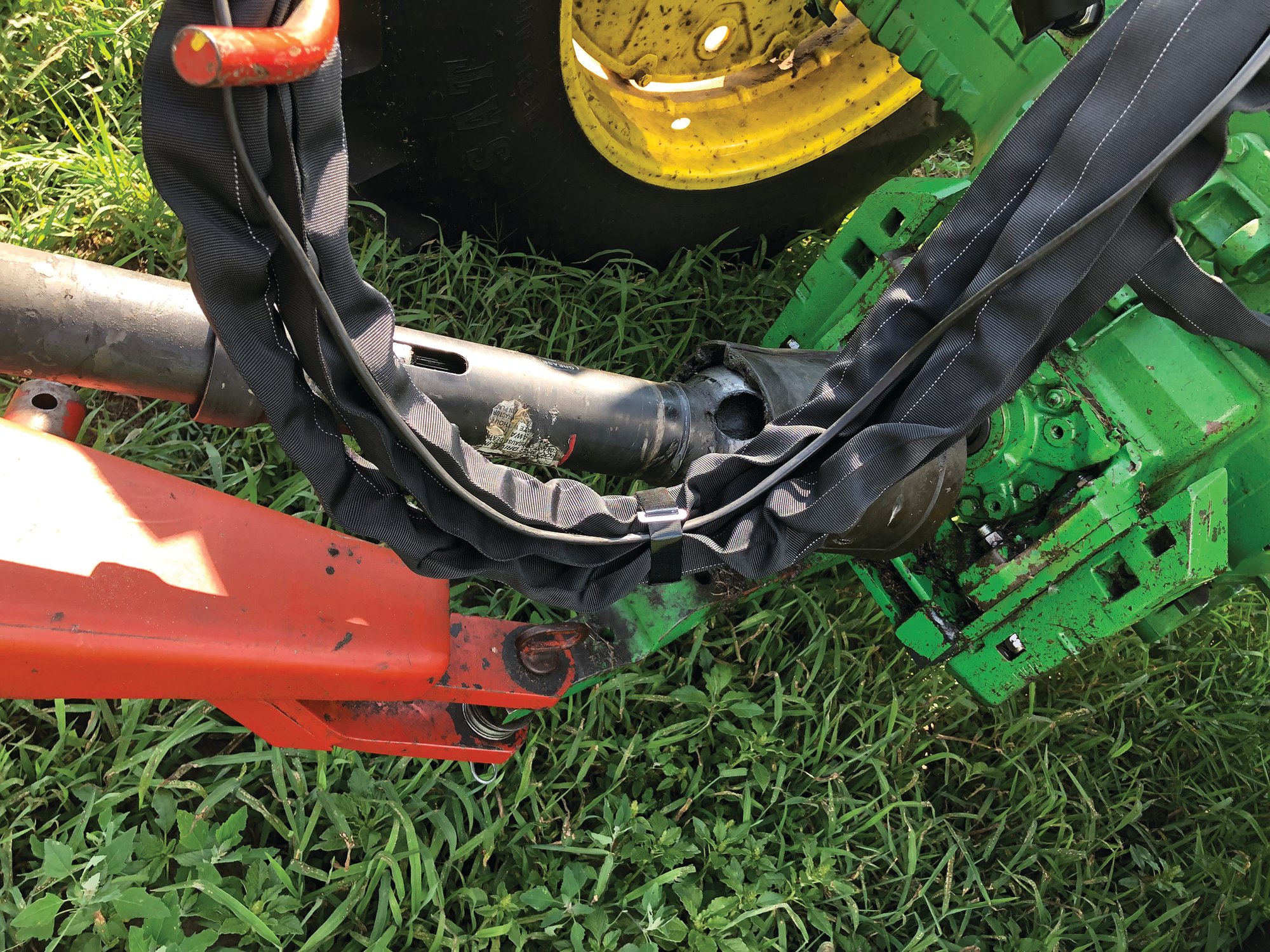

DIAMONDBACK
Operator protection
Abrasion protection
UV protection
PROTECT OPERATORS FROM HOSE BURST & PIN HOLE
Hydraulic hose failures are a serious hazard to both equipment and operators. Diamondback is designed to protect operators and meets the EU directive for line of sight and burst protection.
Diamondback is constructed using a proprietary fiber, tightly woven, providing highly effective abrasion protection. The weave produces a very sleek finish allowing Diamondback to easily slide over hoses and hose ends without snagging.

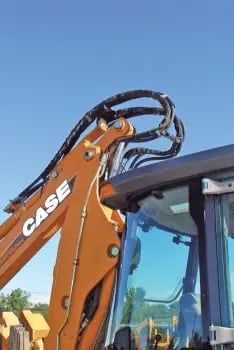

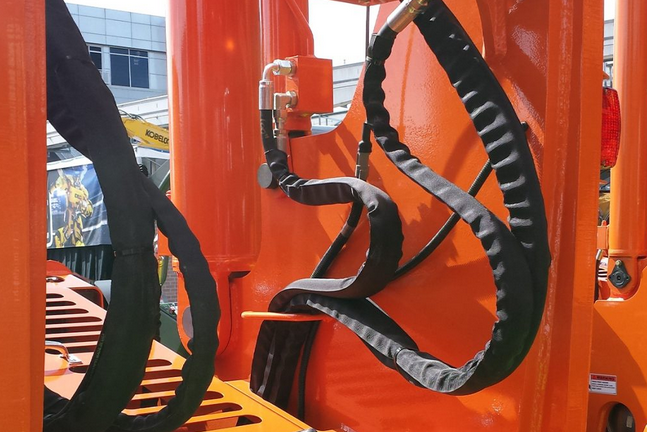

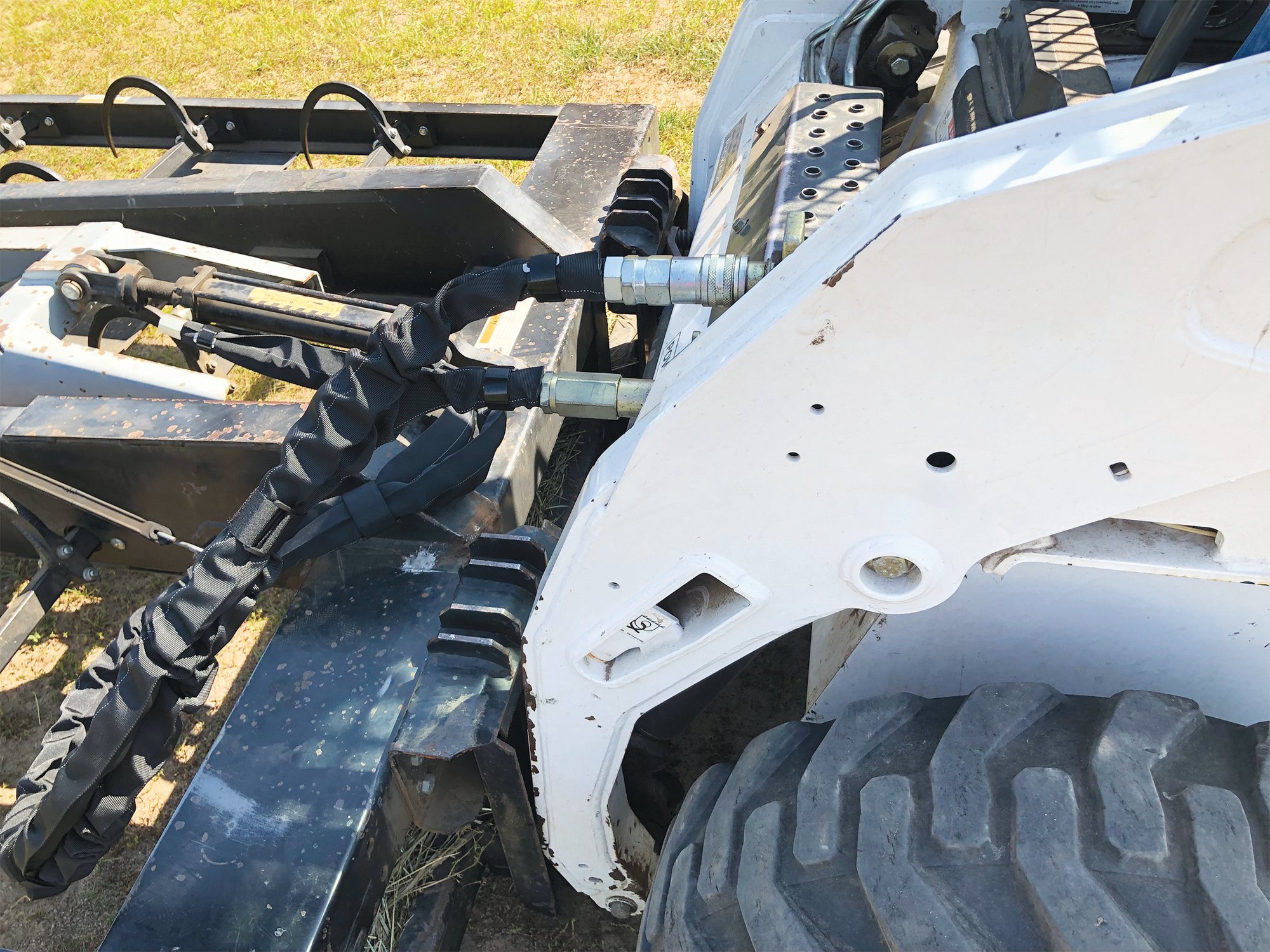

Typical Applications: Aerial lifts, mowers, cranes, forklifts, agriculture equipment, rock drills, hydraulic hand tools
Features & Benefits:
- hole protection tested to 4,000 PSI, burst tested to 12,000 PSI
- Meets operator “Line of Sight” specification EN982 norm 833 EN414, ISO Reg. 3457:2003
- MSHA approved #IC-289/01
- Excellent UV, chemical, and abrasion protection
- Meets abrasion standards ( ISO 6945 and ASTM D6770) tested to over 1 million cycles
- Ultra tight construction reduces oil spillage
- Cut to length; 50% less bulky than Cordura
- “Line of Sight” sizing chart. See doc PC-1387
SIZING & ORDERING INFORMATION
TUBULAR SLEEVE
| PART NUMBER | FLAT WIDTH | MAX I.D. |
|---|---|---|
DBK-017 |
1.18” |
0.67” |
DBK-020 |
1.34” |
0.79” |
DBK-023 |
1.54” |
0.91” |
DBK-025 |
1.65” |
0.98” |
DBK-027 |
1.77” |
1.06” |
DBK-031 |
2.05” |
1.22” |
DBK-036 |
2.24” |
1.42” |
DBK-040 |
2.60” |
1.57” |
DBK-044 |
2.83” |
1.73” |
DBK-047 |
3.03” |
1.85” |
Standard lengths sold in 300’ increments.
| PART NUMBER | FLAT WIDTH | MAX I.D. |
|---|---|---|
DBK-055 |
3.50” |
2.17” |
DBK-060 |
3.82” |
2.36” |
DBK-066 |
4.18” |
2.62” |
DBK-073 |
4.65” |
2.87” |
DBK-080 |
5.02” |
3.14” |
DBK-093 |
5.87” |
3.66” |
DBK-100 |
6.30” |
3.94” |
DBK-112 |
7.05” |
4.41” |
DBK-127 |
7.75” |
4.94” |
TUBULAR SLEEVE
DIAMONDBACK PRO
Operator protection
Abrasion protection
UV protection
FAST INSTALLATION FOR OPERATOR PROTECTION
Go PRO! Experience up to 80% faster installation times. Diamondback PRO is designed to protect operators and meets the EU directive for line of sight and burst protection.
Diamondback PRO is constructed using a proprietary fiber, tightly woven, providing highly effective abrasion protection. The weave produces a very sleek finish allowing Diamondback PRO to easily slide over hoses and hose ends without snagging.
Typical Applications: Aerial lifts, mowers, cranes, forklifts, agriculture equipment, rock drills, hydraulic hand tools
Features & Benefits:
- Pin hole protection tested to 4,000 PSI, burst tested to 12,000 PSI
- Meets operator” specification EN982 norm 833 EN414, ISO Reg. 3457:2003
- MSHA approved #IC-289/01
- Excellent UV, chemical, and abrasion protection
- Meets abrasion standards ( ISO 6945 and ASTM D6770) tested to over 1 million cycles
- Ultra tight construction reduces oil spillage
- Cut to length; 50% less bulky than Cordura
- “Line of Sight” sizing chart. See doc PC-1387
SIZING & ORDERING INFORMATION
TUBULAR SLEEVE
| PART NUMBER | FLAT WIDTH | MAX I.D. |
|---|---|---|
DBK-017-PRO |
1.18” |
0.67” |
DBK-020-PRO |
1.34” |
0.79” |
DBK-023-PRO |
1.54” |
0.91” |
DBK-025-PRO |
1.65” |
0.98” |
DBK-027-PRO |
1.77” |
1.06” |
DBK-031-PRO |
2.05” |
1.22” |
DBK-036-PRO |
2.24” |
1.42” |
DBK-040-PRO |
2.60” |
1.57” |
DBK-044-PRO |
2.83” |
1.73” |
DBK-047-PRO |
3.03” |
1.85” |
Standard lengths sold in 300’ increments.
| PART NUMBER | FLAT WIDTH | MAX I.D. |
|---|---|---|
DBK-055 |
3.50” |
2.17” |
DBK-060 |
3.82” |
2.36” |
DBK-066 |
4.18” |
2.62” |
DBK-073 |
4.65” |
2.87” |
DBK-080 |
5.02” |
3.14” |
DBK-093 |
5.87” |
3.66” |
DBK-100 |
6.30” |
3.94” |
DBK-112 |
7.05” |
4.41” |
DBK-127 |
7.75” |
4.94” |

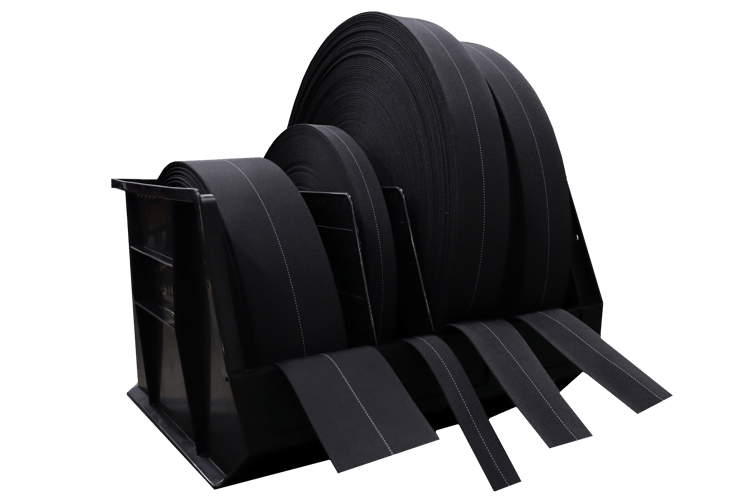

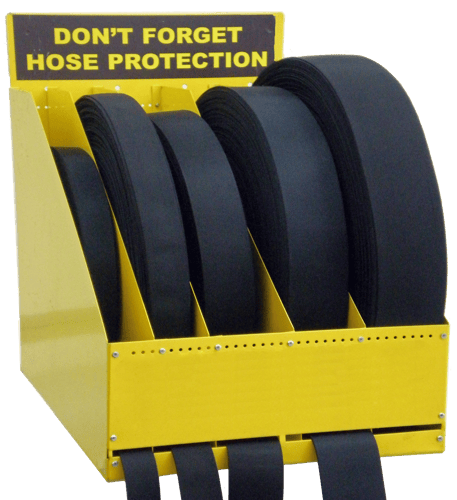

DBK-DSP
21999-0295

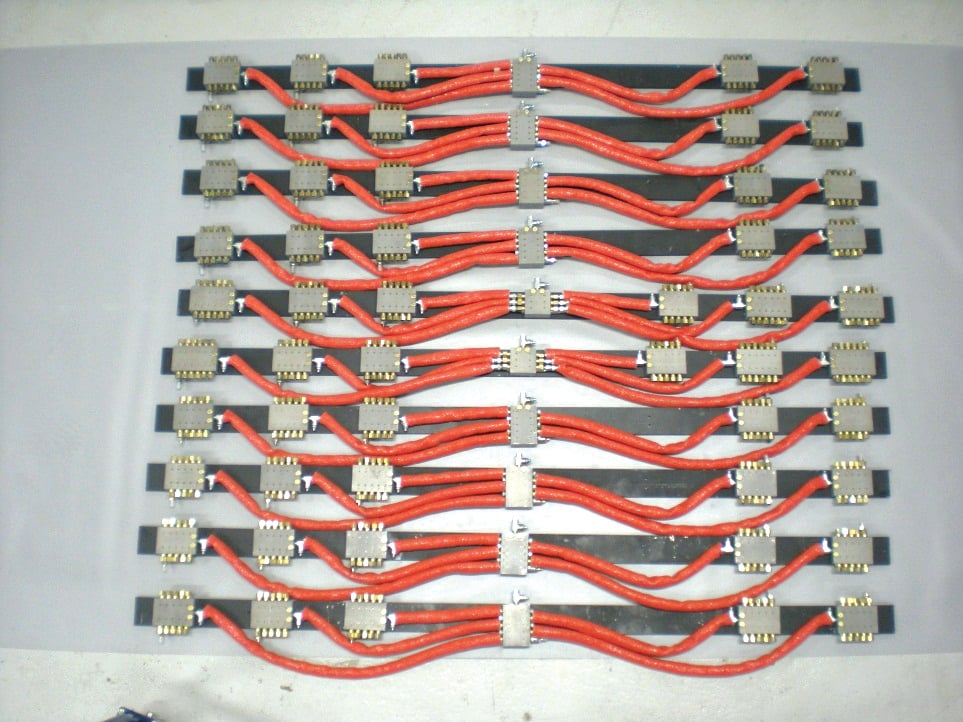

FIRE SLEEVE
Protection from dust & rail sparks.

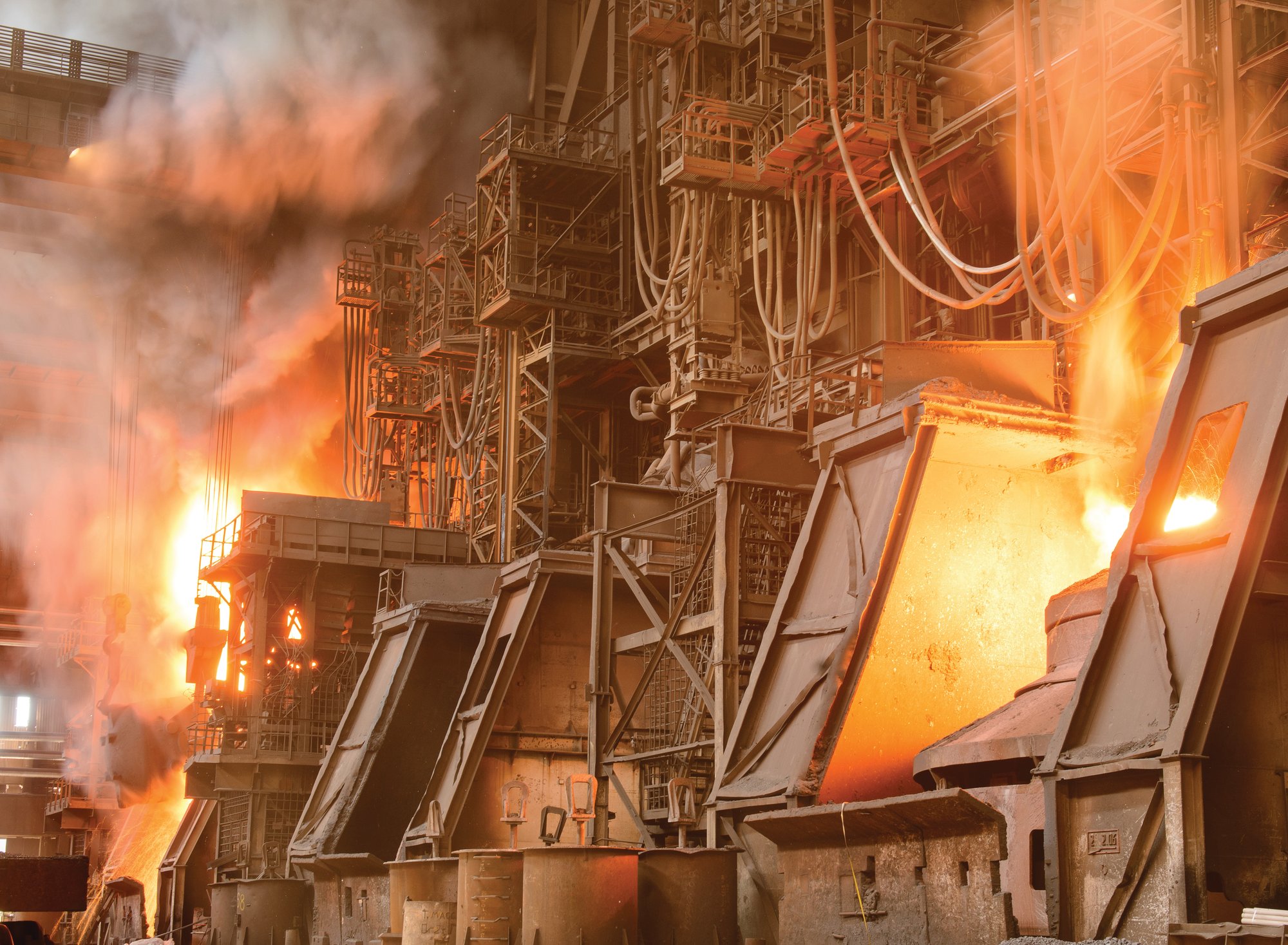

Flame & molten metal splash protection.

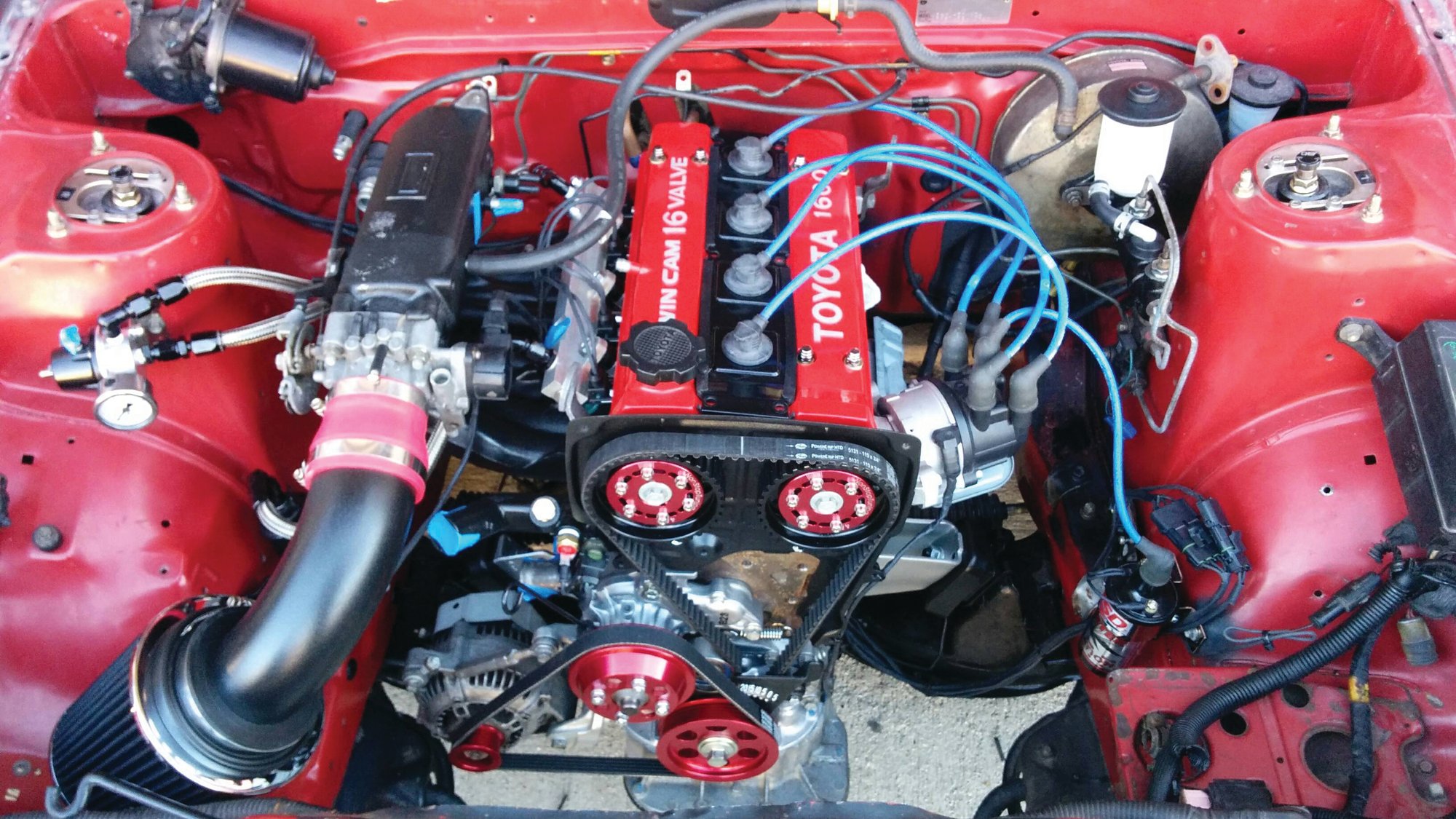

Protect wires from extreme engine temps.

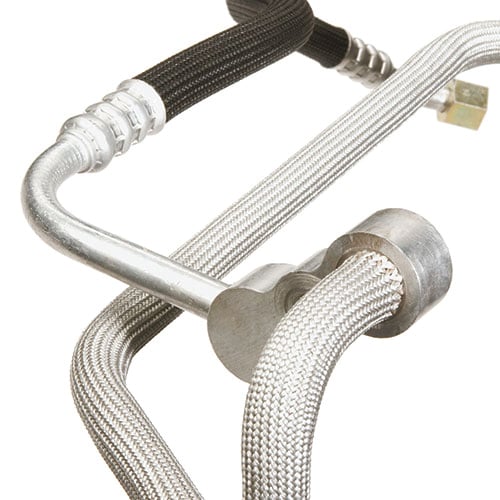

SILICON-COATED HIGH TEMPERATURE FIBERGLASS
Fire Sleeve’s bulk fiberglass base and iron-oxide silicon coating make it the optimal single line solution where molten metal splash, radiant heat, chemicals, and abrasion are present. The tubular style sleeve is designed to withstand continuous heat exposure up to 500°F and intermittent heat of up to 3000°F.
In addition to protecting hoses, cables, and pipes, Fire Sleeve can protect people from incurring scorching burn injuries. Offering both regular knitted and woven aerospace grade, the silicon coating allows the sleeve to remain extremely flexible and moisture resistant in tight radius and outdoor environments.

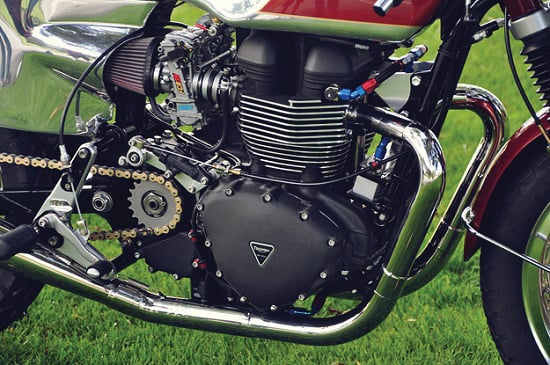

Typical Applications: Performance automotive, steel work, oil rigs, exhuast systems, high temperature cable and wiring systems
Features & Benefits:
- Unaffected by hydraulic fluids, lubricants, chemicals, and oils
- Withstands exposure to molten steel, aluminum, and glass
- Designed to protect against occasional flame
- Continuous exposure up to 500°F, intermittent up to 3000°F
- Insulates against energy or temperature loss
SIZING & ORDERING INFORMATION
FIRE SLEEVE
| PART NUMBER | MAX I.D. |
|---|---|
FS-004 |
0.25” |
FS-006 |
0.375” |
FS-008 |
0.5” |
FS-010 |
0.625” |
FS-012 |
0.75” |
FS-014 |
0.875” |
FS-016 |
1” |
FS-018 |
1.13” |
FS-020 |
1.25” |
FS-022 |
1.375” |
FS-024 |
1.5” |
FS-026 |
1.625” |
FS-028 |
1.75” |
FS-032 |
2” |
FS-036 |
2.25” |
FS-040 |
2.5” |
FS-044 |
2.75” |
FS-048 |
3” |
| PART NUMBER | MAX I.D. |
|---|---|
FS-052 |
3.25” |
FS-056 |
3.5” |
FS-060 |
3.75” |
FS-064 |
4” |
FS-072 |
4.5” |
FS-080 |
5” |
FS-088 |
5.5” |
FS-096 |
6” |
FIRE SLEEVE AEROSPACE GRADE
| PART NUMBER | MAX I.D. |
|---|---|
FSA-004 |
0.25” |
FSA-006 |
0.375” |
FSA-008 |
0.5” |
FSA-010 |
0.625” |
FSA-012 |
0.75” |
FSA-014 |
0.875” |
FSA-016 |
1” |
FSA-018 |
1.13” |
| PART NUMBER | MAX I.D. |
|---|---|
FSA-020 |
1.25” |
FSA-022 |
1.375” |
FSA-024 |
1.5” |
FSA-028 |
1.75” |
FSA-032 |
2” |
FSA-036 |
2.25” |
FSA-040 |
2.5” |
FSA-044 |
2.75” |
FSA-048 |
3” |
FSA-052 |
3.25” |
FSA-056 |
3.5” |
FSA-060 |
3.75” |
FSA-064 |
4” |
FSA-072 |
4.5” |
FSA-080 |
5” |
FSA-088 |
5.5” |
FSA-096 |
6” |
THERMA SLEEVE
STANDARD DUTY

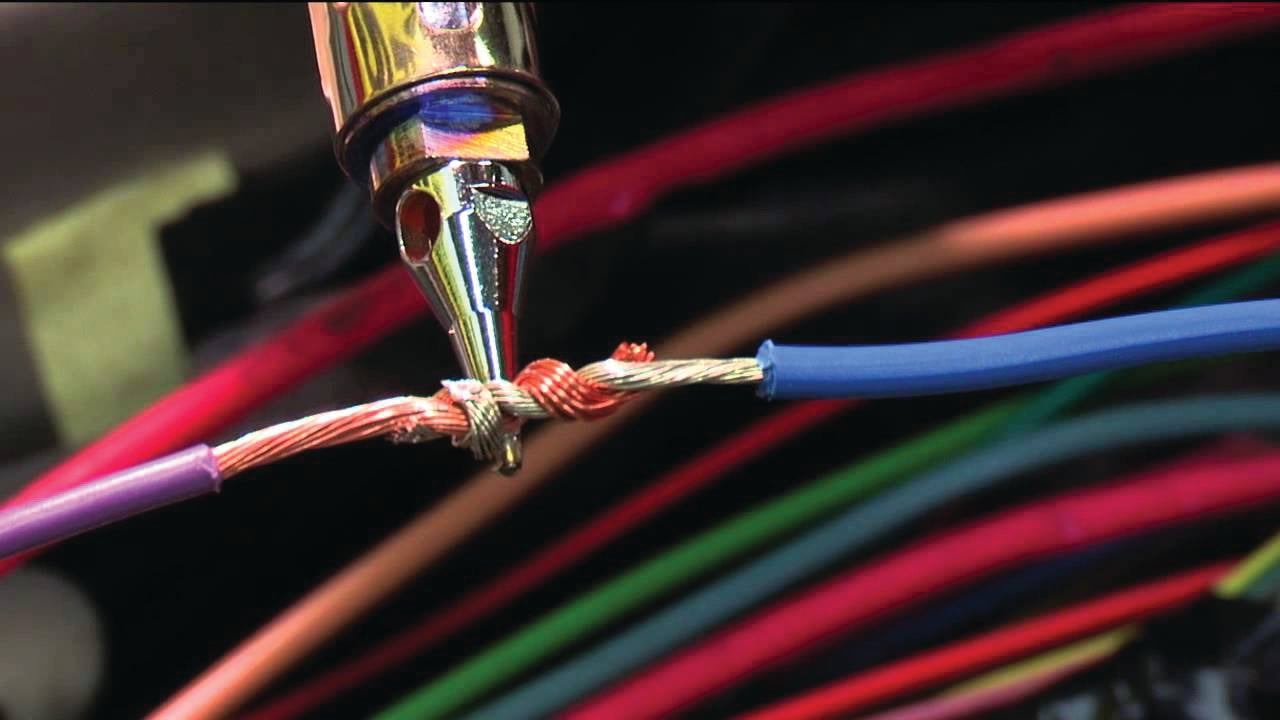

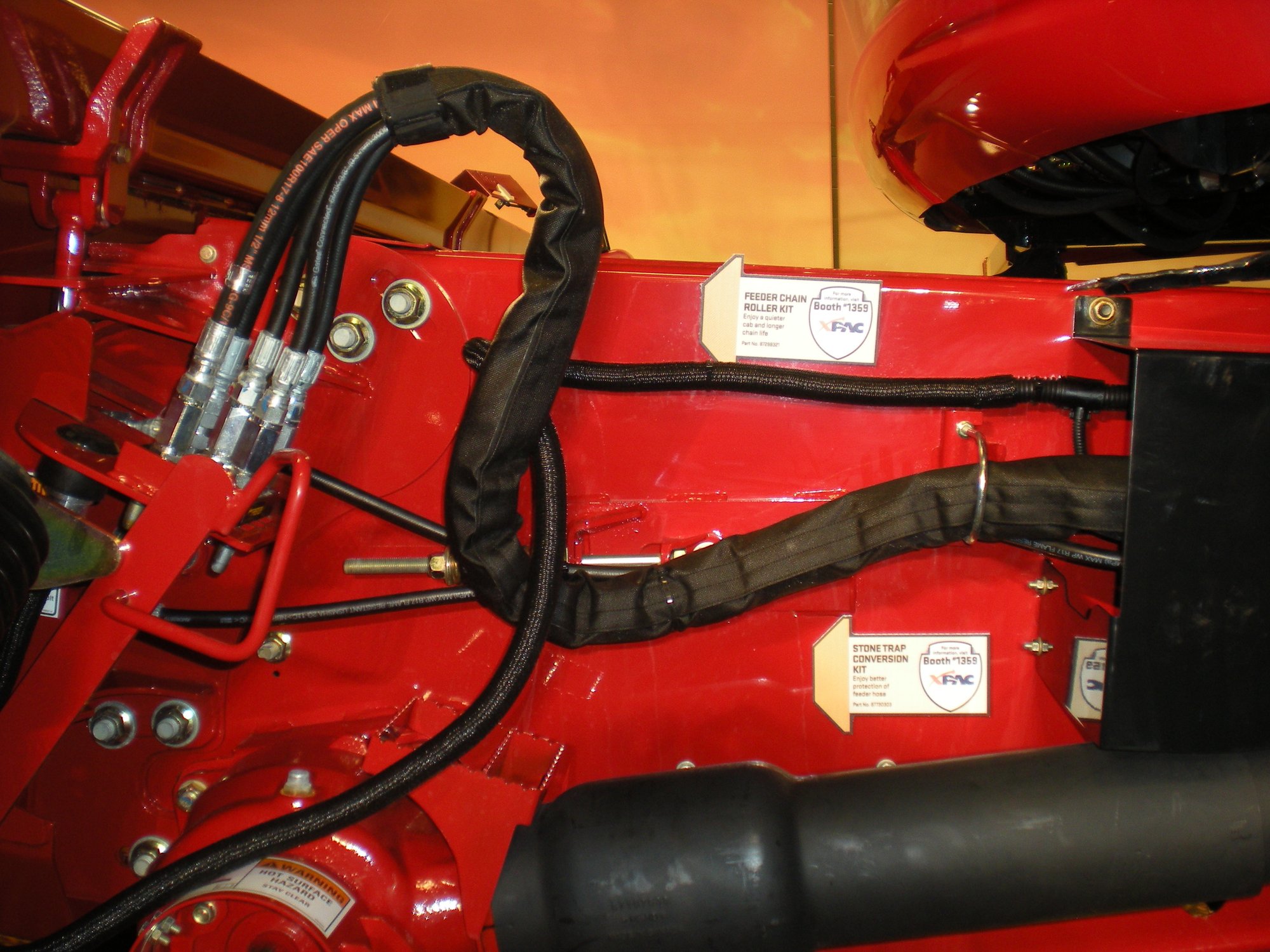

Protect soldered wires from harsh, high heat environments.
Shield critical wiring from heat & debris.
The tubular product offers an attractive & professional finish.
IMPROVES USABILITY AND PERFORMANCE
Therma Sleeve SD is a braided fiberglass sleeving that has been heat treated and impregnated with an acrylic binder to reduce fraying and dusting, and improve usability and performance. Therma Sleeve SD was engineered for applications where temperatures as high as 1200°F may be encountered.
Therma Sleeve SD may also be used as insulation and protection for small heaters and resistors that operate at high temperatures, and to insulate over soldered connections when exposure to solder melt temperature is possible.
Typical Applications: Mowing equipment, electronics, engine wiring, control panels on off-highway equipment
Features & Benefits:
- Engineered for high temperature, low voltage applications
- Continuous working temperature up to 1200°F / 2048°F Melt
- UL recognized: VW-1
- Easy to install, cuts with standard scissors
- Resists most organic chemicals
- Exellent low-temperature flexibility
SIZING & ORDERING INFORMATION
STANDARD DUTY ACRYLIC-COATED BRAIDED FIBERGLASS
| SIZE | PART NUMBER | MAX EXPANSION | MINIMUM LENGTH |
|---|---|---|---|
1/4” |
TS-04-SD |
.278 |
500’ |
3/8” |
TS-06-SD |
.399 |
200’ |
7/16” |
TS-07-SD |
.462 |
200’ |
1/2” |
TS-08-SD |
.524 |
200’ |
5/8” |
TS-10-SD |
.655 |
200’ |
3/4” |
TS-12-SD |
.786 |
200’ |
7/8” |
TS-14-SD |
1.04 |
100’ |
1” |
TS-16-SD |
.347 |
100’ |
Standard lengths sold in 100’ increments.
THERMA SLEEVE
HEAVY DUTY
Heavy Duty Fiberglass protects wiring in high performance automotive engines.
Gives a clean, professional look to critical components.

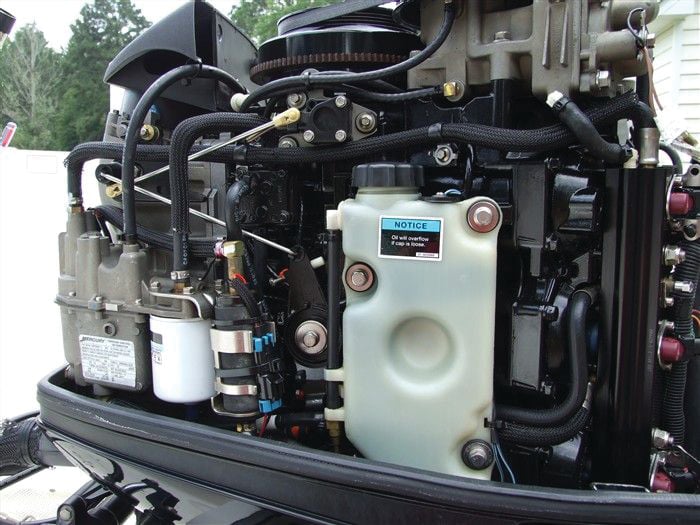

Outboard marine engines shield electrical wiring from high heat engine exhaust.
EXTREMELY TOUGH AND DURABLE
Therma Sleeve HD is an extremely high temperature resistant sleeve which is commonly used as thermal protection for cables, wires, and hoses that are subject to continuous and extreme high temperature environments such as engine manifolds and exhaust systems.
Therma Sleeve HD is braided from fiberglass yarns and coated with high temperature resins. Therma Sleeve HD is extremely tough and durable, maintaining its tight structure under extreme vibration, abrasion, mechanical stress and temperature variations. Therma Sleeve HD installs easily over a variety of applications to either deflect or retain heat in environments up to 1200°F.
Typical Applications: Locomotive hoses, drill rigs, race cars
Features & Benefits:
- Resin-coated, heavy weight fiberglass
- Continuous working temperature up to 1200°F / 2048°F Melt
- Heavy duty fiberglass won’t burn, melt, or become brittle
- Easy to install, cuts with standard scissors
- Resists gasoline and engine chemicals
- High resistance to abrasion
SIZING & ORDERING INFORMATION
HEAVY DUTY ACRYLIC-COATED BRAIDED FIBERGLASS
| SIZE | PART NUMBER | MAX EXPANSION | MINIMUM LENGTH |
|---|---|---|---|
3/8” |
TS-04-HD |
.278 |
200’ |
3/8” |
TS-06-HD |
5/8” |
200’ |
1/2” |
TS-08-HD |
3/4" |
200’ |
5/8” |
TS-10-HD |
7/8" |
200’ |
3/4” |
TS-12-HD |
1 1/8” |
200’ |
7/8” |
TS-14-HD |
1 1/4” |
200’ |
1” |
TS-16-HD |
1 5/8” |
100’ |
1½” |
TS-24-HD |
2 5/8” |
100’ |
2½” |
TS-40-HD |
4 1/8” |
100’ |
Standard lengths sold in 100’ increments.
HEAVY & STANDARD DUTY

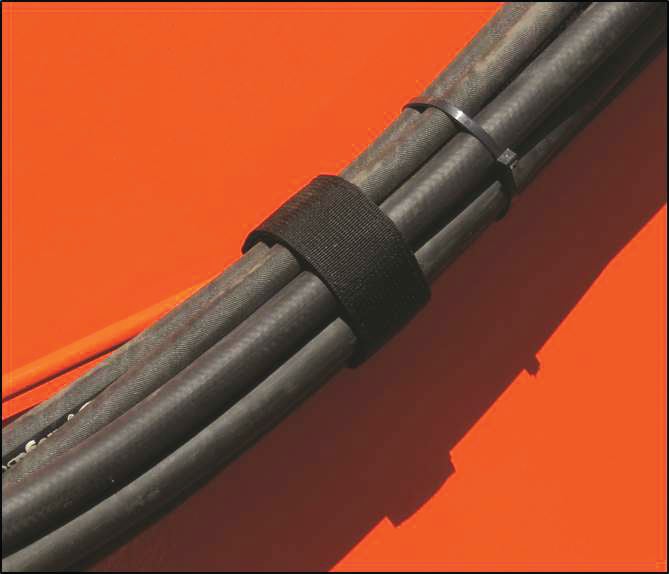

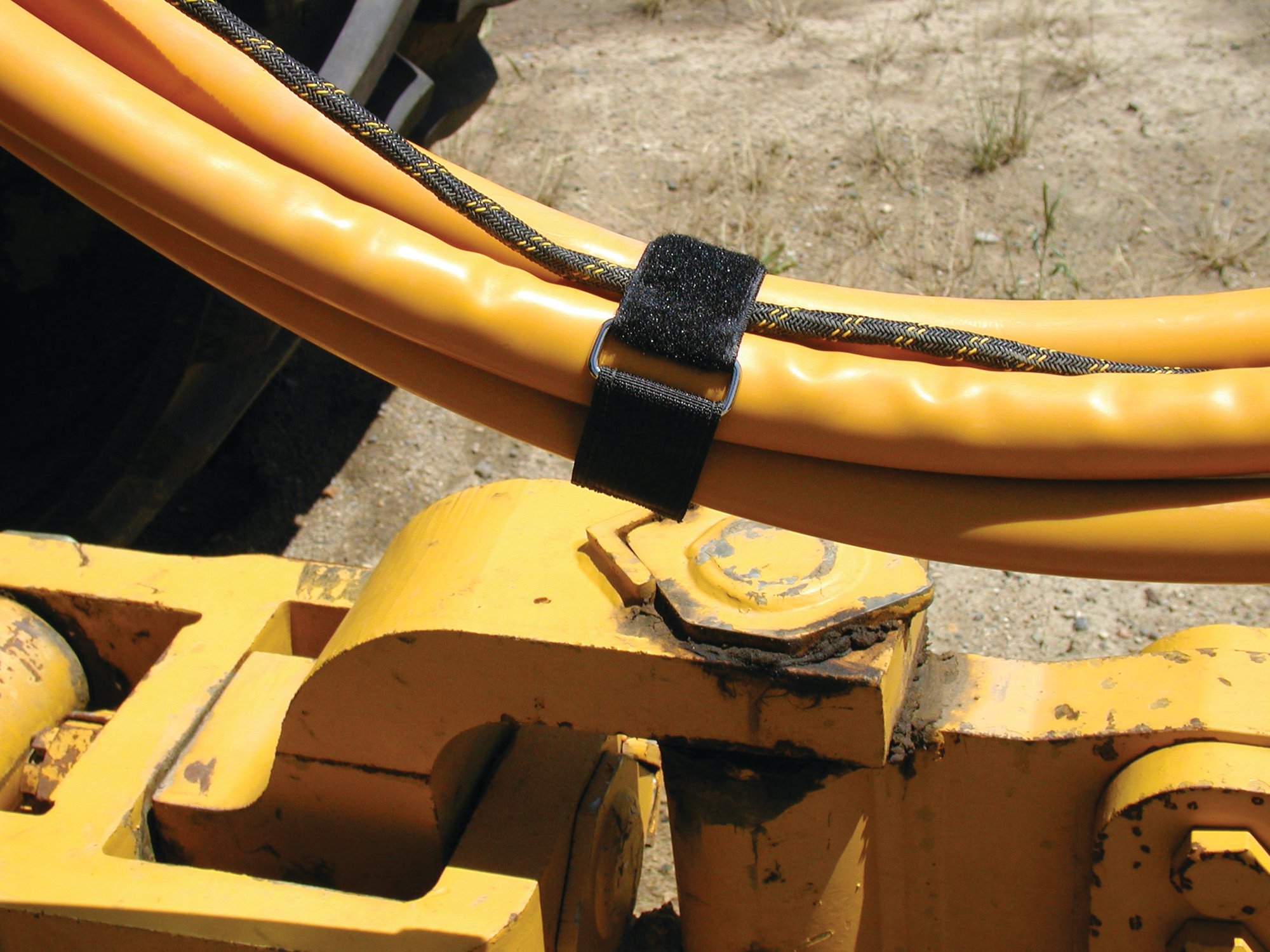

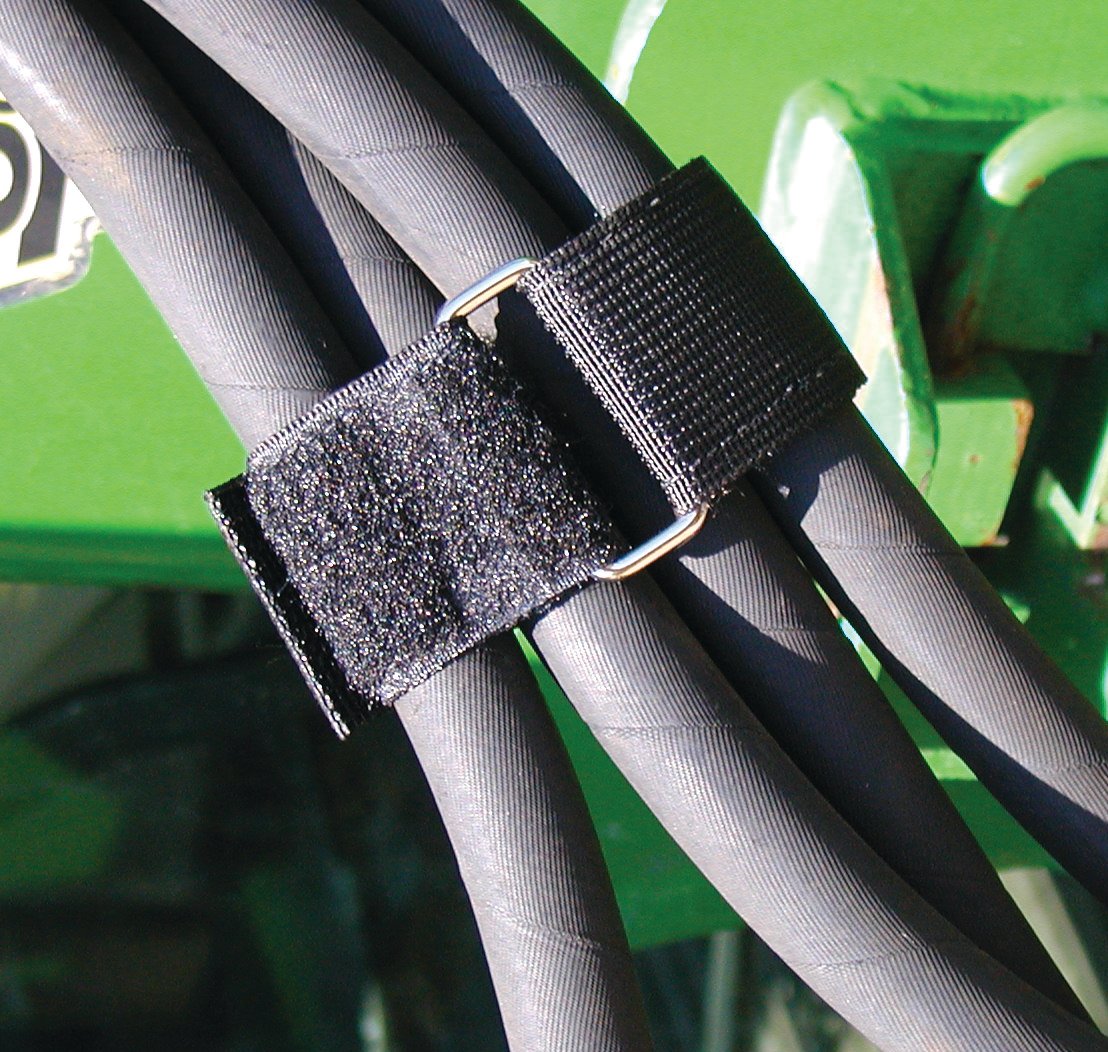

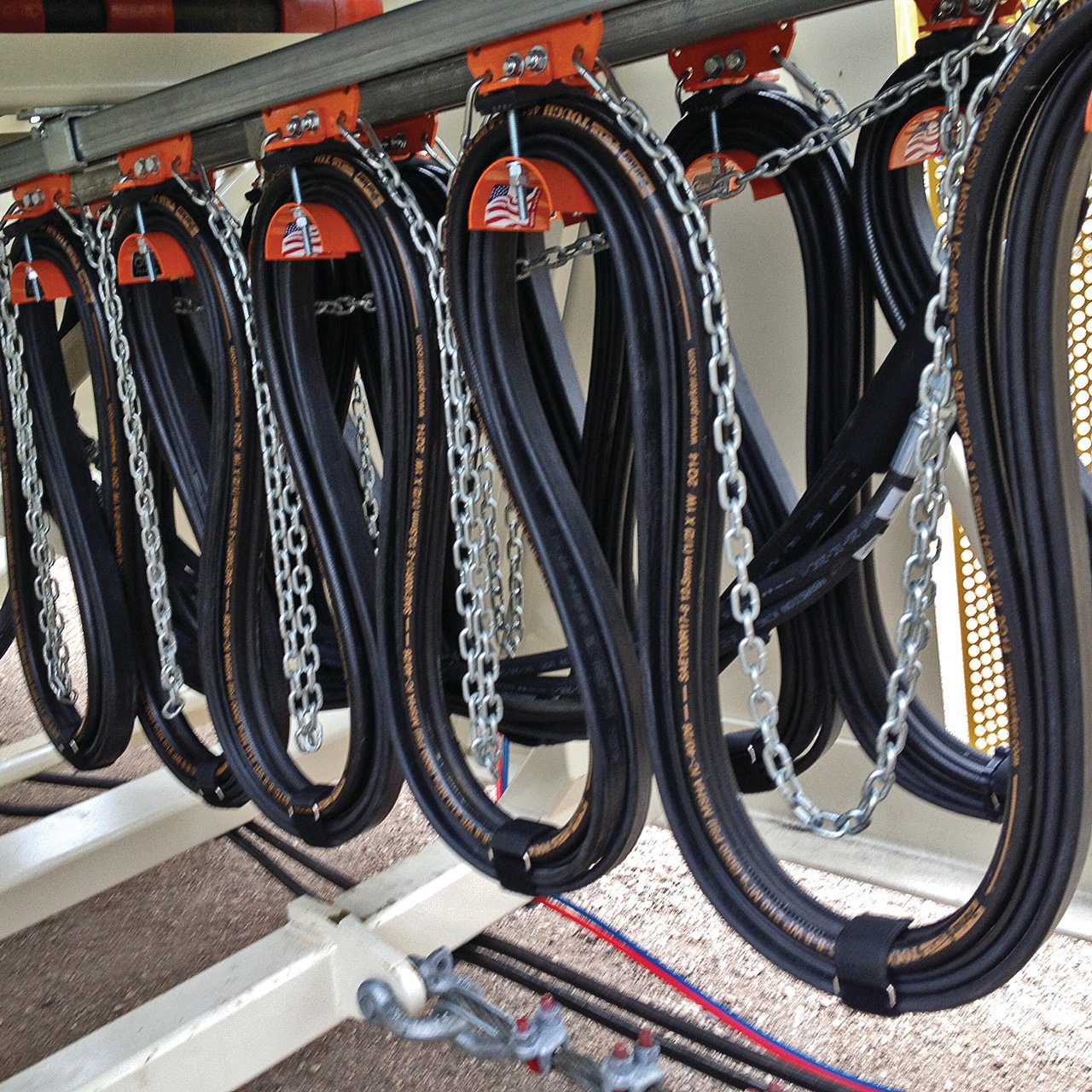

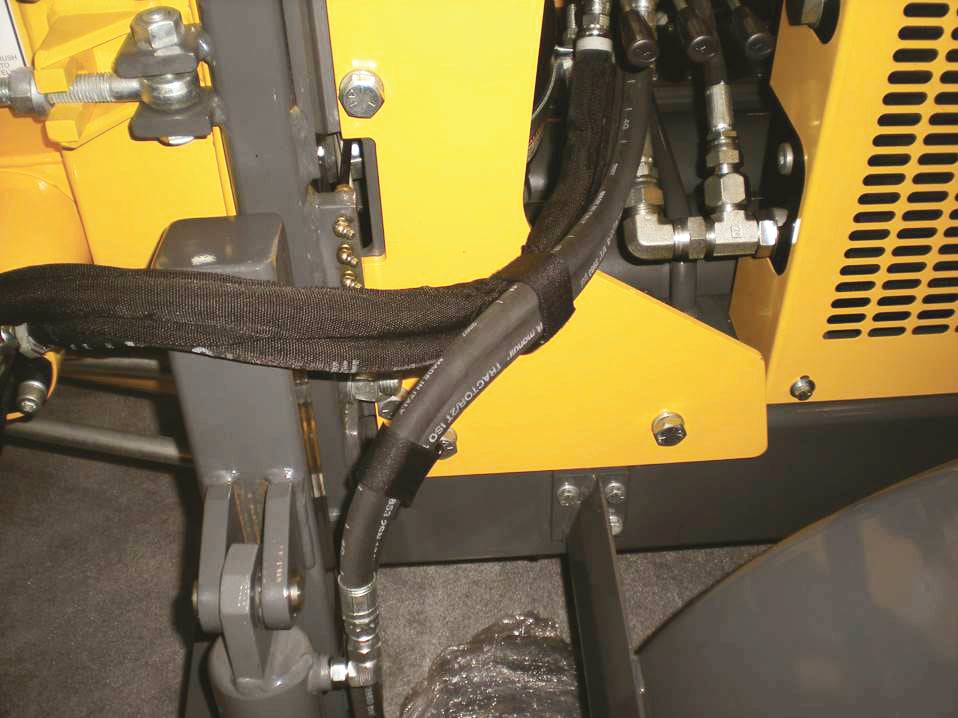

CINCH STRAPS
Excellent protection from abrasion & UV rays.
Gain quick & easy access for maintenance or repair.
Allow natural hose expansion & contraction preventing damage caused by nylon ties.
ROBUST OPTION IN BUNDLE & SECURING APPLICATIONS
All straps feature Military-Spec Python Hook & Loop® closure to insure the strap will not open up without significant peel effort. The nylon backing combined with ultrasonic welded joints make Python the fastest & most dependable option for managing a variety of complex power applications.
Standard Duty: Nylon backing w/ Delrin/Polymide buckle
Heavy Duty: Double-backed Nylon w/ Nickel-plated steel buckle
Typical Applications: Corn planters, sprayers, excavators, tractors, bull dozers, industrial conveyors, fork lifts
Features & Benefits:
- Straps adjust and connect for use in 1000’s of applications
- The fastest and strongest alternative to nylon ties and industrial tape
- Miitary-spec closure up to 10x stronger than traditional hook & loop
- Allows for natural hose expansion and contraction
- Fast and effective method for reducing maintenance and labor costs
- Usable, tear resistant and unimpacted by extreme environments
SIZING & ORDERING INFORMATION
STANDARD DUTY CINCH STRAPS
| PART NUMBER | MAX CIRCUMFERENCE |
|---|---|
CS404 |
4” |
CS406 |
6” |
CS408 |
8” |
CS410 |
10” |
CS412 |
12” |
CS416 |
16” |
CS420 |
20” |
CS424 |
24” |
Standard duty straps sold in 25 packs.
HEAVY DUTY CINCH STRAPS
| PART NUMBER | MAX CIRCUMFERENCE |
|---|---|
CS404 |
4” |
CS406 |
6” |
CS408 |
8” |
CS410 |
10” |
CS412 |
12” |
CS416 |
16” |
CS420 |
20” |
CS424 |
24” |
Heavy duty straps sold in 25 packs.
HEAVY & STANDARD DUTY

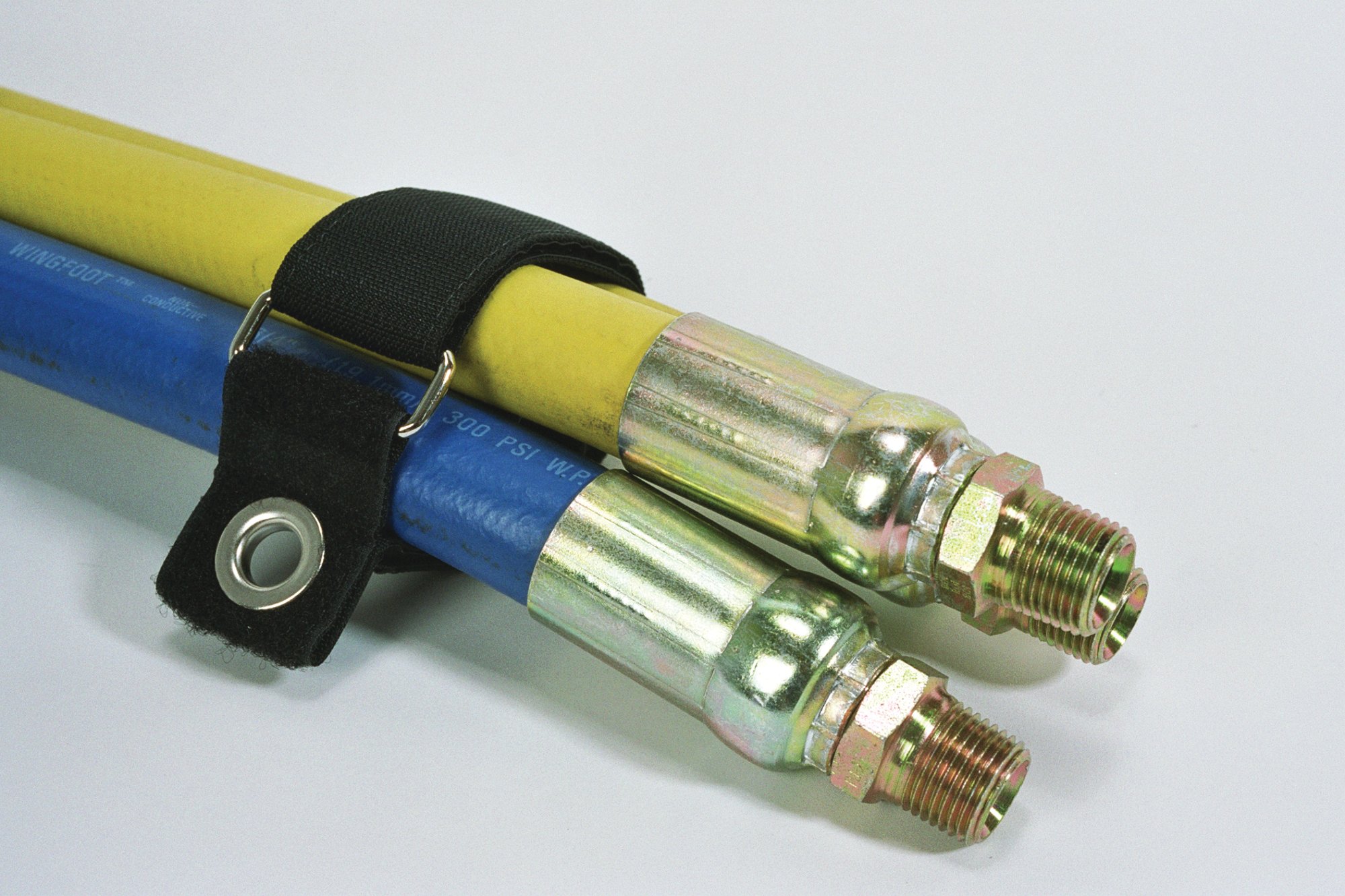

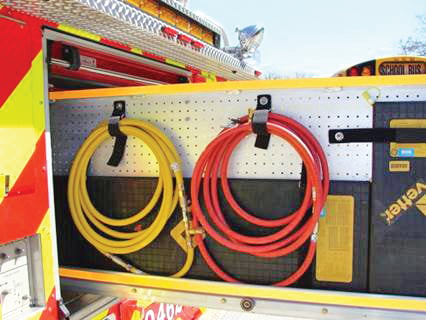

HANGING STRAPS
Hang equipment with nickelplated brass grommet.
Prevent injury claims caused by traditional fixed hardware.
Hanging Straps provide a documented part location & allow access without the need for tools.
THE NEXT GENERATION OF ROUTING TOOLS
Python Hanging Straps are used in place of traditional tube clamps, loop clamps & other discretionary fasteners. Grommets support hose bundles during assembly & become are to secure hoses in the desired location. Hanging Straps feature standard industrial-grade Hook & Loop technology allowing fast & easy access to hoses without the need for tools.
Standard Duty: Nylon backing w/ Delrin/Polymide buckle and Nickel-plated brass grommet Heavy Duty: Double-backed Nylon w/ Nickel-plated steel buckle and Nickel-plated brass grommet

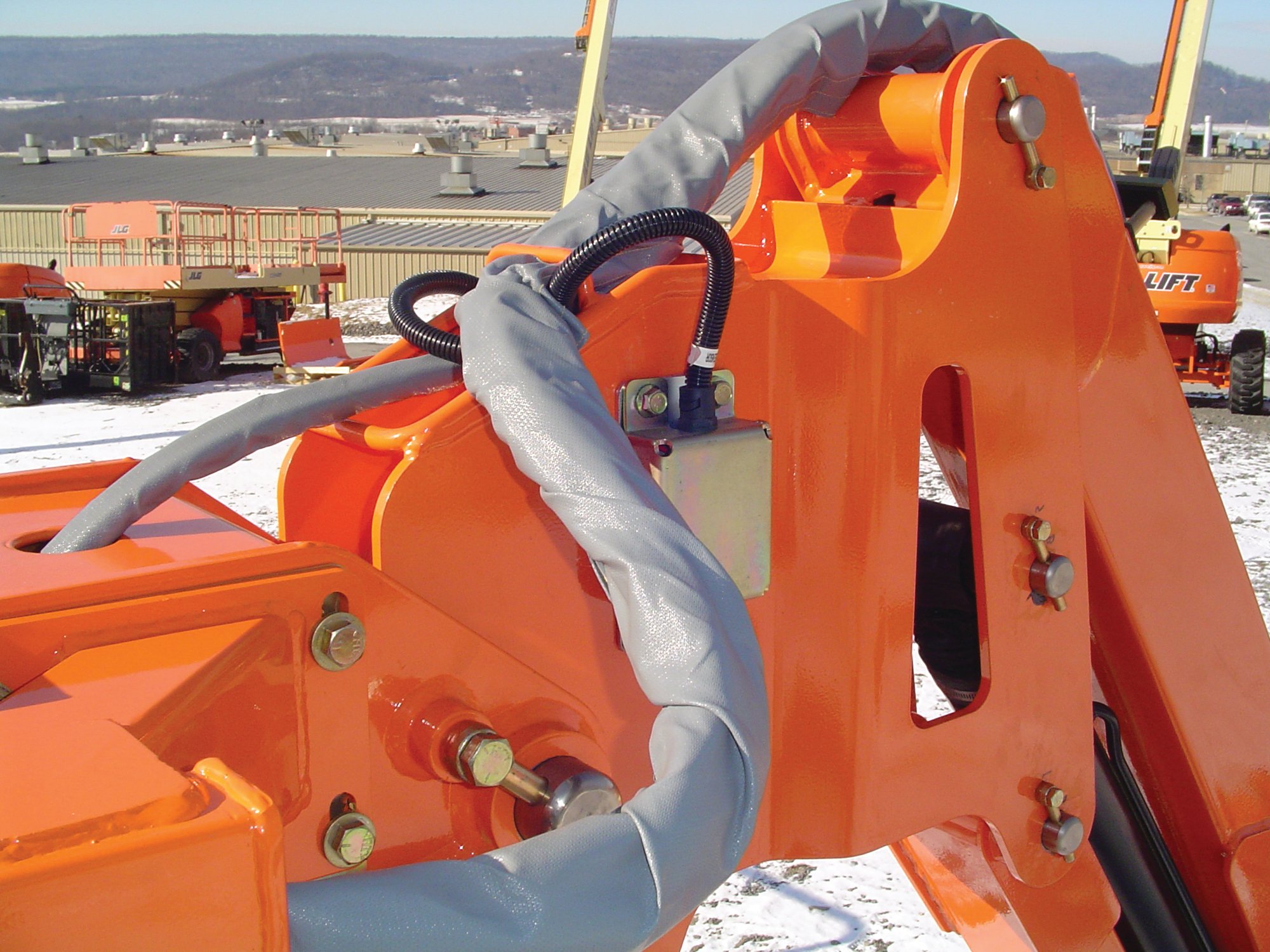

Typical Applications: Excavators, aerial lifts, motor graders, cranes, garbage trucks, service trucks, conveyors, industrial equipment, recreational vehicles
Features & Benefits:
- One part system eliminates the need for nylon ties, rubber coated loop clamps & other discretionary fasteners
- Military-Spec closure up to 10x stronger than traditional hook & loop
- Stainless steel grommet supports bundle during assembly & provides fast, easy access without the need for tools
- Provides assembly with a documented part location
- Allows for natural hose expansion & contraction
- Usable, tear resistant & unimpacted by extreme environments
SIZING & ORDERING INFORMATION
STANDARD DUTY HANGING STRAPS
| PART NUMBER | MAX CIRCUMFERENCE |
|---|---|
HS404 |
4” |
HS406 |
6” |
HS408 |
8” |
HS412 |
12” |
HS416 |
16” |
HS420 |
20” |
Standard duty straps sold in 25 packs.
HEAVY DUTY HANGING STRAP
| PART NUMBER | MAX CIRCUMFERENCE |
|---|---|
HS404H |
4” |
HS406H |
6” |
HS408H |
8” |
HS412H |
12” |
HS416H |
16” |
HS420H |
20” |
HS426H |
26” |
HS432H |
32” |
HS436H |
36” |
Heavy duty straps sold in 25 packs.
GRIP STRAPS
Hang equipment with nickelplated brass grommet.
Python Hook & Loop with a heavy duty steel buckle
Stationary while allowing proper hose expansion.
PREVENT COMPONENT MIGRATION WITH GRIP STRIPS
The newest member to the Python family, Grip Straps are designed to replace traditional bundling hardware where constant vibration causes migration of critical stationary components.
The strap features standard Military-Spec Python Hook & Loop® and an added heavy duty silicone backing to resist walking in vertical hose runs. Grip Straps are easy to install and ideal in environments where moisture, frost, and constant vibration are present.
Grip Strap: Nylon backing w/ Nickel-plated steel buckle
Typical Applications: Rail equipment, cranes, manlifts, telehandlers, conveying equipment, mining equipment, vibratory packers
Features & Benefits:
- Ideal for vertical runs of hose, cabling, or wires
- Grip backing prevents migration in vibrating applications
- Allows for natural hose expansion and contraction
- Fast and effective method for reducing maintenance and labor costs
- Great solution for hoses that experience condensation or humidity
SIZING & ORDERING INFORMATION
GRIP STRAP
| PART NUMBER | MAX O.D. | CIRCUMFERENCE |
|---|---|---|
CS404G |
4” |
3.14" |
CS408G |
8” |
4.08” |
| PART NUMBER | MAX O.D. | CIRCUMFERENCE |
|---|---|---|
CS412G |
12” |
4.71” |
HS436H |
36” |
2 5/8” |
Standard duty straps sold in 500 packs.
Grip backing is ideal in applications where componentry migration increase the odds of equipment failure.
CINCH AND HANGI
MICRO STRAPS
Reusable
Isolate hoses and trim to length
Allows expansion and contraction
TENACIOUS HOSE & CABLE MANAGEMENT
Micro Straps are designed to provide the industry with an extremely low-profile tool for miscellaneous wires, cables, and cords. Similar to the Python line, Micro Straps are available in both cinch and hanging models to accommodate an array of applications.
Micro Straps are built on a molded Hook & Loop™ backing, allowing the straps to be quickly installed and trimmed to length. The reusable, high tenacity Hook & Loop featured on the Micro Strap is capable of carrying a stationary load of up to 45 lbs!
Micro Straps: Nylon backing with molded Hook & Loop™ and stainless steel hardware.
Typical Applications: Service truck electronics, packaging machinery, conveying equipment, automation, pneumatics & electronics
Features & Benefits:
- Low-profile design accommodates thousands of applications
- Access hose, cables, and wires in half the time compared to nylon ties
- Stainless steel hardware prevents corrosion in wet environments
- Allows for natural hose expansion & contraction
- Tenacious, yet lightweight and compact
- Hanging straps provide documented part location for OEM assembly

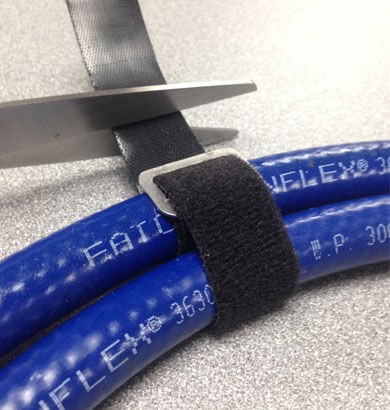

- Molded Hook & Loop™ is easily trimmed to length
- 0°F - 200°F Temperature
SIZING & ORDERING INFORMATION
MICRO HANGING STRAP
| PART NUMBER | STRAP SIZE | HOLE SIZE |
|---|---|---|
HS8212M |
12” |
(8mm) |
MICRO CINCH STRAP
| PART NUMBER | STRAP SIZE | HOLE SIZE |
|---|---|---|
CS212M |
12 x ¾” |
NA |
Standard duty straps sold in 500 packs.
CONCRETE PRODUCTS
PYTHON PUMP COVERS
Protect what matters most with today’s most advanced concrete containment covers.
Collect & Contain
Python’s non-breathable ballistic fabric captures shrapnel big and small, mitigating the risk of property damage.
Rugged Simplicity
This unique design is extremely pliable, diesel-repellent and provides stress-free part management to businesses of all shapes and sizes.
| NAME | EQUIPMENT | DESCRIPTION | ITEM # |
|---|---|---|---|
Python Transition Elbow Cover |
Boom Trucks |
Standard elbow cover - fits most models |
PY-TEC |
Python Line Pump Elbow Cover |
Line Pumps |
Fits standard long radius / lazy elbows |
PY-LPC |
Python Placing System Line Cover - 12’ |
Placing Systems |
12’ overlapping cover for 10’ line pipe sections & clamps |
PY-PSC |
Protected by U.S. Patent No. 11,313,493
SIDEWINDER BOOM PIPE WRAP
The Sidewinder Boom Pipe Wrap incorporates the most advanced insulation and abrasion-resistant materials to protect pumping equipment and provide better workability for ready-mix concrete.
Thermal Retention
Boom Pipe Wrap maintains the concretes optimal temperature longer during placement in both hot and cold climates.
80% Faster Install = Getting the Job Done Faster
Boom Pipe Wrap installs up to 80% faster than alternative insulation methods.
Protect the Bottom Line
Provide years of resistance against moisture, abrasion and high UV rays at the jobsite and during wash down.
INSULATED ELBOWS
| RADIUS/I.D. | ITEM # |
|---|---|
22.5°/5.25” |
BPE-22-GY-5 |
45°/5.25” |
BPE-45-GY-5 |
90°/5.25” |
BPE-90-GY-5 |
90° short /5.25” |
BPE-90-SHORT-GY-5 |
22.5°/4.4” |
BPE-22-GY-4 |
45°/4.4” |
BPE-45-GY-4 |
90°/4.4” |
BPE-90-GY-4 |
THERMAL INSULATION WRAP
| WRAP I.D. (IN) | ITEM # | ROLL LENGTH (FT) |
|---|---|---|
4.77 |
BPW-4.77-GY-50 |
50 |
4.77 |
BPW-4.77-GY |
150 |
5.25 |
BPW-5.25-GY-50 |
50 |
5.25 |
BPW-5.25-GY 150 |
BPW-5.25-GY 150 |
Boom Pipe Wrap is measured by the sleeve’s Inner Diameter
SPRAY FOAM SOLUTIONS
SIDEWINDER SPRAY FOAM SLEEVE
The Sidewinder SPF Sleeve incorporates advanced insulation and abrasion-resistant materials to enhance spray-ability and provide higher yields.
Up to 60% Energy Savings
By containing thermal energy, Sidewinder helps maintain the optimal spray temperature for roofing, jacking, and insulating in polyurethane and polyurea applications.
Installs in Minutes
Ditch the duct tape! Sidewinder’s hook and loop fasteners make installation a breeze.
Protects Againts Abrasion and High UV
The Sidewinder SPF Sleeve protects in wet, high UV applications and remains extremely flexible in temperatures ranging from -60°F to 250°F.
/23224-SMG-Python-SidewinderSleeve-SPF.png?width=300&height=300&name=23224-SMG-Python-SidewinderSleeve-SPF.png "23224-SMG-Python-SidewinderSleeve-SPF")
| DESCRIPTION | ITEAM # | DIAMETER (IN) |
|---|---|---|
NON-INSULATED SLEEVE - 50' w/ end straps |
SW-2173 |
2.38 |
NON-INSULATED SLEEVE - 50’ w/ end straps, & fresh air hose pocket |
SW-3190 |
2.38 |
NON-INSULATED COUPLER GUARD - 3' w/ straps |
SW-2174 |
3.5 |
INSULATED SLEEVE - 50' w/ Radiant Liner & end straps |
SW-2175 |
2.25 |
INSULATED SLEEVE - 50' w/ Radiant Liner, end straps, & fresh air hose pocket |
SW-3172 |
2.25 |
INSULATED COUPLER GUARD - 3' w/ Radiant Liner & straps |
SW-2176 |
3.5 |
WHIP HOSE COVER - 7' w/ end straps |
SW-2413 |
2.38 |
WHIP HOSE COVER - 22.6' w/ end straps |
SW-2545 |
2.38 |

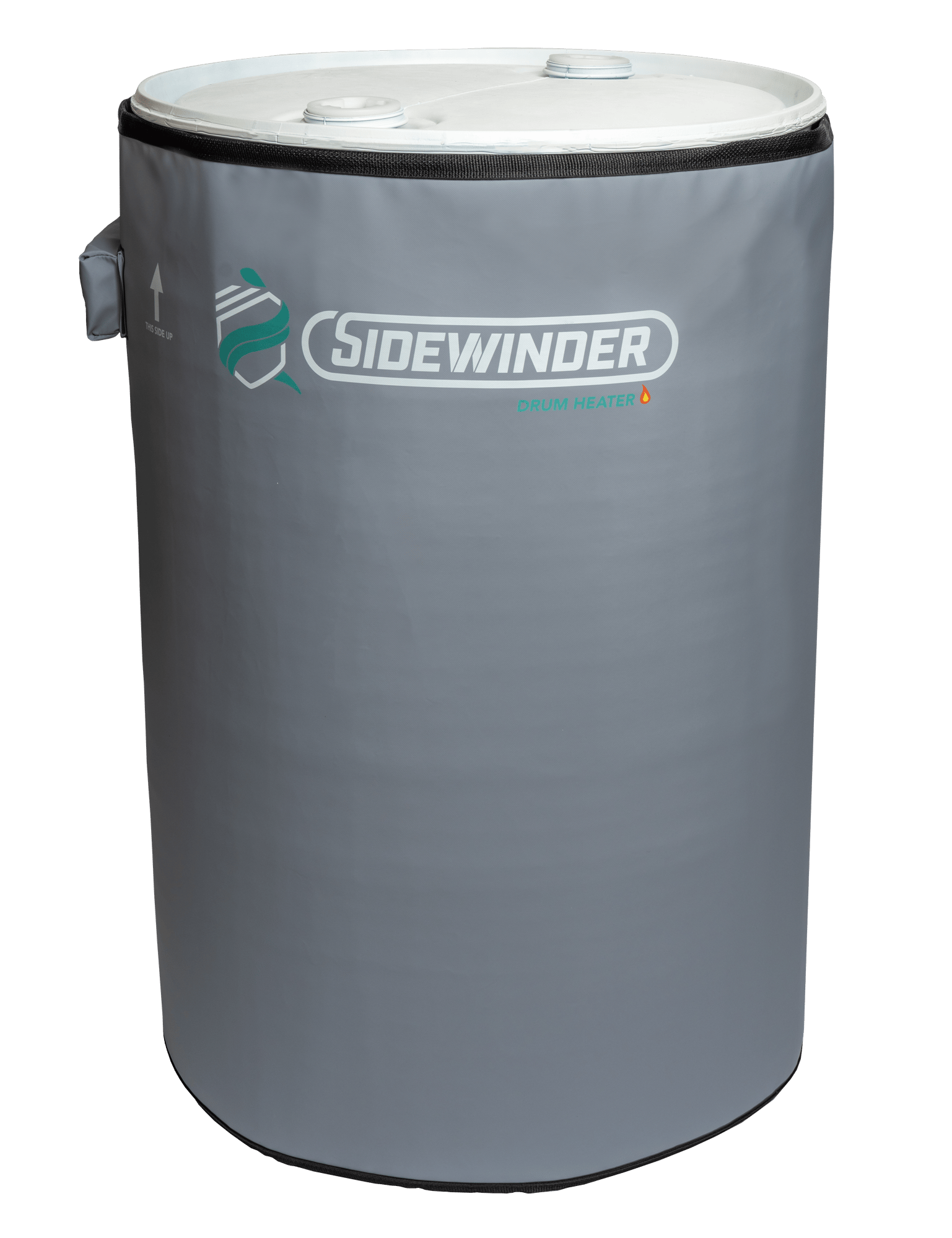

SIDEWINDER DRUM HEATERS
The Sidewinder Drum Heater provides optimal flow and viscosity of materials while avoiding the chances of boiling and froth. This drum heater is available for 55-gallon drums and in two control options - integrated or fixed - to fit your application needs.
DRUM HEATER WITH CONTROLLER
Prevent Frozen & Spoiled Materials
Eliminate the stress of damaged materials due to improper storage or unpredictable environmental conditions.
Set Desired Temperature
The integrated controller comes standard and allows the user to set desired temperatures for optimal flow and viscosity.
Get Jobs Done on Time
Count on your materials being ready for the job site every time with the temperature-controlled Sidewinder Drum Heater.
| ITEM # | DESCRIPTION | HEIGHT | CIRCUMFERENCE |
|---|---|---|---|
SDH-055-120 |
Insulated Drum Heater |
34" |
79 ¾” |

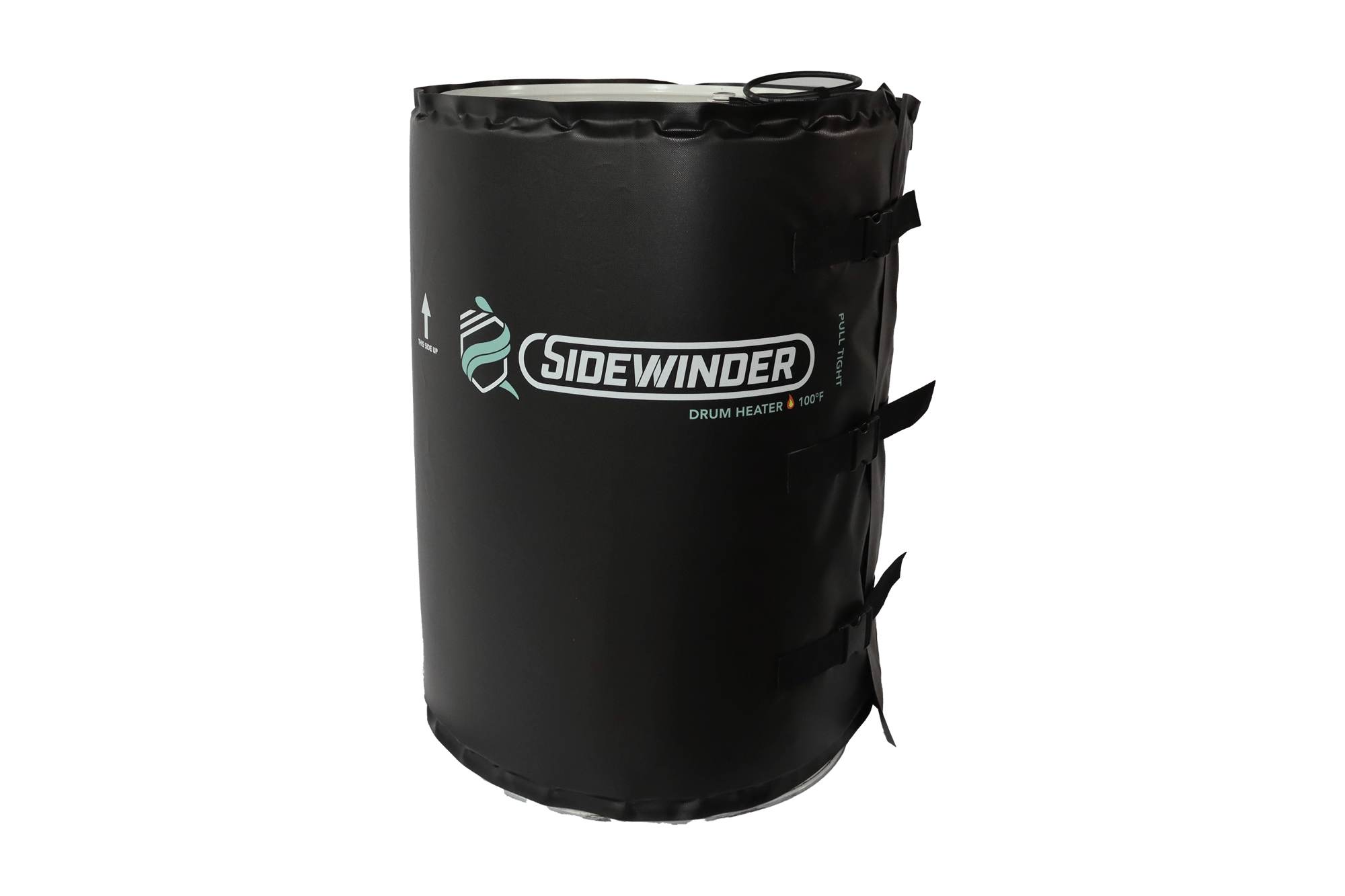

FIXED TEMP DRUM HEATER
Choose the Best Material Temp for the Job
Available in 80°F & 100°F to store materials properly and avoid spoilage, freezing, or overheating.
Set & Forget
Secure the heater on the barrel, plug it in, and forget - it’ll keep materials at the internal controls fixed temp.
Reliable & Efficient Heating
After initial set-up, the materials will always be ready to use, increasing overall productivity.
| ITEM # | DESCRIPTION | HEIGHT | CIRCUMFERENCE |
|---|---|---|---|
SDH-055-FT80 |
Sidewinder Drum Heater / 55 Gallon / 80F Fixed Temp |
34" |
79 ¾” |
SDH-055-FT100 |
Sidewinder Drum Heater / 55 Gallon / 100F Fixed Temp |
34” |
79 ¾” |
PROPANE TANK WARMERS

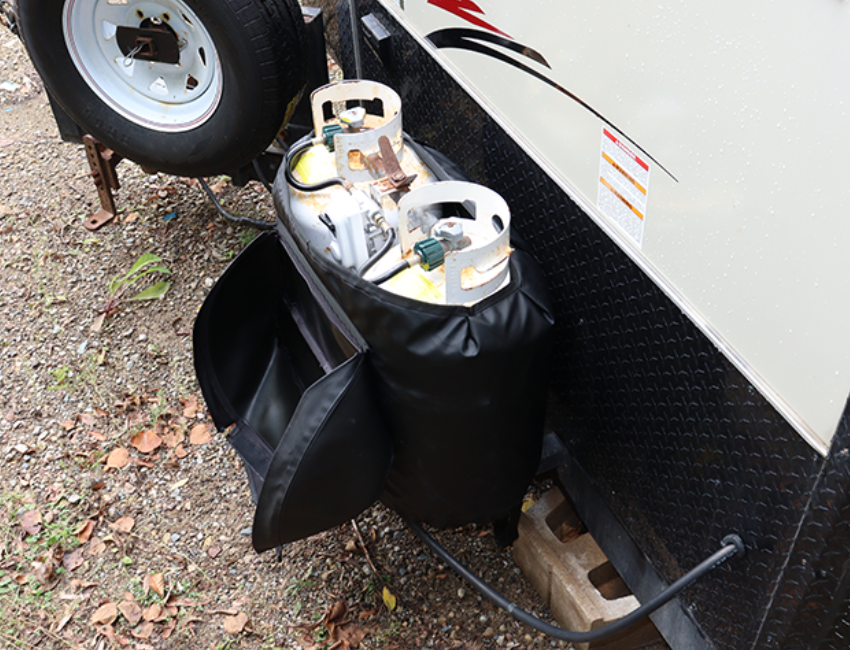

DUAL 30-POUND PROPANE TANK WARMERS
Protect regulators from freezing and increase propane life in cold environments with Python’s maintenance-free propane covers.
Ice Fishing
Keep propane flowing for all day ice fishing.
Camping & Hunting UV degradation
Reliable propane heat for winter camping & hunting trips.
Resist the Elements
Features a flexible PVC coated cover that is UV-resistant, flexible, with the ability to protect the tanks and regulator from road grime and Mother Nature’s best.
Add Protection + Efficiency
This unique design is extremely pliable, diesel-repellent and provides stress-free part management to businesses of all shapes and sizes.
Protects Againts Abrasion and High UV
The Sidewinder SPF Sleeve protects in wet, high UV applications and remains extremely flexible in temperatures ranging from -60°F to 250°F.
Features & Benefits:
- Flexible cover to replace plastic cover; no more bungee cords
- Keeps tanks warm; stops freeze up
- Prolongs burn life
- Promotes clean burning of propane
- 120VAC, 200W, 1.67 Amps; minimum watt draw does not tax generator
- PVC coating with polyester substraight prevents UV degradation
PTW-302 Tank Warmer w/o Flip Lid
PTW-302-L Tank Warmer with Flip Lid

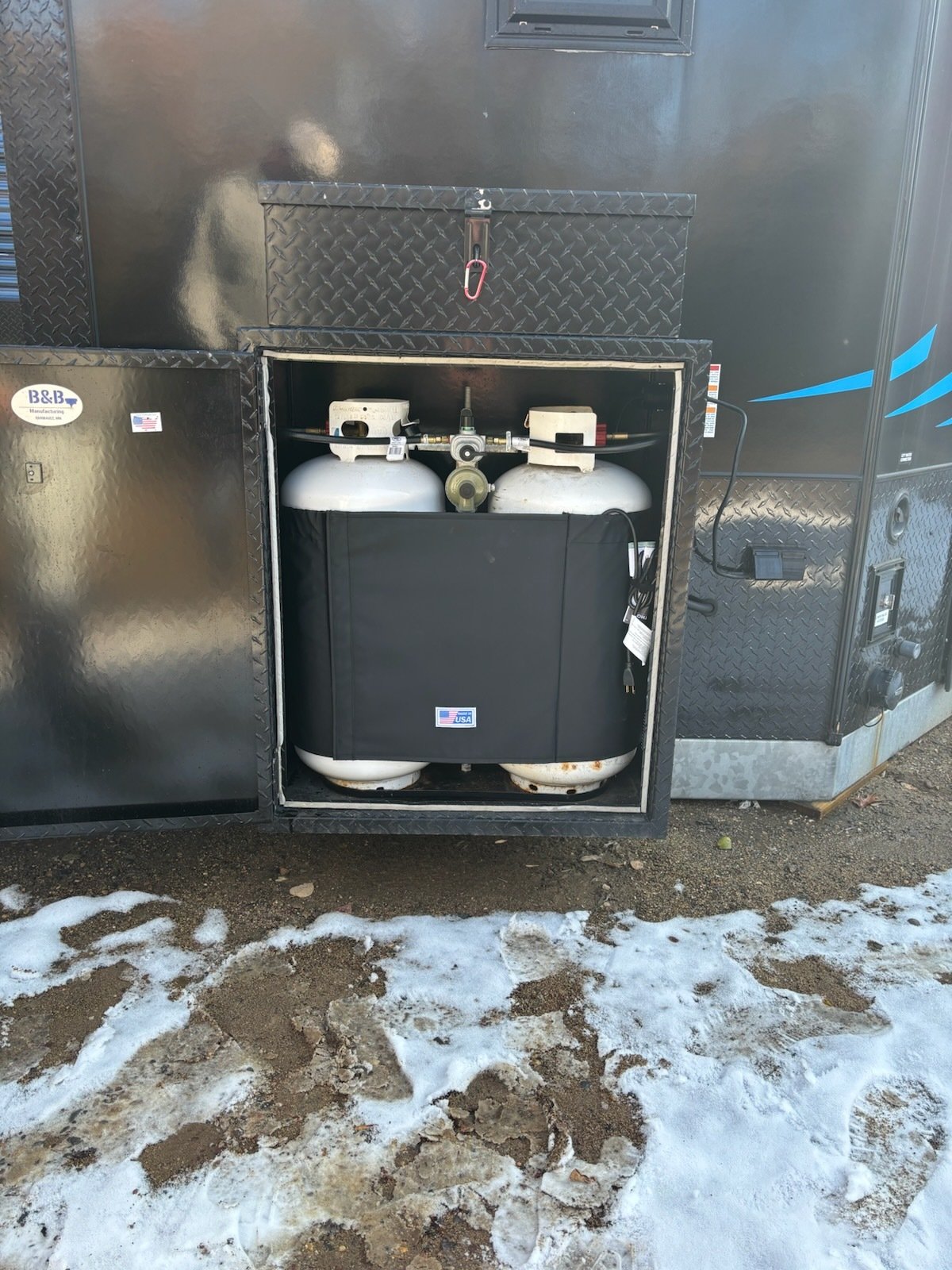

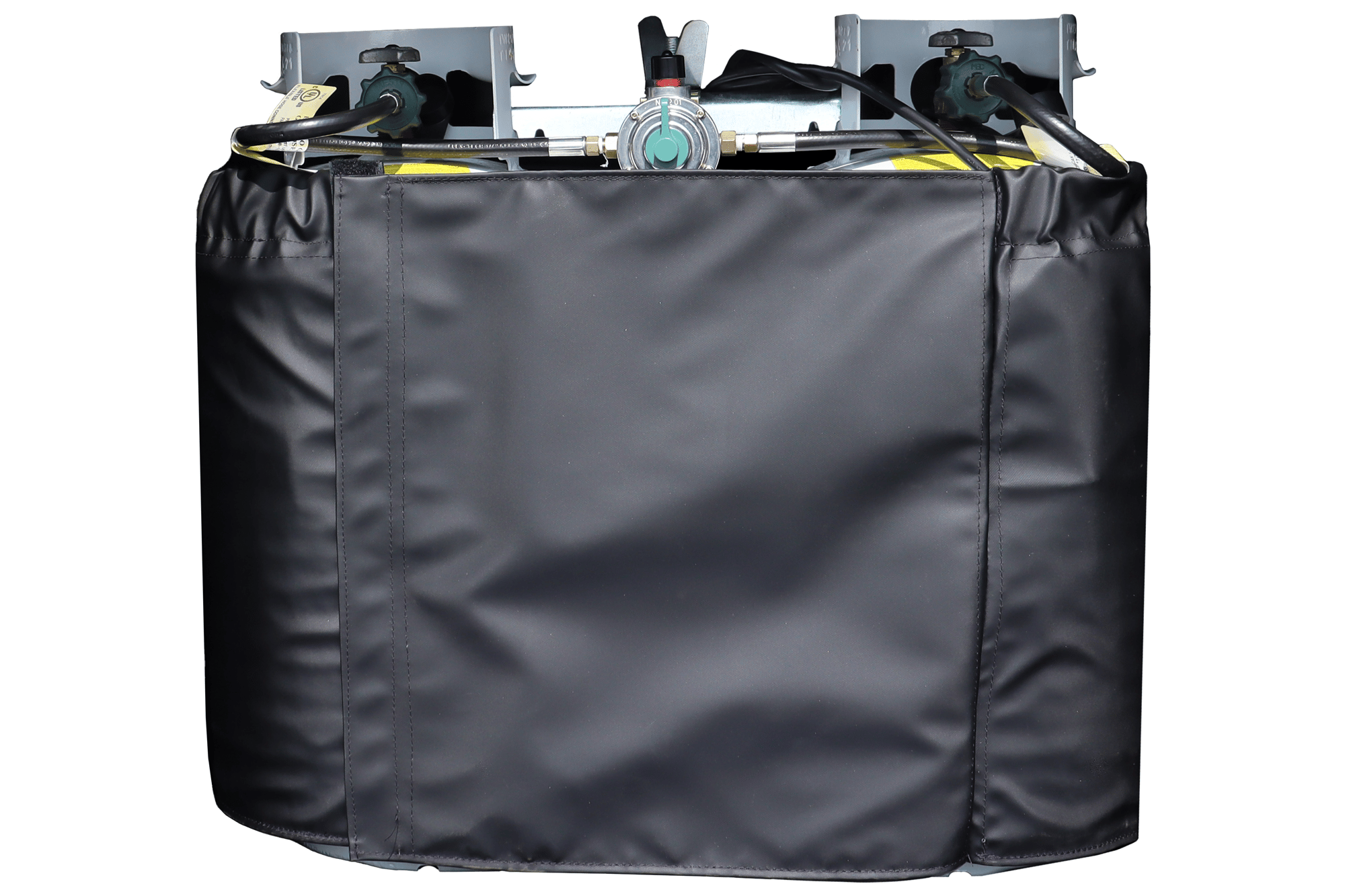

#PTW-302-NL Tank Box Model

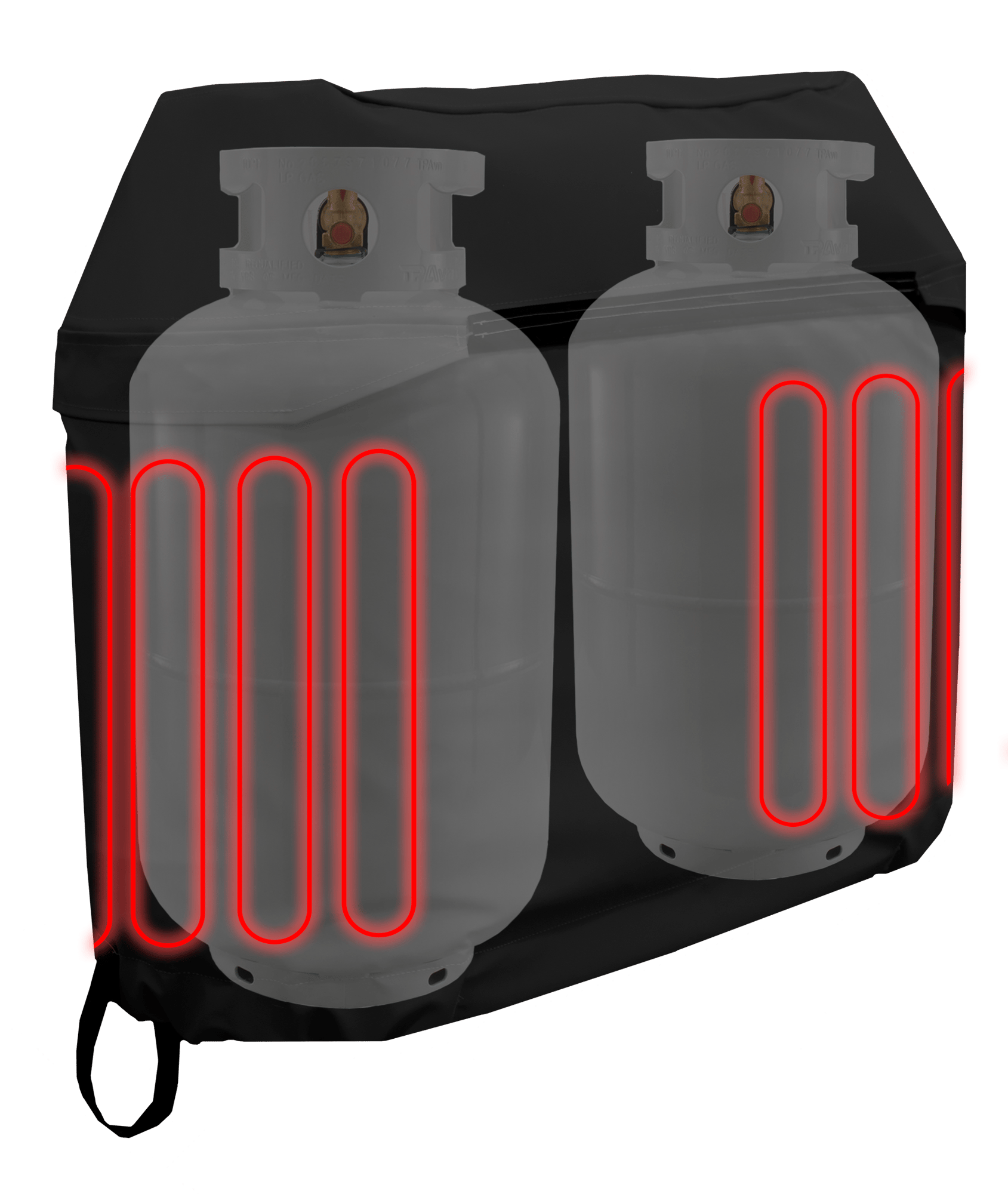

Built-in heating element warms application to optimal temperature.
THERMAL COVERS

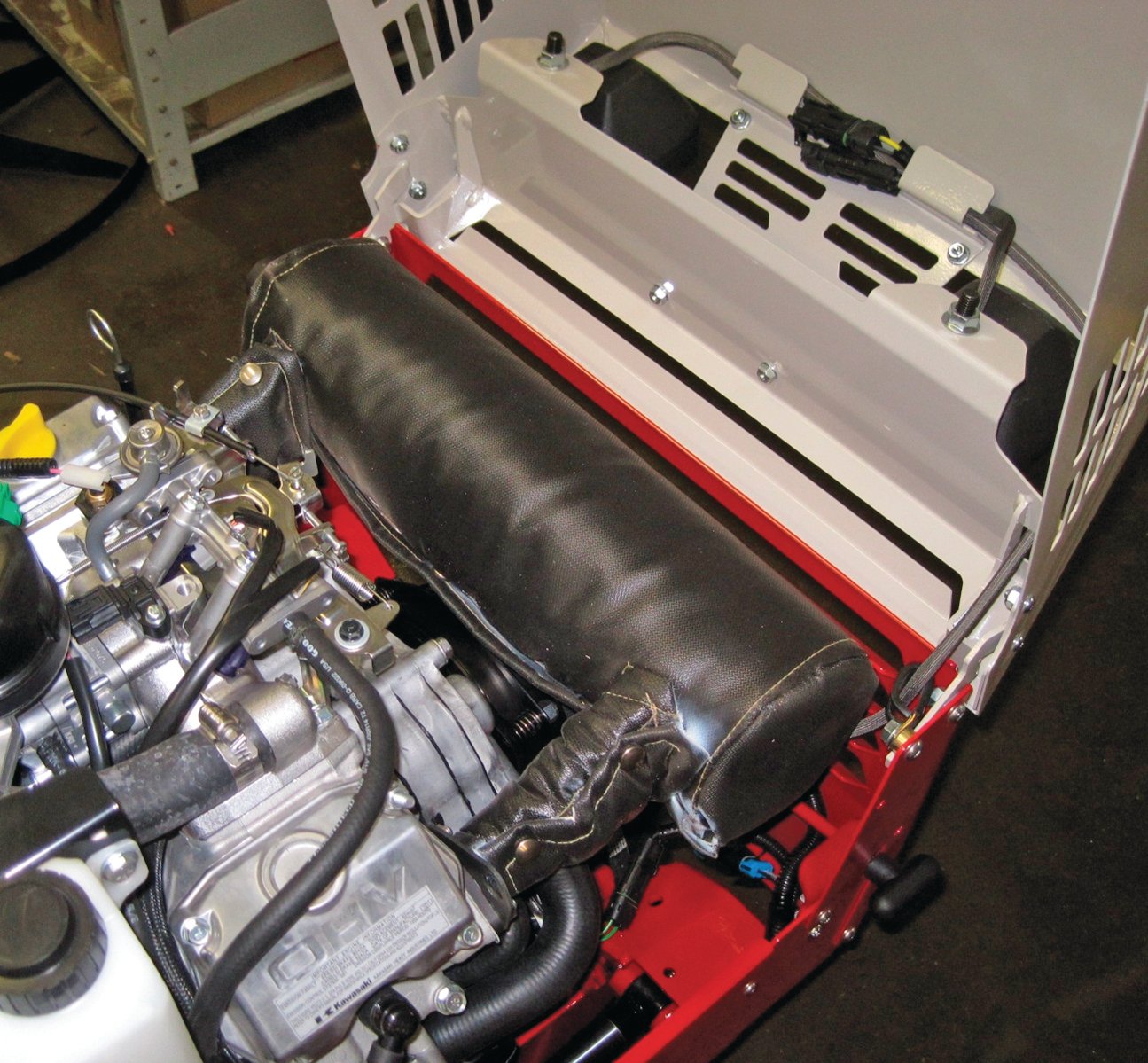

Mufflers
Mufflers designed to fit your fleet.

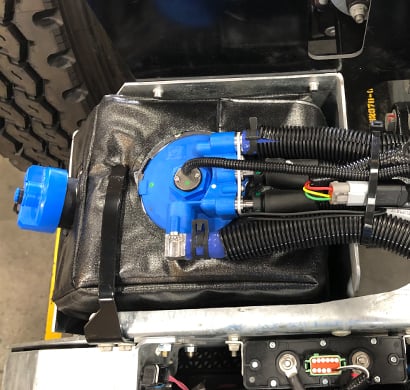

DEF Tank
Keep your tank safe from the elements all year long with radiant lined jacket.
Additional Features
Straps, grommets, hook-and loop, and more to ensure your cover is engineered for your application.
INDUSTRIAL BLANKETS AND COVERS
With our textile expertise in custom sewing, our team of dedicated engineers have the ability to add heating or thermal elements to any product. Our elements are high quality, just like our existing covers and material options.
Say goodbye to frozen pipes, valves, containers, equipment, and machinery with a custom made thermal blanket or cover. Each blanket or cover can have additional care-free features such as set-and-forget controllers and built-in temperature monitoring. Regulate your equipment in ways you haven’t been able to before.
Benefits of Custom Thermal Covers
Reliable, long-lasting, and quality are the three words we live by when designing the ideal cover to meet your goals and coincide with your operations. We strive to be an asset to your operations with each cover we supply.
Ensure the safety and longevity of your critical materials.
Enhance the performance and uptime to ultimately optimize material
Store your materials worry-free during cold weather months.

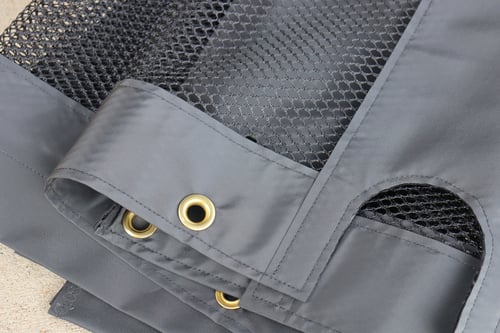

In addition to internal elements, your custom cover can feature:
- Straps
- Grommets
- Hook and Loop Technology
- Flip lids for easy access
- Temperature controller
- Regulating system
CONFIGURED SOLUTIONS

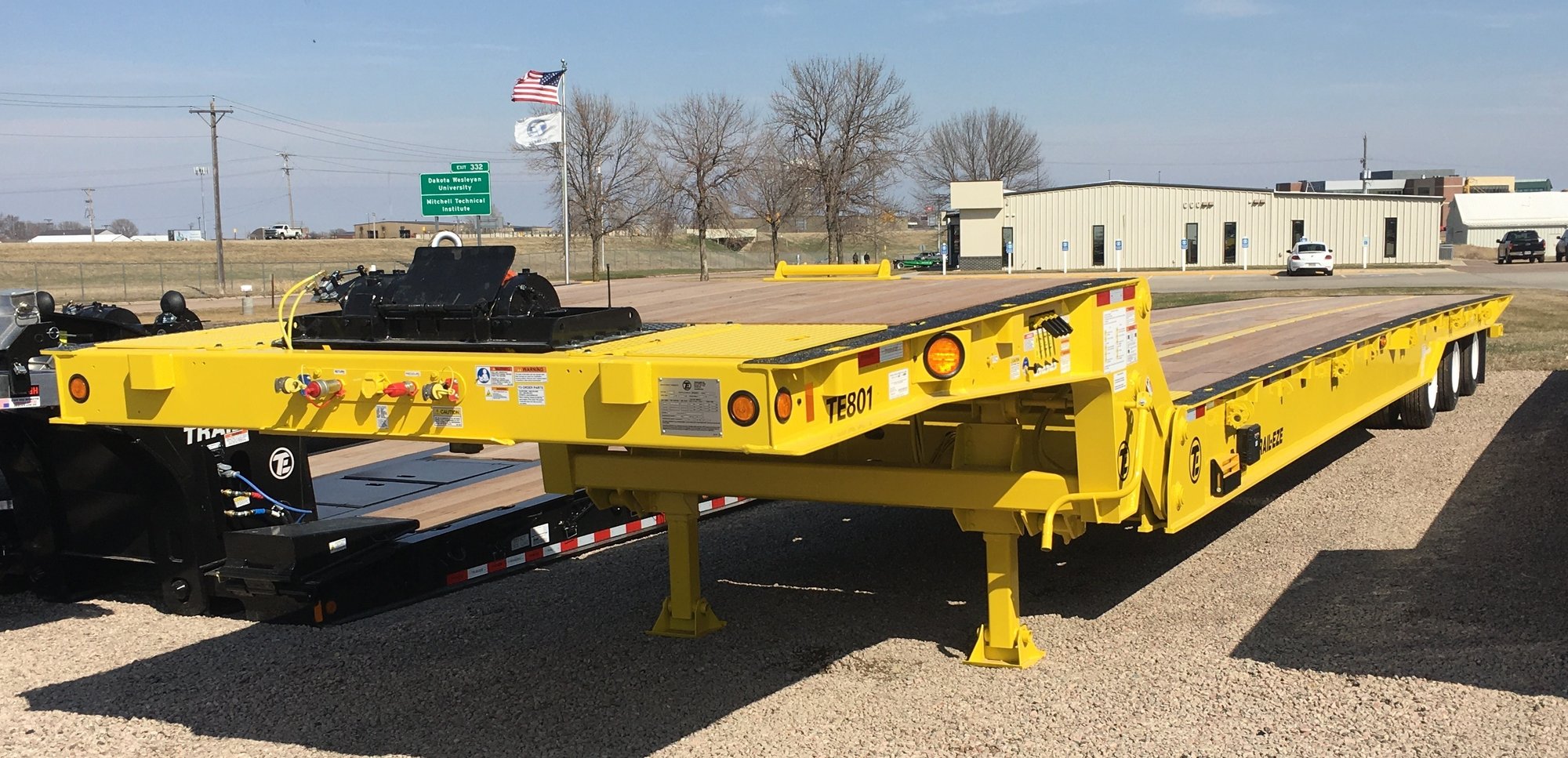

Slide Axle Trailer
Python sleeve used to form a rod boot, protecting hydraulic cylinder rods from rocks and other road debris.

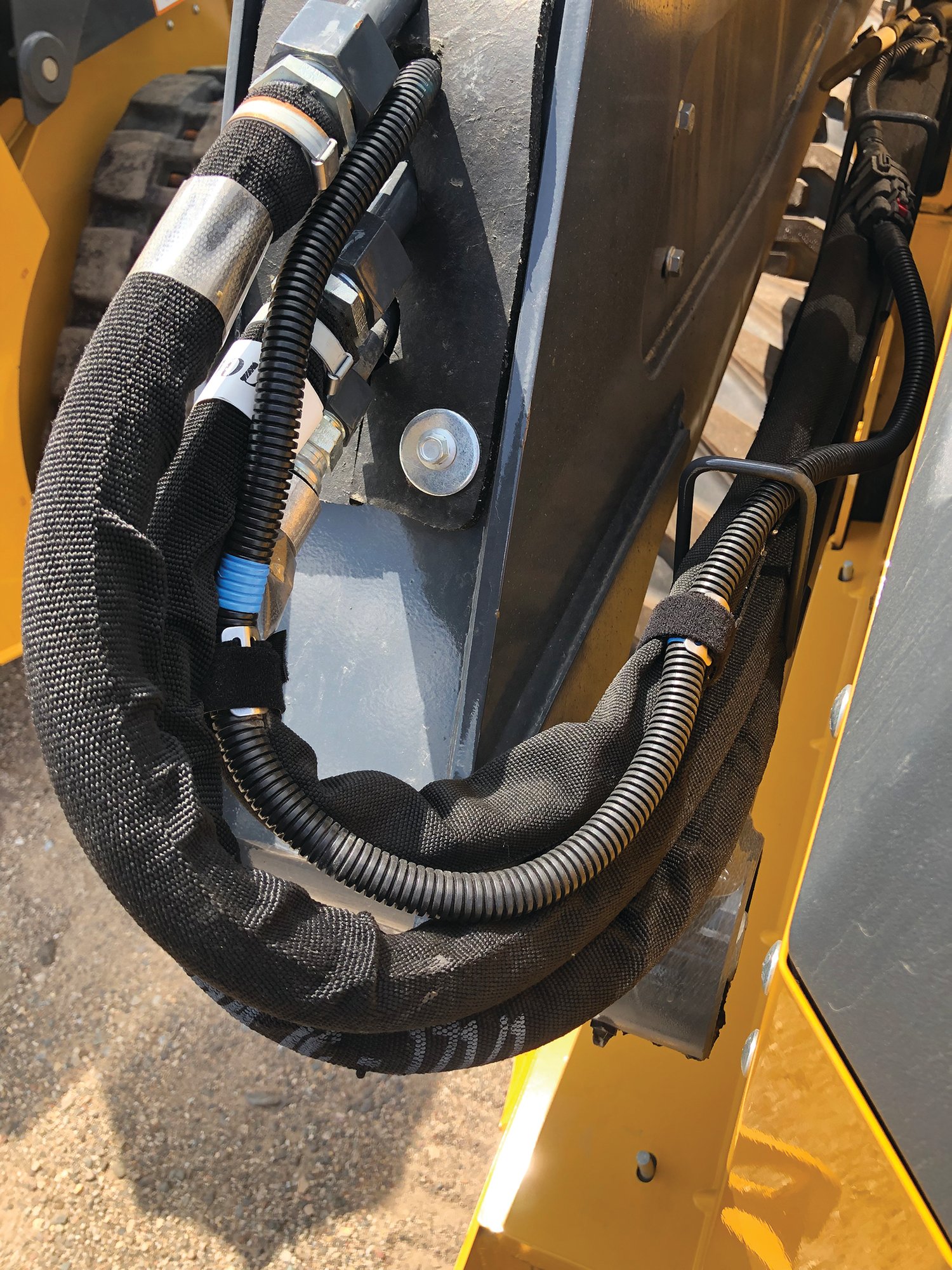

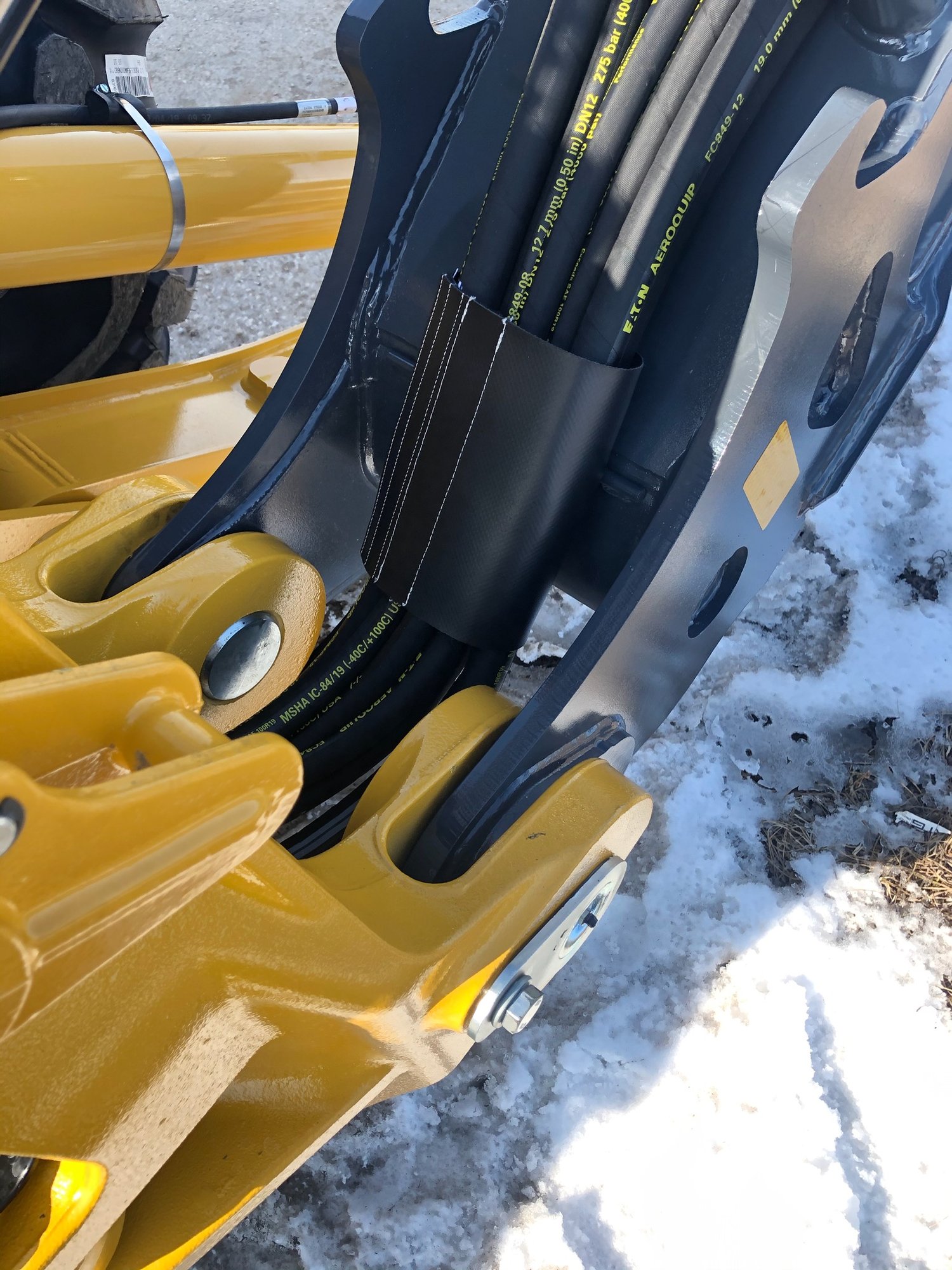

Back Hoe Attachment

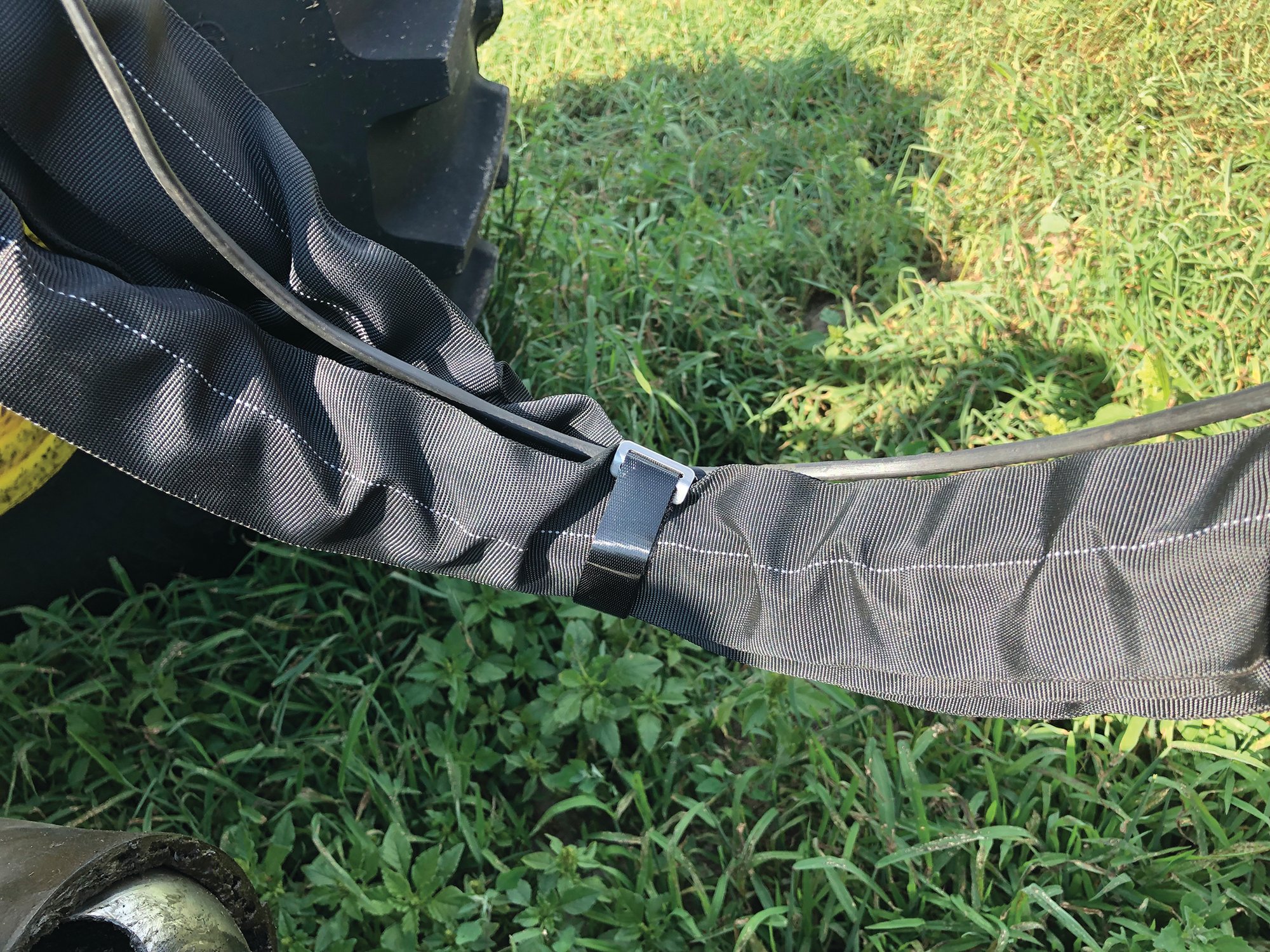

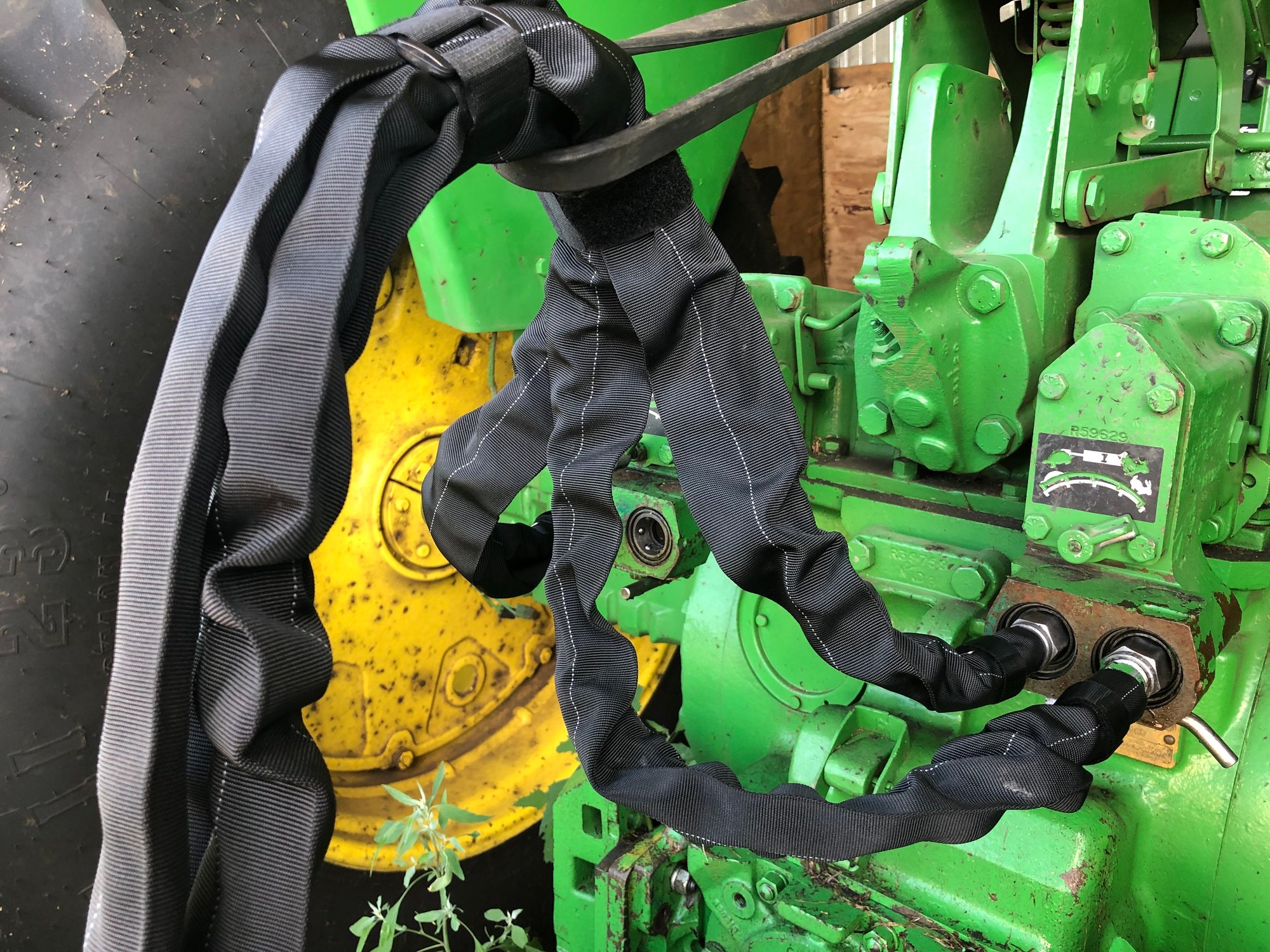

Hoses seeing abrasion and pinch points are bundled and secured with grip straps.
Combine Head Attachment
Axillary hose sleeve with internal straps prevents hoses from dangling around the drive wheels.
CONFIGURE YOUR PART
We’ve combined the latest in digital manufacturing with our proprietary products to offer on-demand configurable parts for equipment manufacturers.
This platform strengthens your supply chain with a partner capable of providing instant quotes with rapid turnaround; it’s why Python’s automated configurator system is leading the way in commercial-grade textile production.
TURNKEY SOLUTIONS
High Temp Covers
Electrical Sleeving
Energy Chain Covers
Industrial Straps & Hose Guides
DEF Tank Covers & more!
Our Vendor Management Inventory program provides superior supplier benefits including:
- Upstream and downstream collaboration
- Quality forecasting, safety stocks, lead time, service level, etc.
- Elimination of stock-outs
- Customer visibility of inventory levels
- Continuous review of the agreement to offer improvements
INDUSTRY SOLUTIONS:
No matter what industry your equipment serves, protecting the integrated systems is of paramount importance to maximize the lifespan of the equipment.
CUSTOM SOLUTIONS
Product Design & Development
Our textile engineers can design parts to order.
Product Testing
We can test against heat, vibration, abrasion high pressure and more.
Fabricating & Converting
Ask about our fabricating and converting services!
LOOKING FOR MORE? WE’VE GOT YOU COVERED!
We have an extensive amount of sewing processes and machines that are utilized to produce standard off-the-shelf products. In addition to the mass production equipment, Python’s in-house expertise and wide range of custom machines are available to assist in creating your custom and unique solution.
As an ISO-certified business, we’re capable of manufacturing quality solutions for today’s unique equipment. From hay catchers to bellows covers, our staff is available to help you succeed in any environment.
What You Can Expect:
Python Covers strives for LEAN Manufacturing in every process within our building. From door to door, you can count on consistency and reliability in your experience.
-
Idation & design with our experienced in-house engineering team
-
Engineered prototypes are streamlined and sent to the customer for approval
-
LEAN manufacturing process guides our production team to produce parts quickly
-
Quality inspections on first and last articles using our ISO 9001:2015 standards
Python is proud to offer a full suite of options for our OEM customers. Our unique industrial textile services include:
- Concept Design
- CAD Modeling
- Rapid Prototyping
- Sample Marketing
- Product Testing
- Mass Production
- Graphic Art Printings
High-Quality Custom Machining; Made in the USA!
BUILD YOUR PART
CUSTOM PART PROCESS
At Python Covers, our goal is to streamline the custom order process so you quickly receive the parts you’re needing for your industry or application. From start to finish, our experienced engineers work with you to ensure your needs and expectations are met every step of the way. We believe collaboration is the key to designing innovative textile technology made to last.
Here to help you from ideation to creation, the Python team has you covered to ensure your custom part improves your ROI by making operations more efficient, smooth, and reliable.
Step 1: Meet with the Team
When getting things started, you are going to meet with our professional team of engineers so they can get a better understanding of what your custom part needs to do. In this discovery phase, we will determine the purpose of the custom solution and draft a few general designs so we can get into the material selection step of the process.

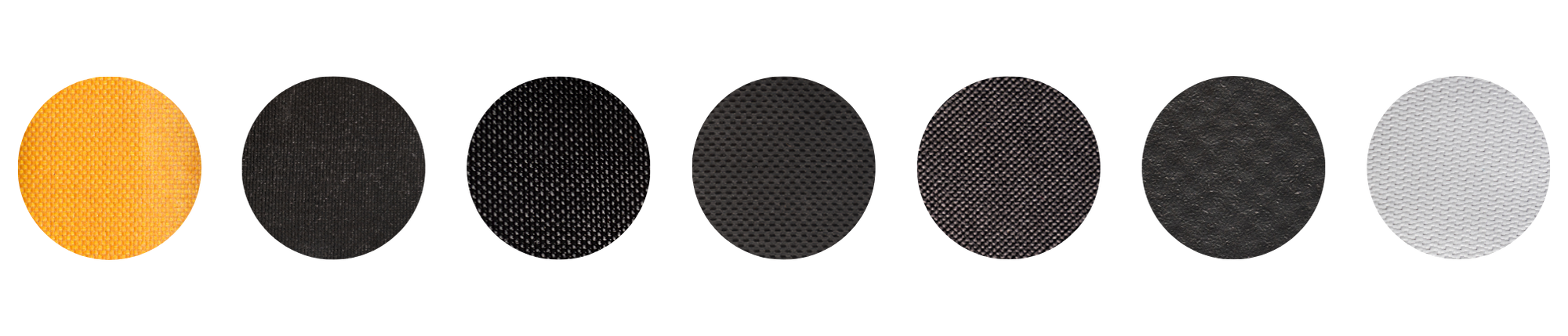

Step 2: Select the Materials
Choose from a wide range of materials and determine how many layers of insulation are required.
Step 3: Configuring Your Part
These are the final touches to the design that will make it especially unique to your application needs. This may include adding:
Fasteners
Hook & Loop
Grommets
Step 4: Prototype and Fitting
Our team of engineers will build the prototype based on the design, chosen fabric, and configurations decided on. Once the protoype(s) are made, we will put them onto the application to ensure it fits perfectly. If any updates are needed, we’ll make a new prototype until it’s right.
Step 5: Mass Production Capabilities
Once the protype is perfected, our team will ensure the part is made the same as the next. Here at Python, we value consistency, communication, and top-quality products.
CUSTOM QUESTIONS
GET STARTED WITH US
Please fill out these questions prior to speaking with an engineer.
Custom parts may require a vast amount of needs. When looking for a solution, we first diagnose the problem and then ask clarifying questions. Our goal is to satisfy your needs, so you get the right part(s):
- Is abrasion a factor?
- Is temperature a factor?
- What is the end use?
- Does the closure need extra enforcement?
- Does it need straps to secure the sleeve?
- Does it need to be fastened to anything on the ends?

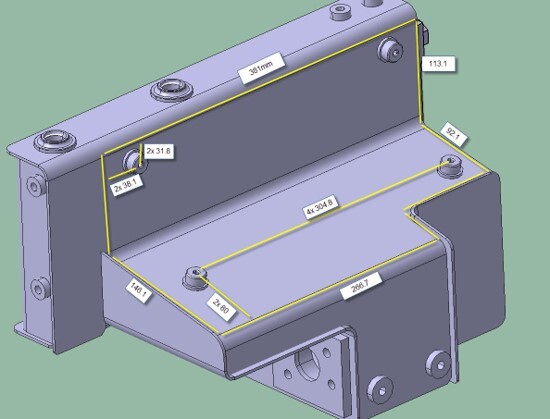

When looking for a solution to a problem for a total custom part you are manufacturing, these are the questions you may be asked. This is typically a 3 Dimensional cover or part that requires a special solution involving patterning and/or custom solution materials. Total custom parts often have a more complicated solution to solve:
- What environmental factors are at play?
- Is the temperature too high?
- Which part needs protecting?
- What is the max running temperature?
- What are you needing protection for? Human touch? Protecting cables?
- Will the part see inclement weather? (eg. outdoor abrasion from dirt, sand or any other abrasive elements)
Our team takes care of the rest.
After you complete these questions, there/s nothing left for you to do! Our team will ask clarifying questions, chat to ensure we know what you are looking for and get started on a custom design to get your solution.
When the design is complete, we will create prototypes to test, and you can see the prototype yourself! Our engineers are professional and communicative throughout the custom design process.
Once the final design is approved, we will get to work to produce what you need and get it distributed in a timely manner. From start to finish, Python will walk you through the process and ensure our results are exactly what you were looking for when choosing to find a custom solution for your application.
INDUSTRY SOLUTIONS
We manufacture thousands of unique solutions in order to provide the perfect fit. Regardless of the application, we’ve got you covered!
.jpg?width=202&height=250&name=John%20Deere%20Sprayer%20(1).jpg)

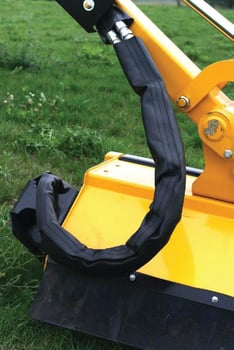

AGRICULTURE
Sidewinder is a more robust solution in place of traditional energy chain cable carriers.
CONSTRUCTION
Recreational vehicles use custom designed quick-buckle strap for accessory attachments.
DEFENSE
US Navy Ships rely on Sidewinder covers to protect “U” joints from saltwater corrosion.
INDUSTRIAL
Sidewinder can be custom colored and cutto-length to accommodate for factory install.
OIL & GAS
Straps allow hose expansion and contraction preventing damage caused by nylon ties
TRANSPORTATION

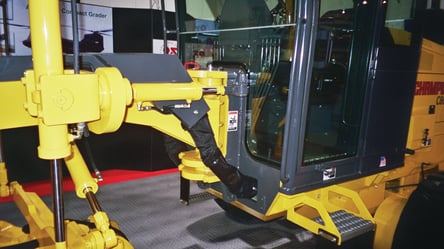

Custom sleeve protects operators from high temperature material on asphalt repair trucks.
UTILITIES
Exhaust covers protect sensitive engine components from exhaust manifold heat.
Contact
NEWSLETTER SIGN-UP
© 2026 Suburban Manufacturing
