Diamondback

Line-of-sight hydraulic hose sleeve

PIN HOLE, BURST PROTECTION, & ABRASION PROTECTION

The Diamondback Hydraulic Sleeve offers dual uses by providing line-of-sight operator protection from hydraulic hose failure and abrasion resistance. It protects hydraulic hoses from sun and heat damage, pin holes, and leaks. Often used in construction applications, our hydraulic hose protective sleeve is made from a proprietary engineered fiber woven tightly and heat-treated, which shrinks the sleeve to the finished dimension. Our Diamondback hydraulic hose sleeve meets the EU Machinery Directive 2006/42/EC as well as the NSW "Guideline for Fluid Power System Safety at Mines."

Key features and benefits:

  • Tested over 1.7 million abrasion cycles (ISO 6945)
  • Meets "Line of Sight" operator protection specification EN982, EN414, EN ISO Regulation 3457:2008
  • Pinhole protection tested to 4,000 PSI. Burst protection Tested to 12,000 PSI
  • Temperature tested to 200°F continuous, 350°F intermittent
  • Cut to length, 50% less bulky than Cordura
  • Tight, smooth surface contains oil spillage from pin hole leaks
  • Mine Safety and Health Administration (MSHA) approved IC-289/01
  • Meets conductivity standard ISO 8031
  • Unmatched UV protection
  • Sleeve dispensers available
Contact to Order
View Catalog Page

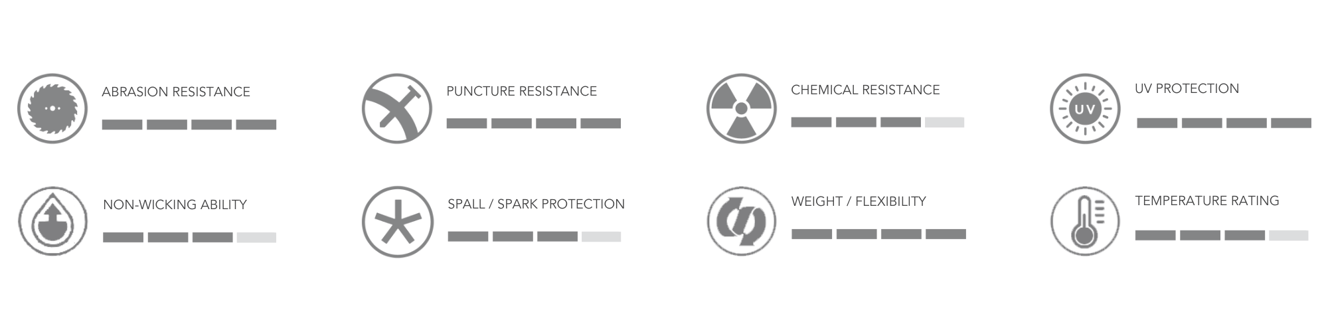

MATERIAL ATTRIBUTES

The Material Attributes of the Diamondback L.O.S.





The best hydraulic hose protection

Hydraulic hose failures are a serious hazard to both equipment and operators. That’s why the Diamondback sleeve is designed to protect operators while on the job. By having a hydraulic hose sleeve as a working shield, your hoses are protected in any application they are place on.

Made with high quality materials, the Diamondback tubular sleeve is UV and heat resistant, and is made to protect hoses from abrasion created by ongoing use. Strong, tightly woven proprietary fibers hold the hose sleeve together. The material was created with flexibility in mind so it can absorb the shock if a hose were to leak. This means there is no chance for a hose burst or pinhole leak to break through the cover.

The Diamondback sleeve features a line-of-sight for increased operator safety, offers thorough protection, and is an economical option on the market.

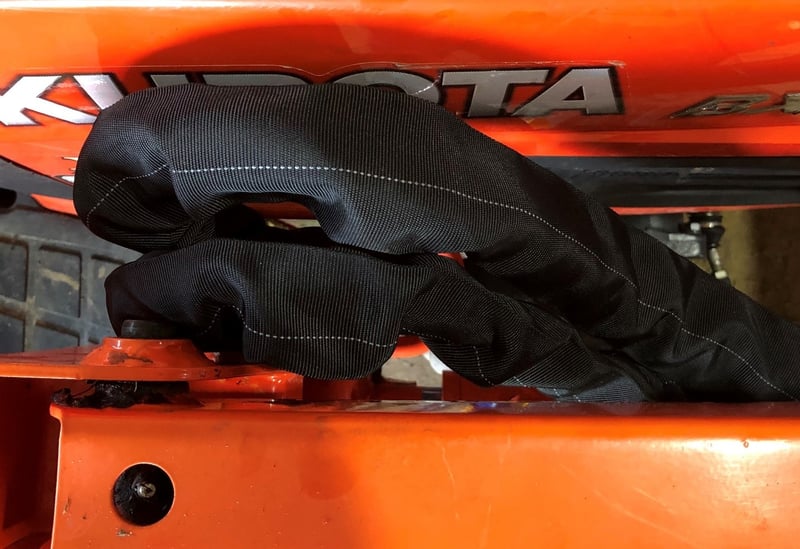

Diamondback L.O.S. on Running Equipment

WHAT'S THE DIFFERENCE?

DIAMONDBACK TUBULAR SLEEVE

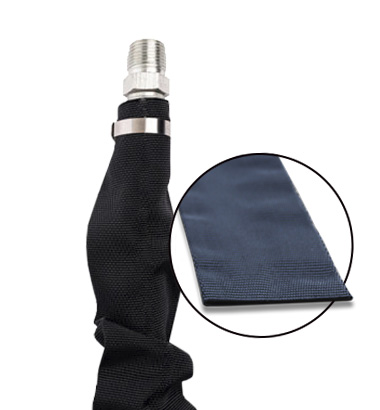

Close up of Diamondback Line-of-sight Material

Diamondback L.O.S.

  • Economical
  • UV Protection
  • Abrasion Resistance
  •
    Line of Sight Burst Protection
    Order Now

Close up of Diamondback Pro Sleeve Material

Diamondback PRO

  • Economical
  • UV Protection
  • Abrasion Resistance
  • Line of Sight Burst Protection
  • Super Easy Operator Installation
    Easy Install




Close up of Diamondback Lite Sleeve Material

Diamondback LITE

  • Economical
  • UV Protection
  • Abrasion Resistance

    Economical

SIZING & ORDERING INFORMATION

DIAMETER (IN) ITEM # FLAT WIDTH (IN) ROLL LENGTH (FT)
0.67"
DBK-017
1.18"
300
0.79"
DBK-020
1.34"
300
0.91"
DBK-023
1.54"
300
0.98"
DBK-025
1.65"
300
1.06"
DBK-027
1.77"
300
1.22"
DBK-031
2.05"
300
1.42"
DBK-036
2.24"
300
1.57"
DBK-040
2.6"
300
1.73"
DBK-044
2.83"
300
1.85"
DBK-047
3.03"
300
2.17"
DBK-055
3.5"
300
2.36"
DBK-060
3.82"
300
2.62"
DBK-066
4.18"
300
2.87"
DBK-073
4.65"
300
3.14"
DBK-080
5.02"
300
3.66"
DBK-093
5.87"
300
3.94"
DBK-100
6.3"
300 (TWO 150FT ROLLS)
4.41"
DBK-112
7.05"
300 (TWO 150FT ROLLS)
4.94"
DBK-127
7.75"
300 (TWO 150FT ROLLS)
Contact to Order
