Tsunami Membrane Dryers

15 CFM / 20 CFM 2-Stage Membrane Air Dryers

2-Stage Pre-Filtration

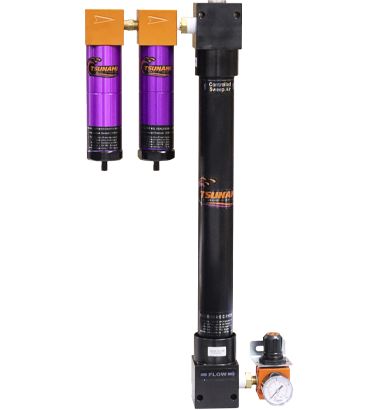

The 2-Stage Membrane Dryer includes a water separator, oil coalescing filter, and membrane dryer. Incoming air enters the 1st and 2nd stage filters where liquid water, oils and particulates are removed. Then, the air enters the Membrane Dryer where water vapor is removed from the air.

Request More Info    Buy Online

On mobile, select the drop down arrow to view additional tabs.

Features:

  • 2-stage Pre-filtration; Water Separator, Oil Coalescing Filter

  • Membrane Dryer Core

  • Automatic Drains

  • Wall Mounting Brackets

  • Outlet Regulator

  • Heater pads available for cold temp applications

  • Optional: C1D2 Compatible for hazardous locations





Benefits:

Dryer Performance:

  • Low relative humidity - down to .01% RH

  • Dew points down to -80°F

  • Easy, low-cost maintenance - under $160/year average



Filter Performance:

1st Stage Water Separator:

  • Removes liquid water
  • Filters particulate down to 10 micron

2nd Stage Oil Coalescing Filter:

  • Removes bulk oils and aerosols
  • Filters particulate down to .01 micron





Min/Max Air Inlet Temperature: 100°F

Min/Max Operating Pressure: 175 PSI

Power Requirement: None

Filter Package for 15 CFM Unit #21999-0424

Filter Package for 20 CFM Unit #21999-0251

Tsunami Catalog Screenshot

Tsunami Product Catalog

Annotation 2022-10-27 094416



Installation Instructions

Sizing & Ordering Information

×
20 CFM Tsunami 2 Stage Membrane Dryer 21999-0889_WEB

MAX CFM: 15

ITEM #: 21999-0889

NPT: ¼"

DRAIN: Float

MAX PSI: 175

MAX TEMP: 100°F

WEIGHT: 9 lbs

DIMENSIONS: 22" x 12" x 3½"

×
21999-0357 20 CFM Membrane Dryer NEW web

MAX CFM: 20

ITEM #: 21999-0357

NPT: ½"

DRAIN: Float

MAX PSI: 175

MAX TEMP: 100°F

WEIGHT: 16½ lbs

DIMENSIONS: 23" x 20" x 4½"

MAX CFM ITEM # PORT SIZE (NPT) DRAIN MAX PSI MAX °F WEIGHT (LBS) DIMENSIONS (HWD) MSRP
15
21999-0889
¼"
Float
175
100
9
22" x 12" x 3½"
$1,625.00
20
21999-0357
½"
Float
175
100
16½
23" x 20" x 4½"
$2,124.00
