Tsunami CORE Series Desiccant Air Dryer

Tsunami CORE Series

25 CFM Desiccant Air Dryer System

Cartridge-Style Desiccant

The CORE Series Desiccant Air Dryer is rated for 25 CFM at the spray gun and is designed solely for intermittent, lower pressure point-of-use applications. The CORE manual change desiccant cartridge eliminates dusting and tunneling of air flow through the media which improves performance. Included Tsunami pre-filtration ensures removal of water, oil, and particulates before entering the dryer.

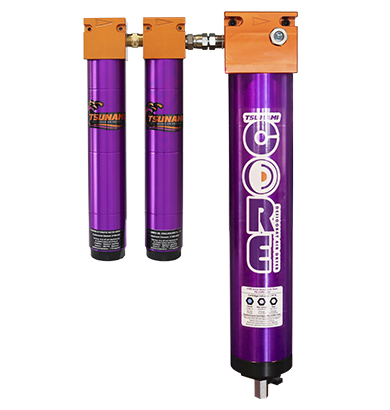

CORE Dryer-1_web-1

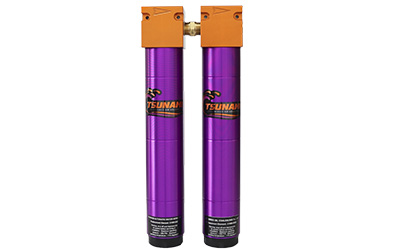

Tsunami Pre Filtration

Tsunami pre-filtration includes the water separator and oil coalescing filter to remove liquid water, bulk oils, and particulate.

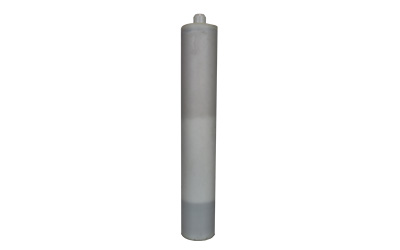

Desiccant Cartridge

The CORE manual change desiccant cartridge provides easy maintenance, extends media life, and eliminates dusting and tunneling.

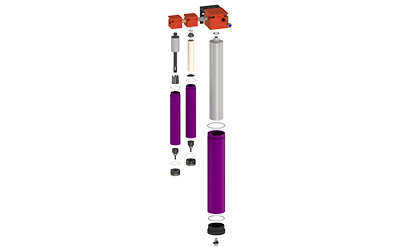

Efficient Construction

CORE Series Dryer Systems are efficiently designed and constructed with very few moving parts, reducing potential stress points.

Features:

2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
Cartridge Style Desiccant for Easy Maintenance
Proprietary Desiccant Media Blend in Spring Loaded Cartridge eliminates dusting and "tunneling"
Automatic Drains
Wall Mounting Brackets
Outlet Regulator
Machined Aluminum Housing & Heads

Anodized Inside & Out

Benefits:

Dryer Performance:

Extended Life; dryer cartridge provides 20-25% longer life than competitor brands*

*based on initial in-house testing

Filter Performance:

1st Stage Water Separator:

Removes liquid water
Filters particulate down to 10 micron

2nd Stage Oil Coalescing Filter:

Removes bulk oils and aerosols
Filters particulate down to .01 micron

25 CFM at the gun

Min/Max Air Inlet Temperature: 150°F

Min/Max Operating Pressure: 200 psi

Water Separator: #21999-0131

Replacement Element: #21999-0227

Oil Coalescing Filter: #21999-0131-Z-FD

Replacement Element: #21999-0202

Tsunami Product Catalog

core dryer cut sheet

CORE Dryer

Desiccant Air Dryer System with Pre-Filtration

ITEM #: 21999-1225

CFM: 25

DRAIN: Float

NPT: ½" INLET / ½" OUTLET

WEIGHT: 25 lbs

DIMENSIONS (HWD): 22" x 13" x 7"

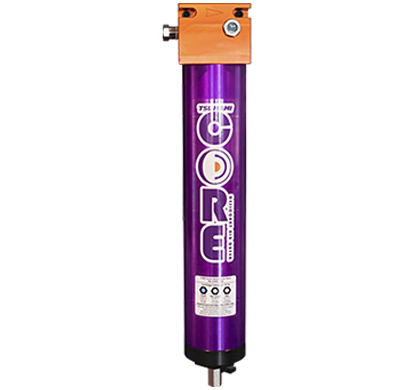

Desiccant Air Dryer System without Pre-Filtration

ITEM #: 21999-1235

CFM: 25

DRAIN: Float

NPT: ½" INLET / ½" OUTLET

WEIGHT: 14 lbs

DIMENSIONS (HWD): 22" x 5" x 7"

DESCRIPTION	ITEM #	MAX CFM	DRAIN	NPT	WEIGHT	DIMENSIONS (HWD)	MSRP
Desiccant Air Dryer System with Pre-Filtration	21999-1225	25	Float	½" INLET / OUTLET	25 lbs	22" x 13" x 7"	$1,375.00
Desiccant Air Dryer System without Pre-Filtration	21999-1235	25	Float	½" INLET / OUTLET	14 lbs	22" x 5" x 7"	$850.00

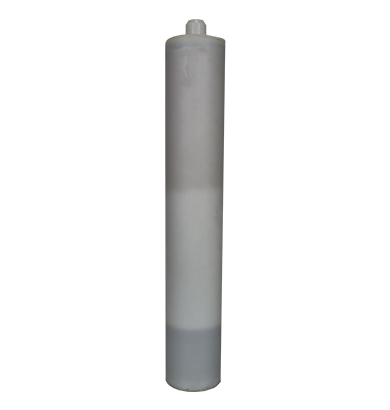

Desiccant Cartridge Replacement

ITEM #: 21999-1230

Moisture Indicator for Core Dryer - Replace Annually

ITEM #: 21999-1146

CORE Series Dryer - End Cap

ITEM #: 21999-1124

Outer Tube Replacement

ITEM #: 21999-1077-PL

Head Quad Ring Replacement

ITEM #: Q215-5716

DESCRIPTION	ITEM #	MSRP
Desiccant Cartridge Replacement	21999-1230	$160.00
Moisture Indicator for Core Dryer - Replace Annually	21999-1146	$90.00
CORE Series Dryer - End Cap	21999-1124	$142.00
Outer Tube Replacement	21999-1077-PL	$542.00
Head Quad Ring Replacement	Q215-5716	$10.00
