Moisture Minder® Electronic Drain Valve

SELF-CLEANING DRAIN VALVE

The Moisture Minder® Electronic Drain Valve uses a fixed strainer screen to trap contaminants before they reach the orifice, fouling the armature. The Moisture Minder® self-cleaning drain has a ball valve integrated into the drain body which, when opened manually, allows a blast of air to remove captured contaminants from the strainer screen.

Failure to routinely drain your compressor manually or by other means can contaminate compressed air systems and ruin your pneumatic tools and their application.

The Moisture Minder® Electronic Drain Valve (EDV) is an innovative and efficient automatic solenoid drain valve that effectively eliminates condensate from various components.

Applications:

Compressors
Receivers
Dryers
Aftercoolers
Filters
Drip legs

With its advanced features, the EDV includes an electric drain, manual blowdown valve, and a strainer/ball valve to prevent any debris from obstructing the drain valve's performance. Experience peace of mind with this high-quality drain valve that guarantees optimal functionality and durability.

Features:

Solid state adjustable timer with test button.
Stainless steel internal armature and shaft.
Dual sized inlet.
¼” NPT ID - ½” NPT OD thread fittings.
Large 4mm internal orifice.
Made in America.
90-day warranty

Benefits:

Removes condensate from pneumatic applications
Prevents moisture build-up that causes corrosion and reduces efficiency

Tsunami Product Catalog

Installation Instructions

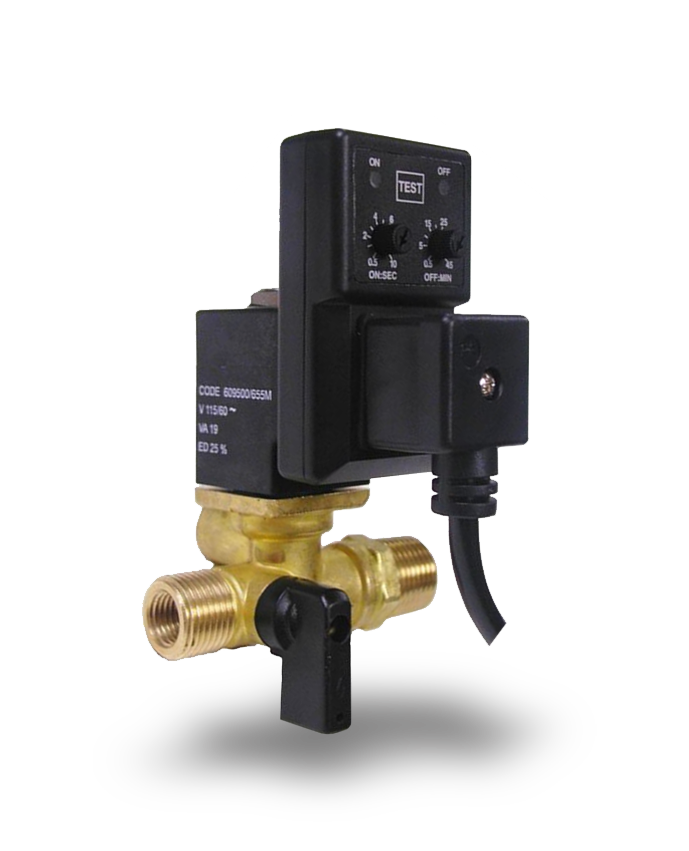

automatic compressor drain valve_Tsunami 21999-0177 Electronic Drain Valve w shadow

The Moisture Minder Electronic Drain Valve

requires a nearby electrical outlet to operate.

POWER: 115VAC / 60HZ

ITEM #: 21999-0177

AMPS: .17

INLET (NPT): ¼" ID / ½" OD

OUTLET (NPT): ¼"

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT (LBS): 1

DIMENSIONS: 5½" x 3½" x 3½"

The Moisture Minder Electronic Drain Valve requires a nearby electrical outlet to operate.

POWER: 230VAC / 60HZ

ITEM #: 21999-0177-230

AMPS: .08

INLET (NPT): ¼" ID / ½" OD

OUTLET (NPT): ¼"

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT (LBS): 1

DIMENSIONS: 5½" x 3½" x 3½"

The Moisture Minder Electronic Drain Valve requires a nearby electrical outlet to operate.

POWER: 230VAC / 50HZ

ITEM #: 21999-0177-230-50

AMPS: .08

INLET (NPT): ¼" ID / ½" OD

OUTLET (NPT): ¼"

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT (LBS): 1

DIMENSIONS: 5½" x 3½" x 3½"

The Moisture Minder Electronic Drain Valve requires a nearby electrical outlet to operate.

POWER: 24VDC / 24W

ITEM #: 21999-0177-24

AMPS: .08

INLET (NPT): ¼" ID / ½" OD

OUTLET (NPT): ¼"

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT (LBS): 1

DIMENSIONS: 5½" x 3½" x 3½"

The Moisture Minder Electronic Drain Valve requires a nearby electrical outlet to operate.

POWER: 12VDC / 10W

ITEM #: 21999-0177-12

AMPS: 1.6

INLET (NPT): ¼" ID / ½" OD

OUTLET (NPT): ¼"

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT (LBS): 1

DIMENSIONS: 5½" x 3½" x 3½"

POWER	ITEM #	AMPS	INLET (NPT)	OUTLET (NPT)	DIMENSIONS	MSRP
115VAC / 60HZ	21999-0177	.17	¼ ID / ½ OD	¼	5½ x 3½ x 3½	$117.00
230VAC / 60HZ	21999-0177-230	.08	¼ ID / ½ OD	¼	5½ x 3½ x 3½	$117.00
230VAC / 50HZ	21999-0177-230-50	.08	¼ ID / ½ OD	¼	5½ x 3½ x 3½	$117.00
24VDC / 24W	21999-0177-24	.08	¼ ID / ½ OD	¼	5½ x 3½ x 3½	$117.00
12VDC / 10W	21999-0177-12	1.6	¼ ID / ½ OD	¼	5½ x 3½ x 3½	$117.00
