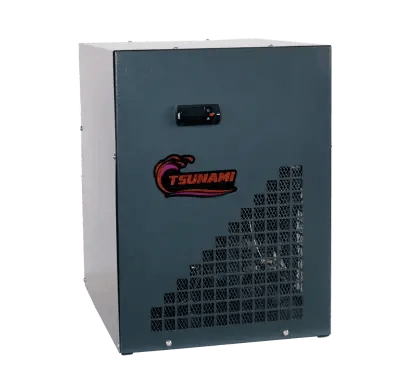

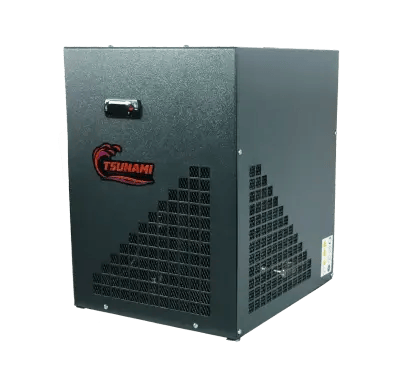

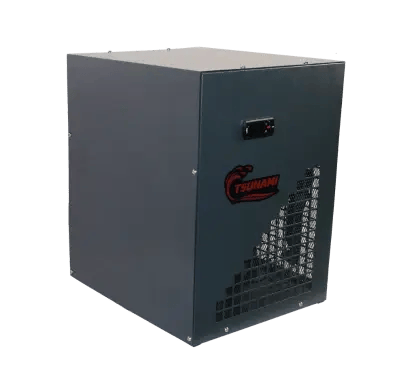

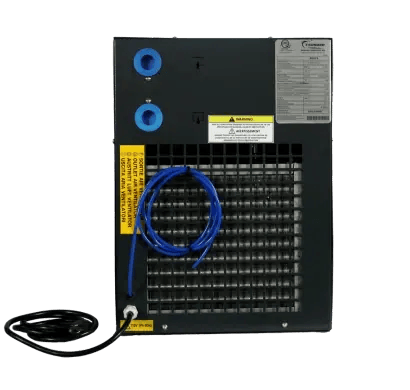

Refrigerated Dryer for Air Compressors

Features:

Low initial cost
Consistent dew point (38-50°F)
Energy-efficient
Integrated automatic moisture drain
Simple, compact, plug-and-play design
Reliable and easy to maintain

Benefits:

Prevents corrosion and moisture-related damage
Extends compressor and tool life
No manual draining or maintenance headaches
Saves energy and lowers utility costs
Reduces downtime and keeps operations running
Installs quickly in tight places

Max flow rate: 300 CFM

Max inlet pressure: 232 PSI

Max inlet temperature: 130°F

Power required: 115-230 VAC

Tsunami Product Catalog

Installation Instructions

Refrigerated Dryer Cut Sheet

Technical Characteristics

ITEM #	DESCRIPTION	WEIGHT (LBS)	CFM	PORT SIZE (NPT)	MAX PSI	MAX °F	POWER	MSRP
RSD-015	15 CFM Refrigerated Series Dryer	39	15	3/4"	232	130	115 VAC	$1,925.00
RSD-020	20 CFM Refrigerated Dryer, R134a	39	20	3/4"	232	130	115 VAC	$2,040.00
RSD-035	35 CFM Refrigerated Dryer, R134a	41	35	3/4"	232	130	115 VAC	$2,185.00
RSD-050	50 CFM Refrigerated Dryer, R134a	45	50	3/4"	232	130	115 VAC	$2,375.00
RSD-075	75 CFM Refrigerated Dryer	58	75	1"	232	130	115 VAC	$2,835.00
RSD-100	100 CFM Refrigerated Dryer. R134a	75	100	1"	232	130	115 VAC	$3,335.00
RSD-125	125 CFM Refrigerated Dryer, R134a	86	125	1"	232	130	115 VAC	$3,785.00
RSD-150	150 CFM Refrigerated Dryer, R134a	88	150	1"	232	130	115 VAC	$3,955.00
RSD-175	175 CFM Refrigerated Dryer, R134a	119	175	1 1/2"	232	130	115 VAC	$5,645.00
RSD-220	220 CFM Refrigerated Dryer, R407C	157	220	1 1/2"	232	130	230 VAC	$6,215.00
RSD-300	300 CFM Refrigerated Dryer, R407C	170	300	1 1/2"	232	130	230 VAC	$8,180.00

21999-0131 50 CFM water separator_web bucket

Water Separator

This high-quality filter is designed to remove dirt, particulate, and water from compressed air systems. The Tsunami Water Separator uses a unique up-flow gravity separation process to remove water droplets and aerosols from the air before being discharged through an automatic drain.

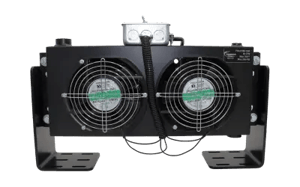

21999-1250 aftercooler

Aftercooler

The aftercooler cools hot air leaving air compressors quickly, forcing moisture to condense and drain off early in the process. Each unit is wall-mountable and offers six different configuration options to optimize drying and airflow in tight or mobile setups. This helps reduce the load on your system and supports cleaner, drier air.
