Tsunami Pure-20 Series
80 CFM Compressed Air Dryer
Regenerative Desiccant
The Pure-20 Series Regenerative Dryer is rated for 80 CFM airflow, and fitted for 20 Hp compressors. The Pure-20 system uses a Solenoid Timer Valve to control the dryer and Tsunami pre-filtration to assure removal of water, oil, and particulates before entering the dryer.
![tsunami 50 cfm air package card flip](https://www.gosuburban.com/hubfs/tsunami%2050%20cfm%20air%20package%20card%20flip.jpg)
Tsunami Pre Filtration
Tsunami pre-filtration includes the water separator and oil coalescing filter to remove liquid water, bulk oils and particulate.
![ultra dryer tower card flip](https://www.gosuburban.com/hs-fs/hubfs/ultra%20dryer%20tower%20card%20flip.jpg?width=400&height=250&name=ultra%20dryer%20tower%20card%20flip.jpg)
Regenerative Towers
Tsunami’s Regenerative Drying Technology uses sweep air to regenerate the towers during operation. It's like changing the desiccant every two minutes.
![pure 5 exploded card flip](https://www.gosuburban.com/hs-fs/hubfs/pure%205%20exploded%20card%20flip.jpg?width=400&height=250&name=pure%205%20exploded%20card%20flip.jpg)
Efficient Construction
Tsunami Dryers are efficiently designed and constructed with very few moving parts, reducing potential stress points.
On mobile, select the drop down arrow to view additional tabs.
Features:
-
2-stage Pre-filtration; Water Separator, Oil Coalescing Filter
-
Molecular Sieve Desiccant
-
Solenoid Valve Timer
-
Automatic Drains
-
Purge Exhaust Mufflers
-
Wall Mounting Brackets
-
Optional: C1D2 Compatible for hazardous locations
-
Heater pads available for cold temp applications
Benefits:
Dryer Performance:
-
Low relative humidity - down to .01% RH
-
Dew points down to -80°F
-
Easy, low-cost maintenance - under $100/year average
Filter Performance:
1st Stage Water Separator:
- Removes liquid water
- Filters particulate down to 10 micron
2nd Stage Oil Coalescing Filter:
- Removes bulk oils and aerosols
- Filters particulate down to .01 micron
Min/Max Air Inlet Temperature: 150°F
Min/Max Operating Pressure: 175
Power Requirement: 120V
Compressor Size: 20 Hp
Water Separator: #21999-1034
- Replacement Element: #21999-0228
Oil Coalescing Filter: #21999-1034-Z-FD
- Replacement Element: #21999-0202
Item # | # of Towers | Orifice | CFM Consumption | Cycle Time | Tower Drying Time | # of Towers Drying | # of Towers Regen. |
21999-1020 | 4 | .030" | 4.4 | 2 min | 120 sec | 2 | 2 |
21999-1020-MM | 4 | .030" | 4.4 | 2 mi | 120 sec | 2 | 2 |
*Dryer flow rates based on 100°F at 175 PSI an outlet pressure of 100 PSI. (Minimum inlet pressure 80 PSI Lower inlet pressure and higher temperatures affect the performance and quality of the downstream air)
Sizing & Ordering Information

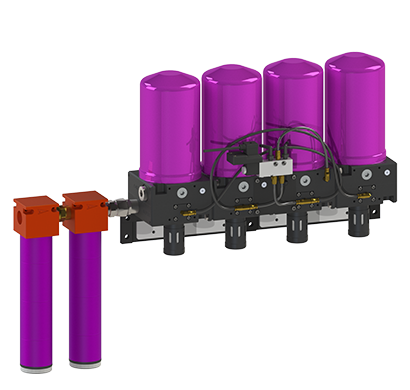

![21999-1020_WEB](https://www.gosuburban.com/hs-fs/hubfs/21999-1020_WEB.png?width=410&height=390&name=21999-1020_WEB.png)
CFM: 80
ITEM #: 21999-1020
DRAIN: Float
NPT: 1" INLET / OUTLET
WEIGHT: 112 lbs
DIMENSIONS: 27" x 36" x 9"

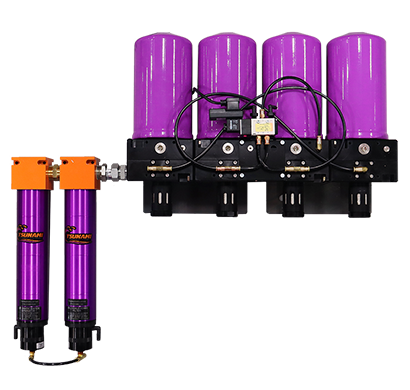

![21999-1020-PP-MM](https://www.gosuburban.com/hs-fs/hubfs/21999-1020-PP-MM.png?width=410&height=390&name=21999-1020-PP-MM.png)
CFM: 80
ITEM #: 21999-1020-MM
DRAIN: Pneumatic
NPT: 1" INLET / OUTLET
WEIGHT: 112 lbs
DIMENSIONS: 30" x 36" x 9"
MAX CFM | ITEM # | DRAIN | NPT | WEIGHT | DIMENSIONS (IN) | MSRP |
---|---|---|---|---|---|---|
80 |
21999-1020 |
Float |
1" INLET / OUTLET |
112 lbs |
27 x 36 x 9 |
$5,866.00 |
80 |
21999-1020-MM |
Pneumatic |
1" INLET / OUTLET |
112 lbs |
30 x 36 x 9 |
$6,240.00 |
