Tsunami Filter Package #1

Filter Lubricator

Moisture and Particulate Removal

Tsunami Filtration Package #1 includes: (1) Water separator, (1) Lubricator and a mounting bracket.

Installing a filter-lubricator in a pneumatic system provides optimal performance and longevity for the components downstream. This package is designed to remove liquids and contaminants from the air while releasing a controlled mist of oil to reduce friction in the tool or piece of equipment. It is important to know your system requirements before purchasing a filter-lubricator.

Typical applications: Air Tools, Tire Changers, Automotive Lifts, Robotics, Machine Tools, and more!

Premium Materials

Tsunami filters are machined from high-quality 6061 Aircraft Aluminum and then anodized inside and out - providing industrial strength and preventing corrosion and rust.

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.

Removable Bottom Cap

Removable bottom cap provides ease of service and machined drain port allows for various drain options.

Features:

Machined from 6061 aircraft aluminum
Minimal maintenance required with easy-to-service float drain
Available for systems with a flow rating from 20 to 120 CFM
Made in America

Benefits:

Point-of-use protection for air tools and pneumatic equipment
Removes large amounts of moisture
Filters particulate down to 10 micron at 99% efficiency
Filters particulate down to 1 micron at 95% efficiency
Lubricator releases a controlled micro-mist of oil to lubricate downstream components

Tsunami Product Catalog

Tsunami Filtration Installation Instructions

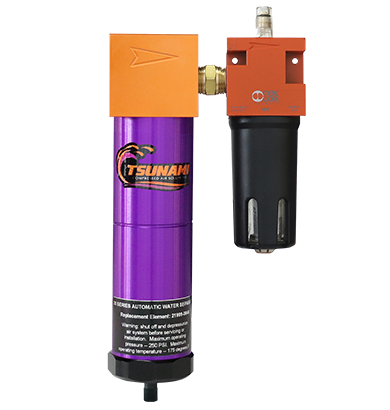

21999-0416 20 CFM Tsunami Filter Lubricator

MAX CFM: 20

ITEM #: 21999-0416

NPT: ¼

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 2.5 lbs

DIMENSIONS: 10 x 4½ x 2½

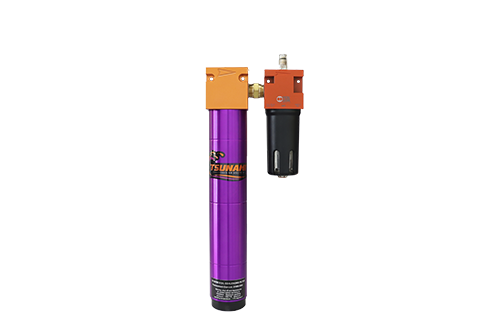

21999-0247 50 SCFM Water Separator Lubricator 2022 WEB

MAX CFM: 50

ITEM #: 21999-0247

NPT: ½

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 7 lbs

DIMENSIONS: 18 x 6 x 5

MAX CFM: 50

ITEM #: 21999-0248

NPT: 1

DRAIN: FLOAT

MAX PSI: 250

MAX TEMP: 122°F

WEIGHT: 12 lbs

DIMENSIONS: 19½ x 8 x 5½

MAX CFM	ITEM #	PORT SIZE (NPT)	DRAIN	MAX PSI	MAX °F	WEIGHT	DIMENSIONS (IN)	MSRP
20	21999-0416	¼	FLOAT	250	122	2½	10 x 4½ x 2½	$302.00
50	21999-0247	½	FLOAT	250	122	7	18 x 6 x 5	$471.00
120	21999-0248	1	FLOAT	250	122	12	9½ x 8 x 5½	$722.00

20 Series Water Separator Service Kit

ITEM #: 21999-0846

50 Series Water Separator Service Kit

ITEM #: 21999-0227

120/240 Series Water Separator Service Kit

ITEM #: 21999-0228

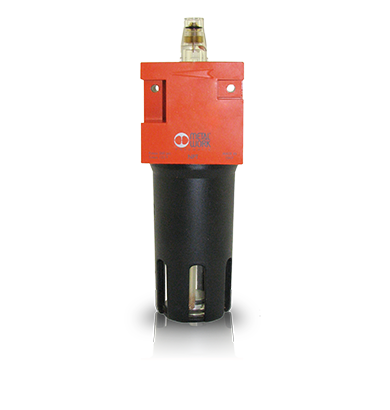

20 Series Lubricator - 1/4" NPT

ITEM #: 21999-0298

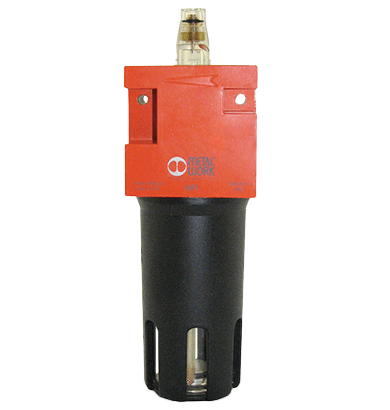

50 Series Lubricator - 1/2" NPT

ITEM #: 21999-0195

120/240 Series Lubricator - 1" NPT

ITEM #: 21999-0196

DESCRIPTION	ITEM #	MSRP
20 Series Water Separator Service Kit	21999-0846	$62.00
50 Series Water Separator Service Kit	21999-0227	$75.00
120/240 Series Water Separator Service Kit	21999-0228	$111.00
20 Series Lubricator - 1/4" NPT	21999-0298	$95.00
50 Series Lubricator - 1/2" NPT	21999-0195	$115.00
120 Series Lubricator - 1" NPT	21999-0196	$263.00
