Activated Carbon Filters

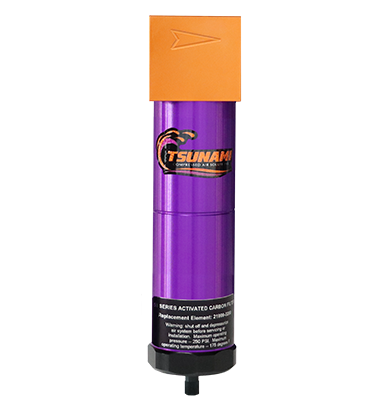

21999-0390-AC 20 CFM activated carbon filter_web bucket

20 series

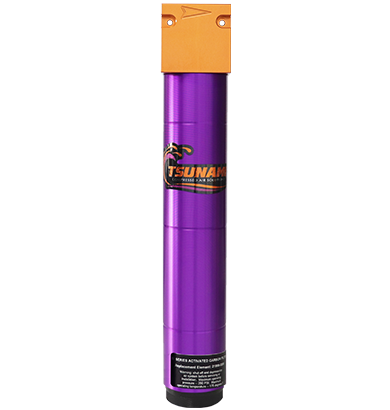

21999-0131-AC 50 CFM activated carbon filter_web bucket

50 series

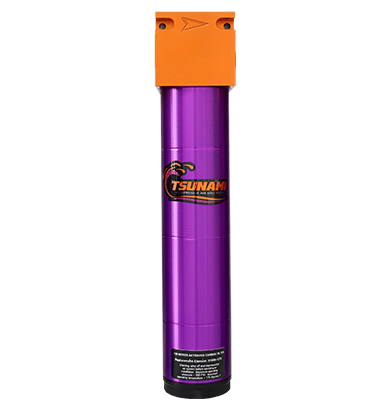

21999-1034-AC 120 CFM activated carbon filter_web bucket

120 series

Premium Materials

Tsunami filters are machined from high-quality 6061 Aircraft Aluminum and then anodized inside and out - providing industrial strength and preventing corrosion and rust.

Oversized Tube Length

Oversized tube length allows both gravity and velocity to assist in the removal of water air contaminates.

Removable Bottom Cap

Removable bottom cap provides ease of service and machined drain port allows for various drain options.

Features:

Easy installation and serviceability
Machined from 6061 aircraft aluminum
Available for systems with a flow rating from 20 to 120 CFM
Optional mounting bracket sold separately
Made in America

Benefits:

Adsorbs oil vapors down to .003 ppm
Removes odor and taste
ISO 8573-1:2010 Class 1 for oil content

Tsunami Product Catalog

Tsunami Filtration Installation Instructions

MAX CFM: 20

ITEM #: 21999-0390-AC

NPT: ¼

DRAIN: N/A

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 1.5 lbs

DIMENSIONS: 8.5" x 2" x 2"

MAX CFM: 50

ITEM #: 21999-0131-AC

NPT: ½

DRAIN: N/A

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 3.5 lbs

DIMENSIONS: 14.5" x 2.5" x 2.5"

MAX CFM: 120

ITEM #: 21999-1034-AC

NPT: ¾

DRAIN: N/A

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9 lbs

DIMENSIONS: 16" x 3.5" x 3.5"

MAX CFM: 120

ITEM #: 21999-0082-AC

NPT: 1

DRAIN: N/A

MAX PSI: 250

MAX TEMP: 175°F

WEIGHT: 9 lbs

DIMENSIONS: 16" x 3.5" x 3.5"

MAX CFM	ITEM #	PORT SIZE (NPT)	DRAIN	MAX PSI	MAX °F	WEIGHT (LBS)	DIMENSIONS (IN)	MSRP
20	21999-0390-AC	¼	N/A	250	175	1½	8.5" x 2" x 2"	$183.00
50	21999-0131-AC	½	N/A	250	175	3½	14.5" x 2.5" x 2.5"	$291.00
120	21999-1034-AC	¾	N/A	250	175	9	16" x 3.5" x 3.5"	$526.00
120	21999-0082-AC	1	N/A	250	175	9	16" x 3.5" x 3.5"	$526.00

Drain Tube Kit - 10 Pack

Item #: 21999-0201

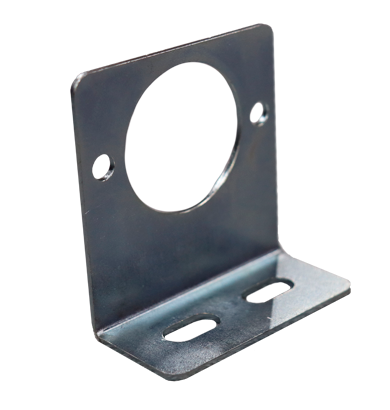

Mounting Bracket -20 Series

Item #: 21999-0867

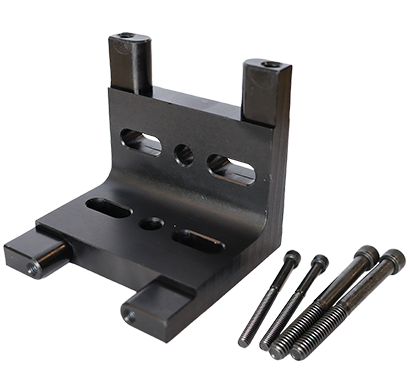

Mounting Bracket - 50 & 120 Series

Item#: 21999-0144

Mounting Bracket - 225/300/450/600 SerieS

Item #: 21999-1126

DESCRIPTION	ITEM #	MSRP
Drain Tube Kit - 10 Pack	21999-0201	$123.00
Mounting Bracket - 20 Series	21999-0867	$20.00
Mounting Bracket - 50 & 120 Series	21999-0144	$60.00
Mounting Bracket - 225/300/450/600 Series	21999-1126	$135.00

20 Series Activated Carbon Service Kit

ITEM #: 21999-0395

50 Series Activated Carbon Service Kit

ITEM #: 21999-0200

20 Series Activated Carbon Service Kit - 5 pack

ITEM #: 21999-0824

50 Series Activated Carbon Service Kit - 5 pack

ITEM #: 21999-0826

DESCRIPTION	ITEM #	MSRP
20 Series Activated Carbon Service Kit	21999-0395	$81.00
50 Series Activated Carbon Service Kit	21999-0200	$188.00
120 Series Activated Carbon Service Kit	21999-1072	$277.00
20 Series Activated Carbon Elements - 5 pack	21999-0824	$219.00
50 Series Activated Carbon Elements - 5 pack	21999-0826	$463.00
