AUTOMATIC LUBRICATION: AN INTRODUCTION

This catalog has been designed as a parts guide and reference tool to provide basic information on our LubeMinder® Automatic Grease and Oiling Systems. It is intended to familiarize the user with the pump/lubrication system and to enable you to use its various features. The operating instructions contain important information for safe and correct operation of the lubrication system.

Common features and characteristics shared by most popular models of applications allow for consistent lube system design. The basic system design in this reference can be individually customized for a majority of the popular models of construction sized equipment operating today.

Observance will help to avoid hazards, reduce repair costs and downtime, increase the reliability and extend the service life of the system.

This guide must be read and used by all persons who are charged with working with the pump/lubrication system. This includes equipment operators and maintenance personnel.

By following the steps suggested in this guide, the operator can perform basic maintanence resulting in exceptional system performance that will extend the component life of all pins and bushings connected to the automated lubrication system.

If possible always refer to the OEM manual as you may find that many lubrication points require specific relube intervals. We can accommodate for the variety of intervals to a certain degree in the design of the system. More information is better.

SAFETY PRECAUTIONS

Comply with all safety regulations applicable at the locality where the tasks are performed.
Always take the necessary precautions to prevent potentially dangerous situations from occurring during installation, checking and maintenance. Always apply or use adequate safety measures to prevent personal injury and material damage before starting work on the equipment.
The electrical system of the equipment must be disconnected before any work is performed.
The pressurized air system of the equipment must be drained of all air pressure.
Inquire with the facilities management to the prescribed procedure to immobilize equipment and prevent operation of equipment. When these are not prescribed, remove any means that can start the equipment (ignition key / main power switch) and place indicator tags to show others not to start the equipment.
Never work underneath a machine, vehicle, bucket or other equipment, which is raised by a jack only. Always use a jack stand and check that the ground is firm and sufficiently flat.

For over 35 years, Lubeminder® Oil & Grease Systems has been manufacturing lubrication systems designed to increase the life of your machinery and equipment.

Our solutions are designed for you and your equipment needs. We have reduced down- time, increased profit, and have consistenly innovated the world of lubrication systems.

Linktree LubeMinder QR code

Visit us online to see how we can serve YOUR needs.

Keep in mind that a vehicle with air suspension may drop off its own accord.
Only work underneath a cab if it is fully tilted and latched, or otherwise secured preventing accidental return-tilt.
When performing installation, disconnect the ground battery lead from the vehicle’s battery. This prevents electrical equipment from being inadvertently activated or otherwise electrically damaged.
Avoid working on a machine, vehicle or other equipment that recently was in use to allow components to cool (coolant, exhaust, turbo, etc).
A vehicle, machine or other equipment may only be operated by those who are trained and licensed to do so and are aware of all possible dangers.
Only use tools that fit and are designed for the specific task.
Adhere to all regulations, specifications and limitations as specified by the manufacturer of the machine, vehicle, equipment and/or engine.

ELECTRIC GREASE PUMPS

ENHANCE YOUR OPERATION AND LUBRICATE WITH EASE

The LubeMinder® Electric Grease Pump efficiently distributes grease to lubricate machine friction points. With multiple outlets available, it guarantees the correct discharge for each point. LubeMinder® Electric Pumps are ideal for automatic grease lubrication in industrial machines and serves as a reliable chassis pump for on and off road vehicles. With our progressive system, you can automate the centralization of over three hundred greasing points using just one grease pump.

SYSTEM BENEFITS:

Dependable system designed for job site environments
Extends equipment life with automatic lubrication to all desired zerks
Sustain positive pressure to flush out contaminants
Lengthens time between maintenance intervals; labor cost savings
Prevent corrosion, friction and rust by adding a protective layer of grease
Supported by our world class customer service and sales support

SYSTEM FEATURES:

Operates intermittently or continuously, providing tailored lubrication cycles
Powered by an electric motor, the internal rotating cam can actuate up to three pump elements, each equipped with a relief valve for system protection
Pumping elements are Cam Driven, unlike a spring design used by most competitors
Pump comes standard with the Low Level Indicator Switch
In conjunction with the progressive system, more than three hundred greasing points can be automatically lubricated from just a single grease pump
The direct mounted electric gear motor drives an internal rotating cam controlling up to three externally mounted pump elements
Each element has a max operating pressure of 4000 PSI/275 bar, can dispense up to .225in
Hard nylon/fiberglass cover protects the gear motor with protection rating IP-66

SYSTEM CONFIGURATIONS:

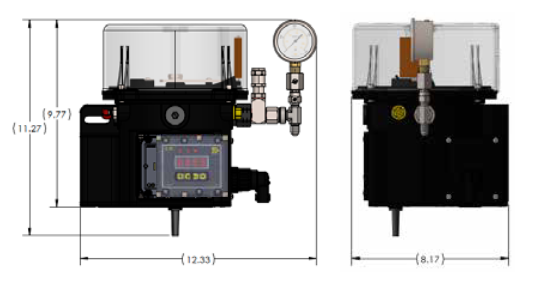

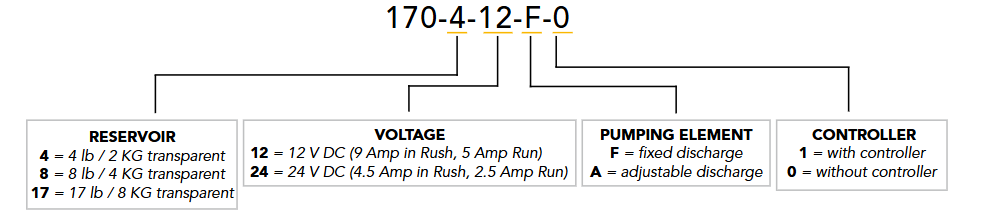

Screenshot 2026-10-09 123445

All the pumps are equipped with a low level indicator. Wired remote controller available for harsh applicaitons for in-cab control.

PUMP MOUNTING Pumps must be secured in a vertical position through integrated mounting bracket of pump body.

ELECTRIC GREASE PUMPS: OVERVIEW

SERIES PROGRESSIVE SYSTEM

NOTE: Not every grease system has primary and secondary series progressive blocks. The image below shows a typical series progressive system.

SERIES PROGRESSIVE SYSTEM COMPONENTS

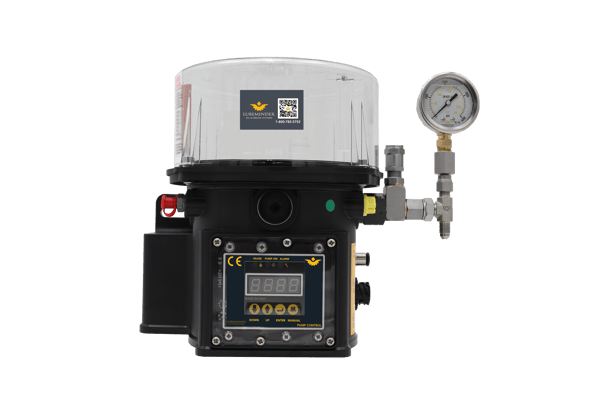

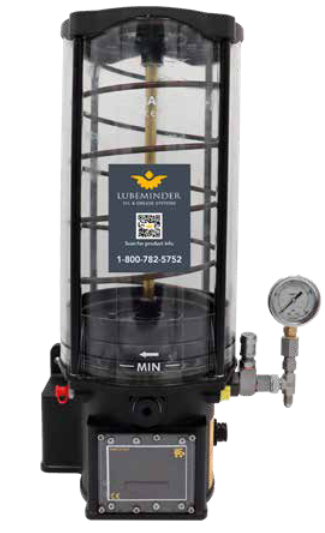

ELECTRIC GREASE PUMP
TRANSPARENT RESERVOIR
ZERK FOR FILLING RESERVOIR
PUMPING ELEMENT
PRESSURE GAUGE
OUTLET
INTEGRATED CONTROLLER
PROGRESSIVE PRIMARY BLOCK
PROGRESSIVE SECONDARY BLOCK
PRIMARY FEED LINE
SECONDARY FEED LINE
DISCHARGE PORTS
FINAL LUBRICATION POINTS
CYCLE INDICATOR PIN (OPTIONAL)

Progressive Layout with ILC electric grease pump 2026

ELECTRIC GREASE PUMPS: OPERATION

APPLICATIONS

Our automatic grease pumps are ideal for automatic grease lubrication of all types including: industrial machines, agricultural machines, mobile equipment, concrete and more.

Using a progressive system, they can lubricate over 300 points with a single pump.

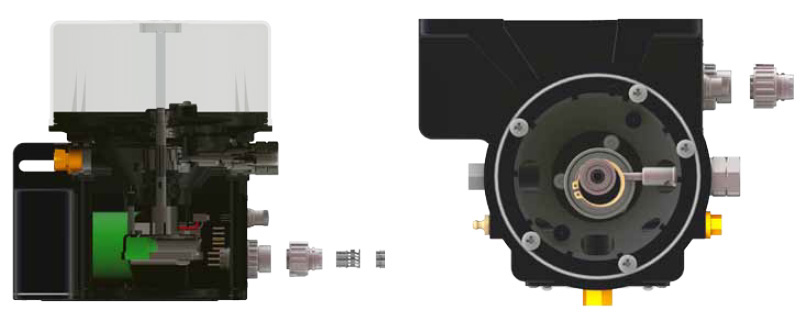

grease pump applications image graphic

OPERATION

The pumps have been designed for continuous operation and configurable intermittent lubrication cycles according to the application required.

A gearmotor controls an internal cam that operates up to 3 pumping elements mounted externally.

Each standard pumping element is equipped with a pressure relief valve capable of protecting the pump and the elements from overpressure.

It is possible to combine the flows of a second and third pumping element into a single outlet for a greater flow rate.

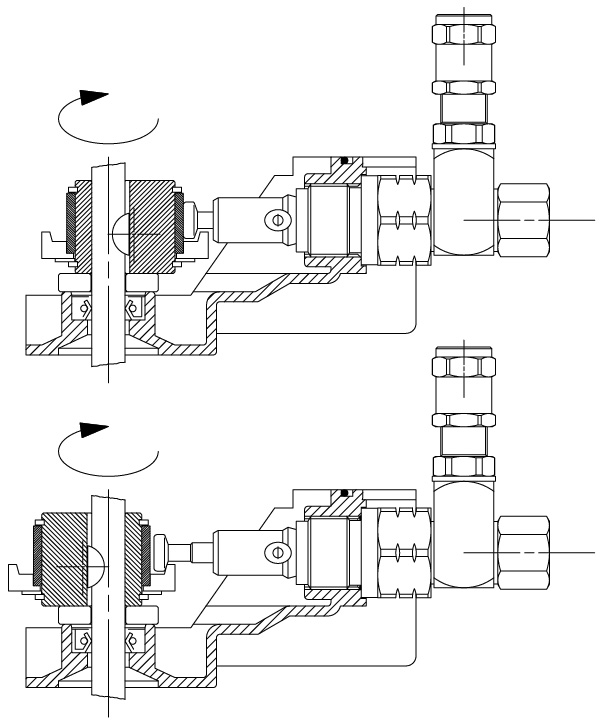

grease pump operations image graphic

OPERATION

The gear motor is protected by a reinforced polymer cover (30% GF Nylon 6) with protection rating IP-66 (dust tight and weather proof).

The pumps can operate automatically using an optional integrated or remote controller, which can be set with variable working and rest times.

When determining what your system needs, it’s important to note it takes 5 pumps to move 4 positions out of the main progressive block.

For example: 1 pumping element -> 5 rotations for every 4 progressive block output sequences (60 outputs ÷ 4) x 5 = 75 pump rotations

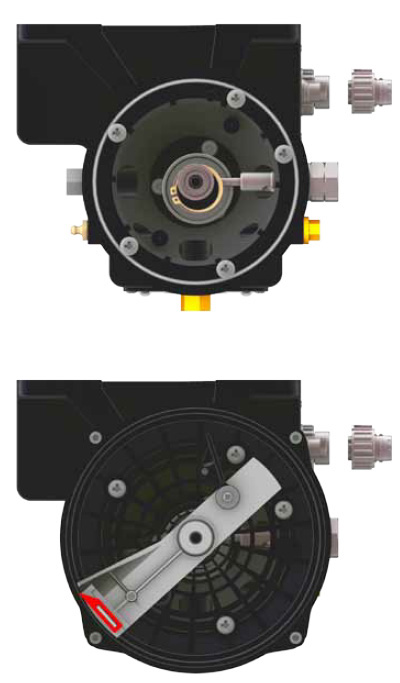

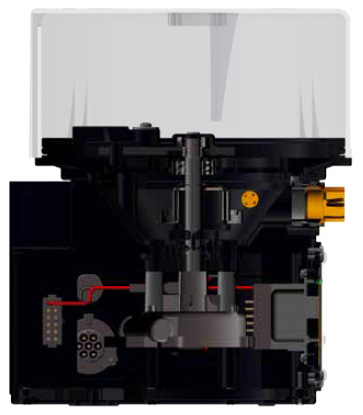

grease pump operations 2 image graphic grease pump operations 3 image graphic

NUMBER OF OUTLETS	From 1 to 3
DISCHARGE PER REV WITH FIXED PUMPING	.01 in³ / .16 cm³
DISCHARGE PER REV WITH ADJUSTABLE PUMPING	.0006 - .01 in³ / 0.01 - 0.16 cm³
RPM	23 rpm (12 V DC) / 22 rpm (24 V DC)
AMPERAGE	12 VDC (9 Amp in Rush, 5 Amp Run) / 24 VDC (4.5 Amp in Rush, 2.5 Amp Run)
DISCHARGE PER MINUTE WITH FIXED PUMPING	.225 in³ / 3.68 cm³ (12 V DC) \| .215 in³ / 3.52 cm³ (24 V DC)
DISCHARGE PER MINUTE WITH ADJUSTABLE PUMPING	.014 - .225 in³ / 0.23 - 3.68 cm³ (12 V DC) \| .013 - .215 in³ / 0.22 - 3.52 cm³ (24 V DC)
SUITABLE LUBRICANTS	00 TO NLGI No. 2 Rated for centralized lubrication systems
MAXIMUM OPERATING PRESSURE	4000 PSI \| 275 bar
TANK CAPACITY	4 LB / 2 KG - TRANSPARENT
TEMPERATURE	From -4° F TO + 176° F
PUMP OUTLET FITTING	#4 MJIC
LOW LEVEL INDICATION	Switch rating 200 V DC 10 WATT max

NUMBER OF OUTLETS	From 1 to 3
DISCHARGE PER REV WITH FIXED PUMPING	.01 in³ / .16 cm³
DISCHARGE PER REV WITH ADJUSTABLE PUMPING	.0006 - .01 in³ / 0.01 - 0.16 cm³
RPM	23 rpm (12 V DC) / 22 rpm (24 V DC)
AMPERAGE	12 VDC (9 Amp in Rush, 5 Amp Run) / 24 VDC (4.5 Amp in Rush, 2.5 Amp Run)
DISCHARGE PER MINUTE WITH FIXED PUMPING	.225 in³ / 3.68 cm³ (12 V DC) \| .215 in³ / 3.52 cm³ (24 V DC)
DISCHARGE PER MINUTE WITH ADJUSTABLE PUMPING	.014 - .225 in³ / 0.23 - 3.68 cm³ (12 V DC) \| .013 - .215 in³ / 0.22 - 3.52 cm³ (24 V DC)
SUITABLE LUBRICANTS	00 TO NLGI No. 2 Rated for centralized lubrication systems
MAXIMUM OPERATING PRESSURE	4000 PSI \| 275 bar
TANK CAPACITY	8 LB / 4 KG - TRANSPARENT
TEMPERATURE	From -4° F TO + 176° F
PUMP OUTLET FITTING	#4 MJIC
LOW LEVEL INDICATION	Switch rating 200 V DC 10 WATT max

NUMBER OF OUTLETS	From 1 to 3
DISCHARGE PER REV WITH FIXED PUMPING	.01 in³ / .16 cm³
DISCHARGE PER REV WITH ADJUSTABLE PUMPING	.0006 - .01 in³ / 0.01 - 0.16 cm³
RPM	23 rpm (12 V DC) / 22 rpm (24 V DC)
AMPERAGE	12 VDC (9 Amp in Rush, 5 Amp Run) / 24 VDC (4.5 Amp in Rush, 2.5 Amp Run)
DISCHARGE PER MINUTE WITH FIXED PUMPING	.225 in³ / 3.68 cm³ (12 V DC) \| .215 in³ / 3.52 cm³ (24 V DC)
DISCHARGE PER MINUTE WITH ADJUSTABLE PUMPING	.014 - .225 in³ / 0.23 - 3.68 cm³ (12 V DC) \| .013 - .215 in³ / 0.22 - 3.52 cm³ (24 V DC)
SUITABLE LUBRICANTS	00 TO NLGI No. 2 Rated for centralized lubrication systems
MAXIMUM OPERATING PRESSURE	4000 PSI \| 275 bar
TANK CAPACITY	17 LB / 8 KG - TRANSPARENT
TEMPERATURE	From -4° F TO + 176° F
PUMP OUTLET FITTING	#4 MJIC
LOW LEVEL INDICATION	Switch rating 200 V DC 10 WATT max

LUBEMINDER® 0-4000 PSI 2” 1/4” NPT PRESSURE GAUGE

170-0065

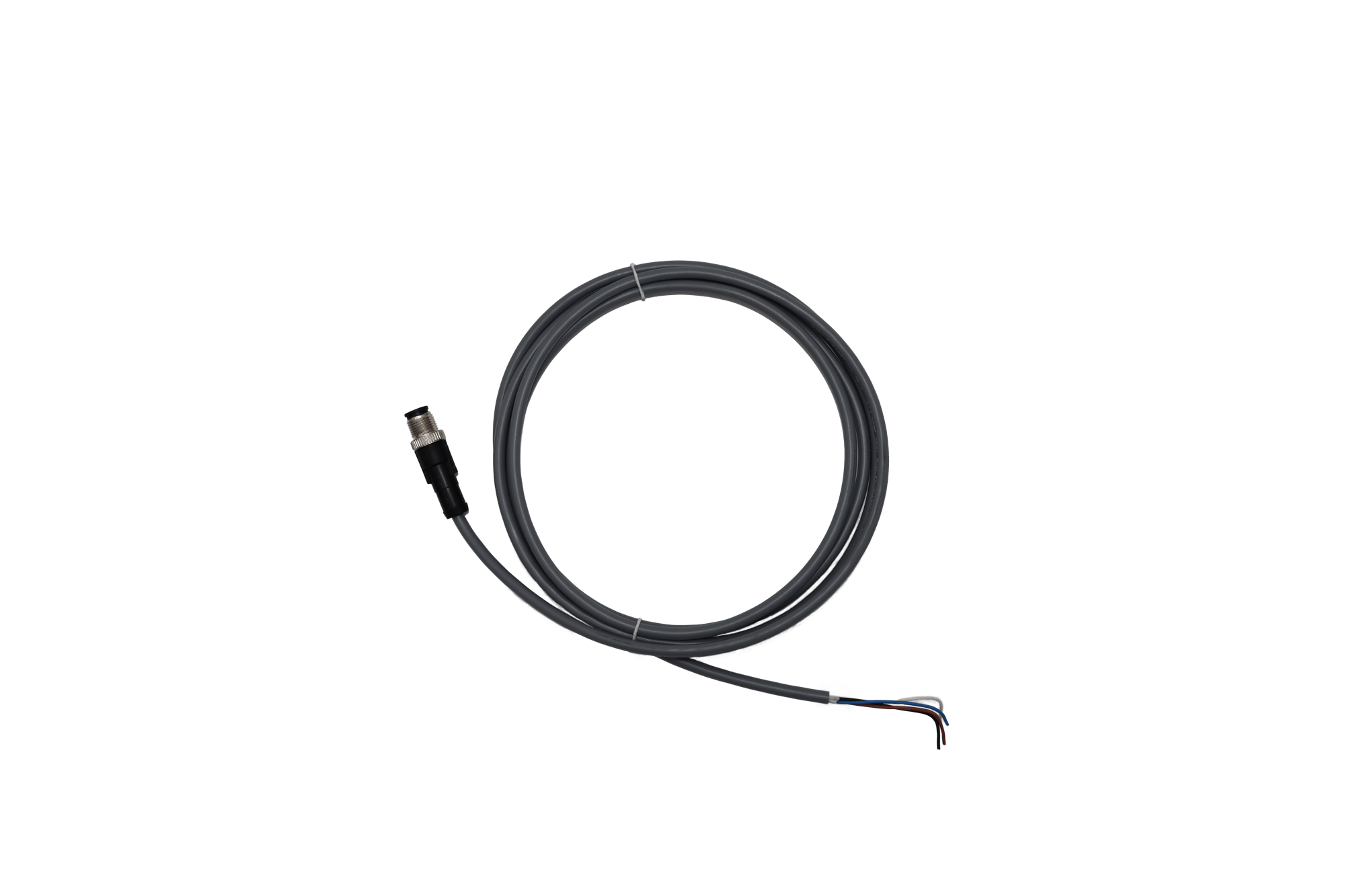

M12 PUMP CABLE FOR PUMP INPUT SIGNAL OF PRESSURE OF CYCLE FEEDBACK

170-2097

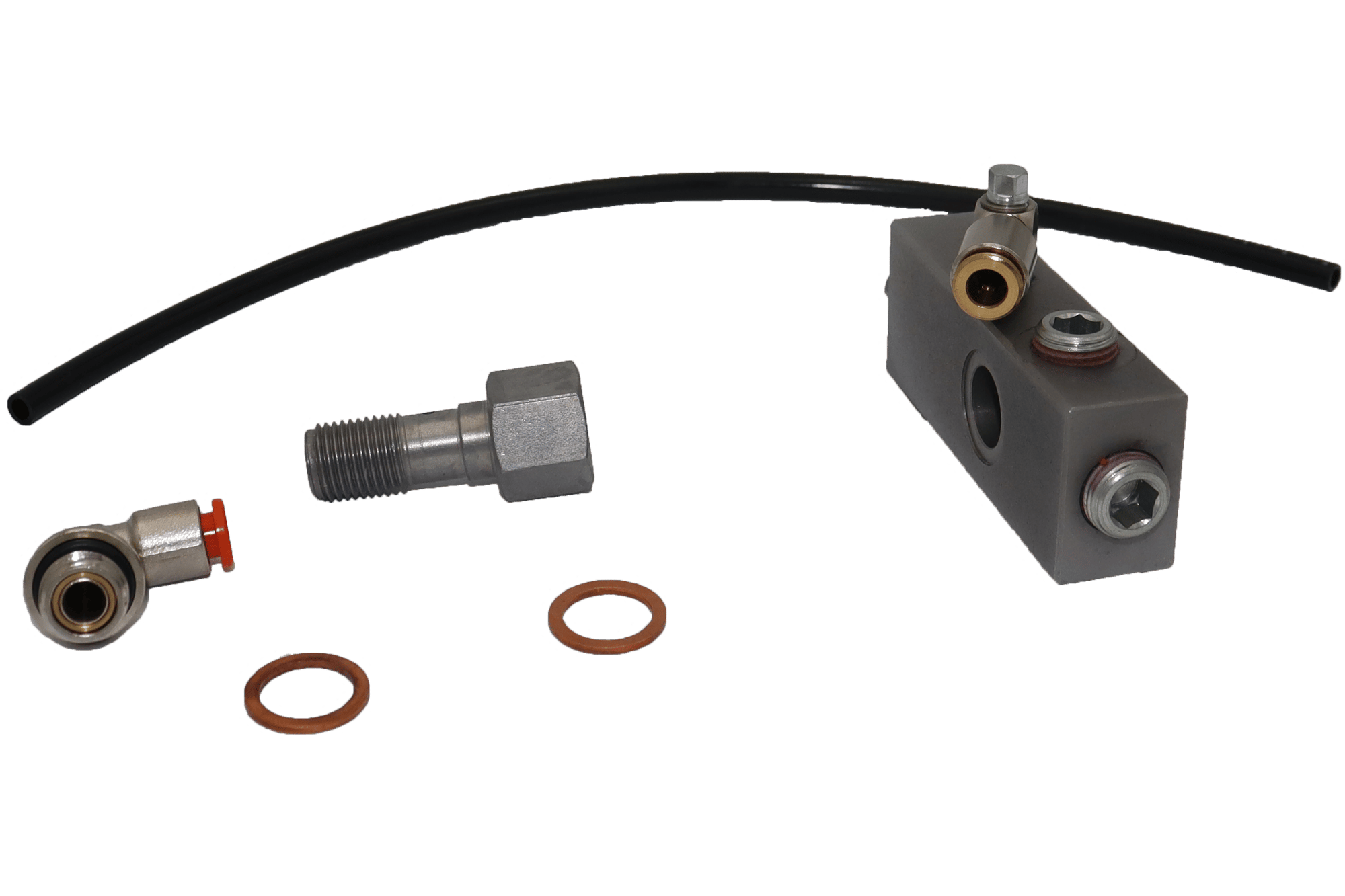

PUMP PRESSURE RELIEF TO TANK ASSEMBLY

170-2257
(Adjustable, factory set for 3625 PSI)

OUTLET CHECK VALVE FOR MULTIPLE PUMP OUTLETS & HIGH SYSTEM HEADER PRES- SURE

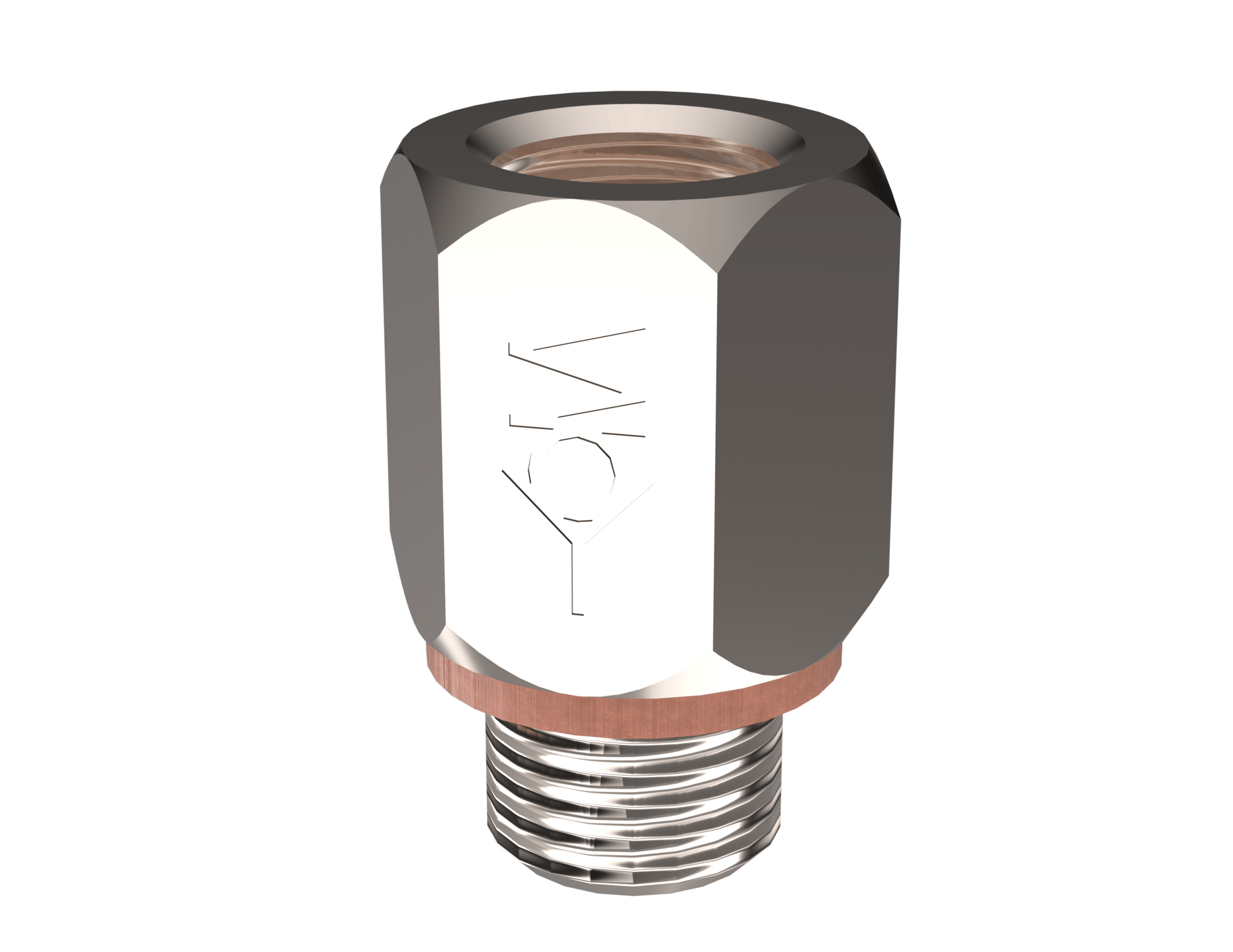

170-2258

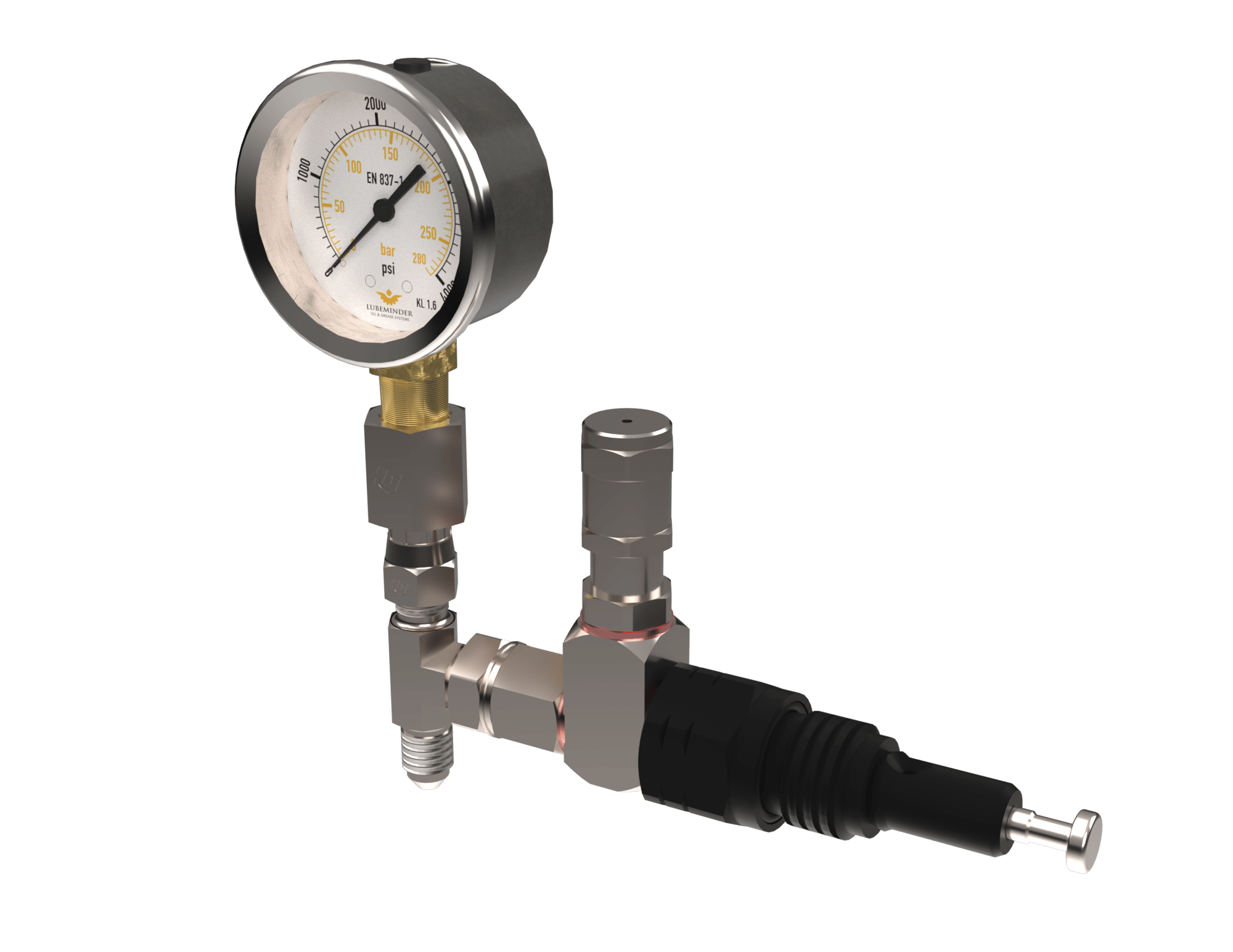

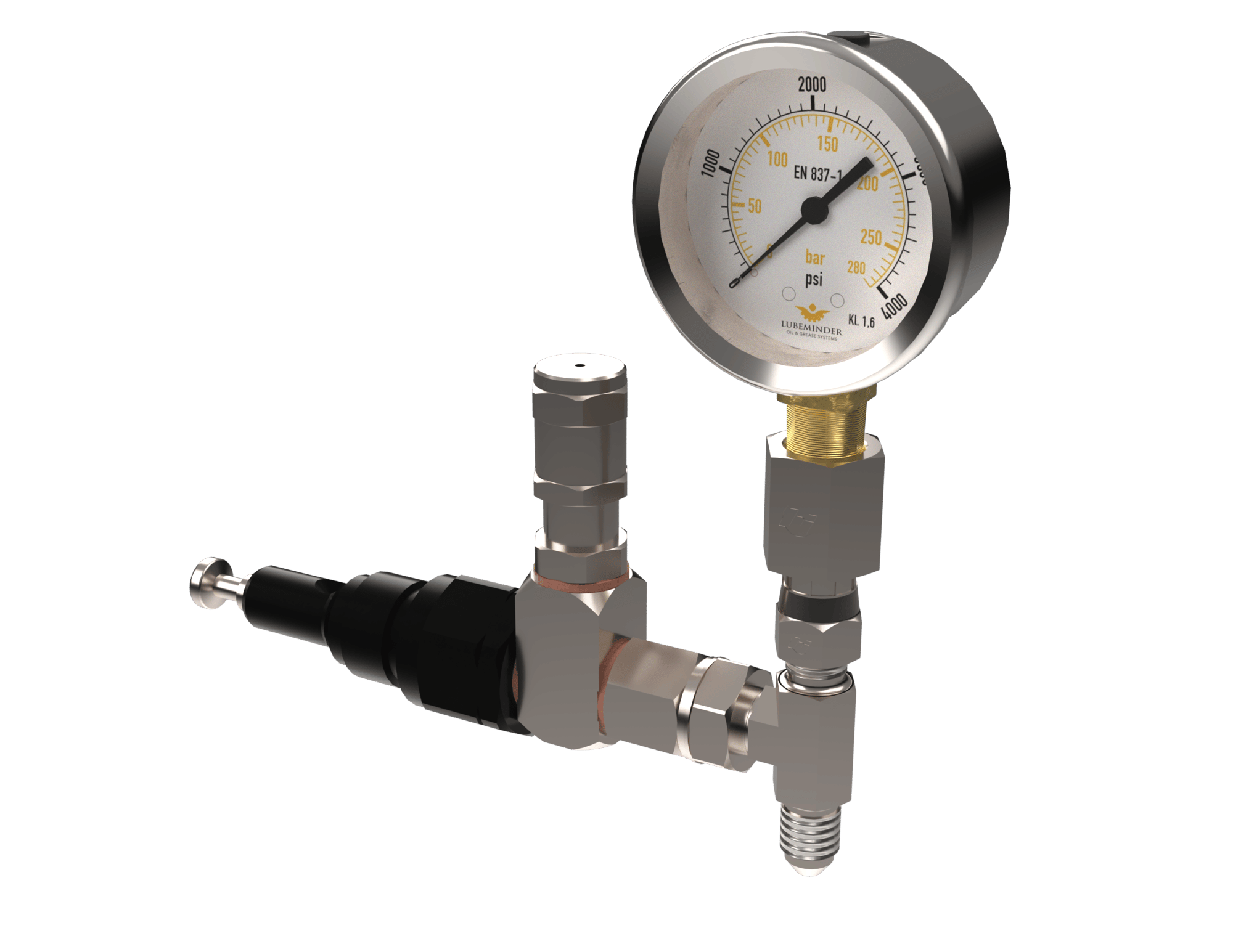

REPLACEMENT GAUGE AND OUTLET ASSEMBLY

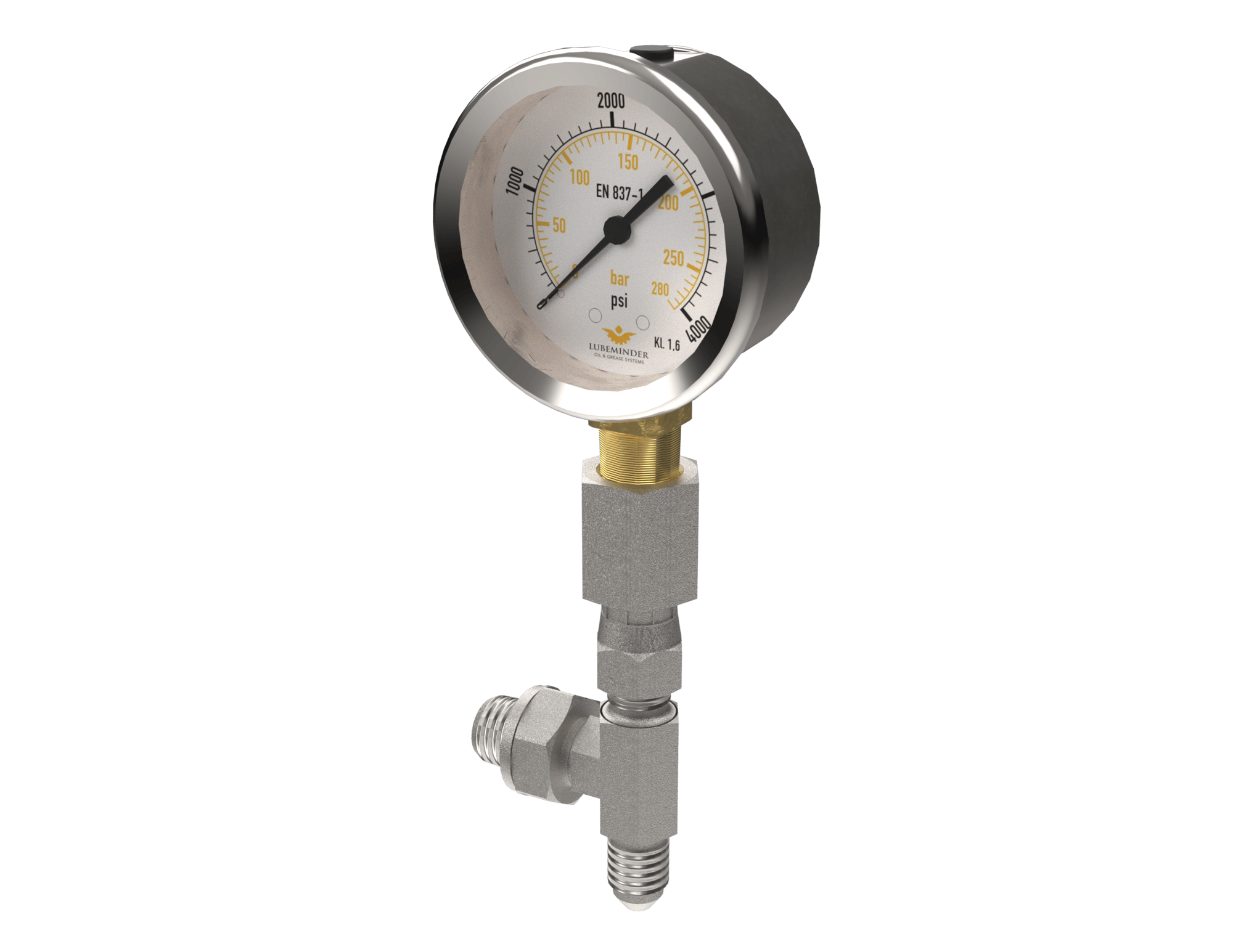

170-2261

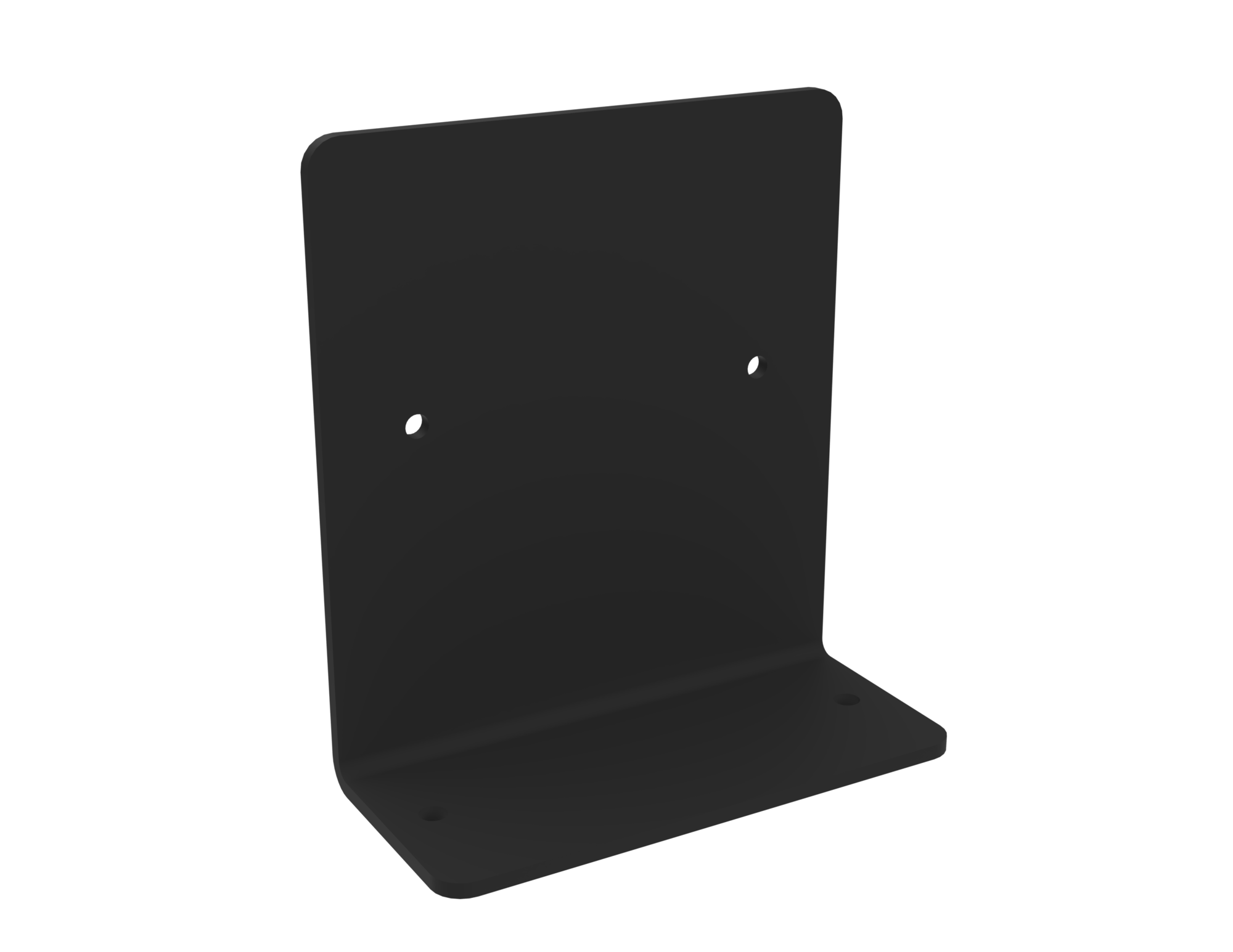

LUBEMINDER® 90° MOUNTING BRACKET

170-2262

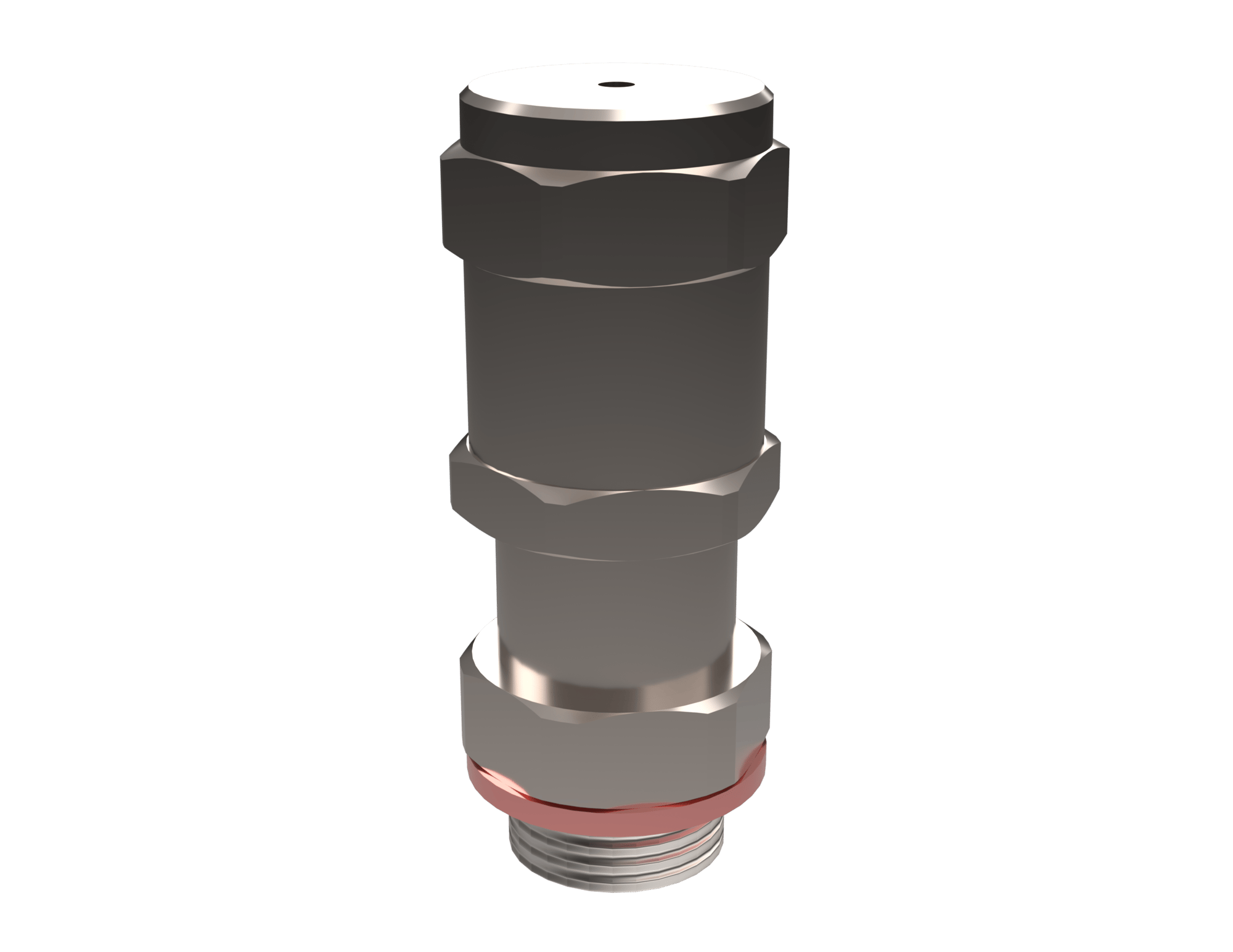

PUMP PRESSURE EXTERNAL RELIFE VALVE

170-2263
(Adjustable, factory set for 3625 PSI)

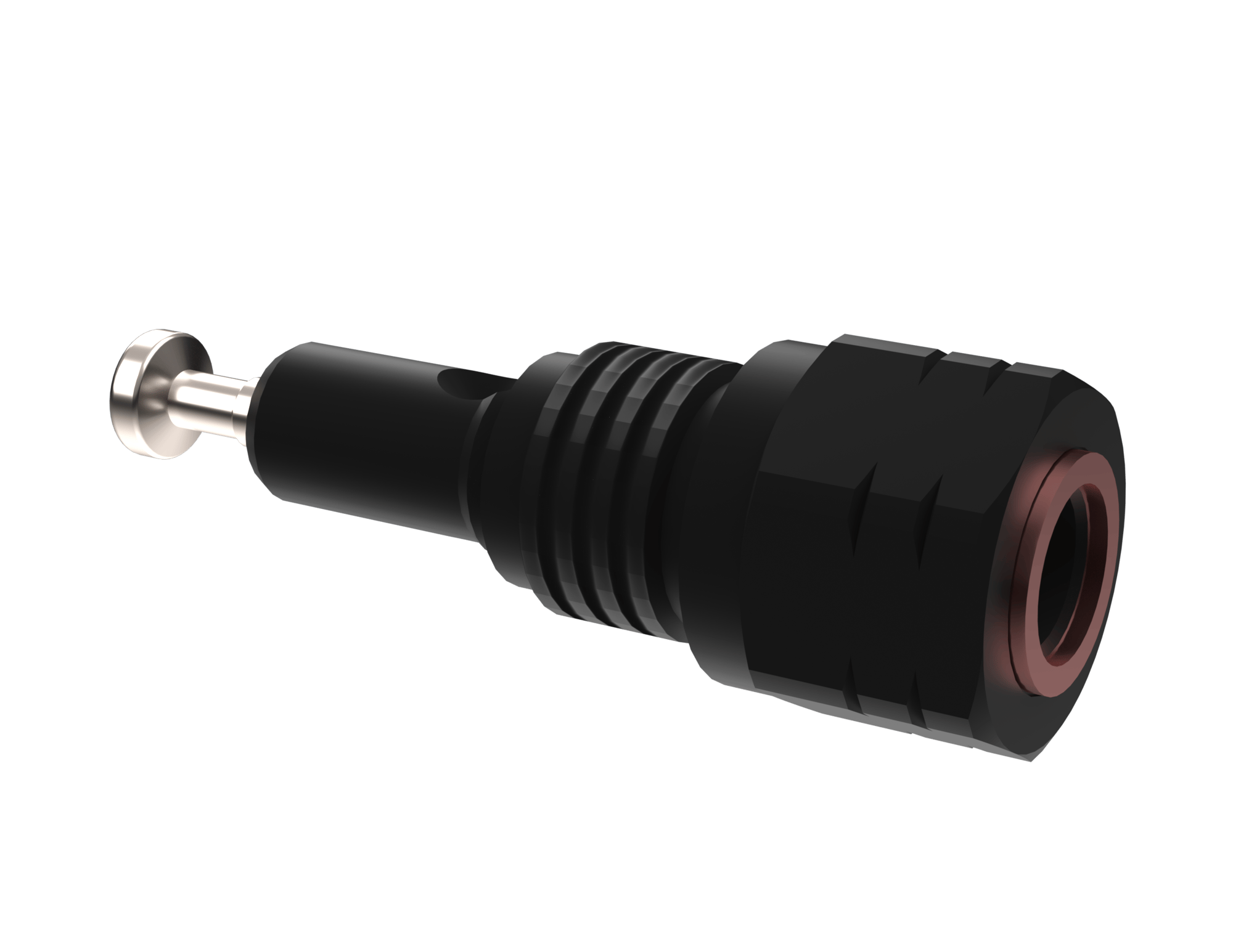

.01 CUIN REPLACEMENT PUMPING ELEMENT

170-2264

LUBEMINDER® REMOTE CONTROL

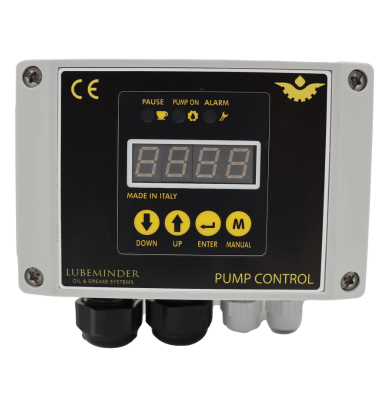

170-2265 Grease Pump Controller Only No Background_web-1

170-2265
For cab mounting controller or remote
mounting for extreme conditions

GREASE CARTRIDGE QUICK FILL KIT

170-2266

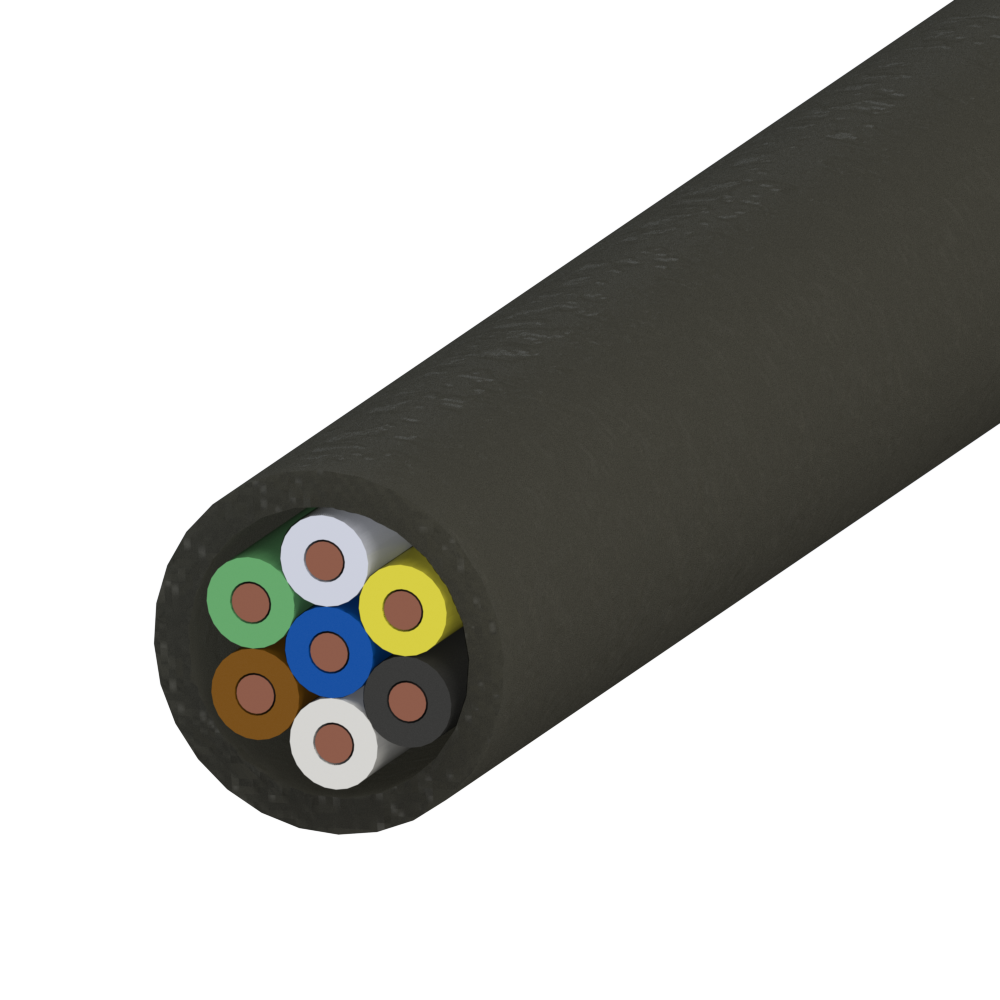

LUBEMINDER® POWER PUMP CABLE-7 LEAD

170-2267

.01 CUIN LUBEMINDER® AUXILIARY PUMPING ELEMENT ASSEMBLY

170-2268

REPLACEMENT LUBEMINDER® ADJUSTABLE OUTPUT PUMP ELEMENT

adjustable discharge pumping complete with safety valve_electric grease pump accessories

170-2269

ADJUSTABLE LUBEMINDER® AUXILIARY PUMPING ELEMENT ASSEMBLY

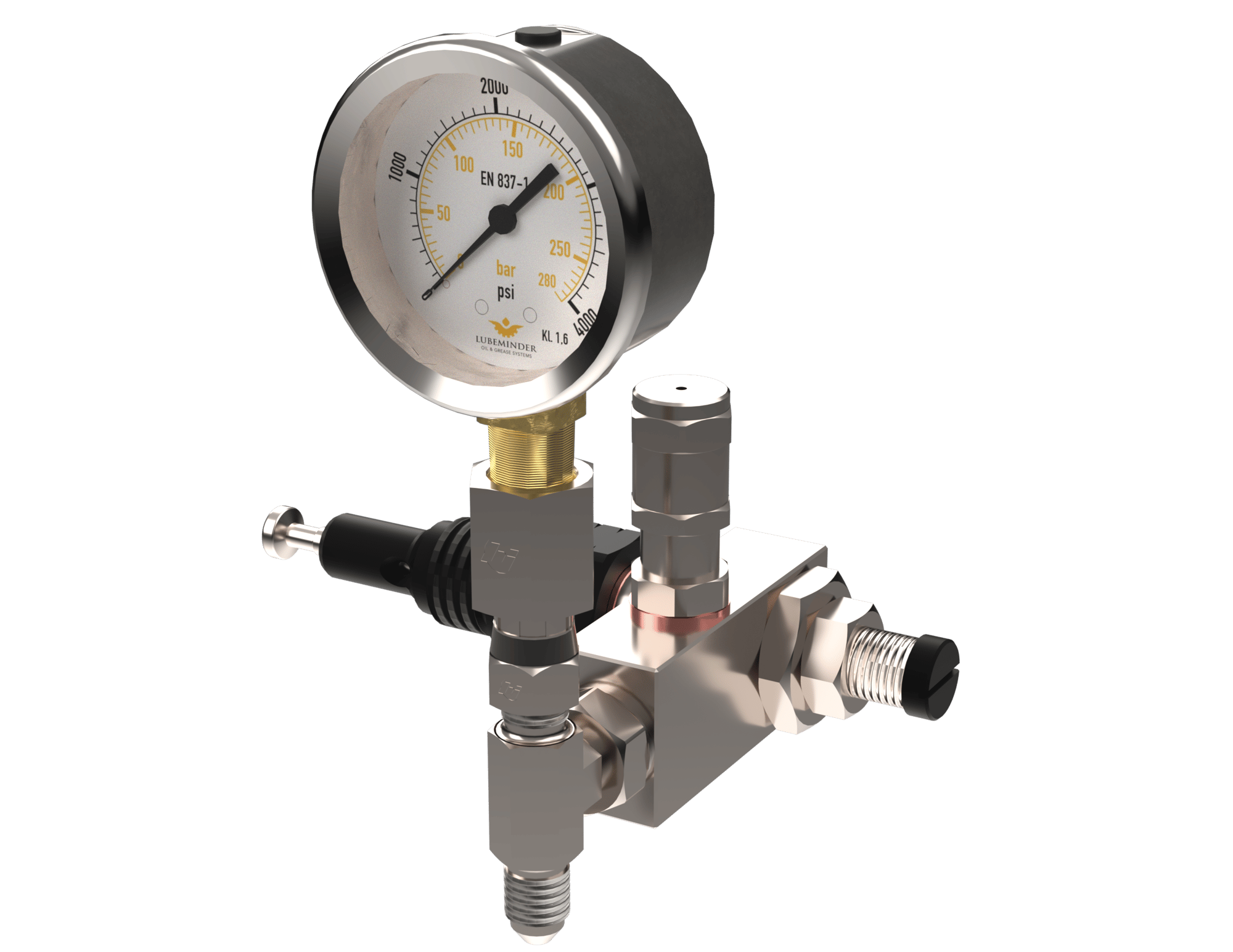

170-2270

REPLACEMENT .017 PUMP ELEMENT

170-2283

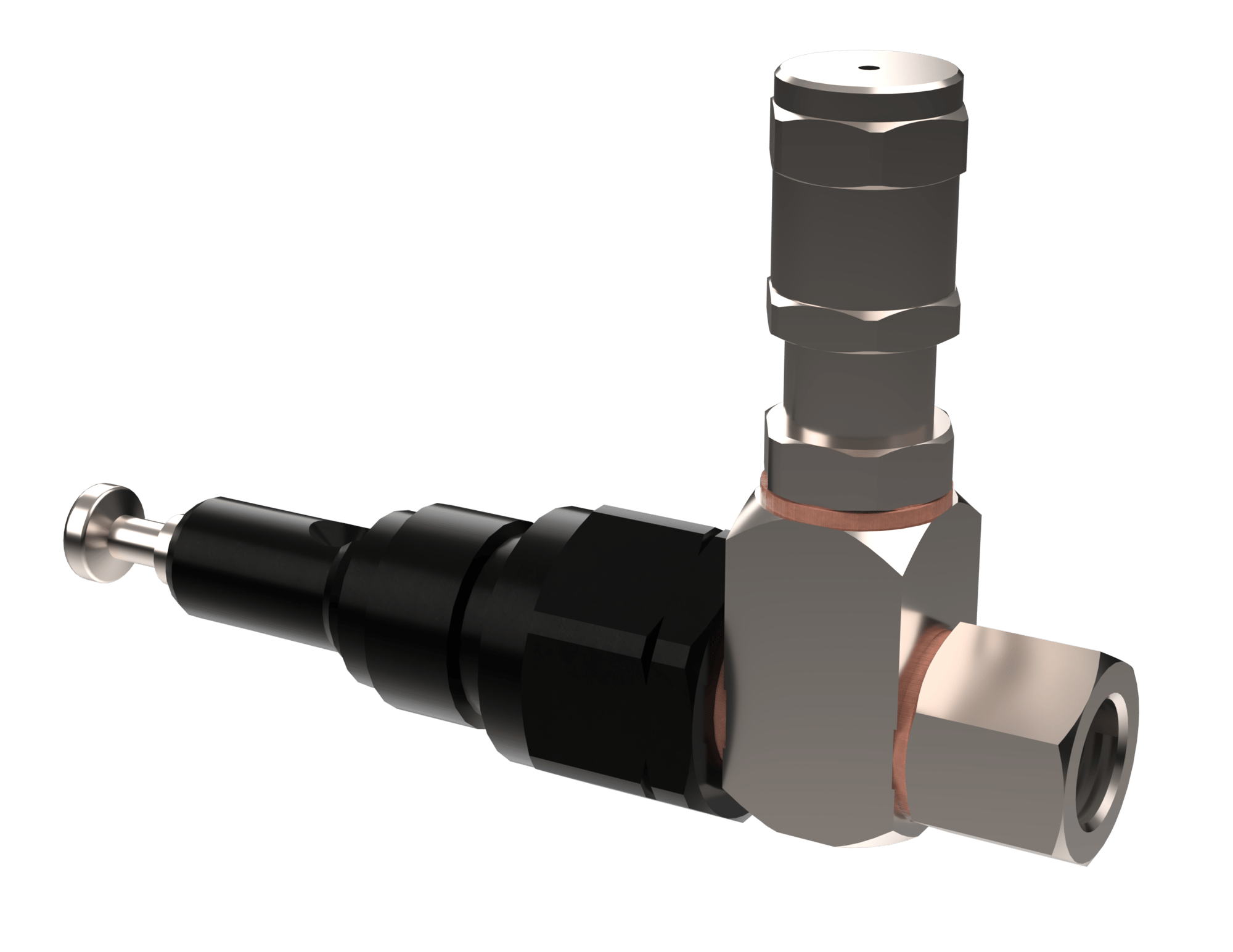

.017 CUIN LUBEMINDER® AUXILIARY PUMPING ELEMENT

170-2287

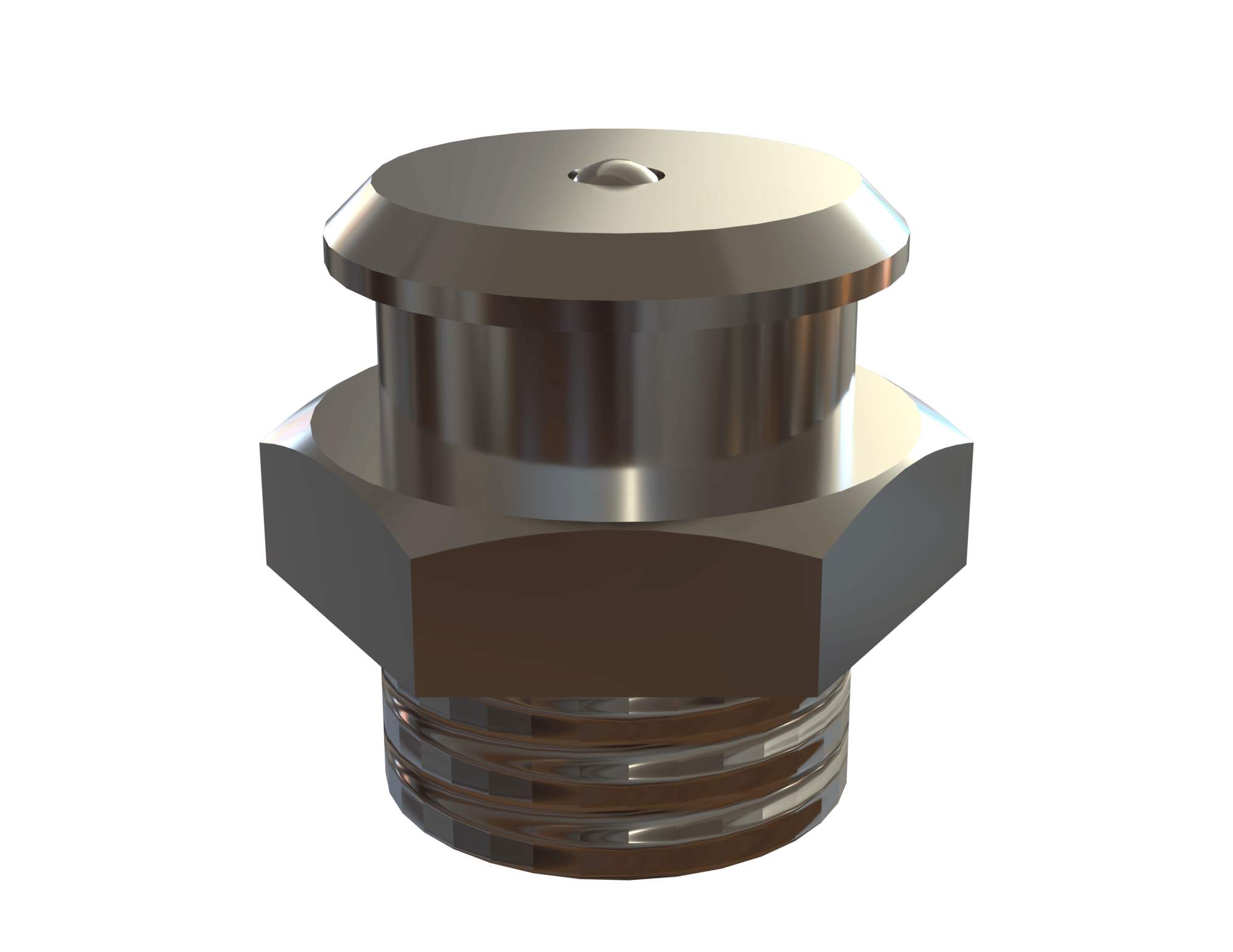

LUBEMINDER® BUTTON HEAD ADAPTOR FOR ELECTRONIC GREASE PUMP

170-2104

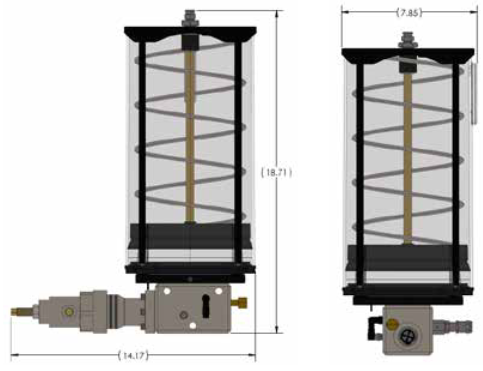

NUMBER OF OUTLETS	ONE
MAX DISCHARGE PER CYCLE	3965 in³ / 6.5 cm³
MIN DISCHARGE PER CYCLE	.06 in³ / 78 cm³
MAX DISCHARGES PER MINUTE (12 CYCLES/MIN.)	4.75 in³ / 78 cm³
SUITABLE LUBRICANTS	Grease & Custom Applications
MAXIMUM INLET PRESSURE	2000 PSI \| 140 bar
MAXIMUM OUTLET PRESSURE	4500 PSI \| 310 bar
TANK CAPACITY	17 LB / 7.7 KG - TRANSPARENT
TEMPERATURE	From -25° F TO + 225° F
PUMP INLET (STD.)	2X #4 ORB
PUMP OUTLET (STD.)	#12 SAE O-ring Port
LOW LEVEL INDICATION (OPTION)	10-30 VDC Digital output

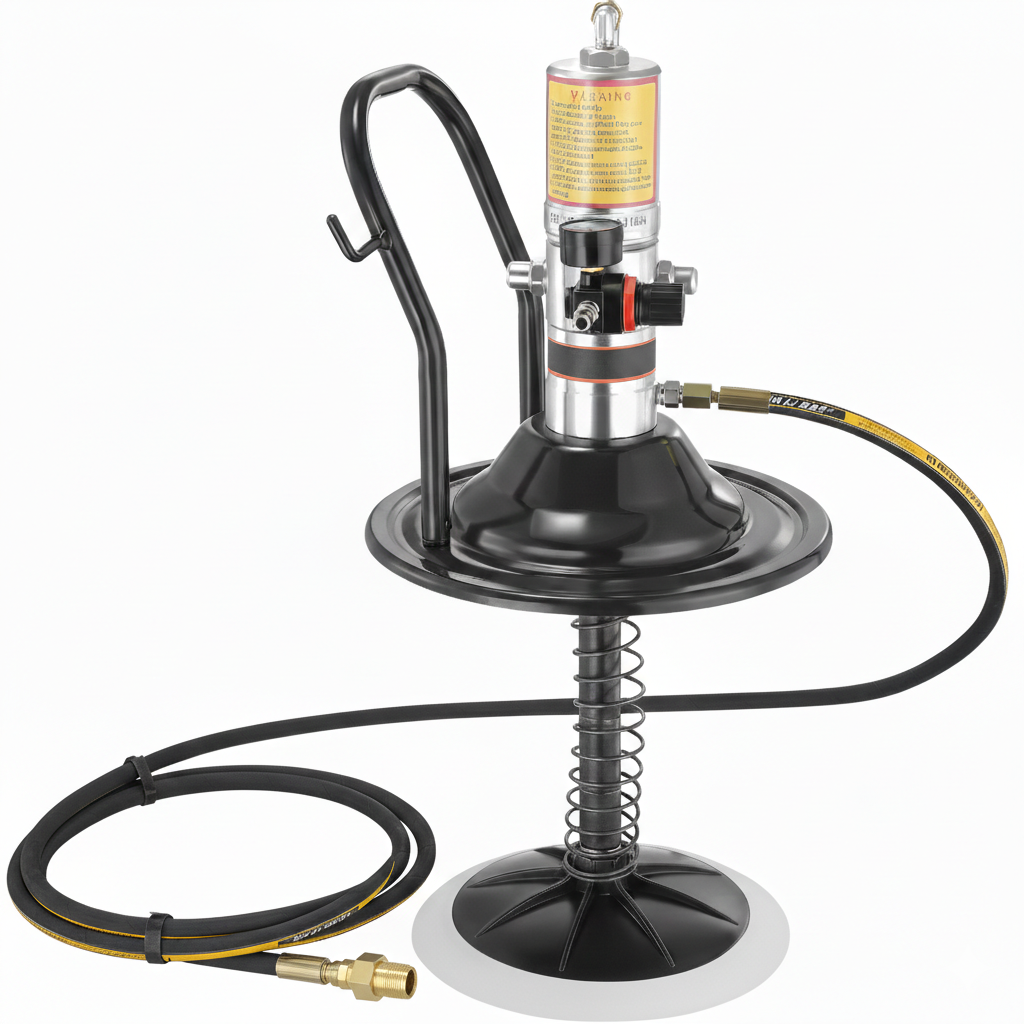

PNEUMATIC 5 GALLON PAIL GREASE PUMP

170-2255

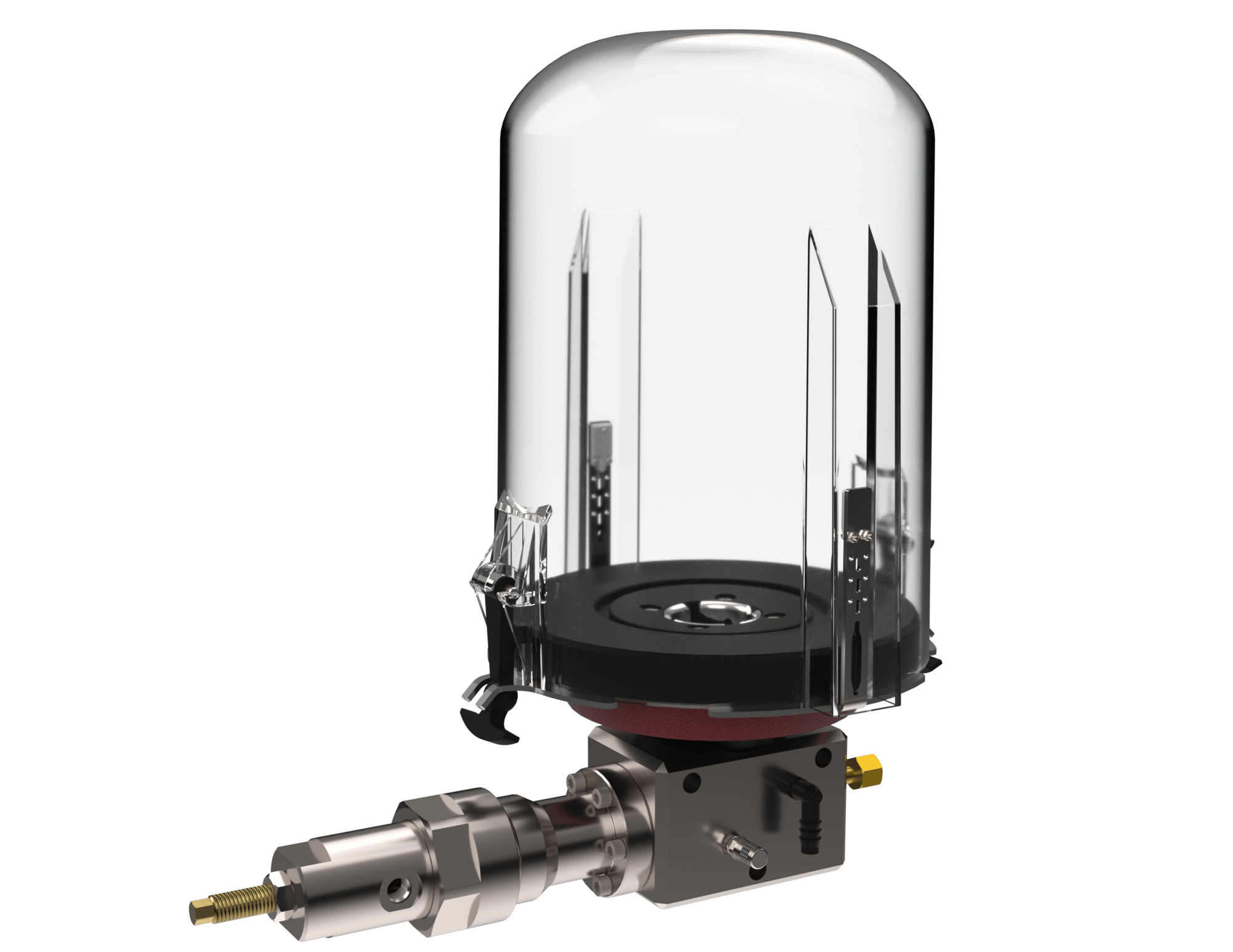

HYDRAULIC GREASE PUMP W LOW LEVEL SENSOR, HEATER, AND BELLOWS COVER

170-3838

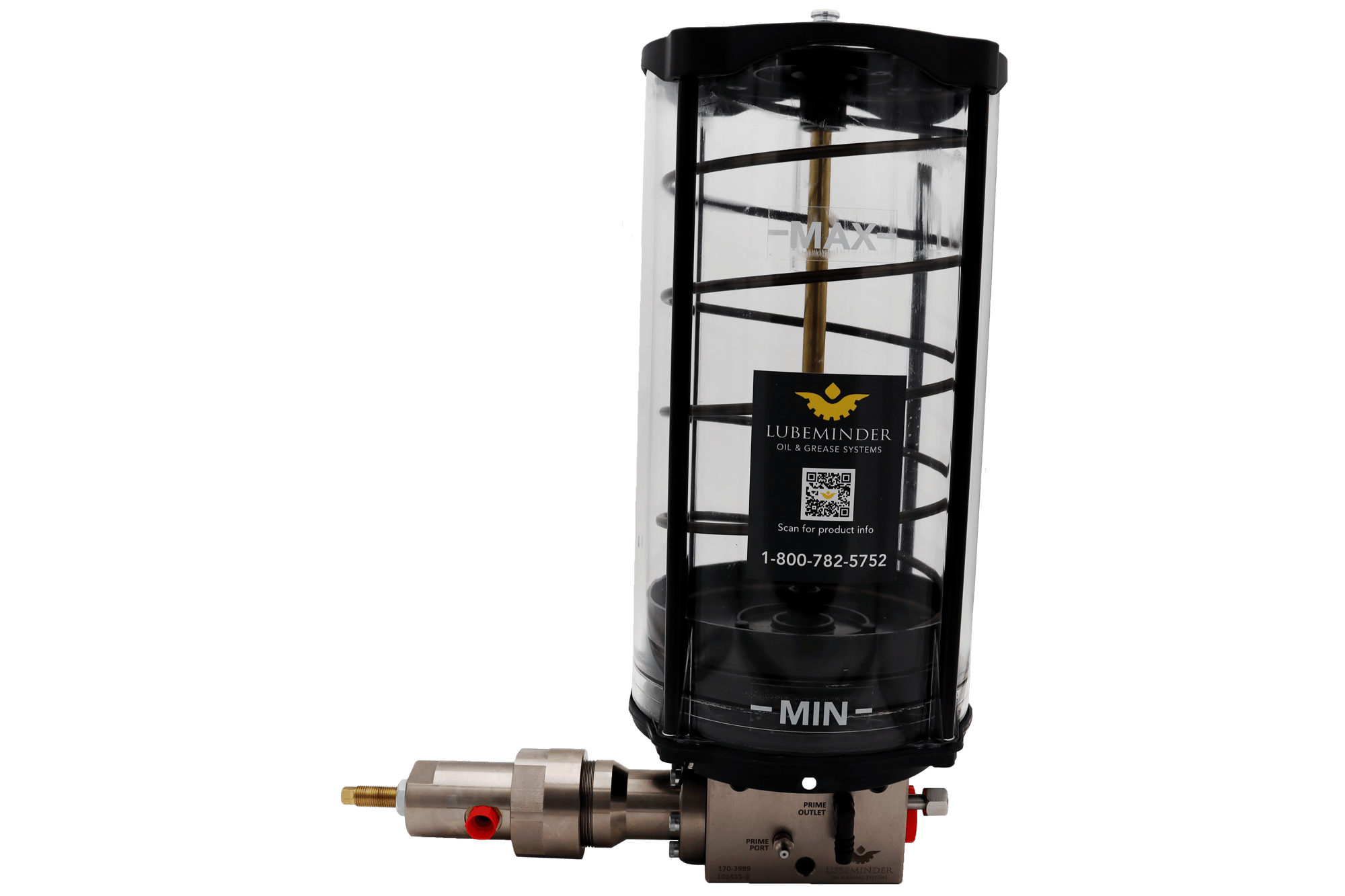

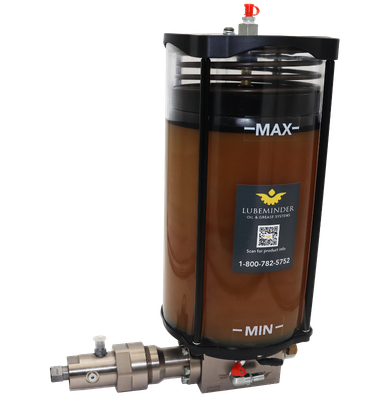

REFILLABLE HYDRAULIC GREASE PUMP

170-3917

HYDRAULIC GREASE PUMP W BELLOWS COVER

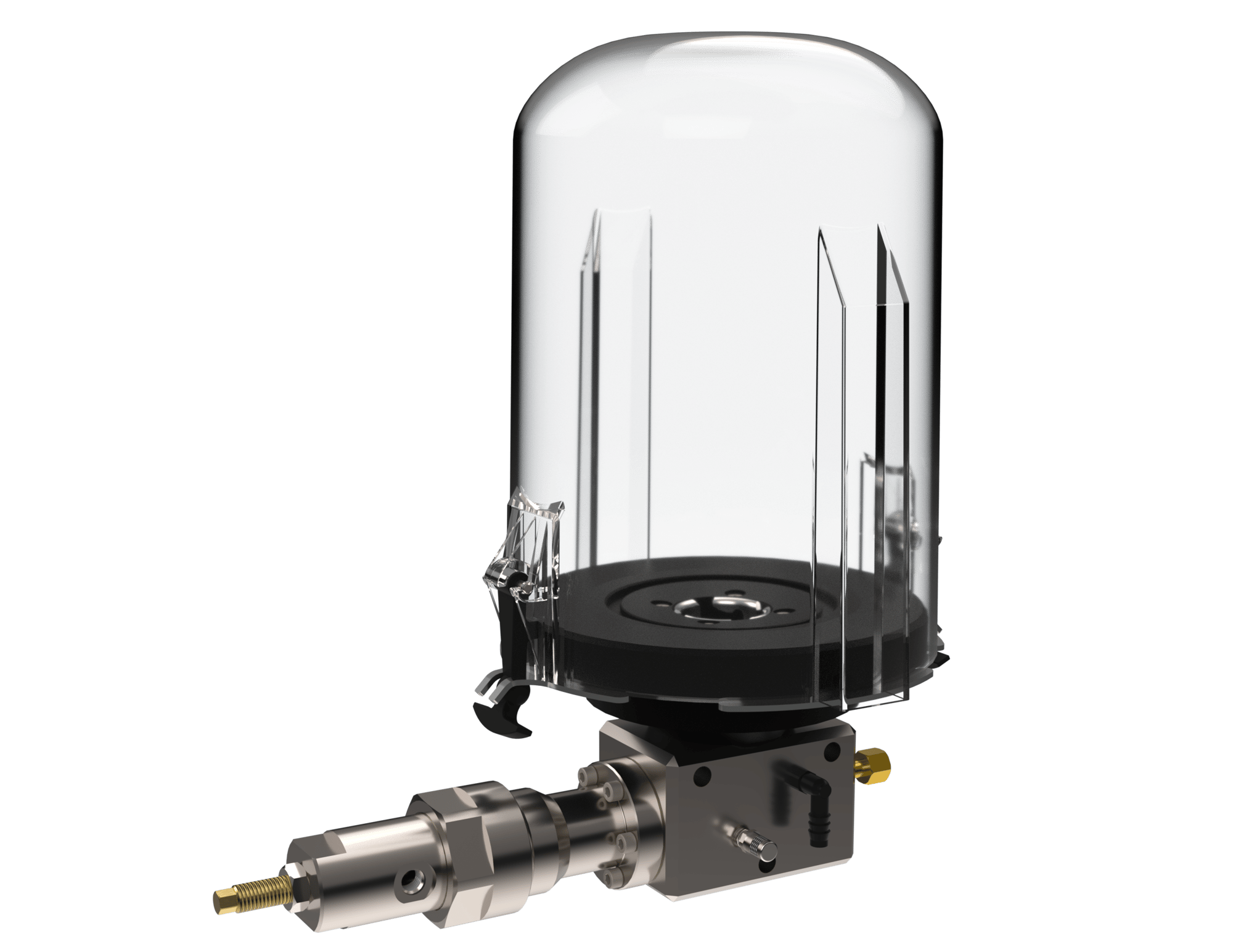

170-3980

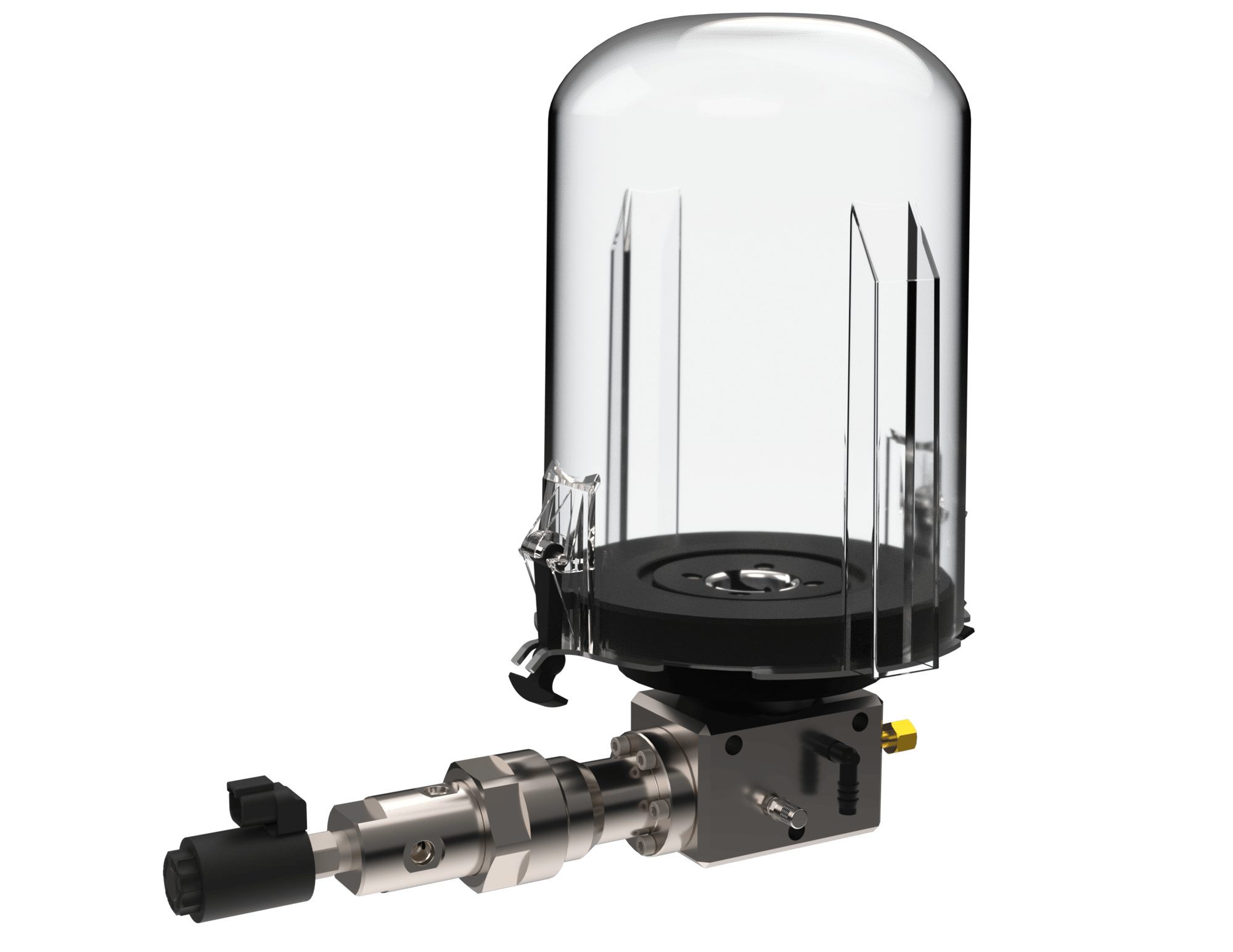

HYDRAULIC GREASE PUMP W HYDRAULIC CONTROL VALVE AND BELLOWS COVER

170-3979

HYDRAULIC GREASE PUMP W LOW LEVEL SENSORS AND BELLOW COVER

170-3990

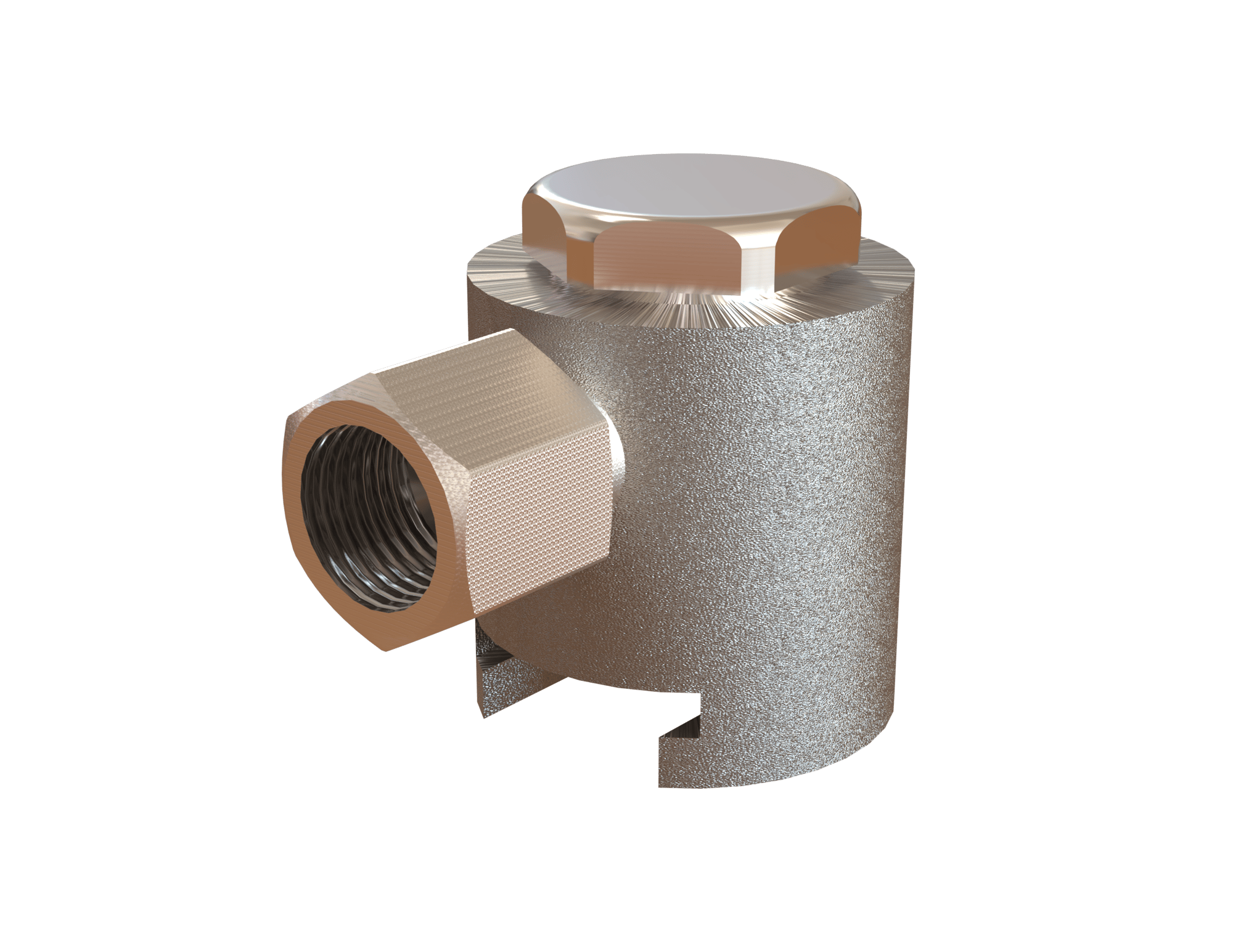

BUTTON HEAD PLUNGER GREASE FITTING, 1/4 NPT, STEEL, CLEAR ZINC, DRIVE: 5/8 HEX

170-2102

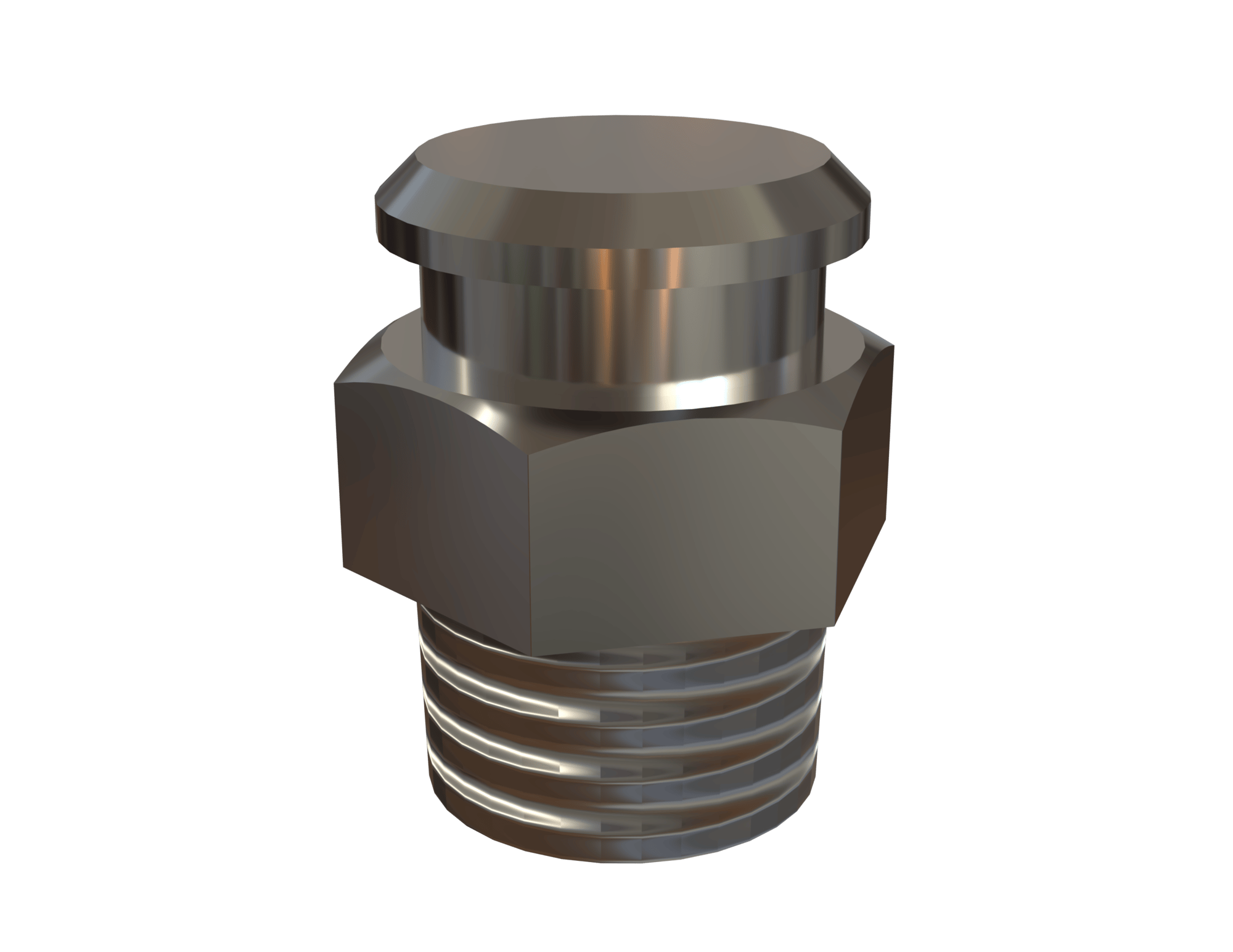

LUBEMINDER® BUTTON HEAD ADAPTOR FOR ELECTRONIC GREASE PUMP

170-2103

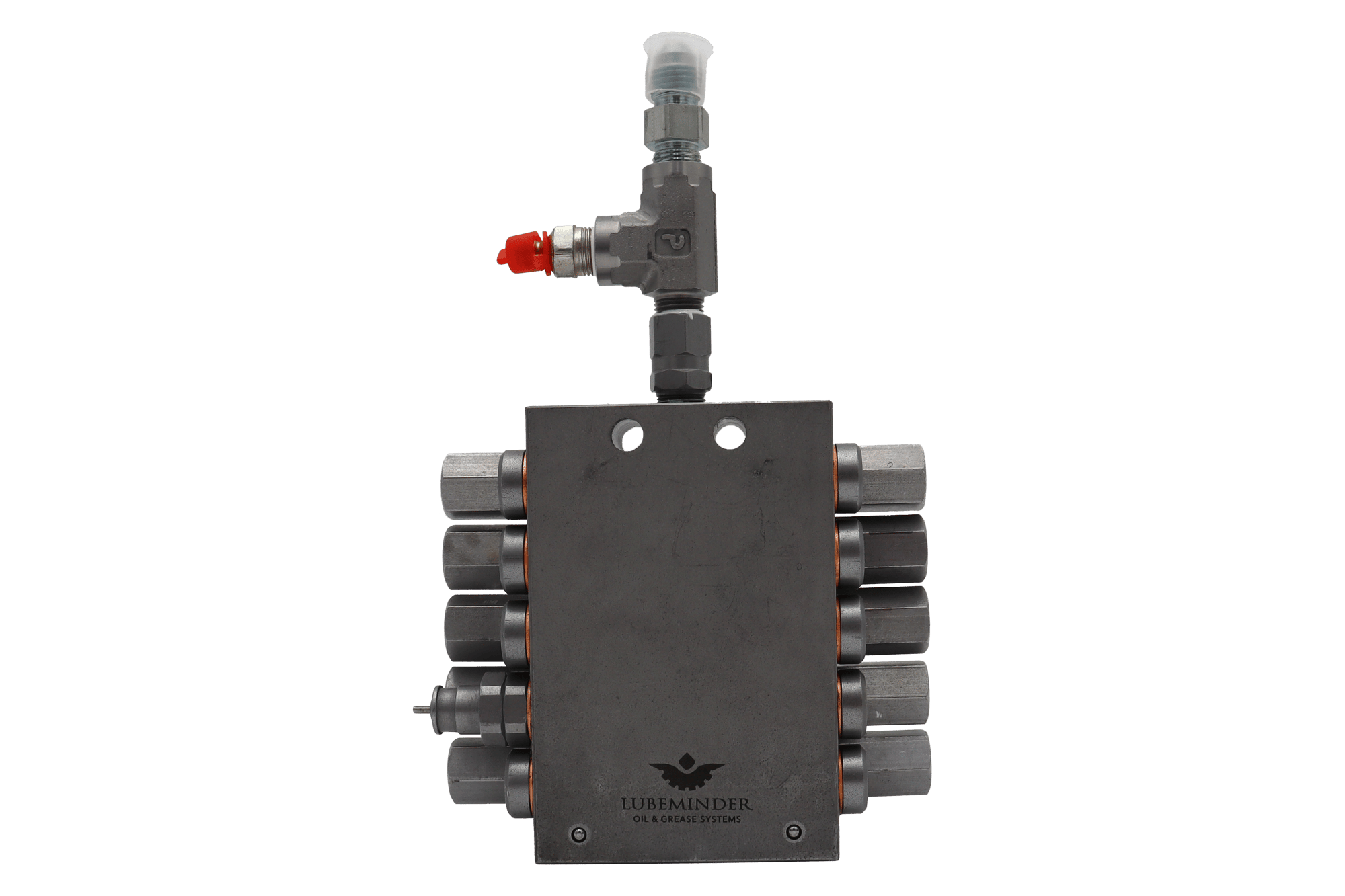

PROGRESSIVE BLOCK: BLOCKS

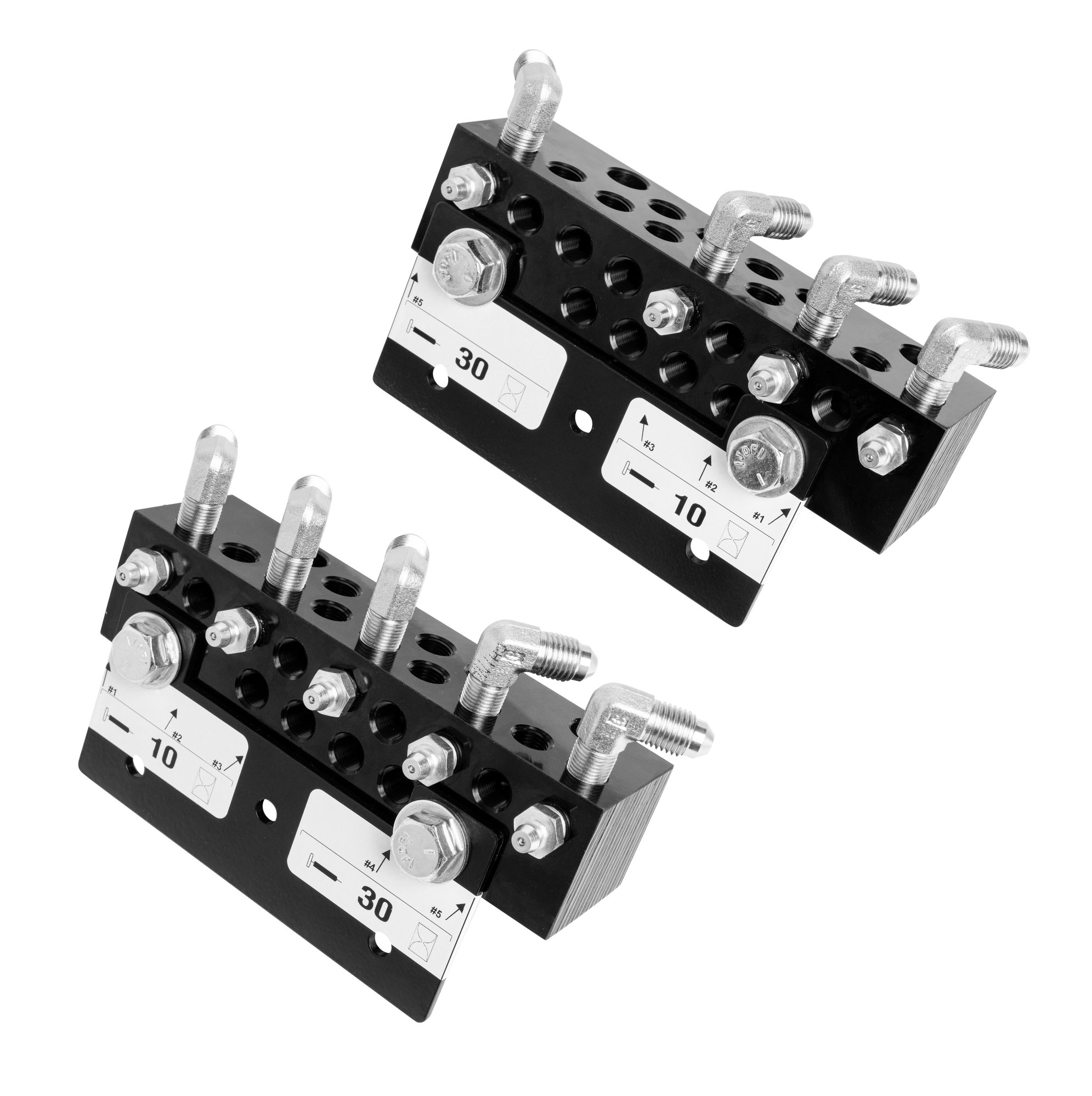

PROGRESSIVE BLOCKS

APPLY GREASE TO MULTIPLE GREASE POINTS

Progressive blocks are available with or without a cycle indicator pin, which provides visual indication of proper system function. Our zinc/nickel plating gives the Progressive Series Valves a corrosion resistance of 720 hours per ASTM B117. RoHS & ELV Compliant. ISO 9227.

Material: Steel
Max Operating Pressure: 5076 psig / 350 bar
.012 IN ³ / .2 cc outlet output per cycle
Lubricant Inlet: 1/8” NPTF (F)
Operating Temperatures: Min -22°F / -30°C Max 212°F / 70°C

	Progressive Blocks
ITEM #	Number of Outlets	Cycle Indicator Pin	Dimension (D)
170-3060	6	No	2.36 in. / 60 mm
170-3061	6	Yes	2.36 in. / 60 mm
170-3080	8	No	2.95 in. / 75 mm
170-3081	8	Yes	2.95 in. / 75 mm
170-3100	10	No	3.54 in. / 90 mm
170-3101	10	Yes	3.54 in. / 90 mm
170-3120	12	No	4.14 in. / 105 mm
170-3121	12	Yes	4.14 in. / 105 mm
170-3140	14	No	4.8 in. / 120 mm
170-3141	14	Yes	4.8 in. / 120 mm
170-3160	16	No	5.4 in. / 135 mm
170-3161	16	Yes	5.4 in. / 135 mm
170-3180	18	No	5.9 in. / 150 mm
170-3181	18	Yes	5.9 in. / 150 mm
170-3200	20	No	6.5 in. / 165 mm
170-3201	20	Yes	6.5 in. / 165 mm

1/8” NPT O-Ring Push to Connect 5/32” Tube PN: 170-0384

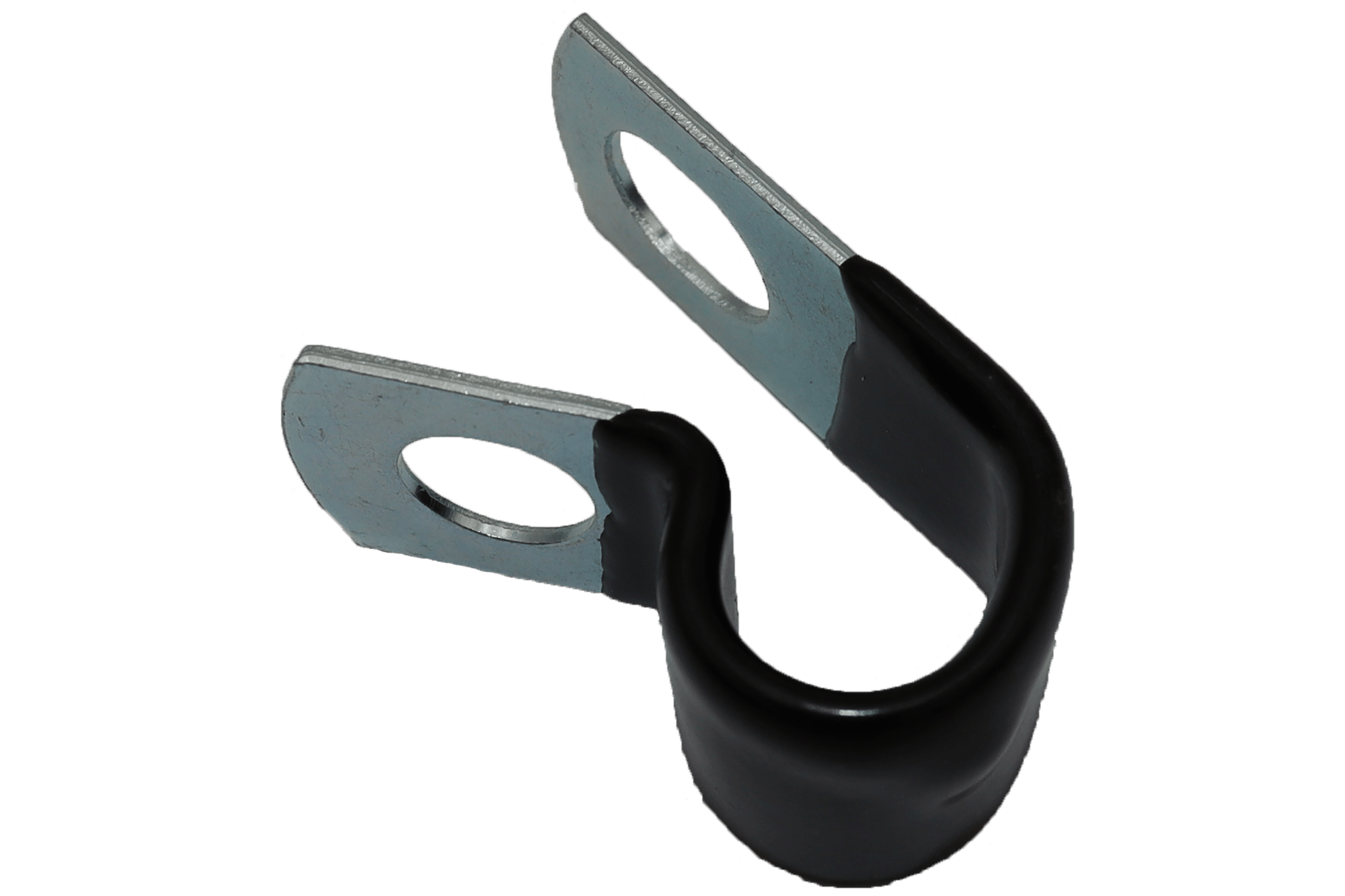

170-1608 Vinyl-Coated Galvanized Steel Clamp Half Inch Quarter Inch Mtg

Vinyl-Coated Galvanized Steel Clamp 1/2” 1/4” Mtg PN: 170-1608

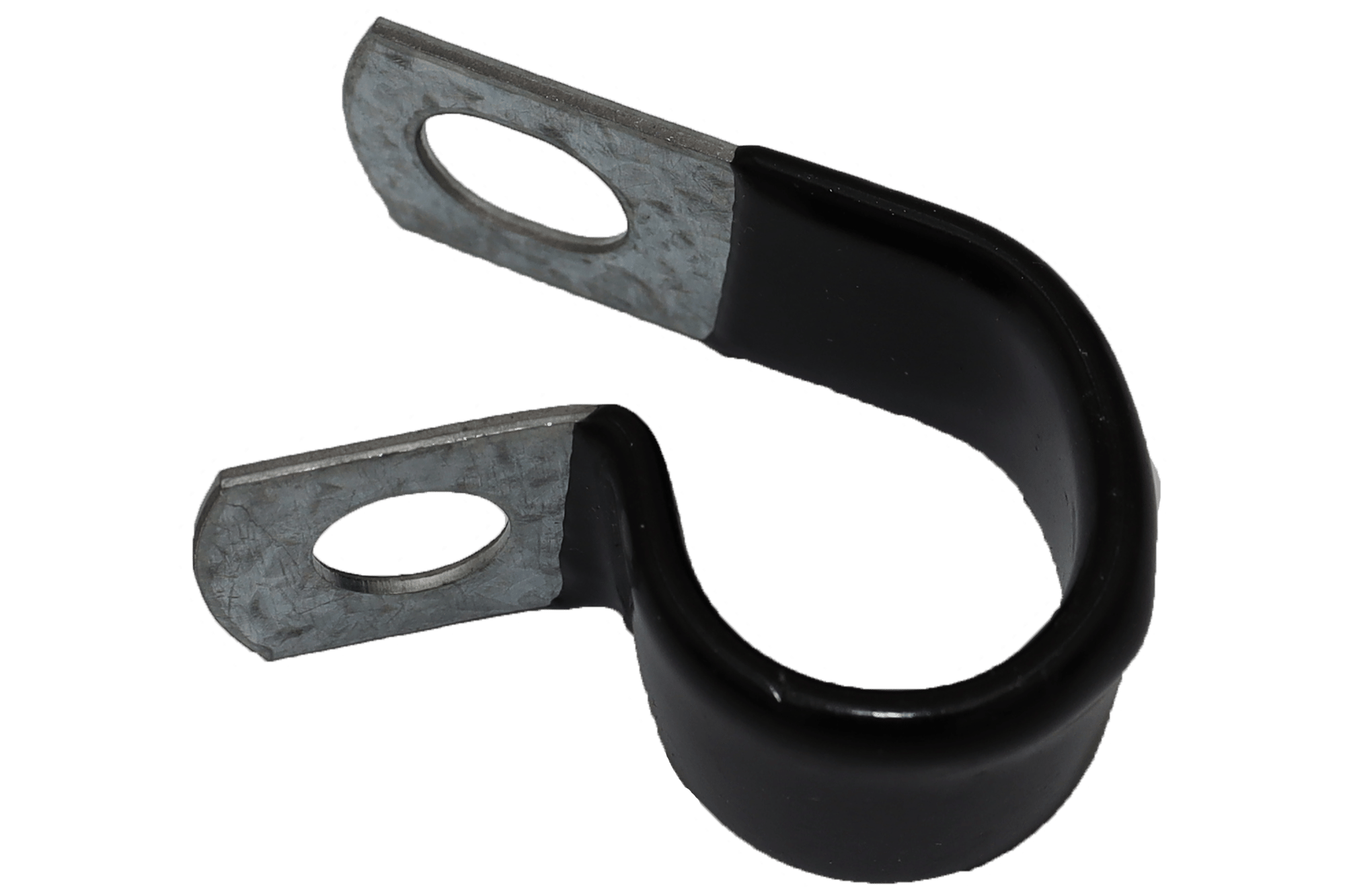

170-1612 Vinyl-Coated Galvanized Steel Clamp Three Quarter Inch Quarter Inch Mtg

Vinyl-Coated Galvanized Steel Clamp 3/4” 1/4” Mtg PN: 170-1612

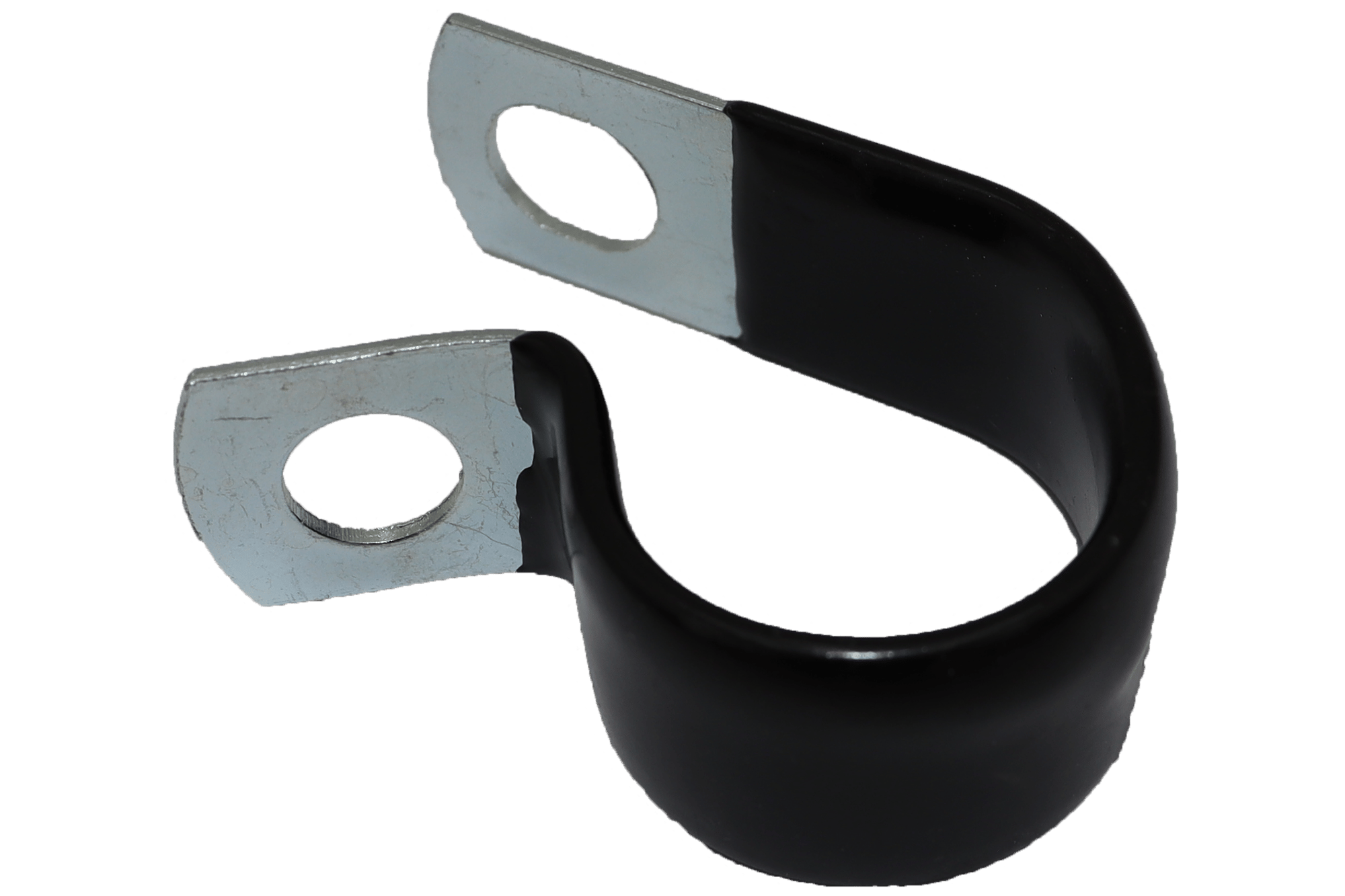

170-1616 Vinyl-Coated Galvanized Steel Clamp One Inch Quarter Inch Mtg

Vinyl-Coated Galvanized Steel Clamp 1” 1/4” Mtg PN: 170-1616

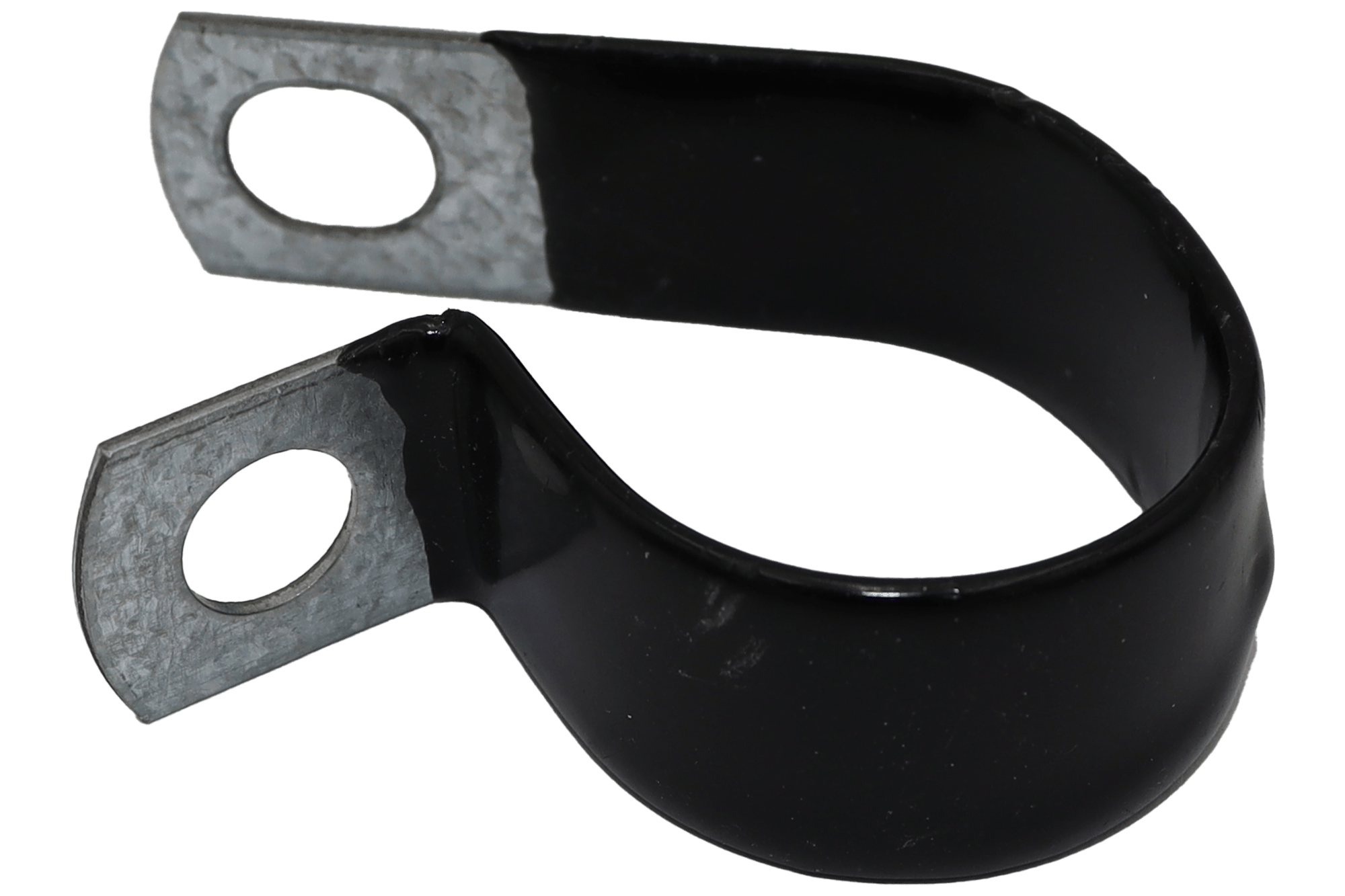

170-1620 Vinyl-Coated Galvanized Steel Clamp One and a Quarter Inch Quarter Inch Mtg

Vinyl-Coated Galvanized Steel Clamp 1 1/2 ” 1/4” Mtg PN: 170-1620

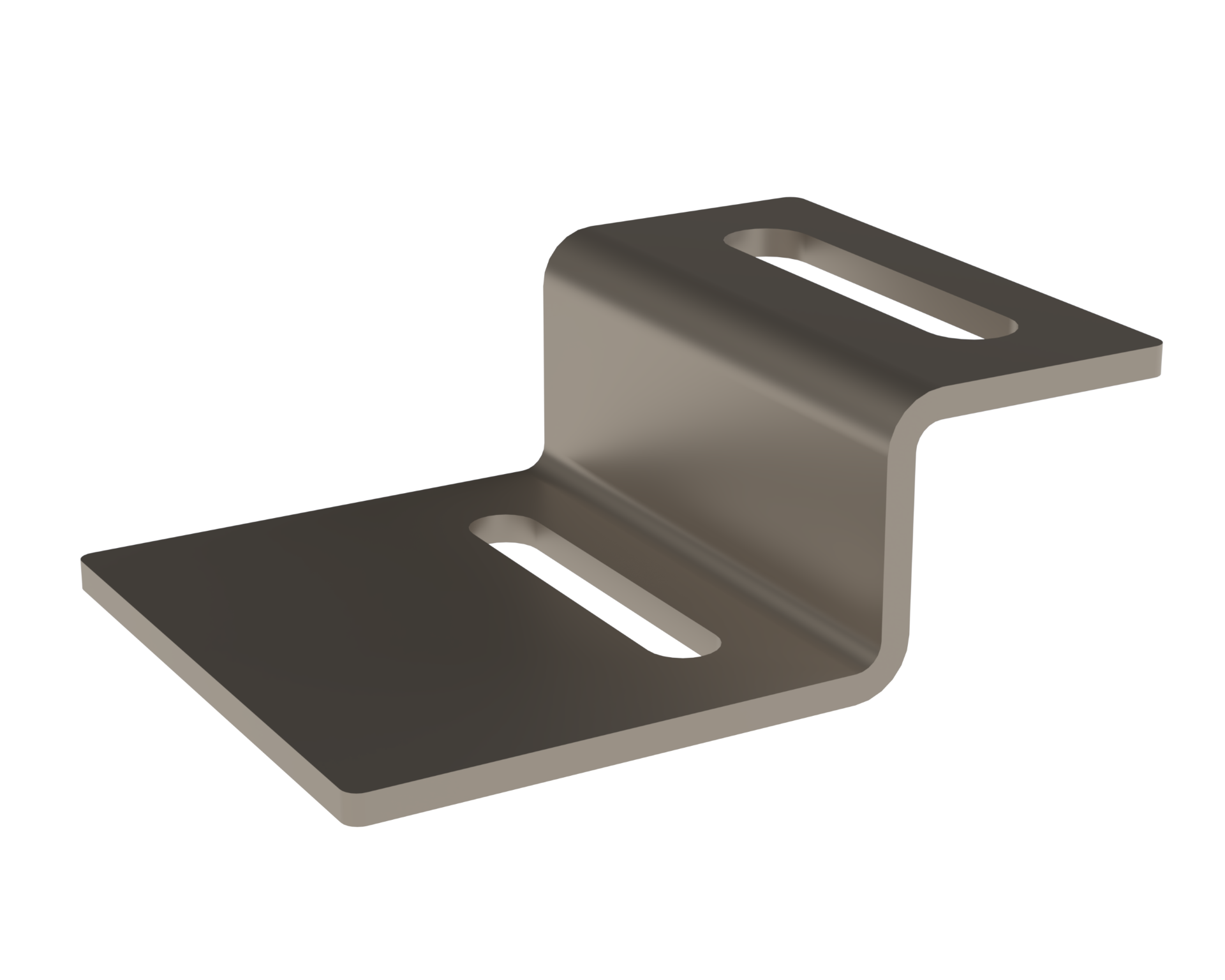

Mounting Bracket Progressive Blocks “Z” PN: 170-2009

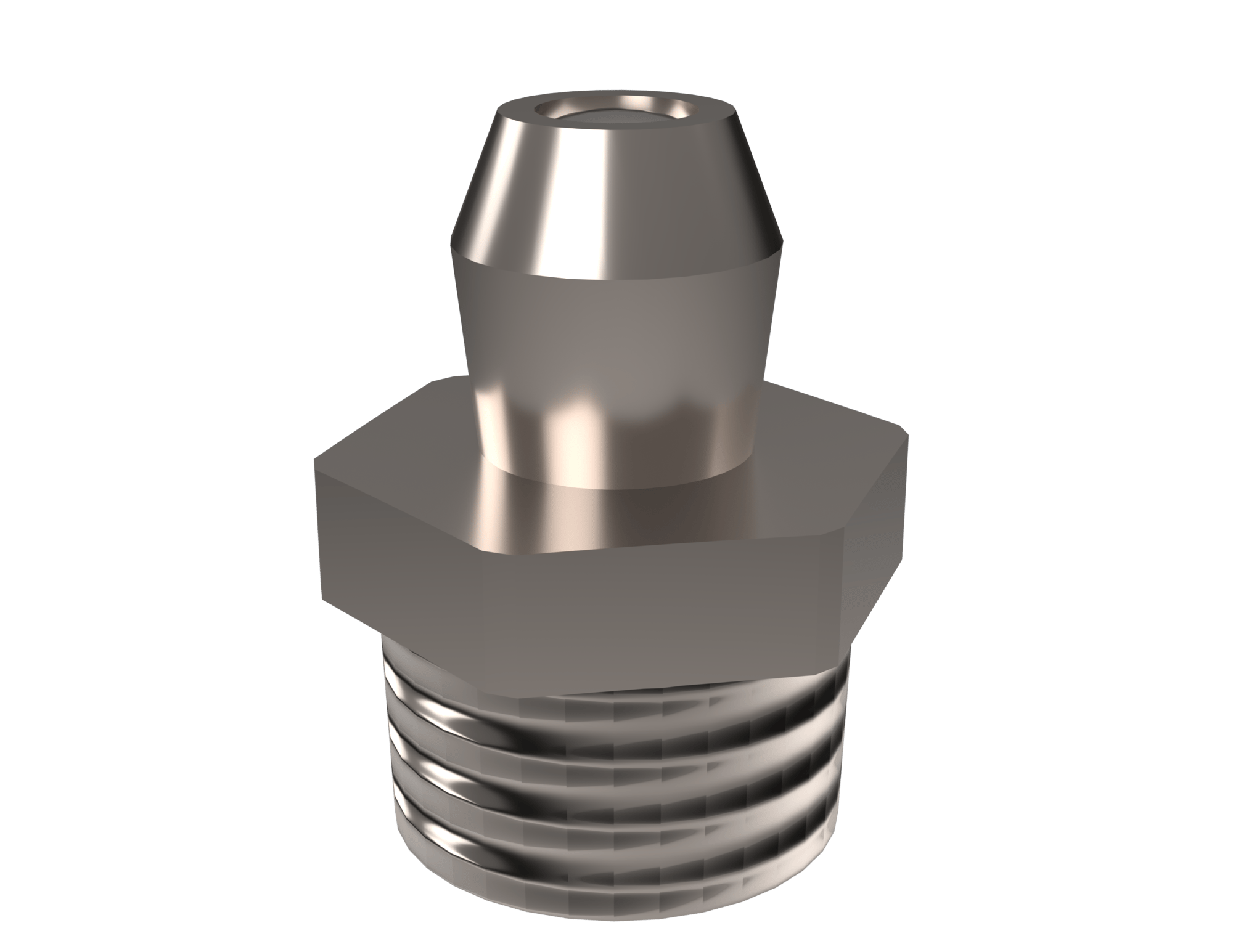

1/8” NPT High Pressure Grease Zerk PN: 170-2060

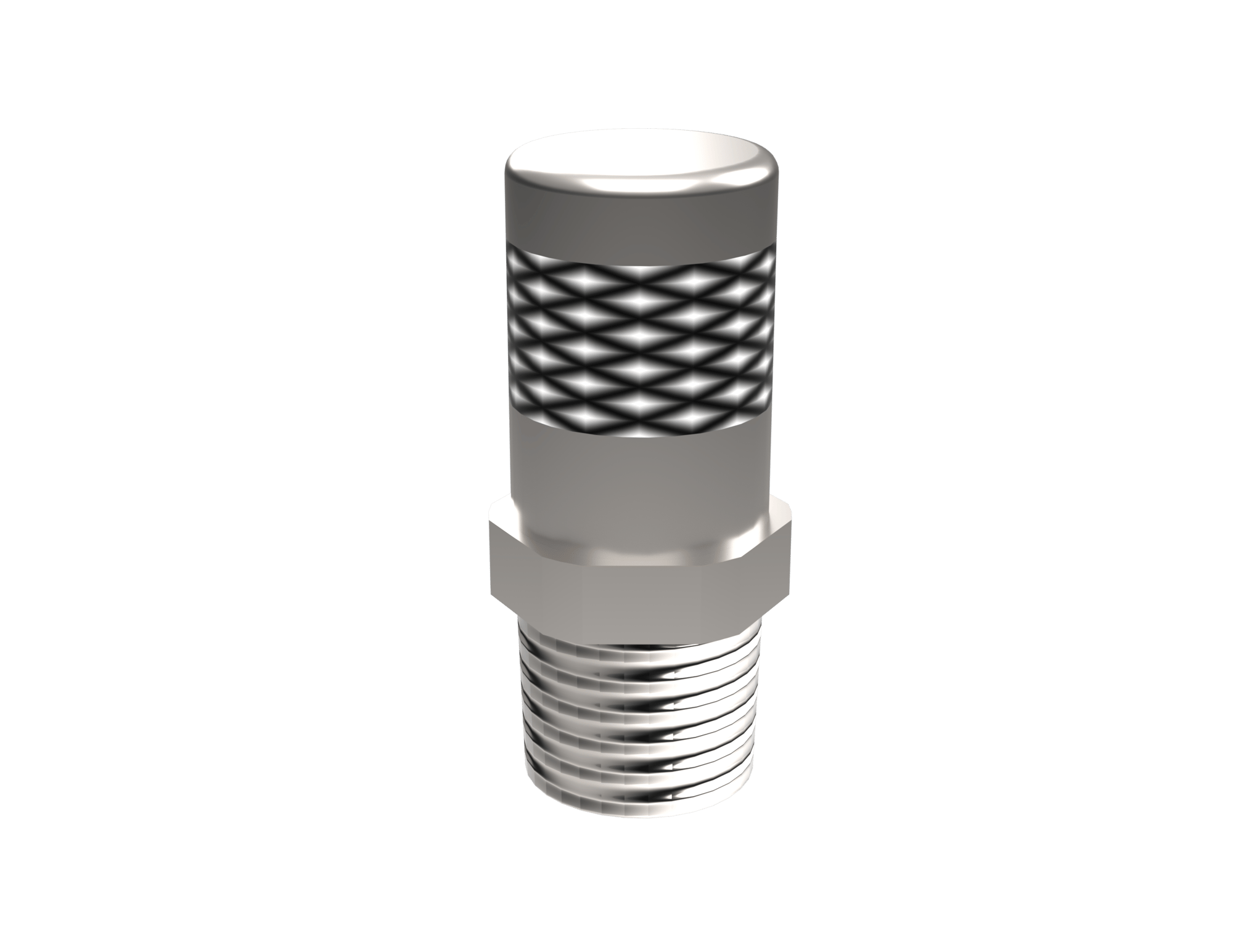

1/8” NPT 8000 PSI Zerk with Cap & Gasket PN: 170-2064

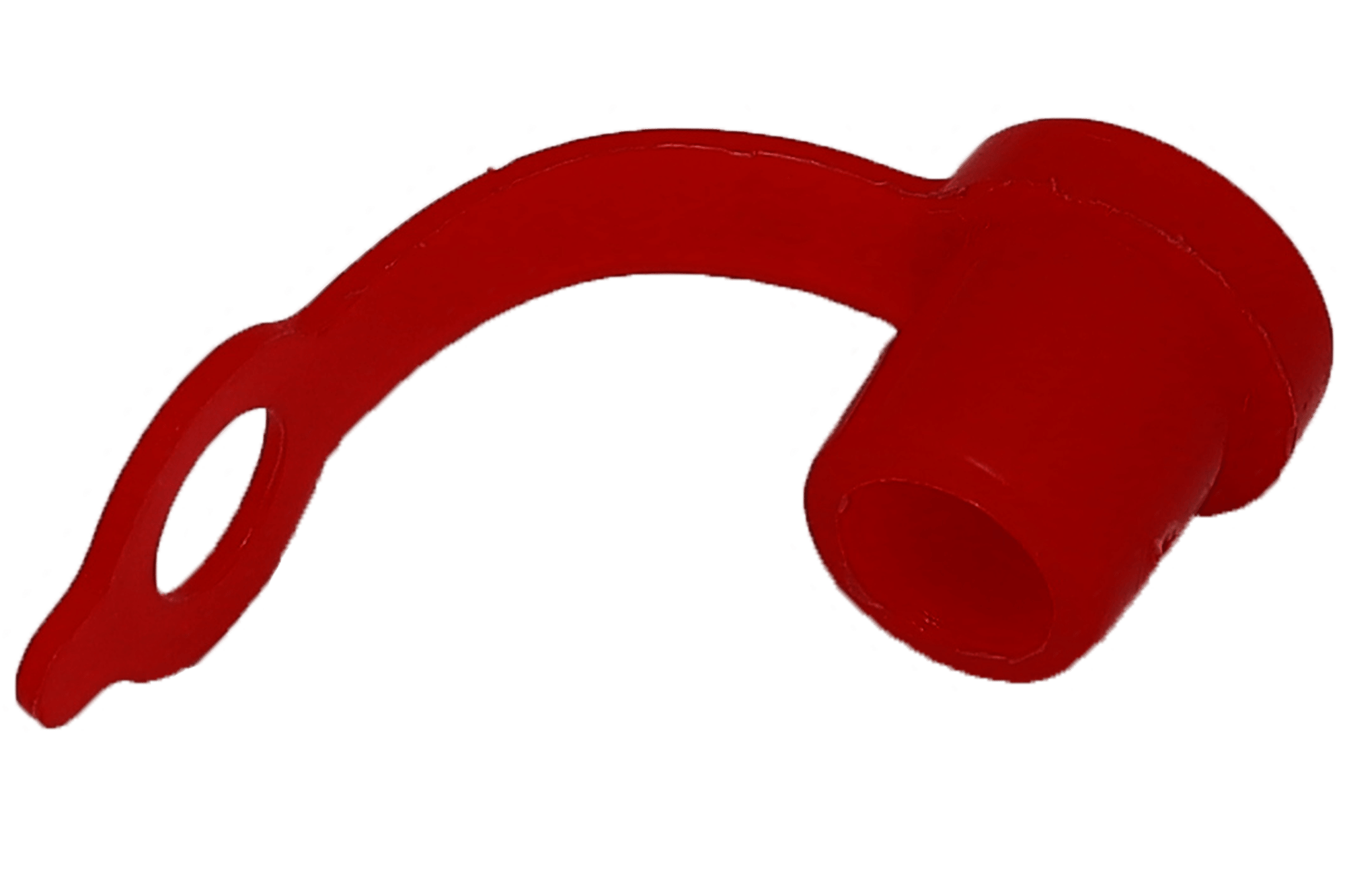

Grease Zerk Cap, Red Polymer PN: 170-2066

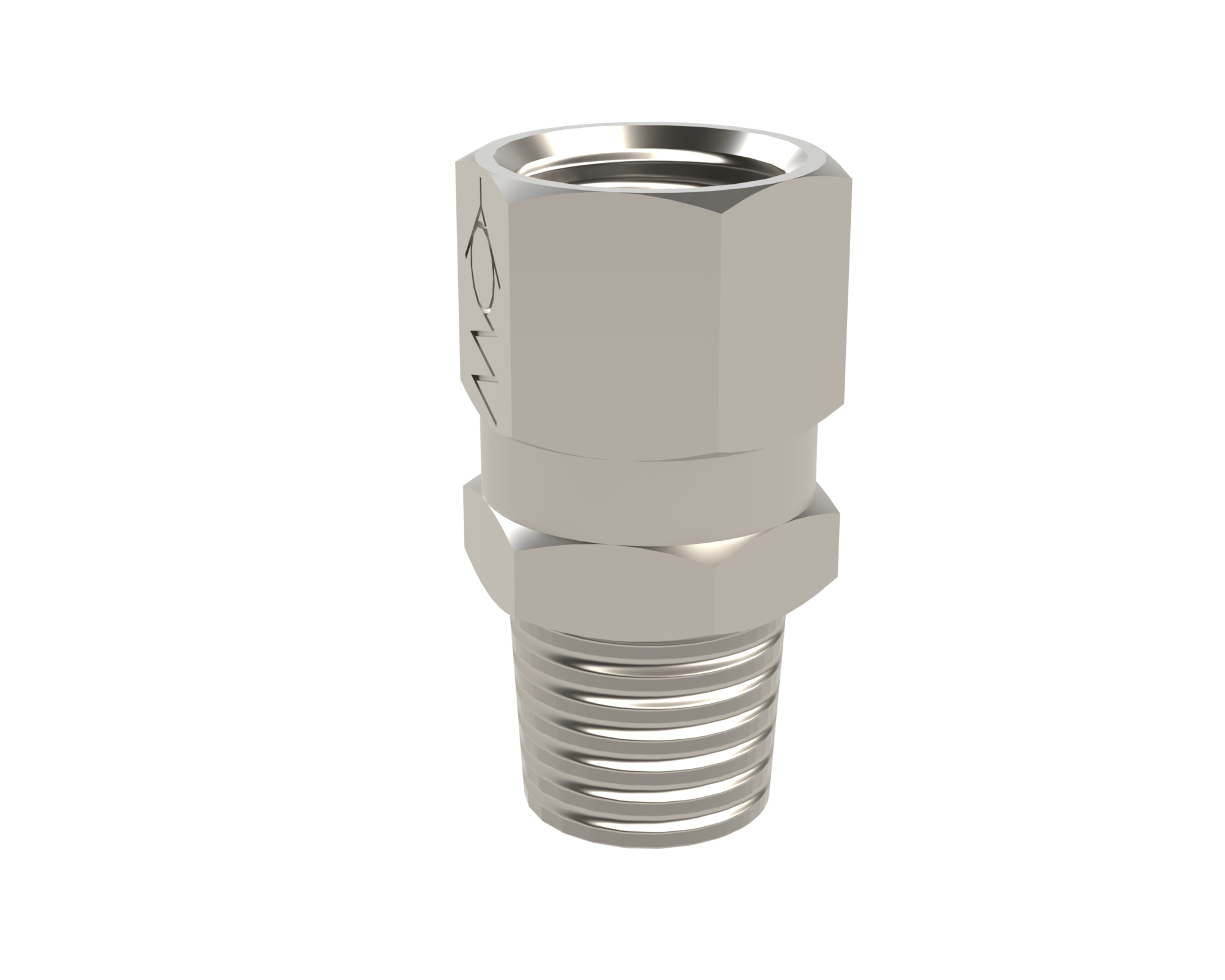

1/8” NPT Progres- sive Block Check Inlet Valve PN: 170-2069

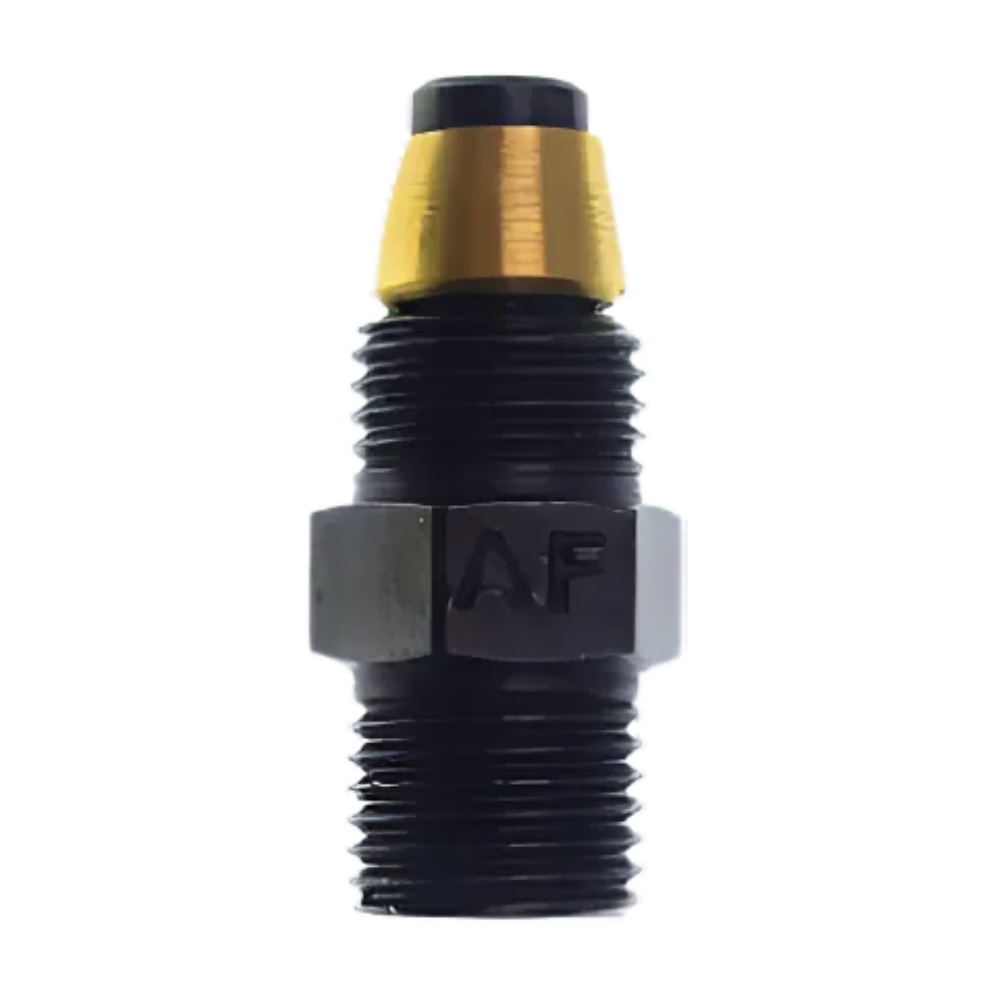

170-2071 Compression Progressive Outlet Valve

6mm Compres- sion Outlet Check Valve PN: 170-2071

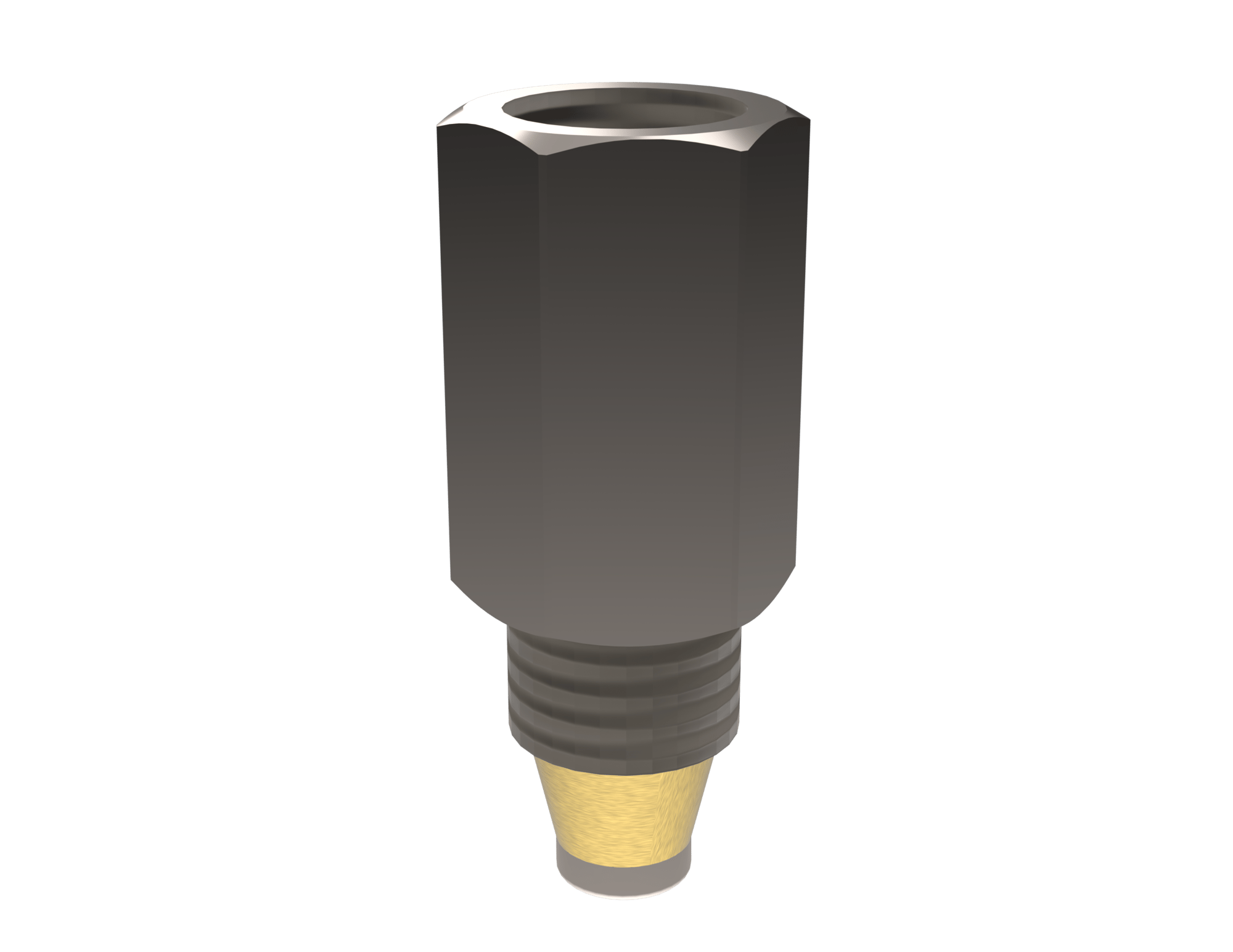

1/8” NPT Female Outlet Check Valve PN: 170-2072

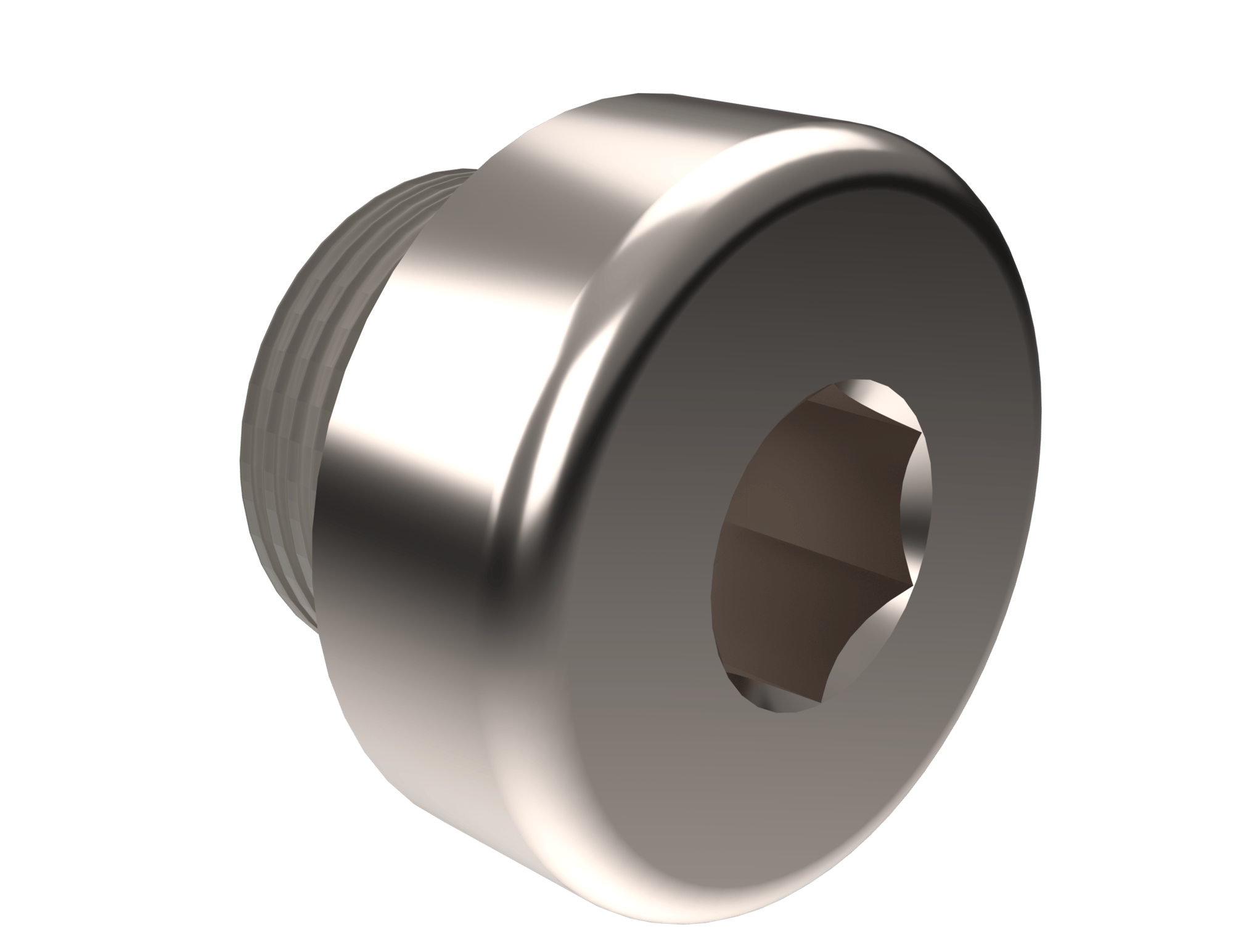

Lubrication For- warding Fitting PN: 170-2073

#4 JIC 1/4-28 Taper PN: 170-2075

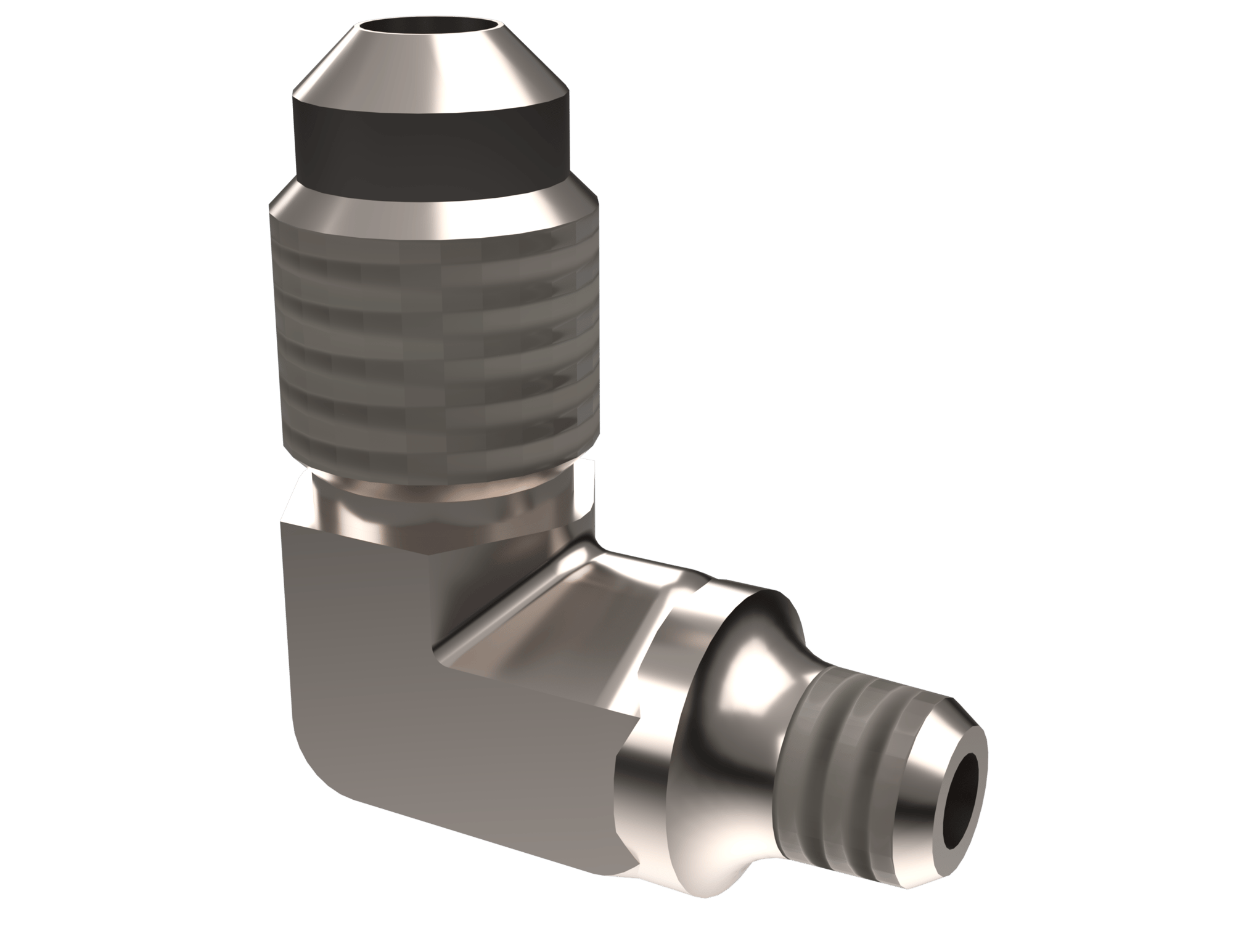

#4 JIC to 90° 1/4- 28 Taper PN: 170-2076

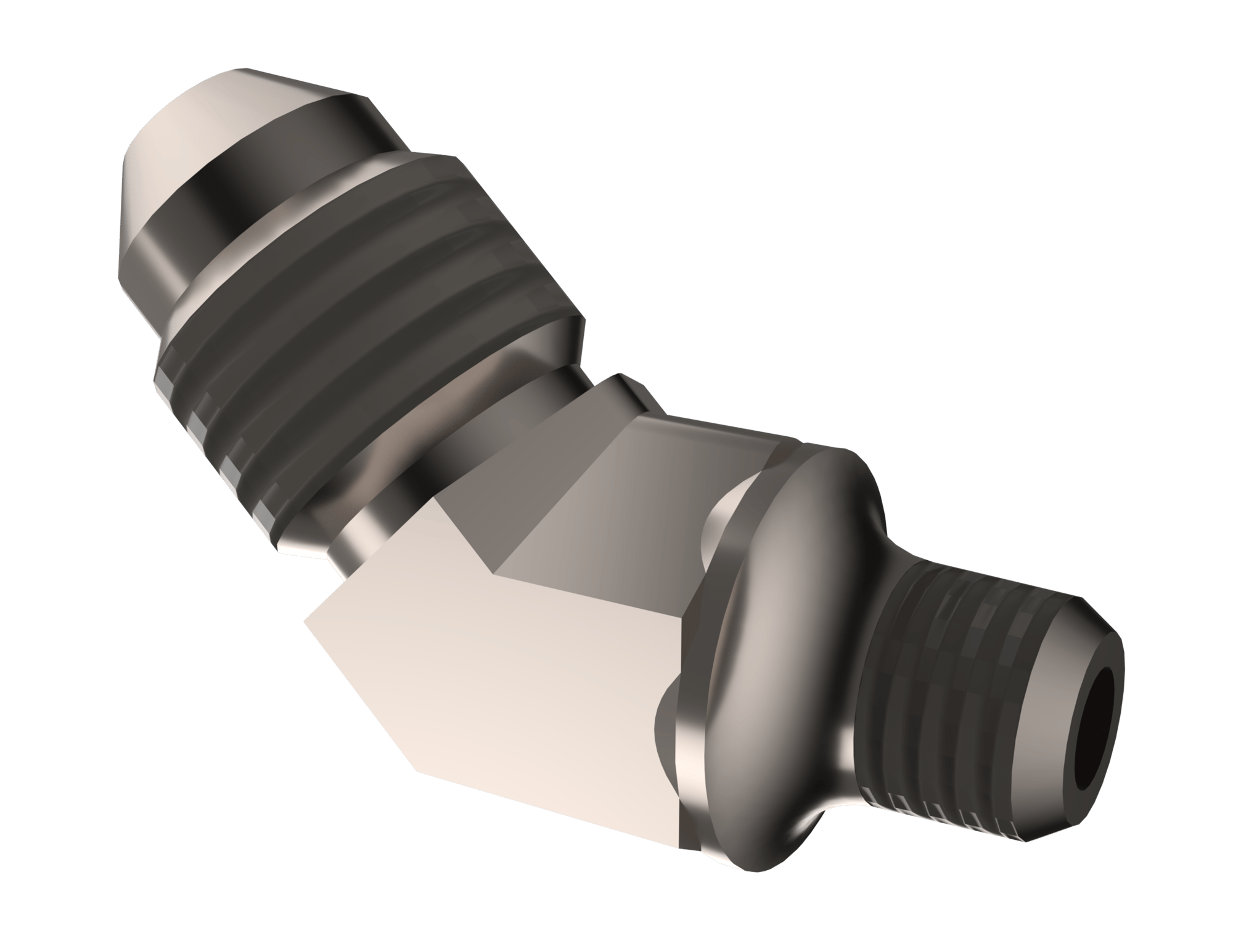

#4 JIC to 45° 1/4- 28 Taper PN: 170-2077

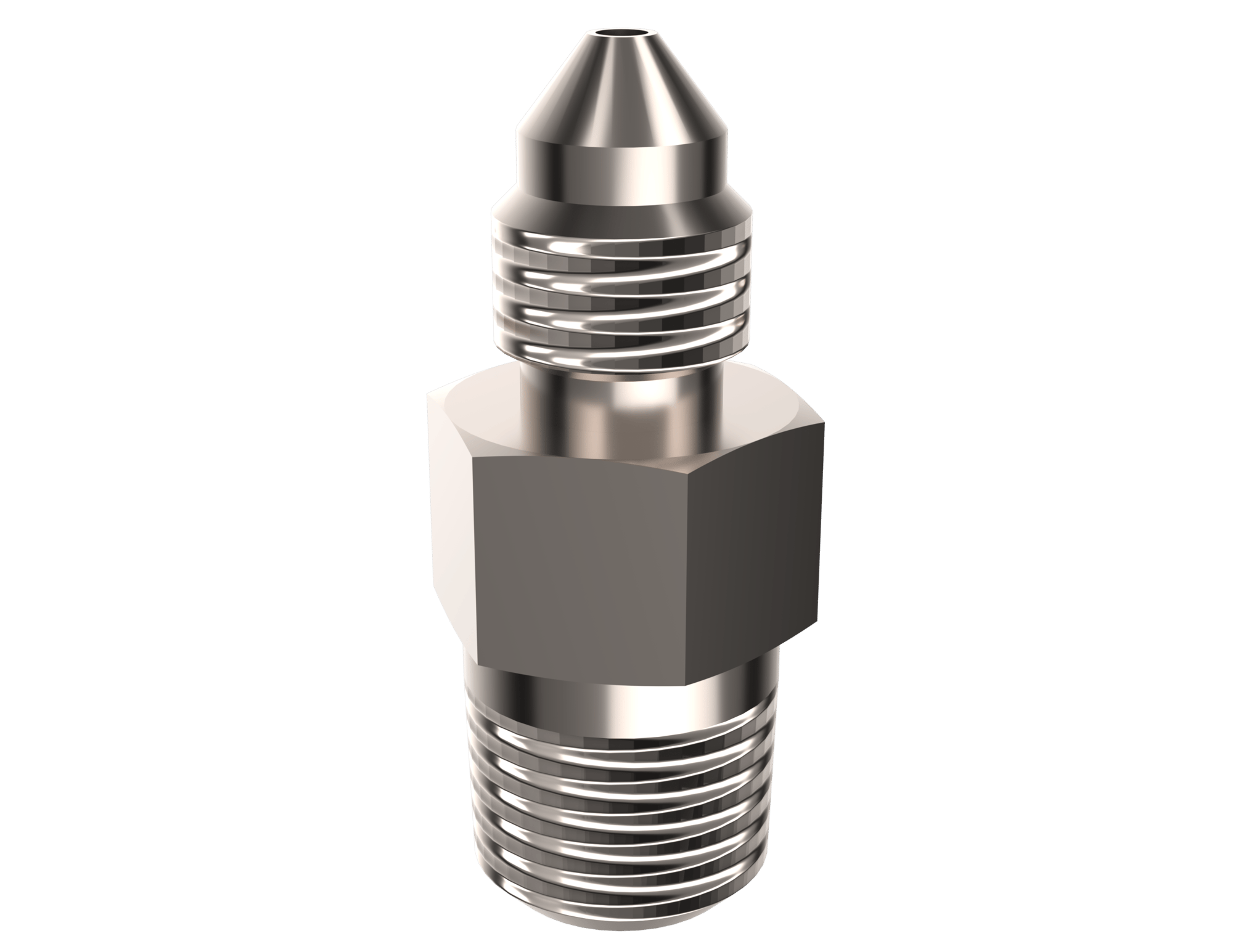

#2 JIC Male Straight 1/8” NPT PN: 170-2272

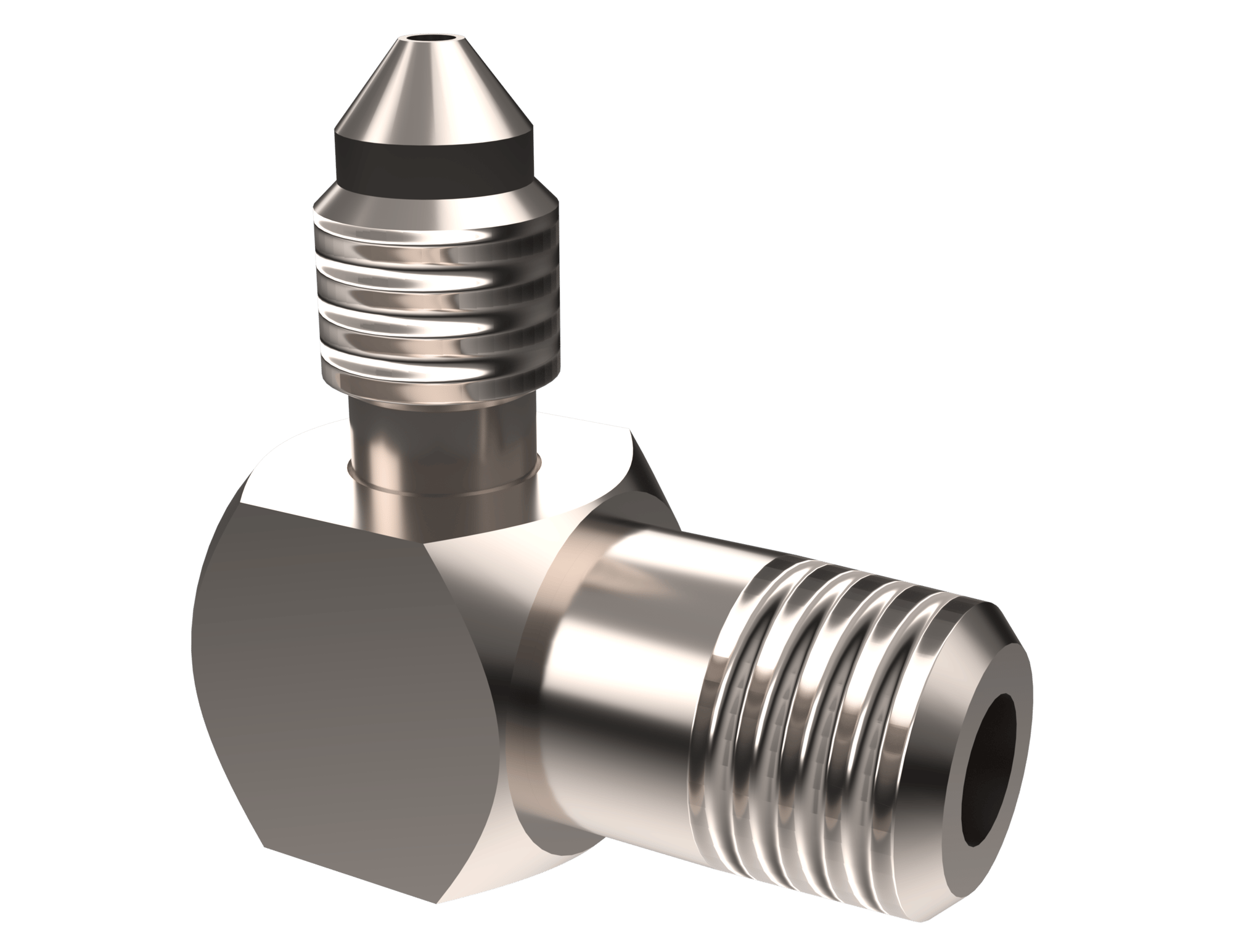

#2 JIC Male 90° Elbow 1/8” NPT PN: 170-2273

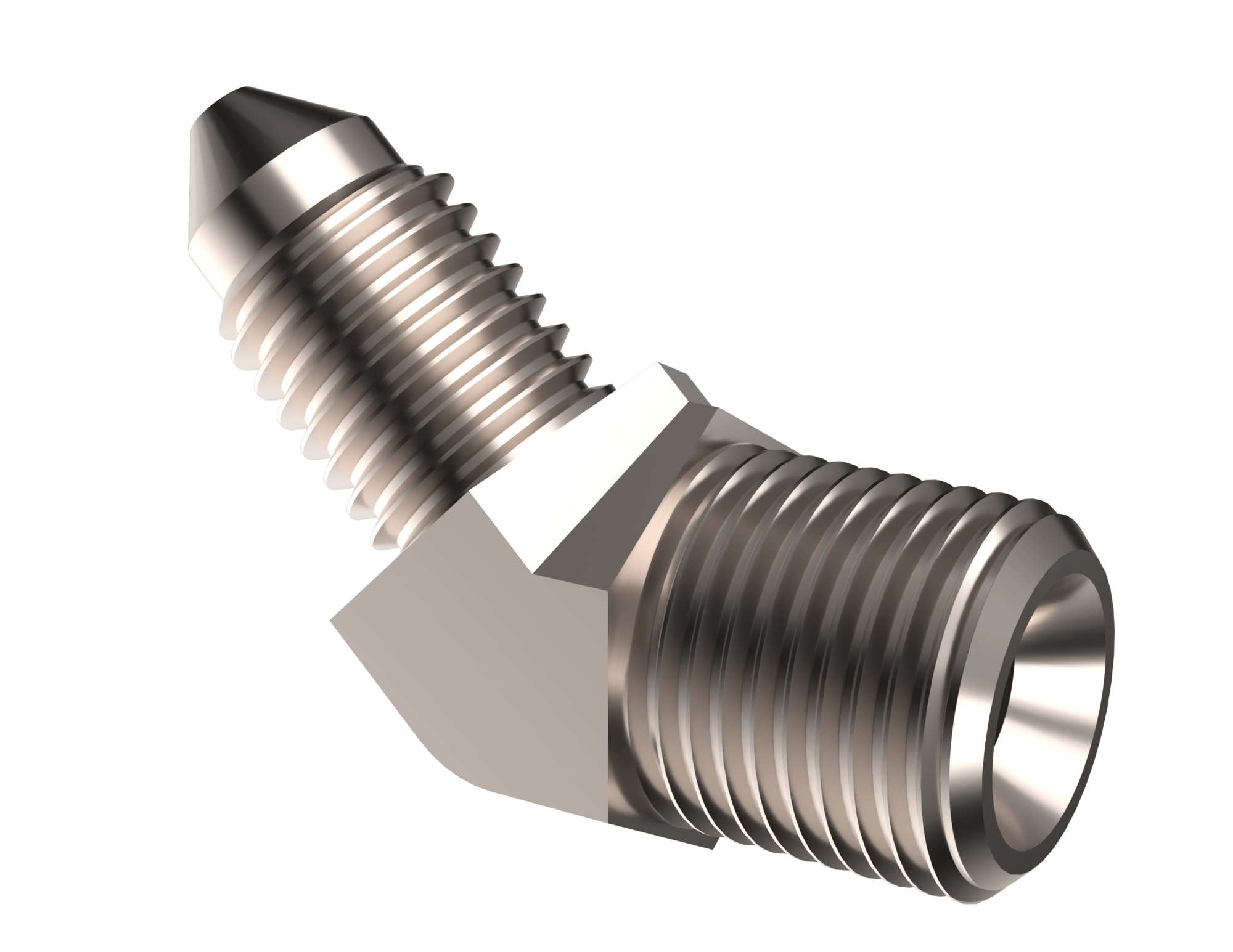

#2 JIC Male 45° Elbow 1/8” NPT PN: 170-2274

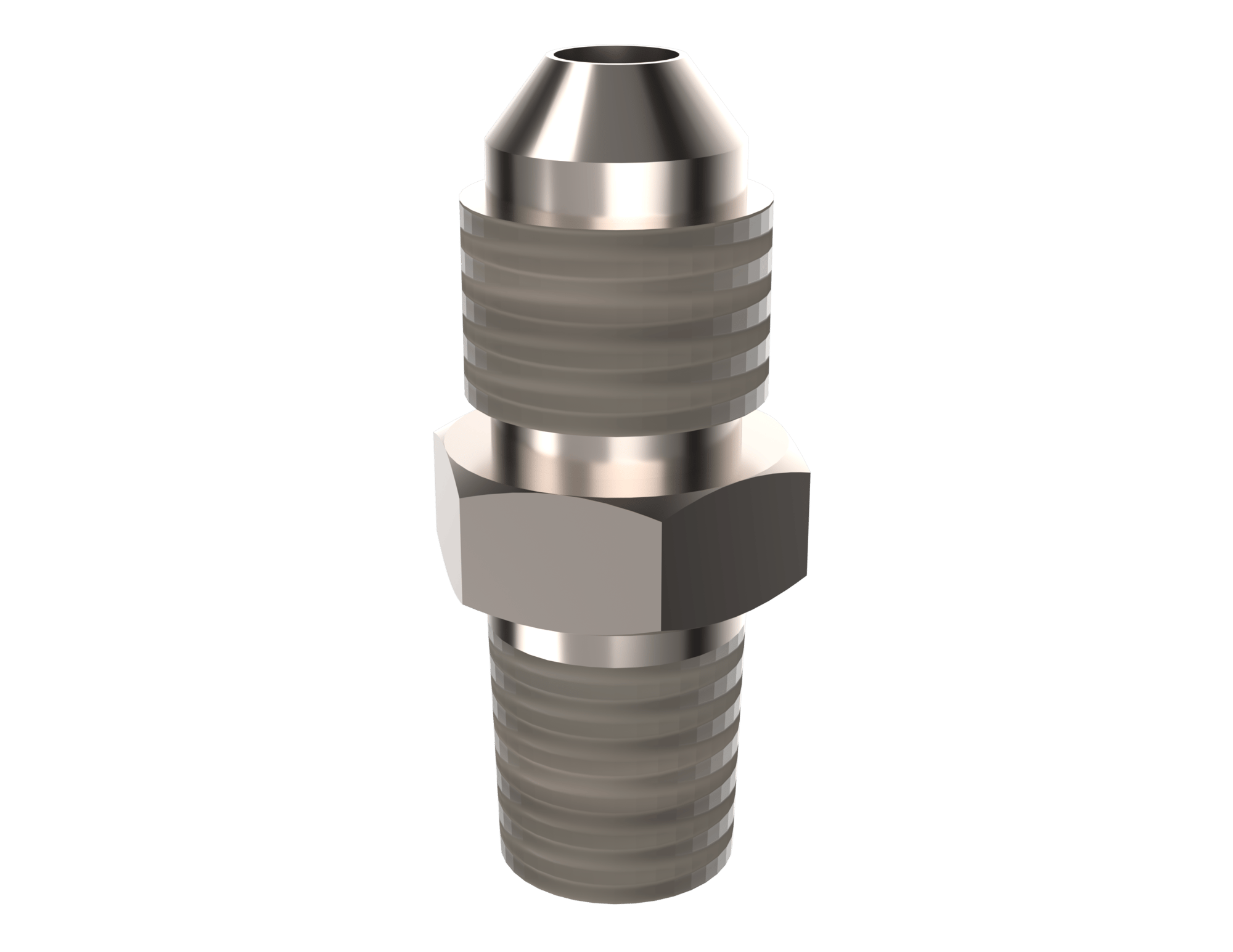

#4 JIC Male Straight 1/8” NPT PN: 170-2275

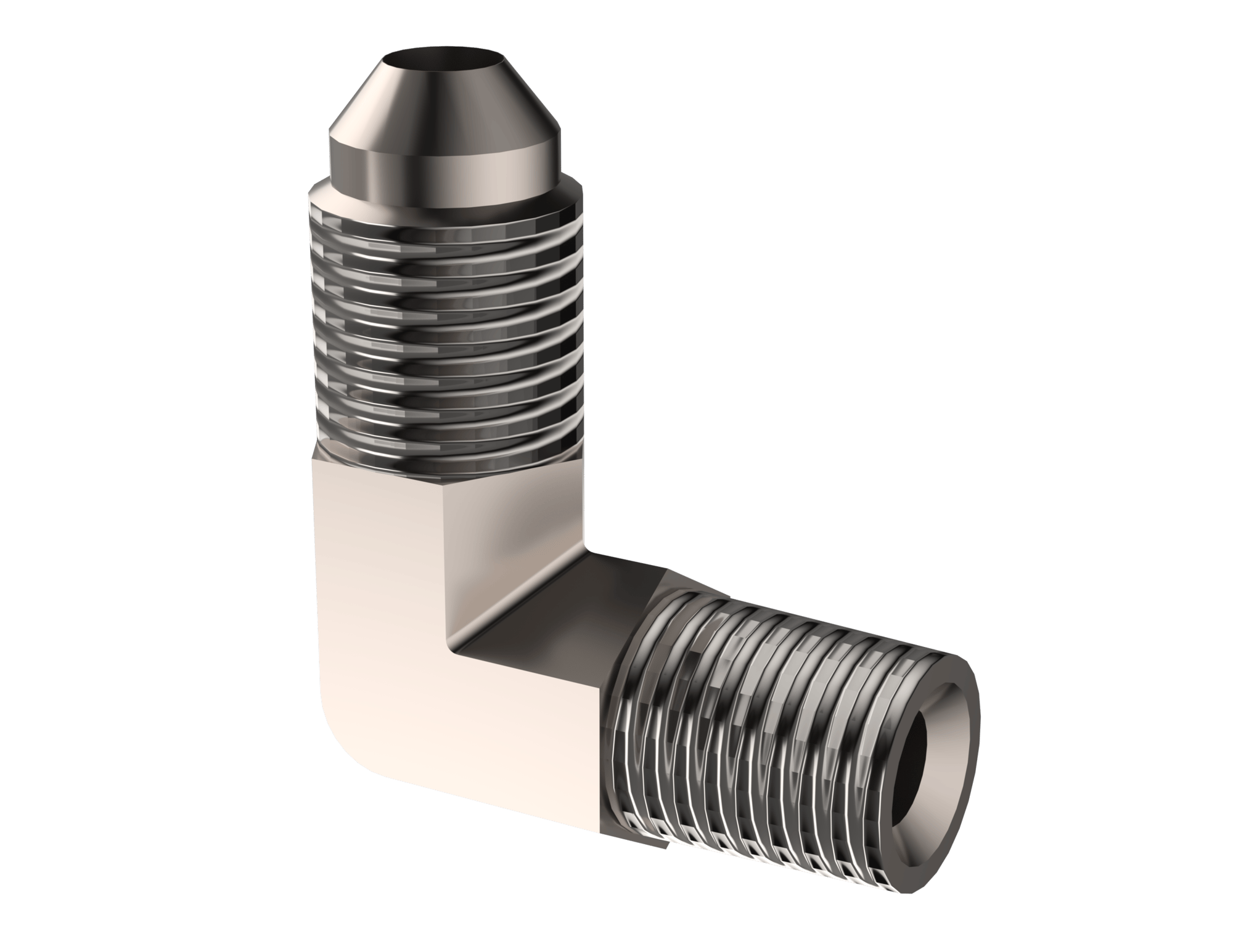

#4 JIC Male 90° Elbow 1/8” NPT PN: 170-2276

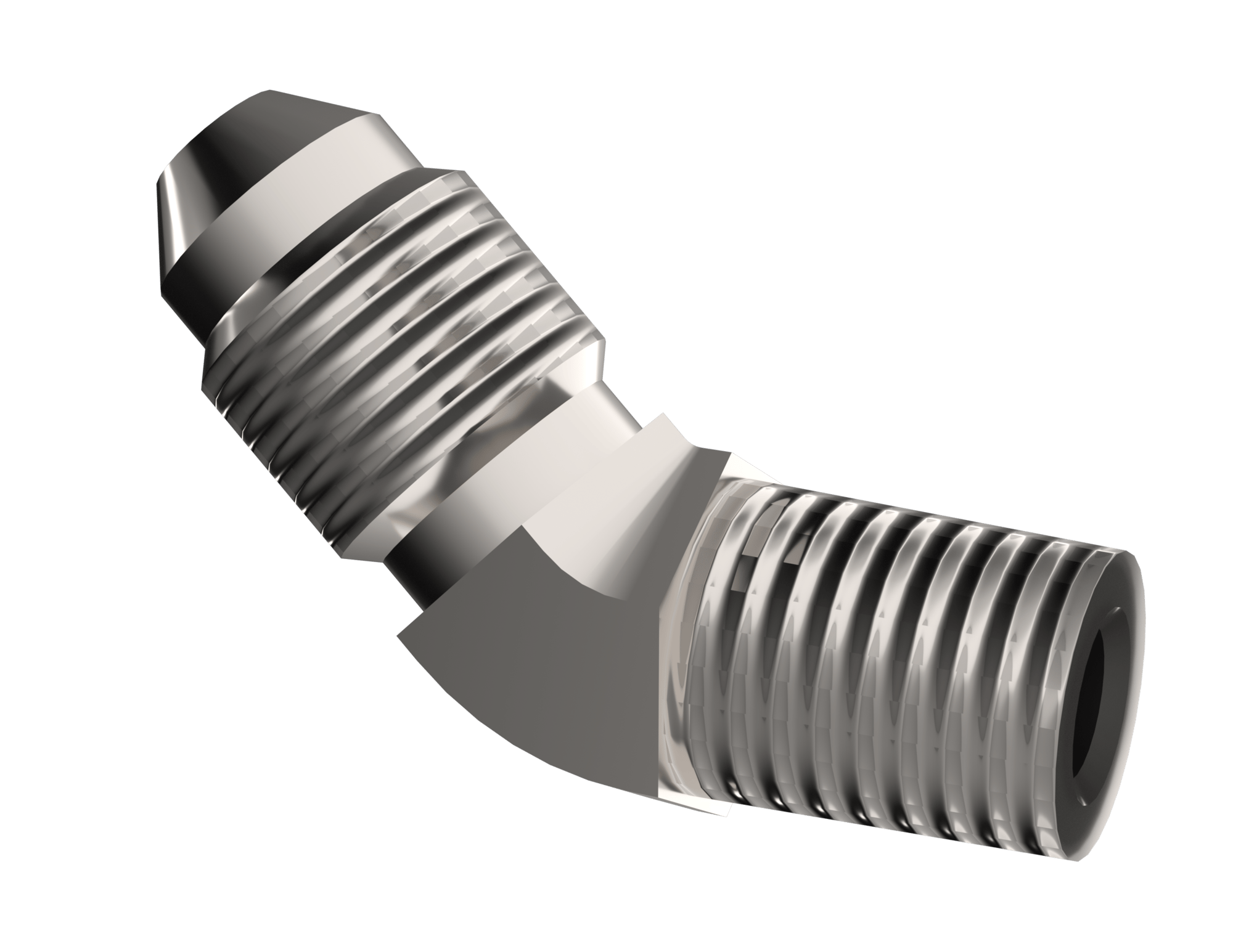

#4 JIC Male 45° Elbow 1/8” NPT PN: 170-2277

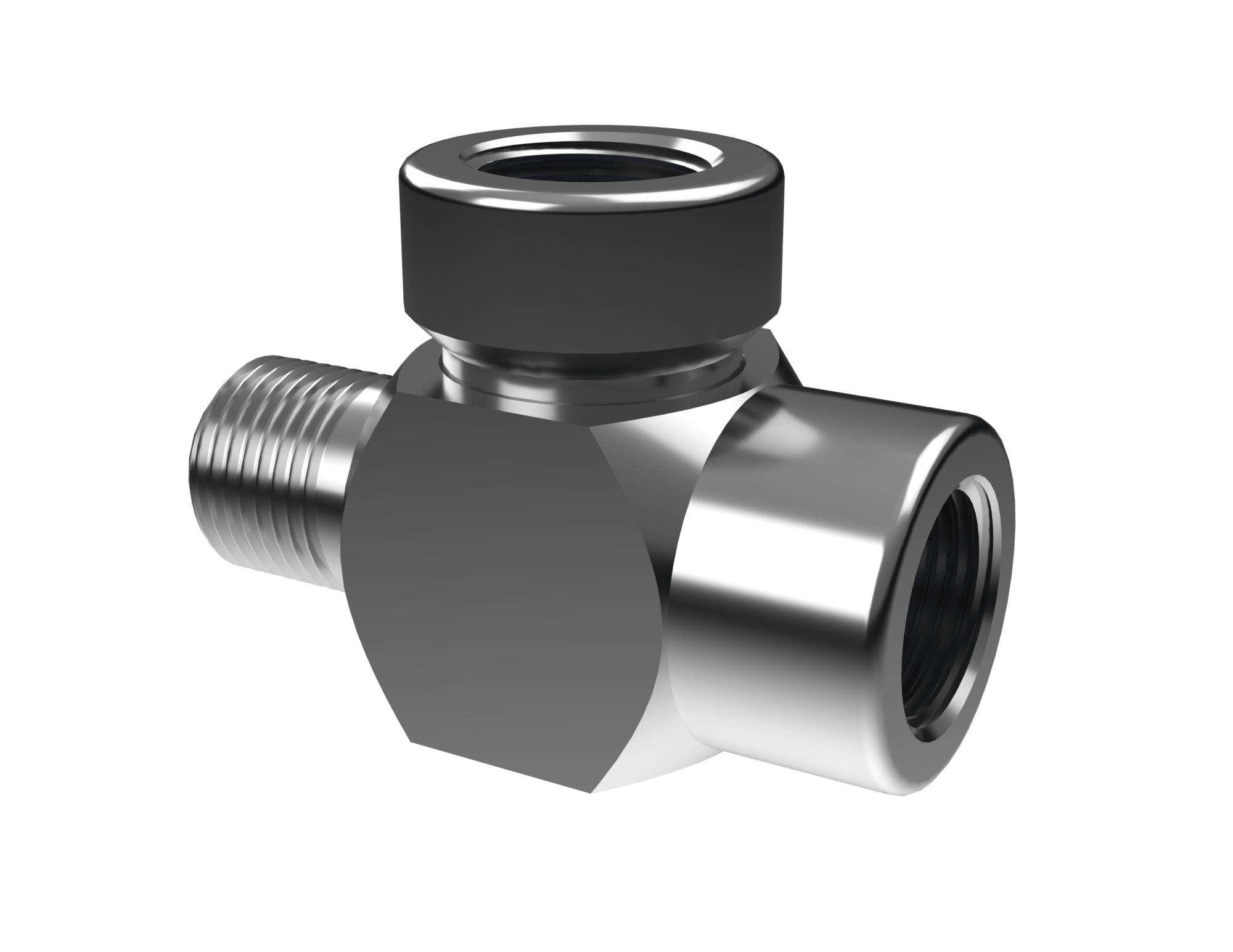

Male/Female/ Male Inlet Run Tee 1/8” NPT PN: 170-2282

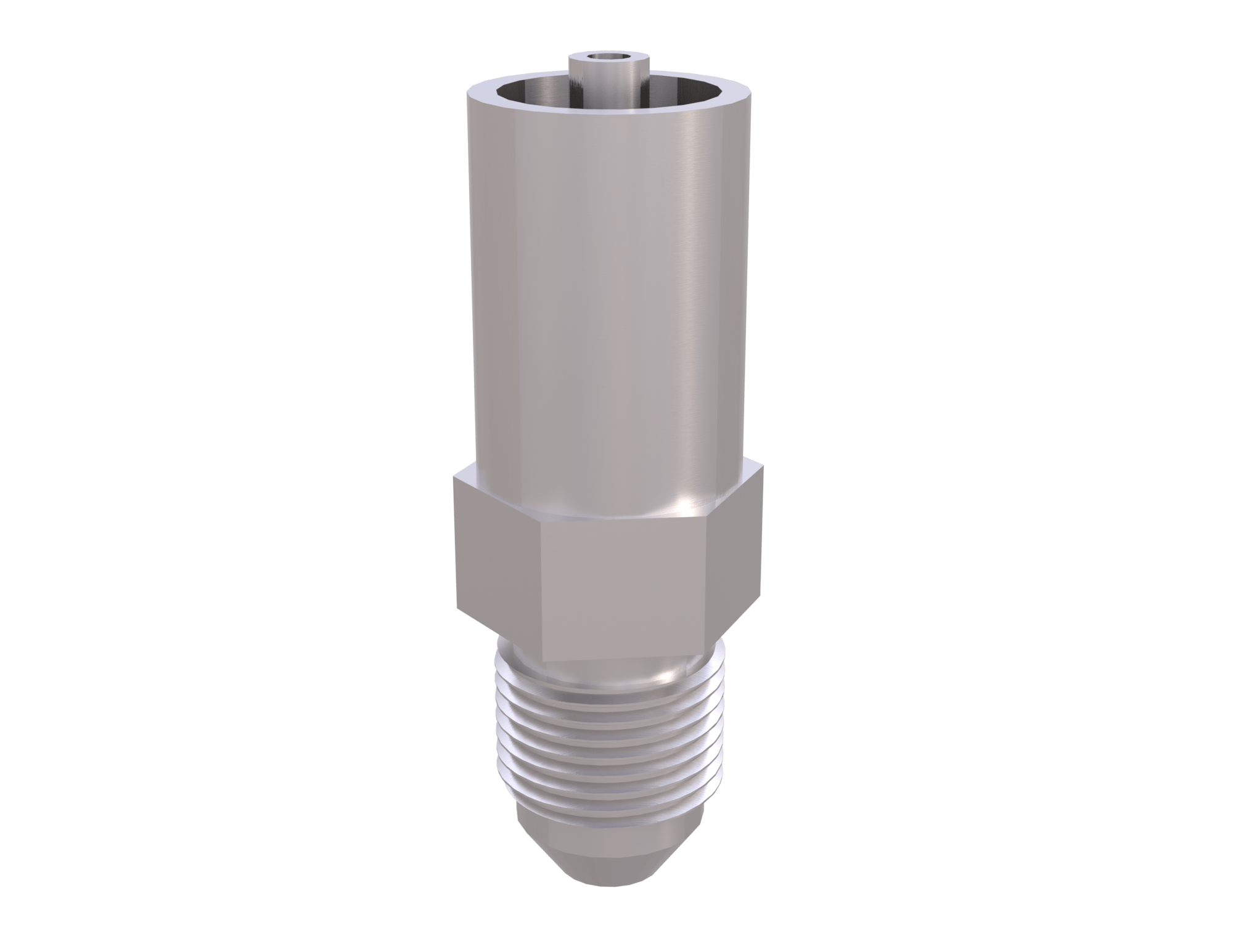

#4 JIC Male 37° Fixed 1/8” ID PN: 170-2084

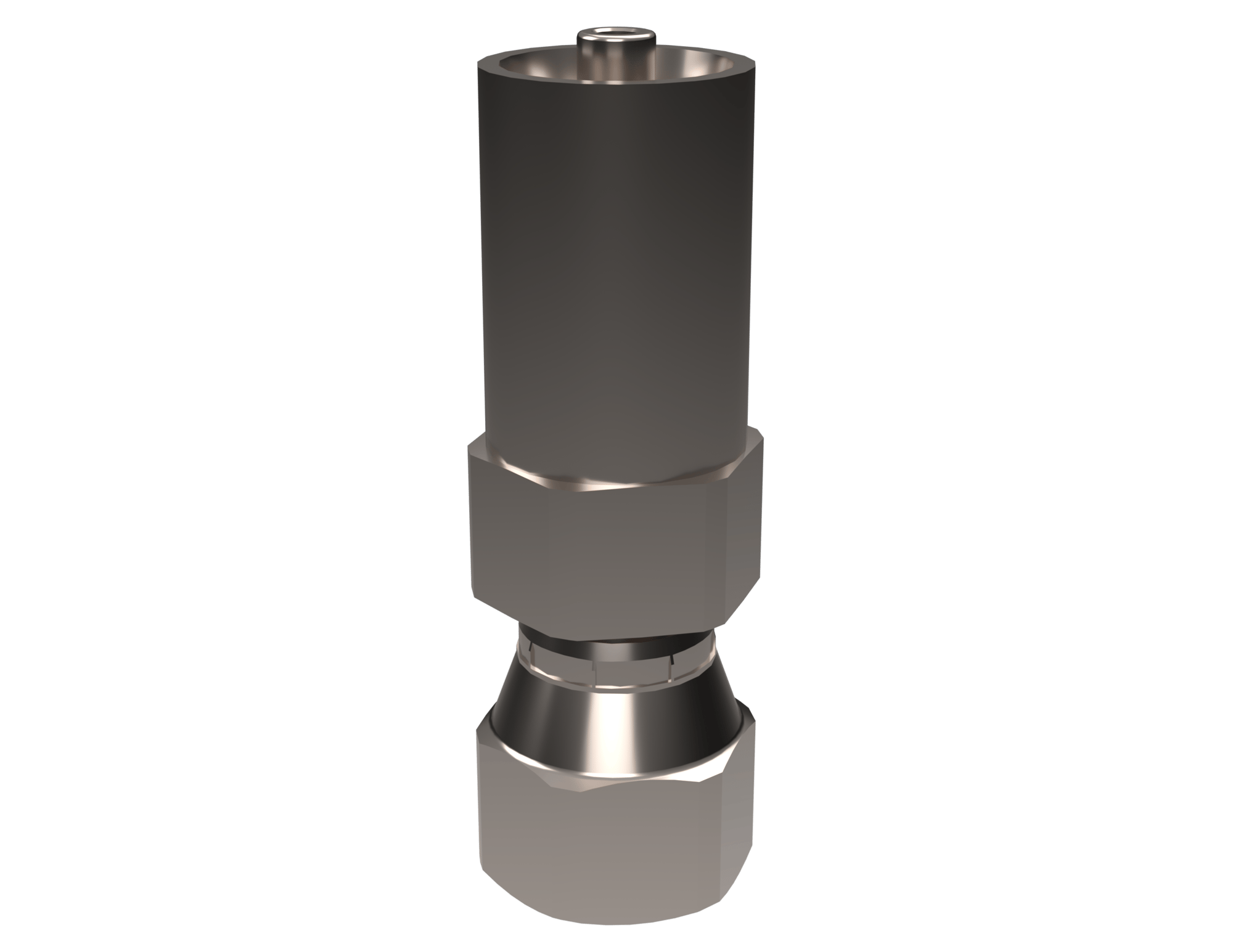

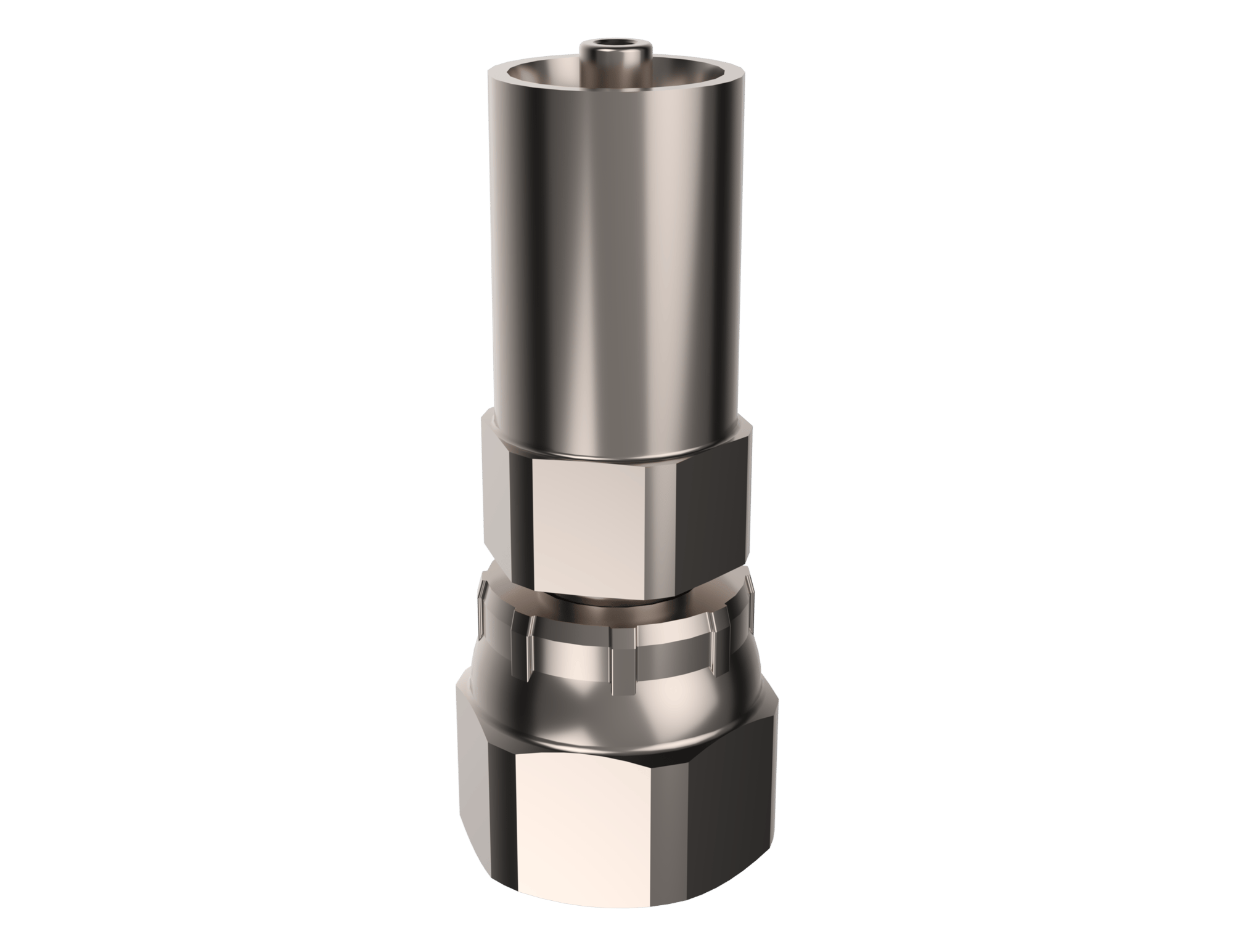

#2 JIC Female 37° Swivel 1/8” ID Hose (Crimp) PN: 170-2085

#4 JIC Female 37° Swivel 1/8” ID Hose (Crimp) PN: 170-2086

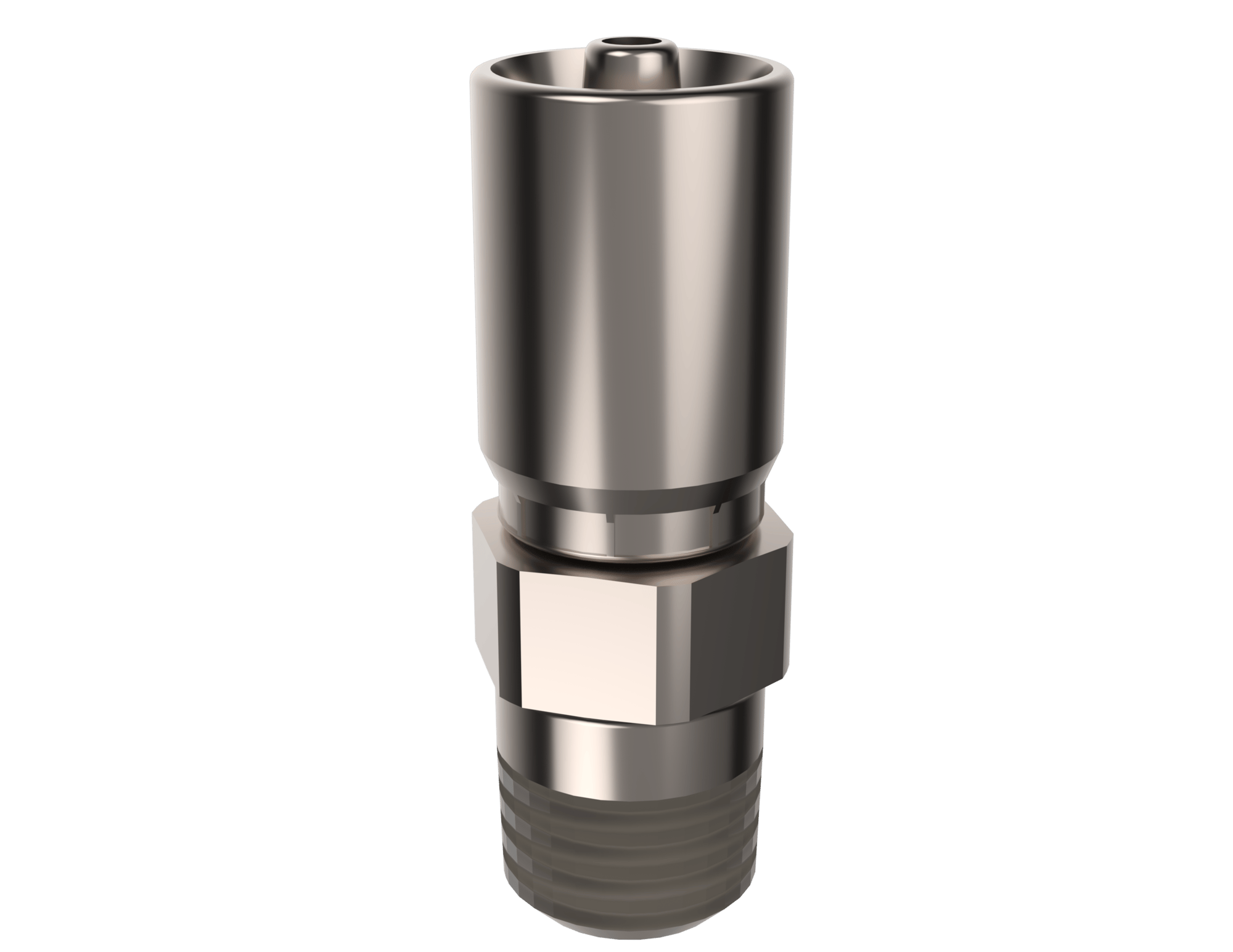

1/8” NPT Male Fixed 1/8” Hose Ends (Crimp) PN: 170-2087

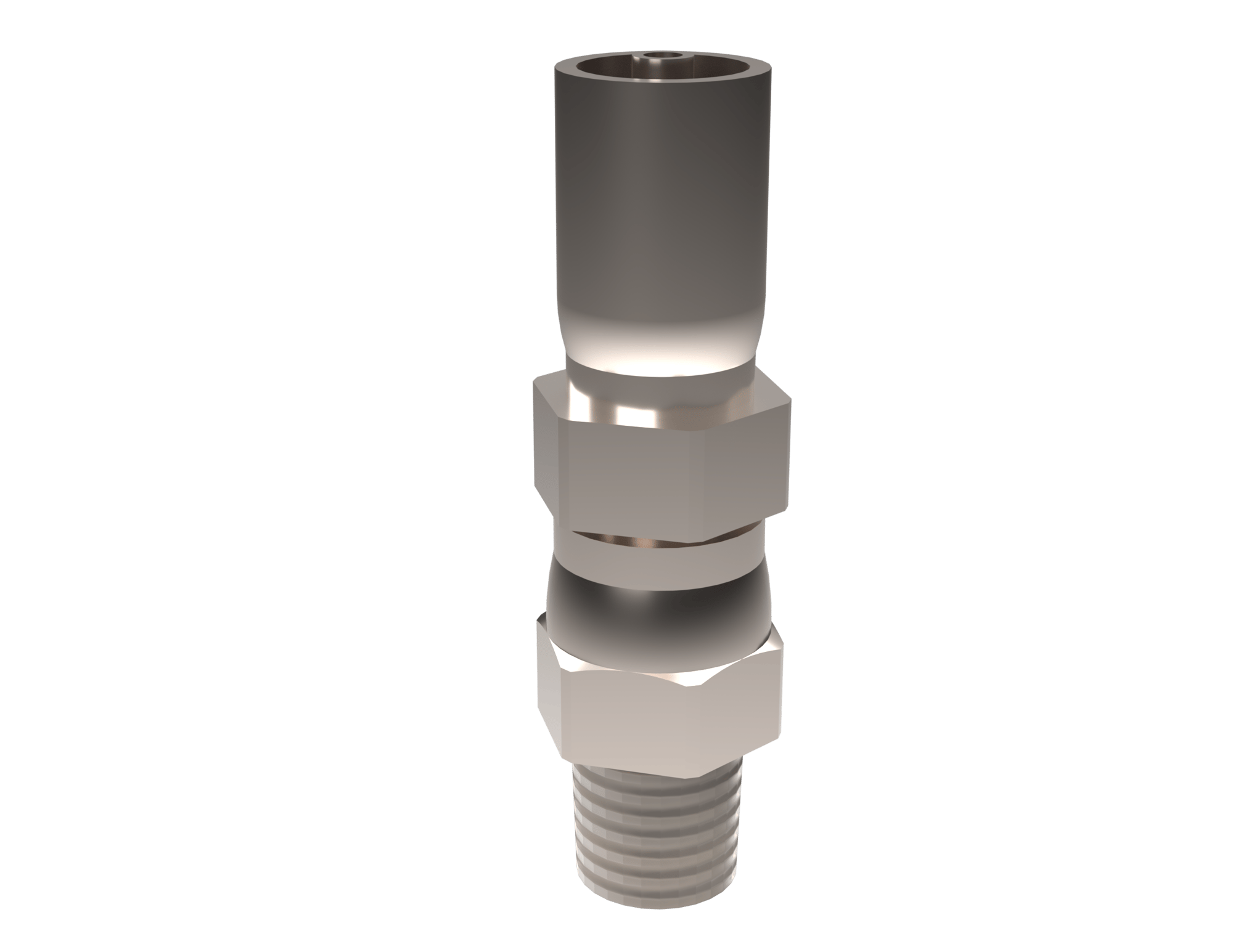

1/8” NPT Male Swivel 1/8” Hose Ends (Crimp) PN: 170-2089

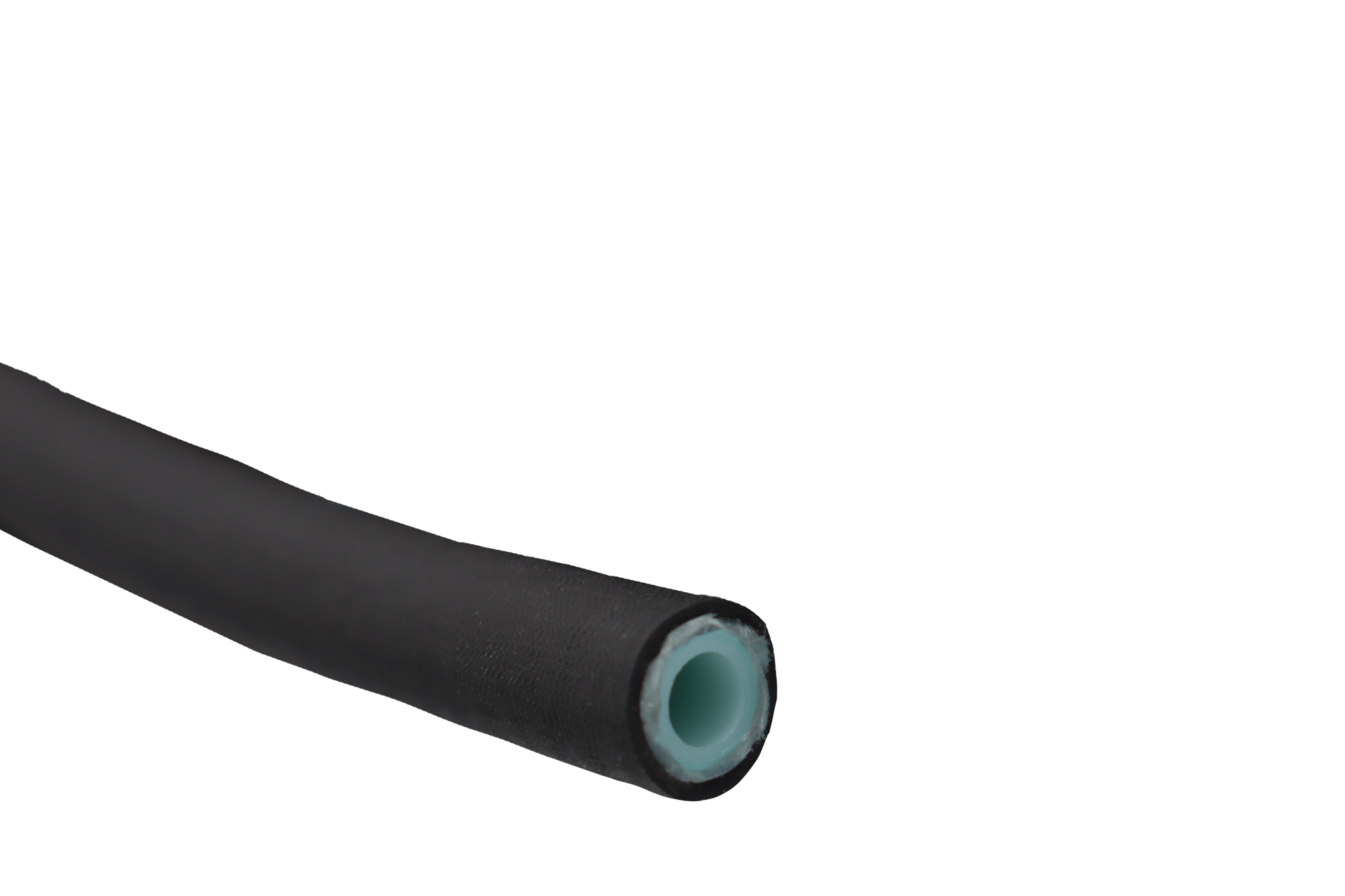

170-2091 LubeMinder Field Installable Lubrication Line 160 Long

160’ Long Lubrication Line PN: 170-2091

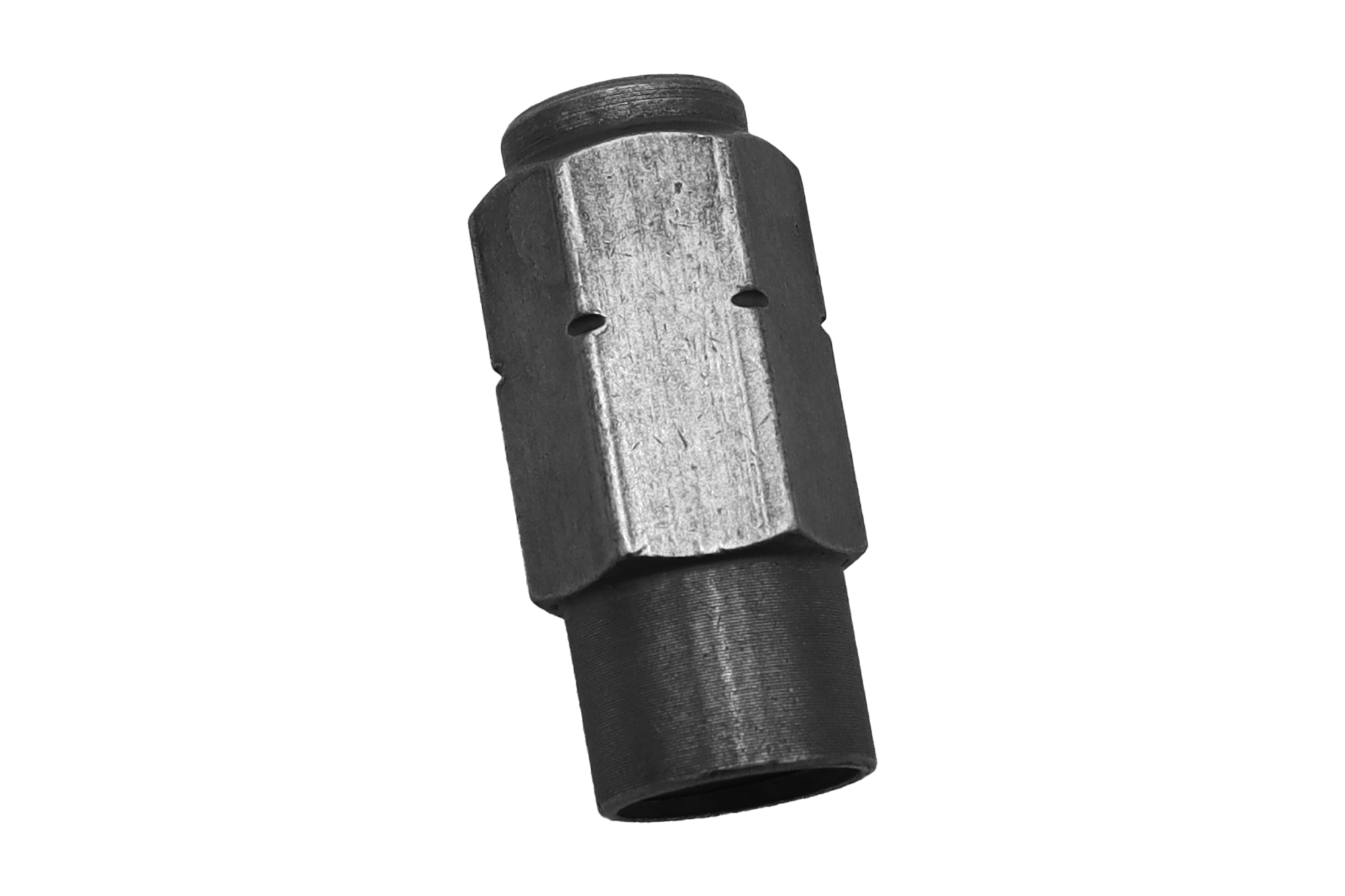

Nut/Ferrule PN: 170-2092

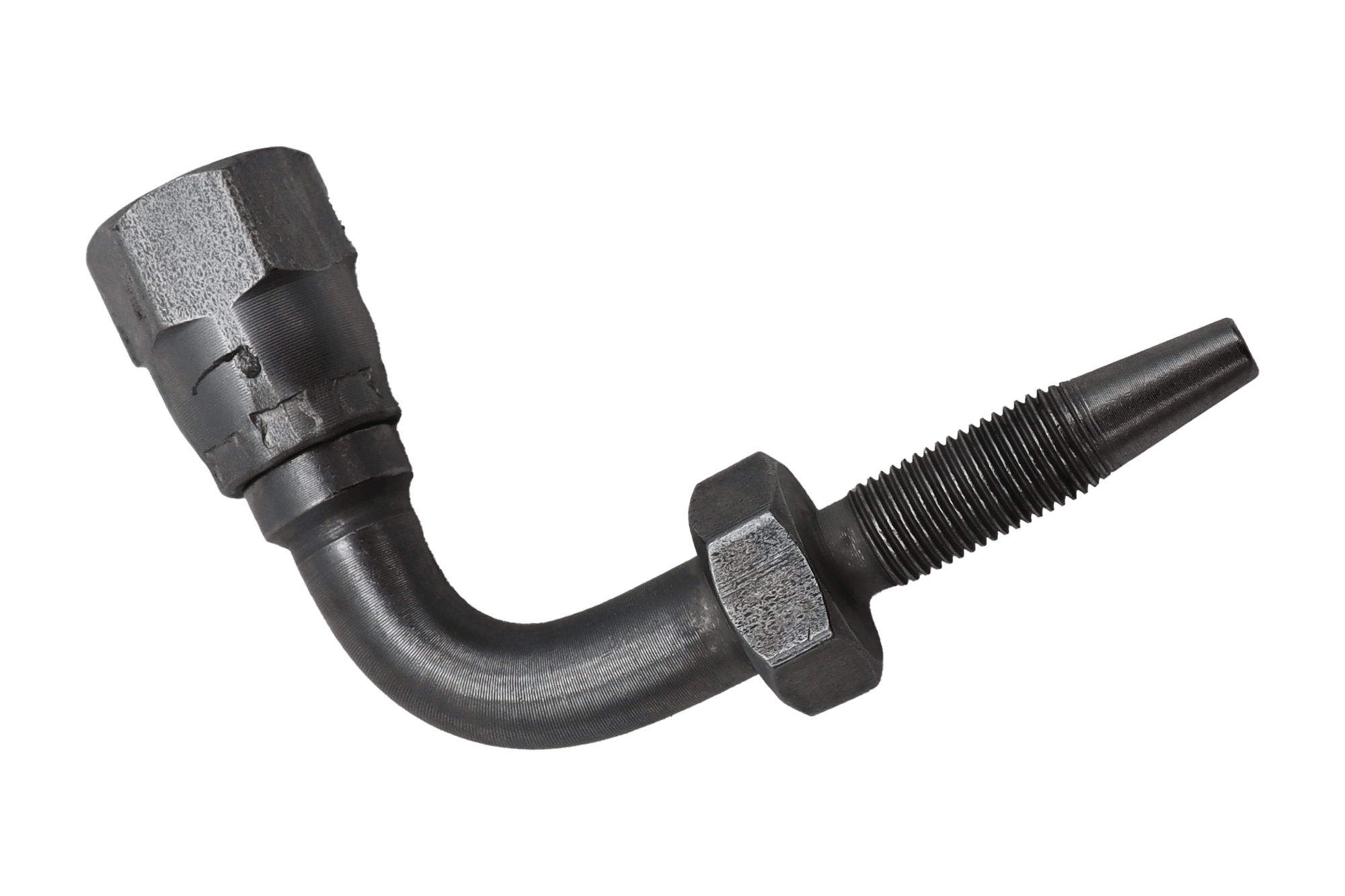

#4 JIC 90° x Hose Barb PN: 170-2093

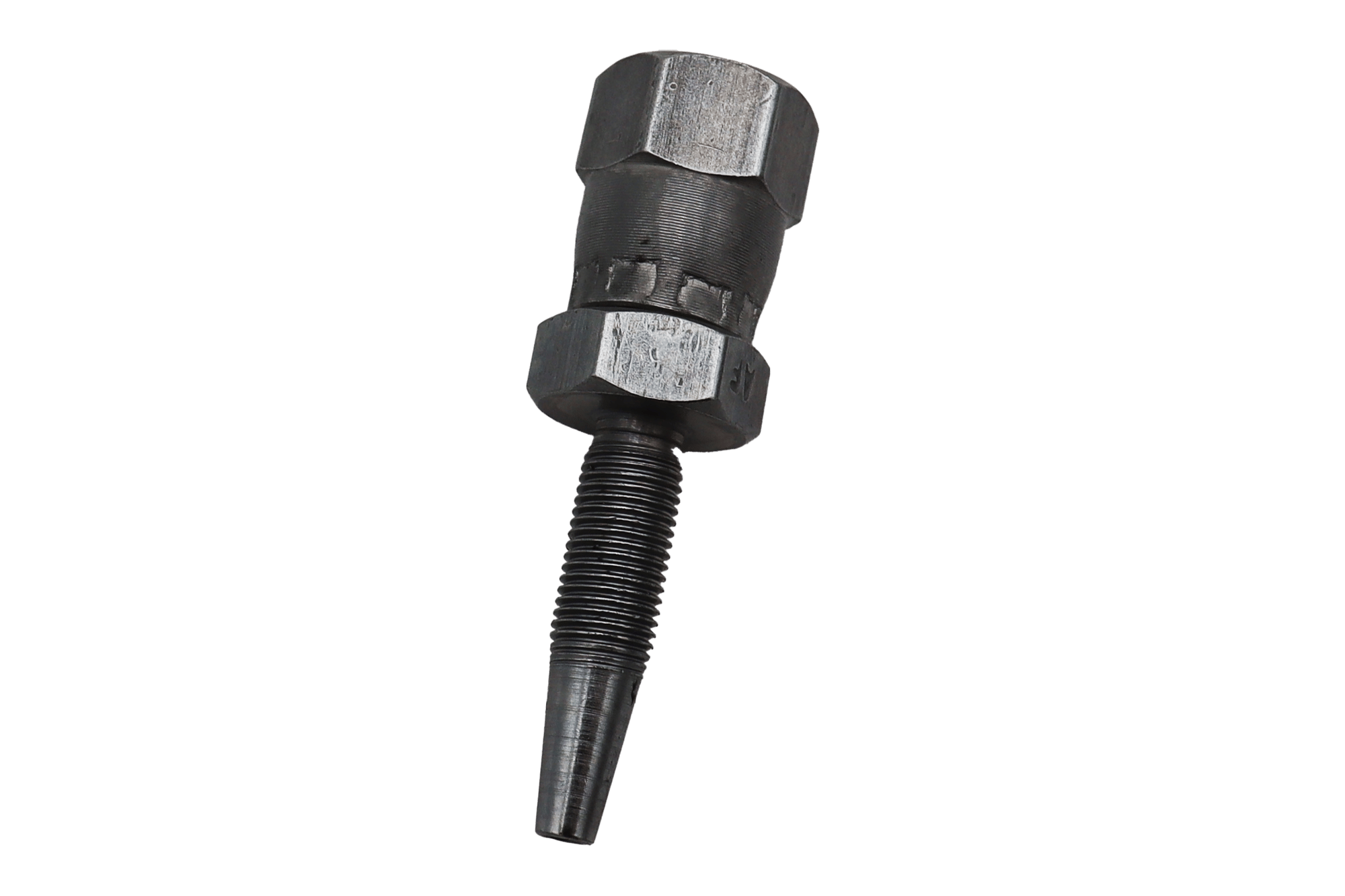

170-2094 LubeMinder Field Installable #4 JIC Straight

JIC Straight x Hose Barb PN: 170-2094

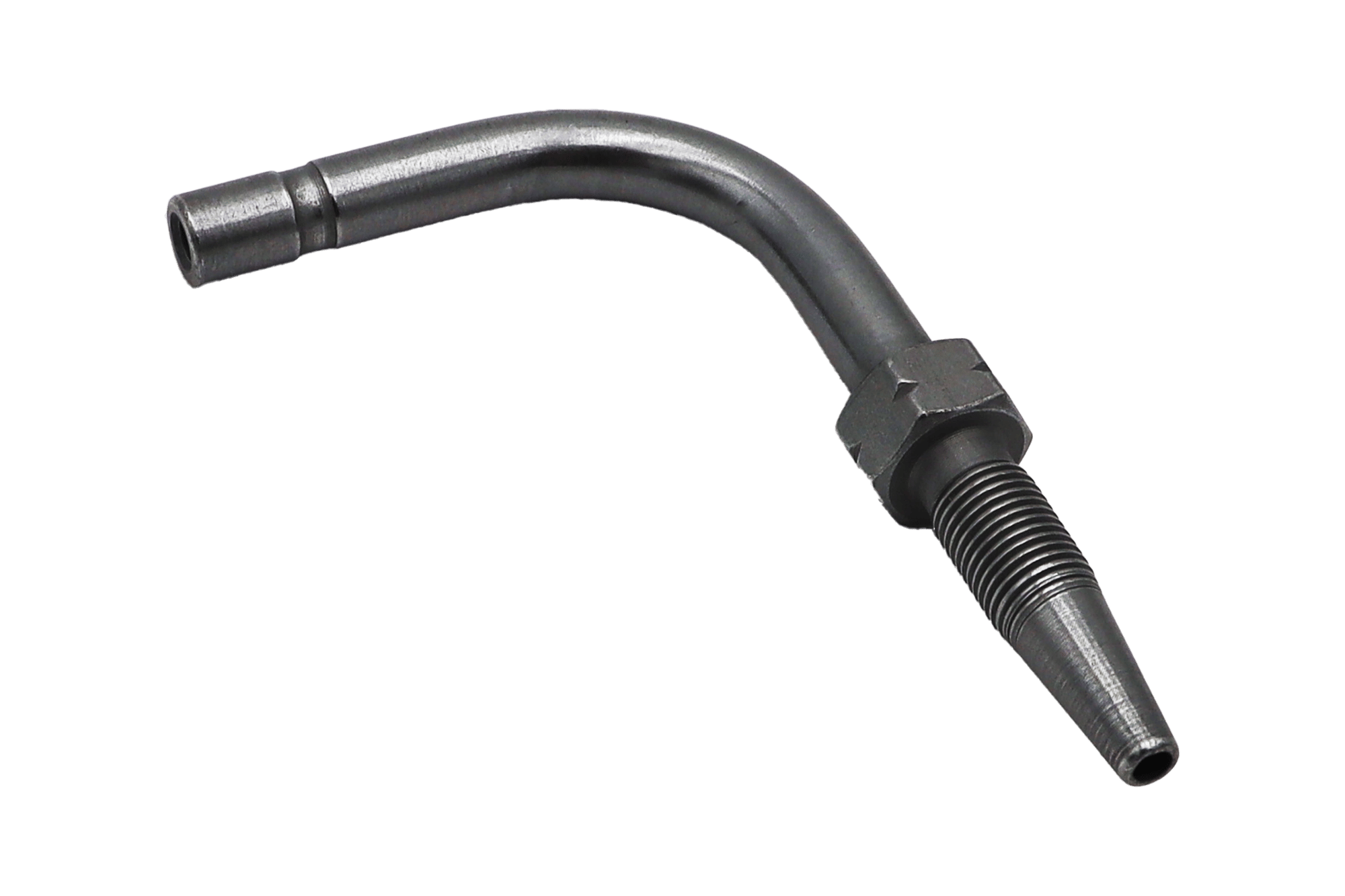

6mm 90° Stand Tube x Hose Barb PN: 170-2095

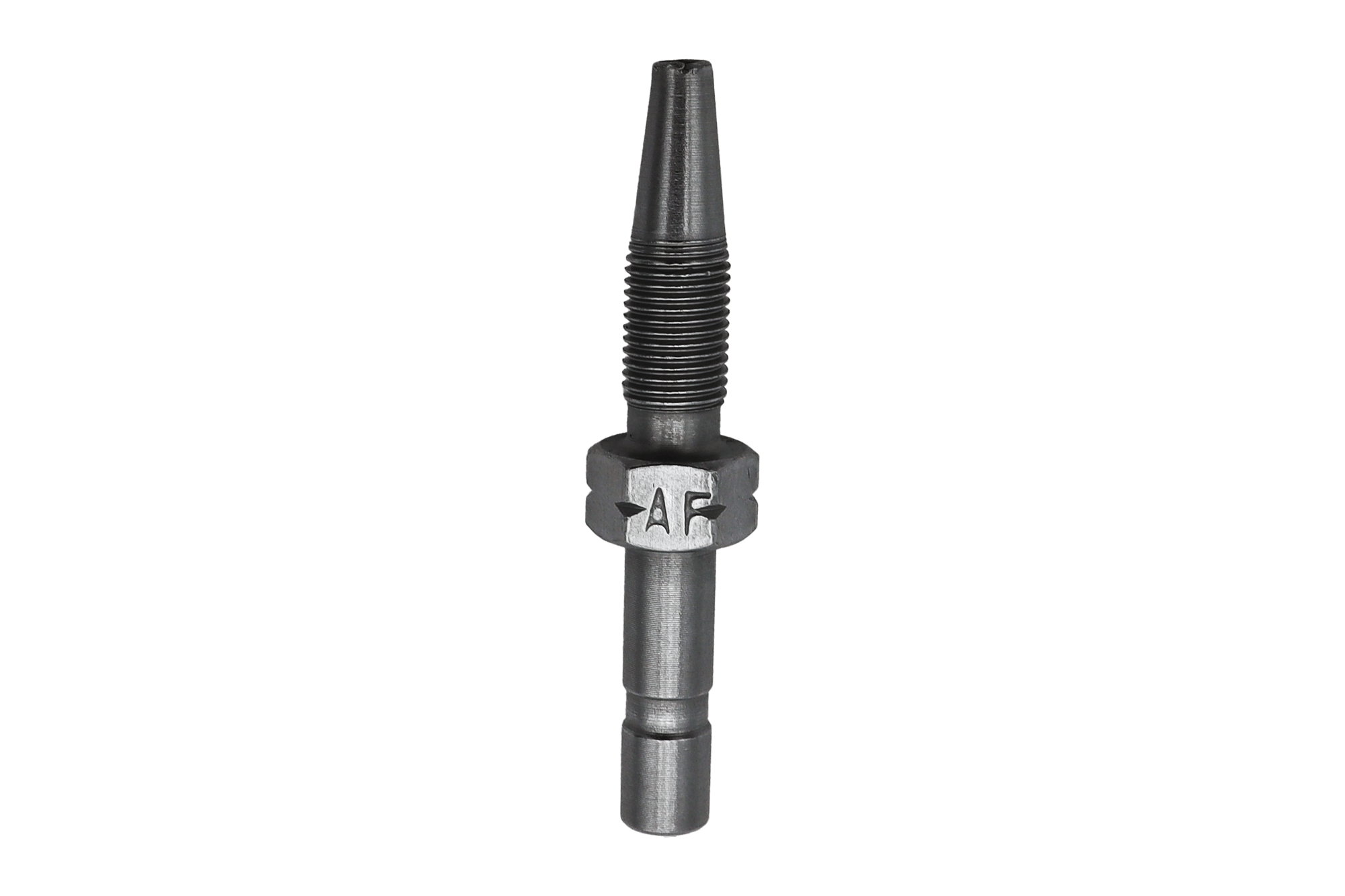

170-2096 LubeMinder Field Installable Straight 6mm Stand Tube x Hose Barb

6mm Stand Tube x Hose Barb PN: 170-2096

1/8 NPT Swivel x Hose Barb & Custom Nut/ Ferrule PN: 170-2098

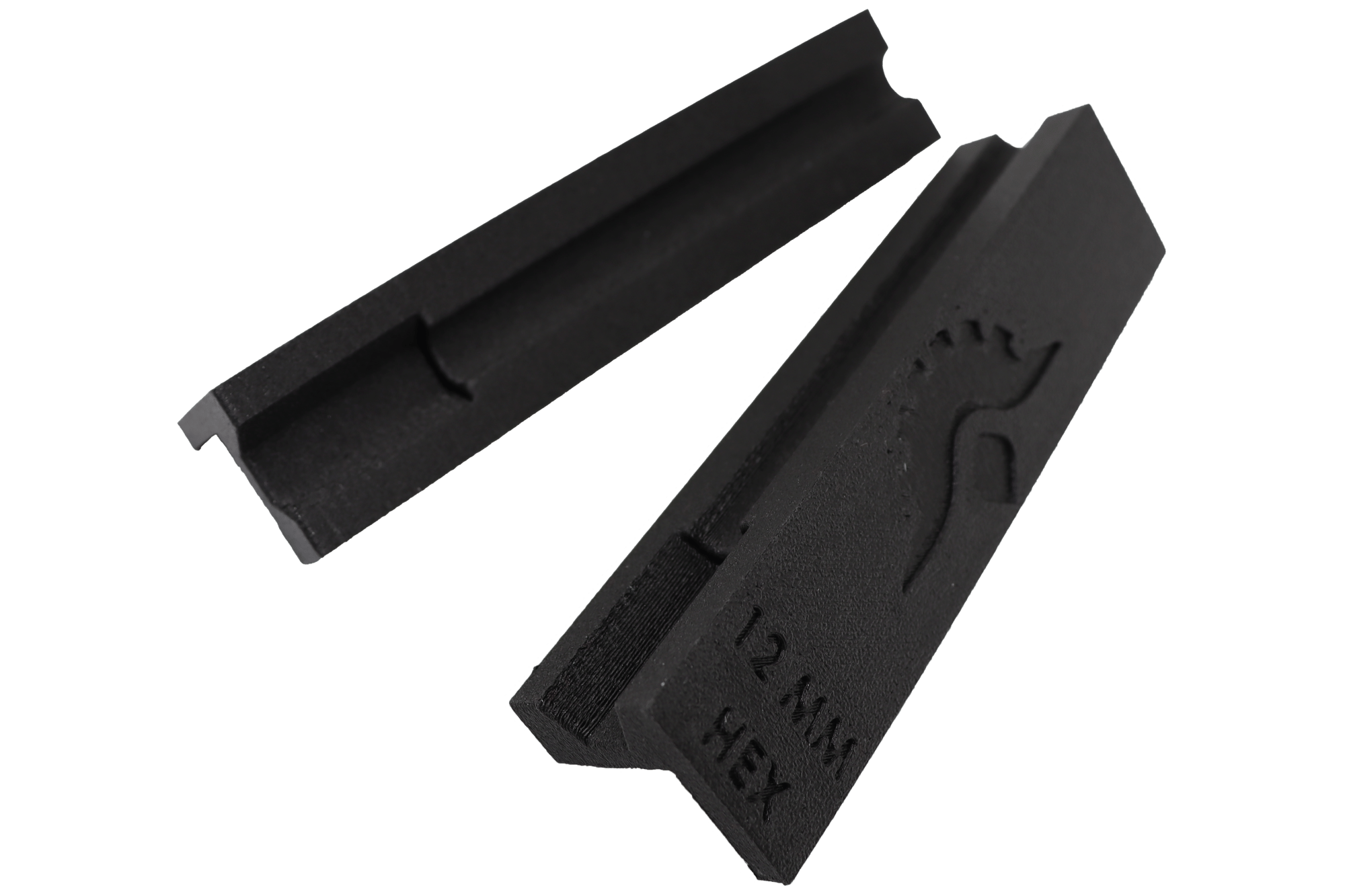

LubeMinder Field Installlation Vise Jaws PN: 170-2099

MANUAL GREASE BANK: SYSTEM

CENTRALIZED GREASE BANKS

ENHANCE YOUR OPERATION AND GREASE WITH EASE

The grease system routes all grease lines to a centralized location so you can lubricate critical zerk points with a standard grease gun in a timely fashion. Without proper lubrication, machinery will not run efficiently and will eventually break down. The centralized grease banks allow for fast, convenient, and easy access to all zerk points, with no need to spend time crawling under and around equipment. The LubeMinder® grease systems are custom engineered for a variety of manufacturer equipment models.

FEATURES & BENEFITS:

Can be operated with a standard grease gun
Assures proper lubrication for all critical grease locations
Smoother operation and longer machine life
Better performance: centralized grease bank assures all critical locations receive proper lubrication in an efficient manner
Longer machine life: properly followed maintenance programs mean longer machine life and more money back at trade-in

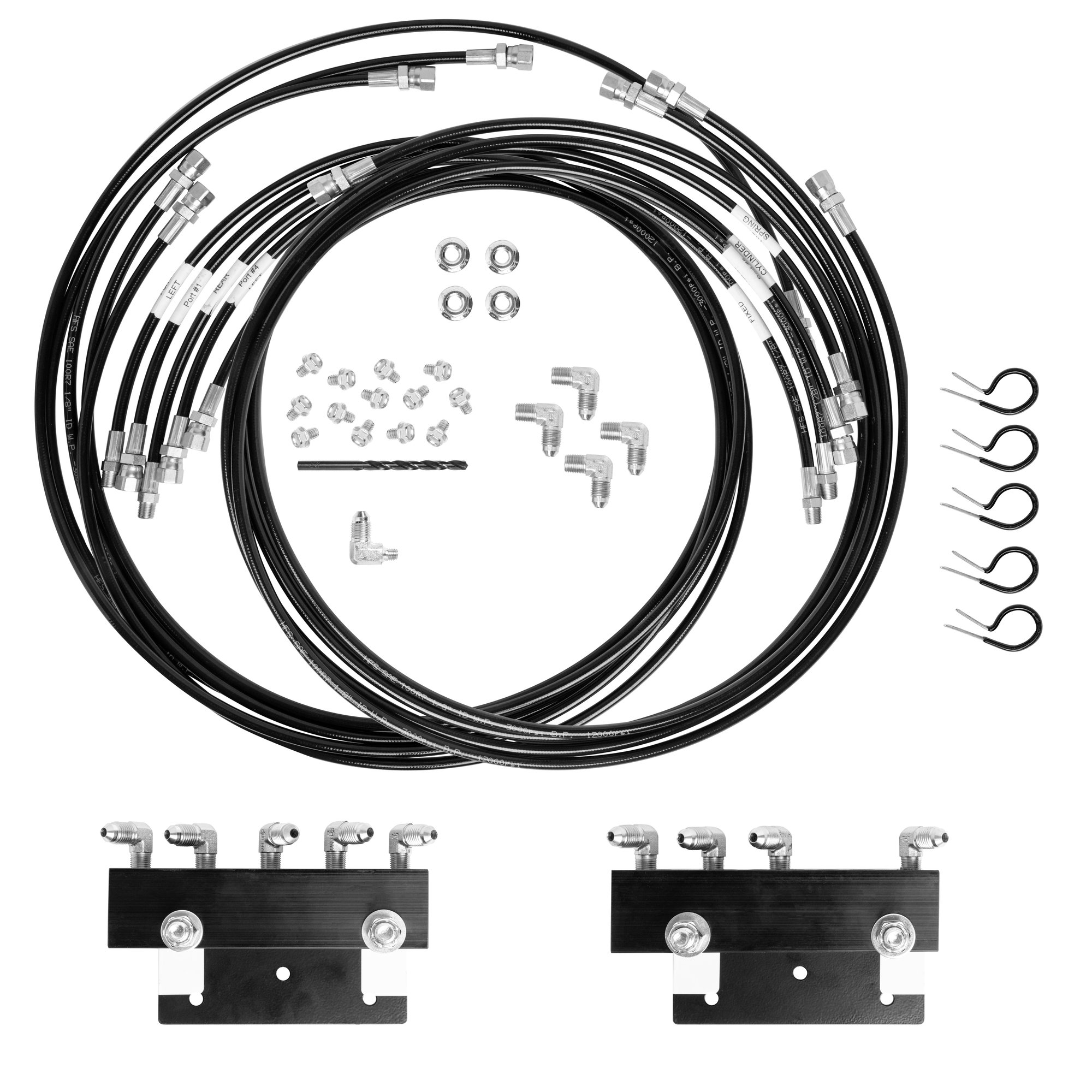

23224-SuburbanManufacturing-Lubeminder-BalerGreaseBankSystem_170-0599_FullKit

Grease Bank - 13 Ports PN: 170-0419

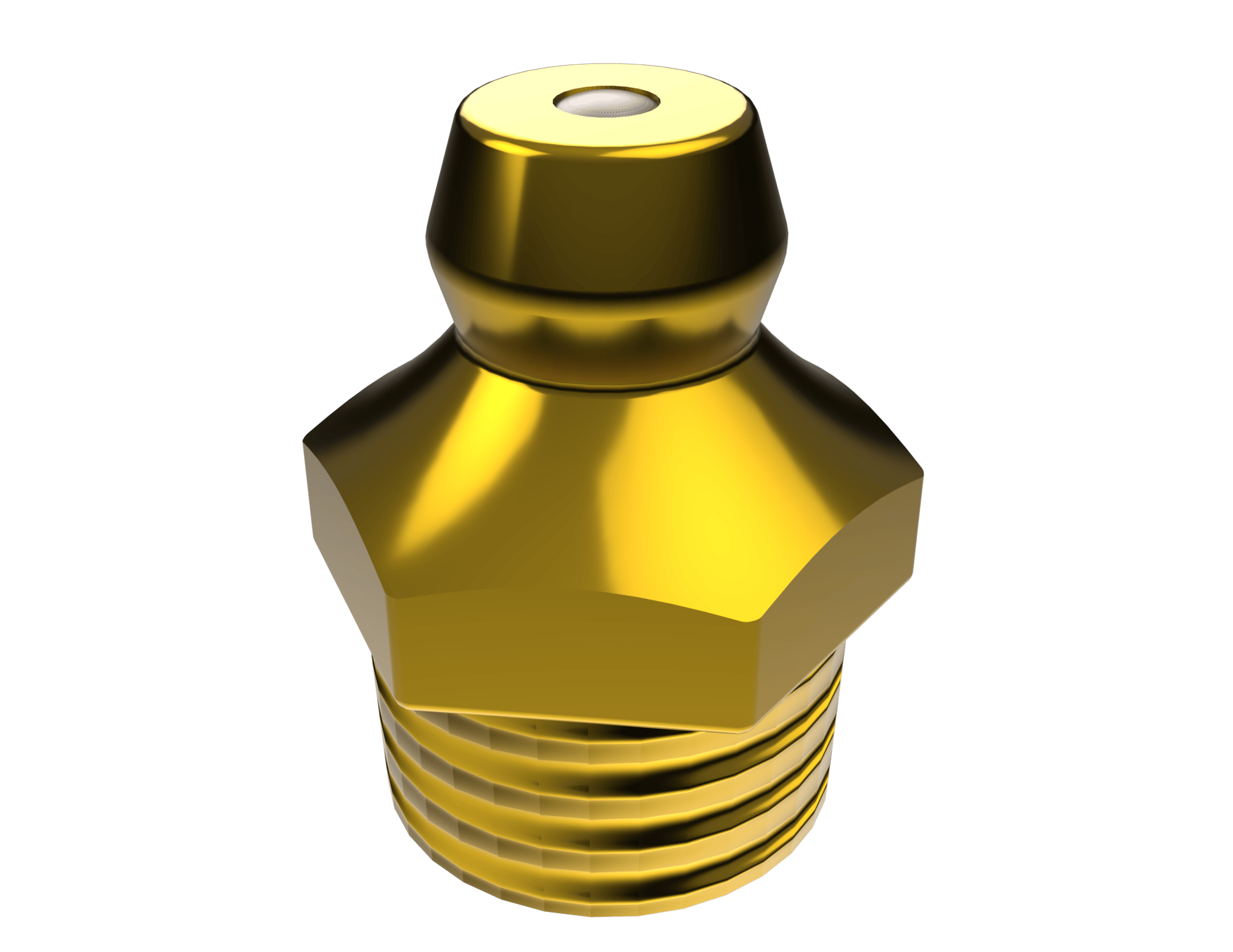

1/8” NPT Grease Zerk PN: 36-110

#4 JIC to 1/8” Adaptor PN: 170-2275

#4 JIC to 1/8” Adaptor PN: 170-2277

#4 JIC to 1/8” Adaptor 90° PN: 170-2276

Mounting Plate - Bank PN: 170-2038

1/8” NPT Male Swivel 1/8” Hose End PN: 170-2089

1/8” NPT Male Fixed 1/8” Hose End PN: 170-2087

#4 JIC Female 1/8” Hose End PN: 170-2086

#4 JIC to 1/4-28 Taper PN: 170-2075

#4 JIC to 45° 1/4-28 Taper PN: 170-2077

#4 JIC to 90° 1/4-28 Taper PN: 170-2076

160’ Long Lubrication Line PN: 170-2091

#	ITEM #	DESCRIPTION
1	170-0419	Block—Grease Bank Manifold (13 Ports)
2	36-110	Grease Fitting—1/8”-27 NPT
3	170-2275	Adaptor—Straight #4 Male JIC X 1/8” Male NPT
4	170-2277	Adaptor—45° #4 Male JIC X 1/8” Male NPT
5	170-2276	Adaptor—90° #4 Male JIC X 1/8” Male NPT

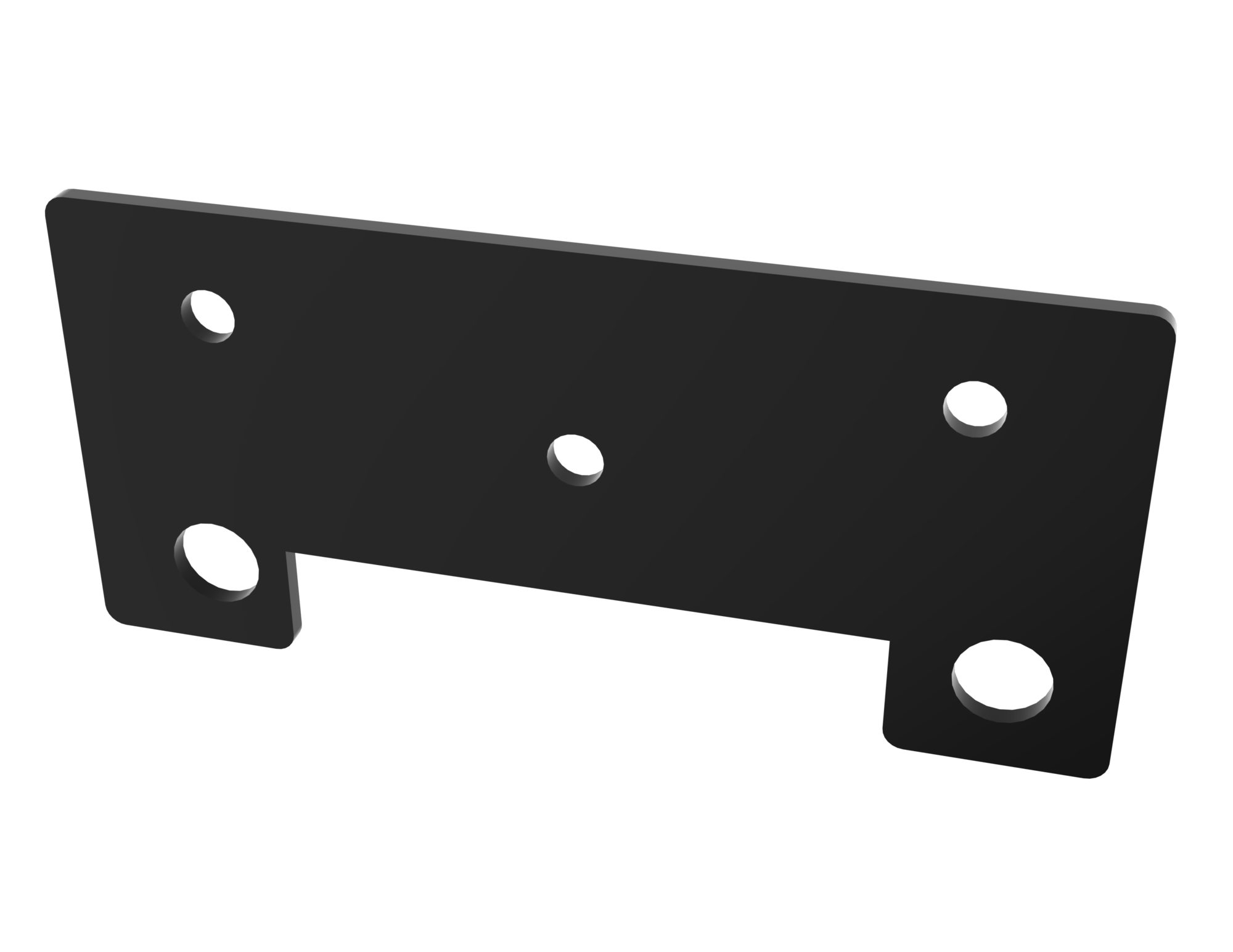

6	170-2038	Grease Manifold Mounting Plate

#	ITEM #	DESCRIPTION
7	170-2089	1/8” NPT Male Swivel—1/8” Hose Ends (Crimp)
8	170-2087	1/8” NPT Male Fixed—1/8” Hose Ends (Crimp)
9	170-2086	#4 JIC Female Swivel—1/8” Hose Ends (Crimp)

#	ITEM #	DESCRIPTION
10	170-2075	Adaptor—Straight #4 Male JIC X 1/4”-28 SAE-LT Taper
11	170-2077	Adaptor—45° #4 Male JIC X 1/4”-28 SAE-LT Taper
12	170-2076	Adaptor—90° #4 Male JIC X 1/4”-28 SAE-LT Taper

#	ITEM #	DESCRIPTION	QUANTITY
13	170-2091	160’ Long Lubrication Line

OIL LUBRICATION: SYSTEMS

AUTOMATIC OILING SYSTEM

The LubeMinder® Automatic Oiler lubricates chains and sprockets to eliminate having to manually maintain equipment. The fully adjustable pump can automatically oil and can be configured for up to 10 chains and sprockets and requires no electricity (hydraulic driven). Oil is pumped to the system’s brushes, which clean debris off equipment chains and disperse the oil to pin bushing joints.

Pumps are also configurable to operate with a pneumatic signal as well and do have an optional electrical timer.

SYSTEM BENEFITS:

Increase Chain Life by 3x: Specifically engineered brushes clean chains and sprockets while applying oil to all moving parts, increasing equipment life.
Climate Control: Fully adjustable pump allows modification of dispensing rate and assures that all chains and sprockets are properly oiled regardless of climate or condition.
Eliminate Downtime: Lubricating while parts are warm and running allows oil to penetrate pin bushing joints.
Increases Resale Value: Machinery that is well maintained and fully equipped retains higher value for resale.
Save Money on Chain Replacement: Longer lasting chains means less downtime and lower costs associated with chain replacement.
Requires No Electricity: The LubeMinder® borrows the pilot signal from the hydraulic or pneumatic system.
Expand & Customize: Spare parts & kits are available for system expansion and customization. Add more lines onto the pump for additional attachments with the "Add a Line Kit". The "Restrictor Kit" is used to limit oil dispersion on specific lines.
Pneumatically Operated (pneumatic): Pneumatic controller is available for the the LubeMinder® when there is no air signal available.

OIL LUBRICATION: SYSTEMS

HOW DOES THE LUBEMINDER® WORK?

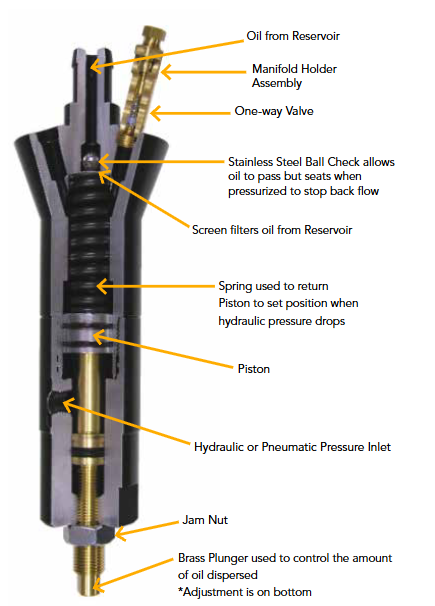

The LubeMinder® Automatic Oiler operates off an intermittent hydraulic or pneumatic signal. The hydraulic pilot signal hose can be connected to a cylinder, valve block, or manifold that relieves below 50 PSI (hydraulic) or 15 PSI (pneumatic).

The LubeMinder® Automatic Oiler is cycled when it receives the pilot signal. Pressure pushes the piston up, sending oil out to the brushes, dispensing a light film of oil to the chains and sprocket.

The amount of oil dispensed per cycle is adjustable from 0 to .901 in3 by turning the brass plunger in or out. Adjusting the plunger in reduces the amount of oil sent to the brushes per cycle. Adjusting the plunger out increases the oil to the brushes.

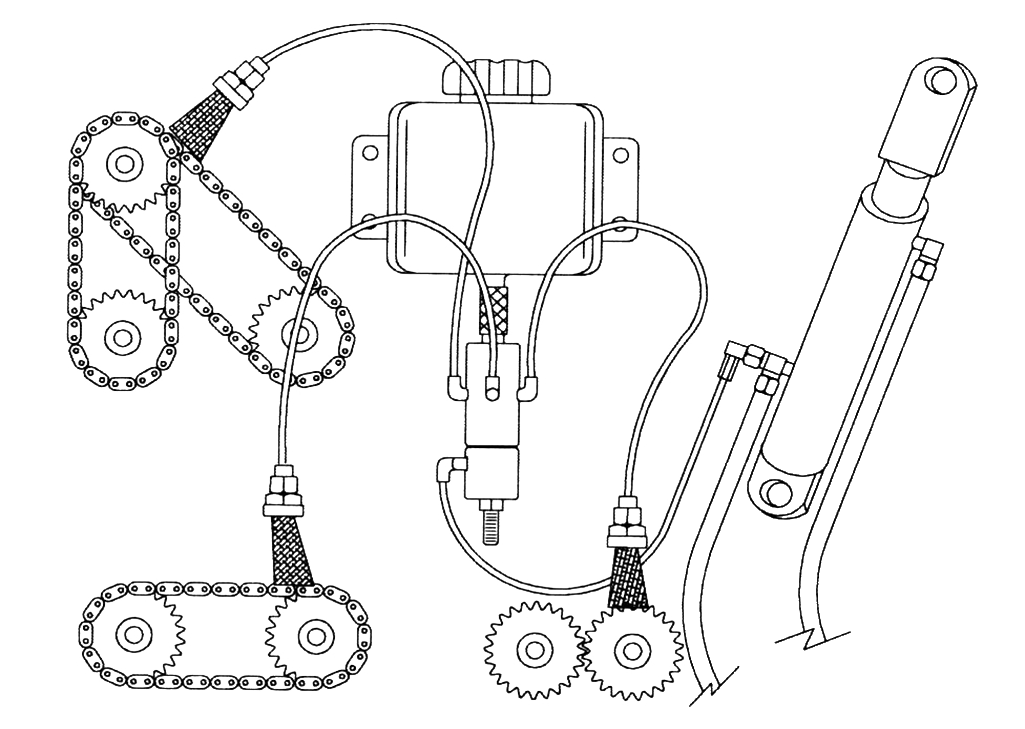

Below is a typical installation.

Oil reservoir tank is bolted to the sheet metal of the equipment.
LubeMinder® Automatic Oiler pump feeds oil to the individual brushes.
Hydraulic pilot signal used on double acting cylinder actuates oiler pump.

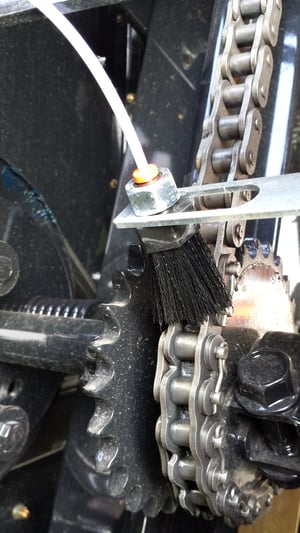

Brush lubricating the main drive chains.
Brush lubricating the bale rolling chains.
Hydraulic line leading from the cylinder to the LubeMinder® Automatic Oiler pump.

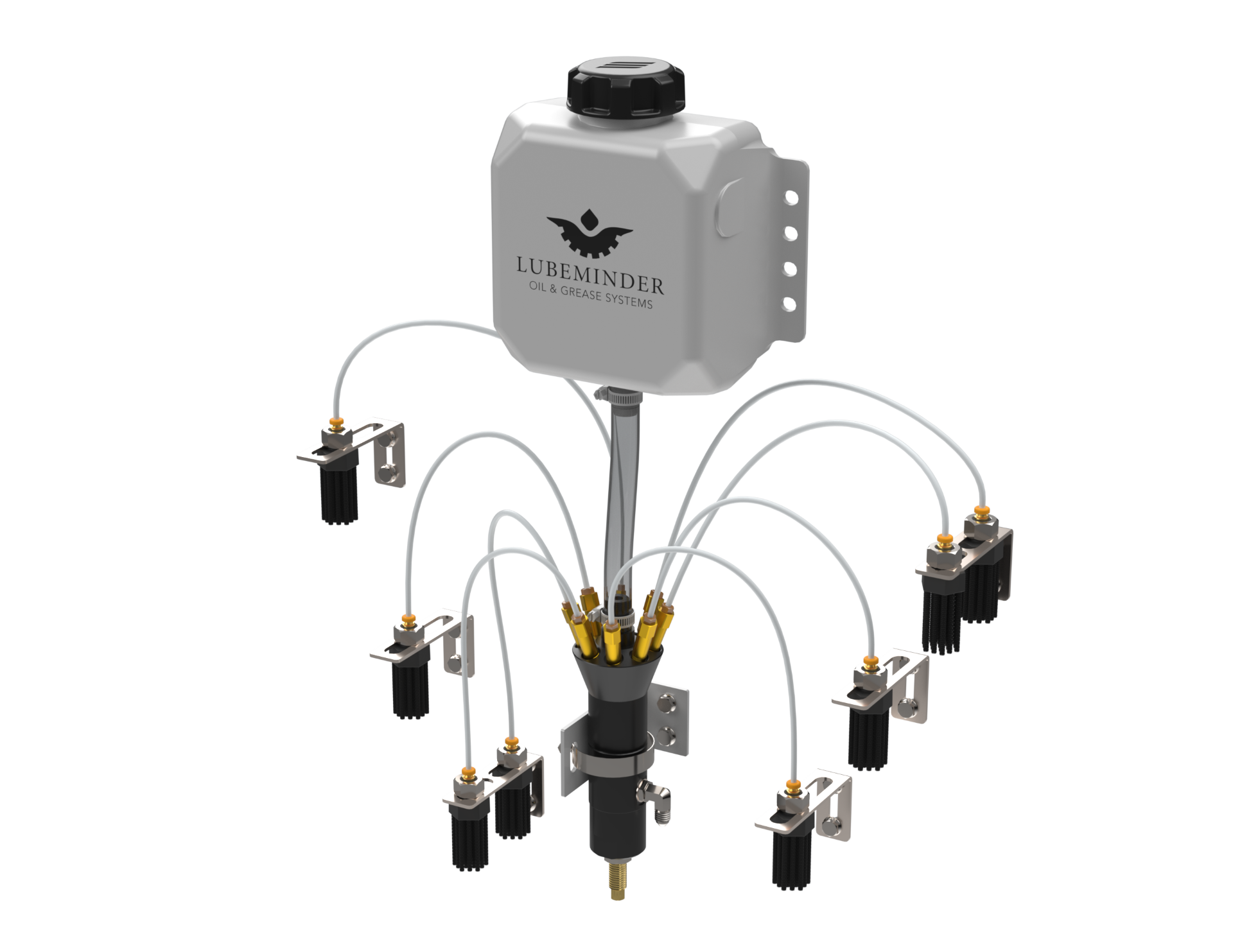

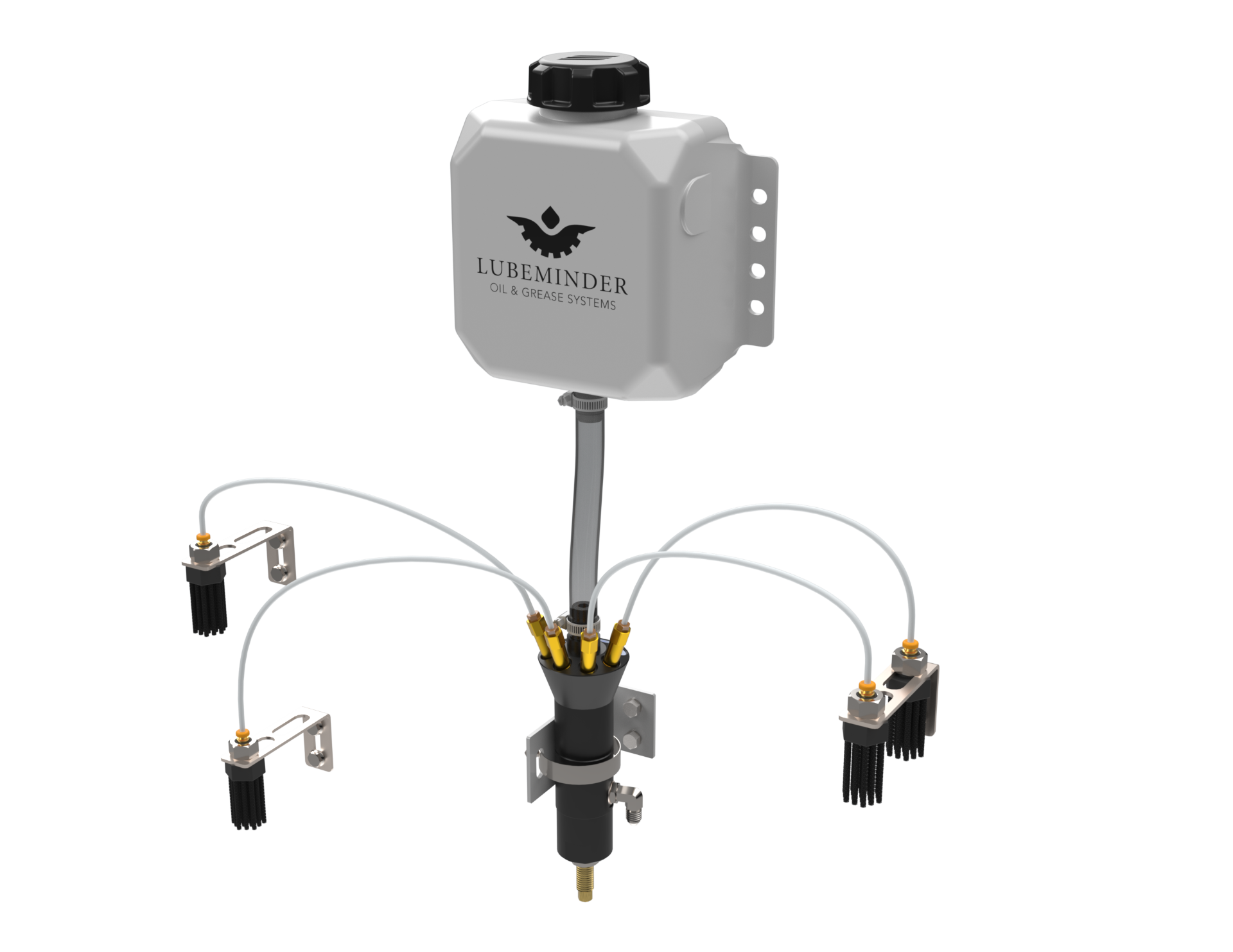

1-4 BRUSH UNIVERSAL KIT

170-0628

Includes:

(1) 8 Port Pump
(8) Manifold Valve Holder
(8) Brush
(3) Bracket - 90° Long
(2) Bracket - 90° Long
(4) Bracket - Flat Long
(1) Bracket - 90° Short
(2) Bracket - Flat Blank
(1) Bracket - Oiler Pump Mounting
(7) 1/8" NPT Plug
(1) 2 Quart Reservoir Tank
(5) Manifold Ferrule
(5) Sleeve Nut
(1) Restrictor Elbow
(1) (5') 5/8" ID Pump Tubing
(1) Universal LubeMinder® Hardware Kit
(10) (1') 1/4" Black Poly Tubing
(2) 50' Nylon Brush Tubing

5-8 BRUSH UNIVERSAL KIT

170-0628

Includes:

(1) 8 Port Pump
(8) Manifold Valve Holder
(8) Brush
(1) Oil Reservoir Filter Screen
(6) Bracket - 90° Long
(4) Bracket - Flat Long
(2) Bracket - 90° Short
(4) Bracket - Flat Blank
(1) Bracket - Oiler Pump Mounting
(3) 1/8" NPT Plug
(1) 2 Quart Reservoir Tank
(9) Manifold Ferrule
(9) Sleeve Nut
(1) Restrictor Elbow
(1) (5') 5/8" ID Pump Tubing
(1) Universal LubeMinder® Hardware Kit
(10) (1') 1/4" Black Poly Tubing
(2) 50' Nylon Brush Tubing

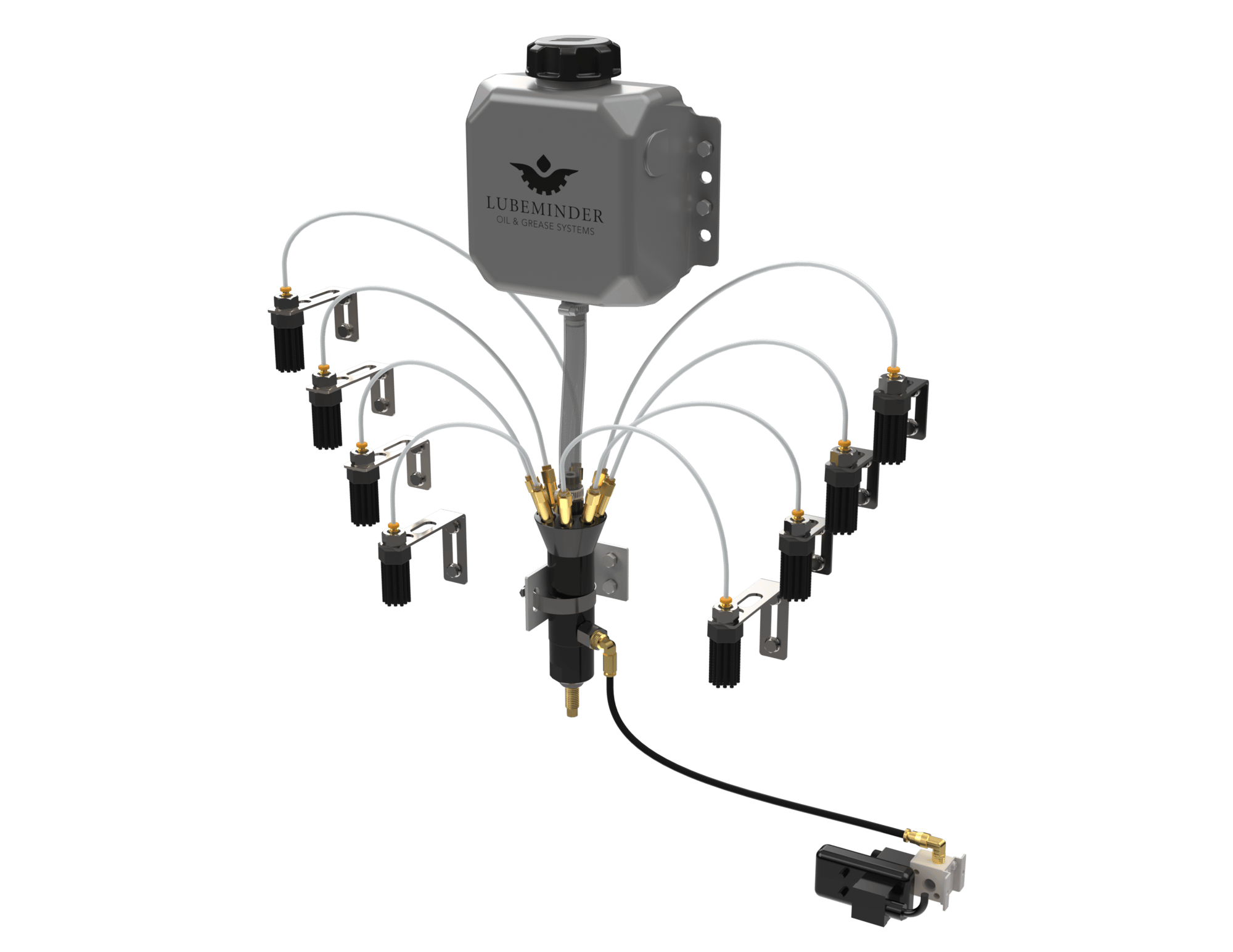

PNEUMATIC 110 VAC TIMER KIT (12/24 VDC AVAILABLE UPON REQUEST)

170-0701

Includes:

(1) 8 Port Pump
(8) Manifold Valve Holder
(8) Brush
(1) Oil Reservoir Filter Screen
(6) Bracket - 90° Long
(4) Bracket - Flat Long
(2) Bracket - 90° Short
(4) Bracket - Flat Blank
(1) Bracket - Oiler Pump Mounting
(3) 1/8" NPT Plug
(1) 2 Quart Reservoir Tank
(9) Manifold Ferrule
(9) Sleeve Nut
(1) Controller / Timer 110v (12v & 24v options)
(1) (5') 5/8" ID Pump Tubing
(1) Universal LubeMinder® Hardware Kit
(10) (1') 1/4" Black Poly Tubing
(2) 50' Nylon Brush Tubing

LUBEMINDER® PUMP (8)

170-0000

Includes:

(1) 8 Port Pump

LUBEMINDER® PUMP (4)

170-0000-4

Includes:

(1) 8 Port Pump
(4) Check Valve Manifolds

LUBEMINDER® PUMP (10)

170-0003

Includes:

(1) 10 Port Pump

LUBEMINDER® PUMP (1)

170-0026

Includes:

(1) Single Port Pump - w STD Filter

LUBEMINDER® PUMP (1)

170-0018

Includes:

(1) Single Port Pump - No Filter

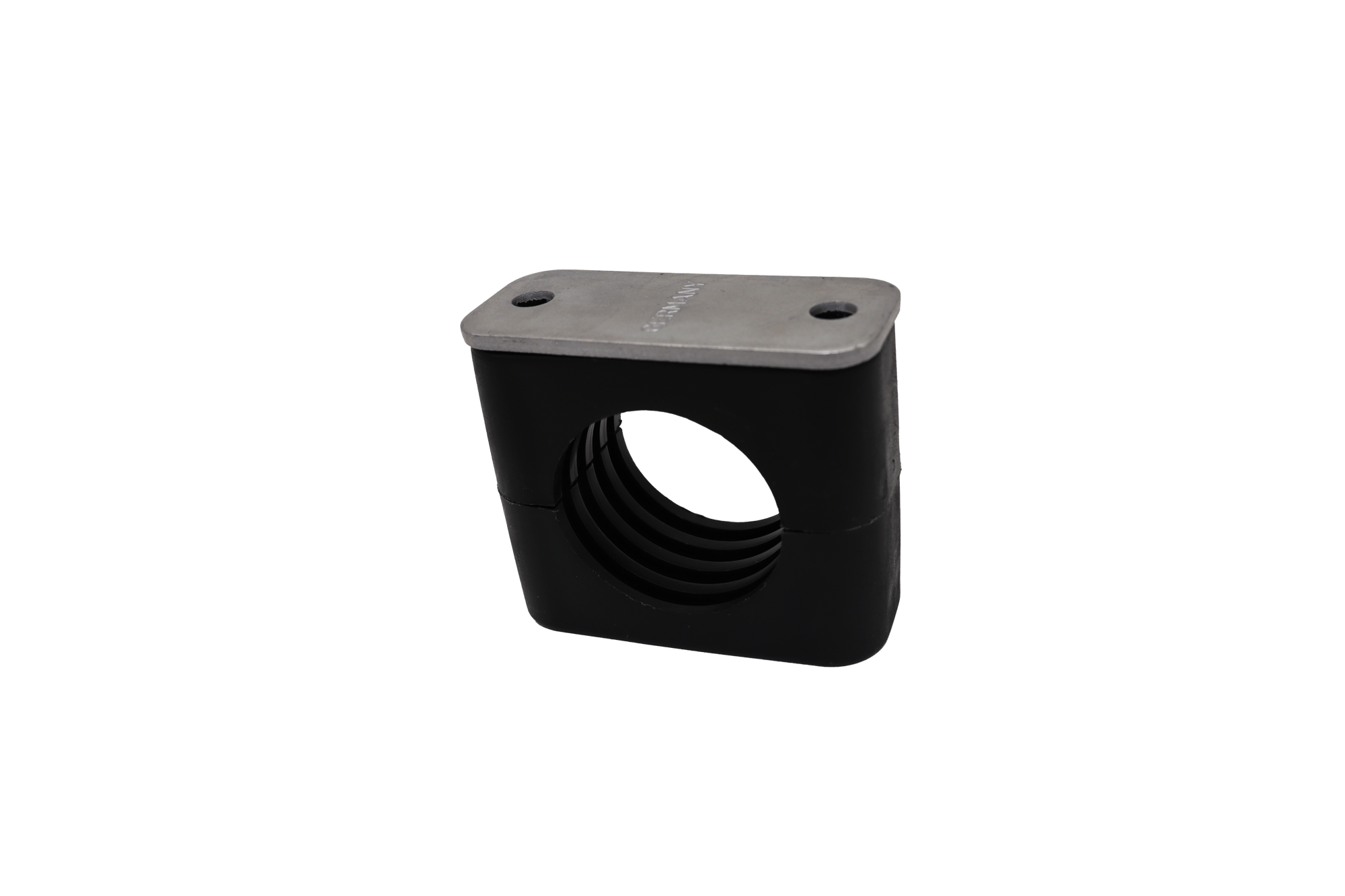

RIDGED PUMP MOUNT & BRACKET KIT

170-2005

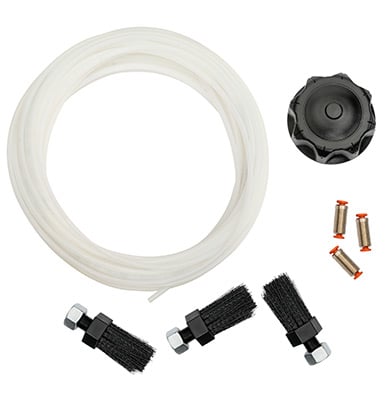

MINI MAINTENANCE KIT

170-0607

Includes:

(3) Brushes
(12) Manifold Ferrules
(4) Sleeve Nuts
(2) Union Locks
(1) (50’) Nylon Brush Tubing
(1) Reservoir Tank Cap

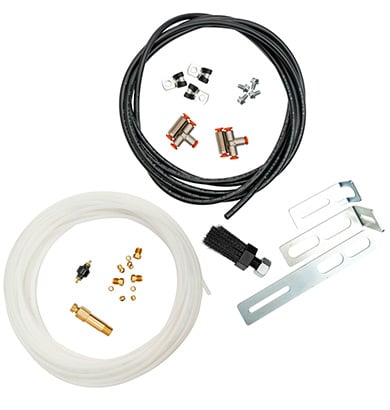

ADD A LINE / SPLICE KIT

170-0600

Includes:

(2) 5/32” Union Locks
(2) 5/32” Union Tees
(1) 50’ Nylon Brush Tubing
(8) Manifold Ferrules
(4) Sleeve Nuts
(1) Bracket - Short Angled
(1) Bracket - Flat Blank
(1) Bracket - 90° Long
(1) Brush
(1) 5/32” In Line Check Valve
(5) Taptite Bolts for Brackets
(3) Oiler Hose Clamps
(1) Check Valve Manifold
(10') 1/4" Black Poly Tubing

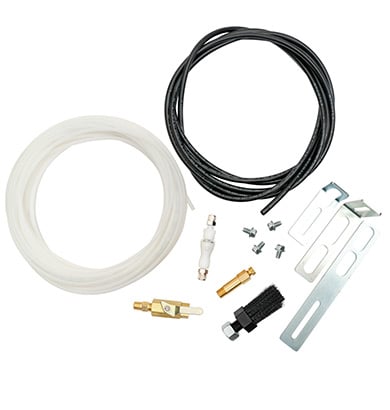

LINE KIT WITH SHUTOFF

170-0601

Includes:

(1) 1/8” Female Ball Valve
(1) 1/8” NPT Hex Nipple
(1) Check Valve Manifold
(1) 5/32” Coupling Insert
(1) 5/32” Coupling Body
(1) Brush
(1) 50’ Nylon Brush Tubing
(1) Bracket - Flat Blank
(1) Bracket - Short Angled
(1) Bracket - 90° Long
(4) Taptite Bolts for Brackets
(10') 1/4" Black Poly Tubing

ORIFICE / MANIFOLD KIT

Spare-Parts-Accessories_Thumbnail_LubeMinder

170-0602

Includes:

(5) Check Valve Manifolds
(5) Orifices - Medium
(5) Orifices - Small
(10) Manifold Ferrules
(5) Sleeve Nuts

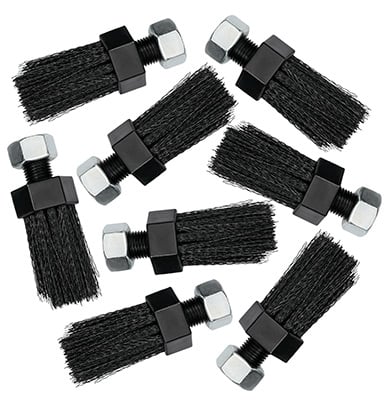

BRUSH KIT

170-0604

Includes:

(8) Brushes

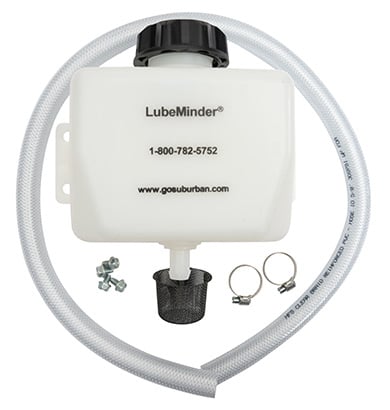

TANK ASSEMBLY KIT

170-0605

Includes:

(1) 2.3 Quart Reservoir Tank
(1) (3’) 5/8” ID Pump Tubing
(1) Oil Reservoir Filter Screen
(2) 5/16” - 7/8” Hose Clamps
(4) Taptite Bolts

INLET RESTRICTOR

170-0040

Building value for our customers by producing quality, innovative, engineered, application-based products.

Suburban is an engineering driven organization that partners with our customers to design and develop unique and specific solutions for multiple application specific needs in the Defense, Hydraulics, Oil & Gas, Automotive, Agriculture, Construction, Utilities, and Industrial markets. In addition to custom engineered solutions, Suburban offers a complete line of standard products sold under the Python, LubeMinder®, and Tsunami brands.

CLEAN, DRY AIR

Providing the highest-grade clean, dry air, our systems filter out oil, water, and dirt that build up in compressed air systems and interrupt daily business

Tsunami Ultra Series Dryer 21999-0710_new colors

AIR DRYERS & FILTRATION

21999-0980-Tsunami-Single-User-Breathing-Air-Package

GRADE D BREATHING AIR

21999-0449-Ultra-Flo-Spray-Hose_Thumbnail-2

AIR HOSES, DRAINS & ACCESSORIES

MODERN DAY PROTECTION

Our lubrication systems automatically grease and oil machinery - reducing the overall time spent maintaining tools and increasing the life of equipment.

Automatic oiling system_LubeMinder Pneumatic Automatic Oiler Universal

AUTOMATIC OILING SYSTEMS

AUTOMATIC GREASE SYSTEMS

MANUAL GREASE BANK SYSTEMS

Python Protective Sleeve and Covers PANTONE-01 HORIZONTAL (1)

EQUIPMENT & OPERATOR PROTECTION

Protect hoses, wires, and cables from abrasion, temperature, moisture, and ruptures with our easy-to-use sleeves and straps.

WRAP SLEEVES

TUBULAR SLEEVES

OEM Applications for Heavy-Duty Velcro Straps

Lubeminder

Product Catalog

GREASE SYSTEMS | OILING SYSTEMS | PARTS & ACCESORIES

AUTOMATIC LUBRICATION: AN INTRODUCTION

SAFETY PRECAUTIONS

Visit us online to see how we can serve YOUR needs.

ELECTRIC GREASE PUMPS

ENHANCE YOUR OPERATION AND LUBRICATE WITH EASE

SYSTEM BENEFITS:

SYSTEM FEATURES:

SYSTEM CONFIGURATIONS:

ELECTRIC GREASE PUMPS: OVERVIEW

SERIES PROGRESSIVE SYSTEM

SERIES PROGRESSIVE SYSTEM COMPONENTS

ELECTRIC GREASE PUMPS: OPERATION

APPLICATIONS

OPERATION

OPERATION

ELECTRIC GREASE PUMPS: SYSTEMS

4 LB / 2 KG ELECTRIC PUMP

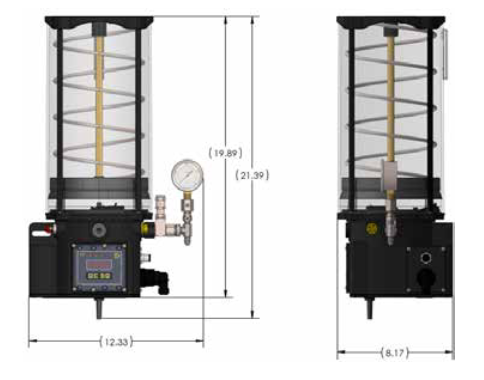

LUBEMINDER® 4 LB / 2 KG ELECTRIC GREASE PUMP TECHNICAL INFORMATION

ELECTRIC GREASE PUMPS: SYSTEMS

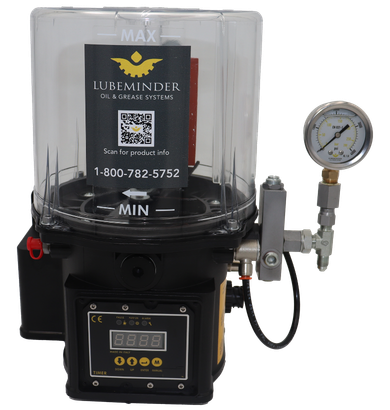

8 LB / 4 KG ELECTRIC PUMP

LUBEMINDER® 8 LB / 4 KG ELECTRIC GREASE PUMP TECHNICAL INFORMATION

ELECTRIC GREASE PUMPS: SYSTEMS

17 LB / 8 KG ELECTRIC PUMP

LUBEMINDER® 17 LB/ 8 KG ELECTRIC GREASE PUMP TECHNICAL INFORMATION

ELECTRIC GREASE PUMPS: ACCESSORIES

LUBEMINDER® 0-4000 PSI 2” 1/4” NPT PRESSURE GAUGE

M12 PUMP CABLE FOR PUMP INPUT SIGNAL OF PRESSURE OF CYCLE FEEDBACK

PUMP PRESSURE RELIEF TO TANK ASSEMBLY

OUTLET CHECK VALVE FOR MULTIPLE PUMP OUTLETS & HIGH SYSTEM HEADER PRES- SURE

REPLACEMENT GAUGE AND OUTLET ASSEMBLY

LUBEMINDER® 90° MOUNTING BRACKET

PUMP PRESSURE EXTERNAL RELIFE VALVE

.01 CUIN REPLACEMENT PUMPING ELEMENT

LUBEMINDER® REMOTE CONTROL

GREASE CARTRIDGE QUICK FILL KIT

LUBEMINDER® POWER PUMP CABLE-7 LEAD

.01 CUIN LUBEMINDER® AUXILIARY PUMPING ELEMENT ASSEMBLY

REPLACEMENT LUBEMINDER® ADJUSTABLE OUTPUT PUMP ELEMENT

ADJUSTABLE LUBEMINDER® AUXILIARY PUMPING ELEMENT ASSEMBLY

REPLACEMENT .017 PUMP ELEMENT

.017 CUIN LUBEMINDER® AUXILIARY PUMPING ELEMENT

LUBEMINDER® BUTTON HEAD ADAPTOR FOR ELECTRONIC GREASE PUMP

HYDRAULIC GREASE PUMPS: SYSTEMS

17 LB / 7.7 KG REFILLABLE HYDRAULIC PUMP

LUBEMINDER® 17 LB / 7.7 KG REFILLABLE HYDRAULIC GREASE PUMP TECHNICAL INFORMATION

HYDRAULIC GREASE PUMPS: SYSTEMS

PNEUMATIC 5 GALLON PAIL GREASE PUMP

HYDRAULIC GREASE PUMP W LOW LEVEL SENSOR, HEATER, AND BELLOWS COVER

REFILLABLE HYDRAULIC GREASE PUMP

HYDRAULIC GREASE PUMP W BELLOWS COVER

HYDRAULIC GREASE PUMP W HYDRAULIC CONTROL VALVE AND BELLOWS COVER

HYDRAULIC GREASE PUMP W LOW LEVEL SENSORS AND BELLOW COVER

BUTTON HEAD PLUNGER GREASE FITTING, 1/4 NPT, STEEL, CLEAR ZINC, DRIVE: 5/8 HEX

LUBEMINDER® BUTTON HEAD ADAPTOR FOR ELECTRONIC GREASE PUMP

PROGRESSIVE BLOCK: BLOCKS

PROGRESSIVE BLOCKS

APPLY GREASE TO MULTIPLE GREASE POINTS

PROGRESSIVE BLOCK: ACCESSORIES

SYSTEM COMPONENTS

CRIMPABLE COMPONENTS

FIELD INSTALLABLE COMPONENTS

MANUAL GREASE BANK: SYSTEM

CENTRALIZED GREASE BANKS

ENHANCE YOUR OPERATION AND GREASE WITH EASE

FEATURES & BENEFITS:

SYSTEM COMPONENTS:

MANUAL GREASE BANK: BUILD A KIT

BUILD A KIT

HIGH PRESSURE GREASE SYSTEMS ARE RATED FOR 3480 PSI AND MAY BE OPERATED WITH VARIOUS GREASE GUNS

GREASE BANKS REQUIRE CUSTOMER ASSEMBLY & INSTALLATION. CRIMP SPECS MUST BE FOLLOWED FOR HIGH PRESSURE SYSTEMS. SUBURBAN MANUFACTURING IS NOT LIABLE FOR FAILURE DUE TO IMPROPER CRIMPING OR ASSEMBLY.

OIL LUBRICATION: SYSTEMS

AUTOMATIC OILING SYSTEM

SYSTEM BENEFITS:

OIL LUBRICATION: SYSTEMS

HOW DOES THE LUBEMINDER® WORK?

OIL LUBRICATION: OILING KITS

1-4 BRUSH UNIVERSAL KIT
